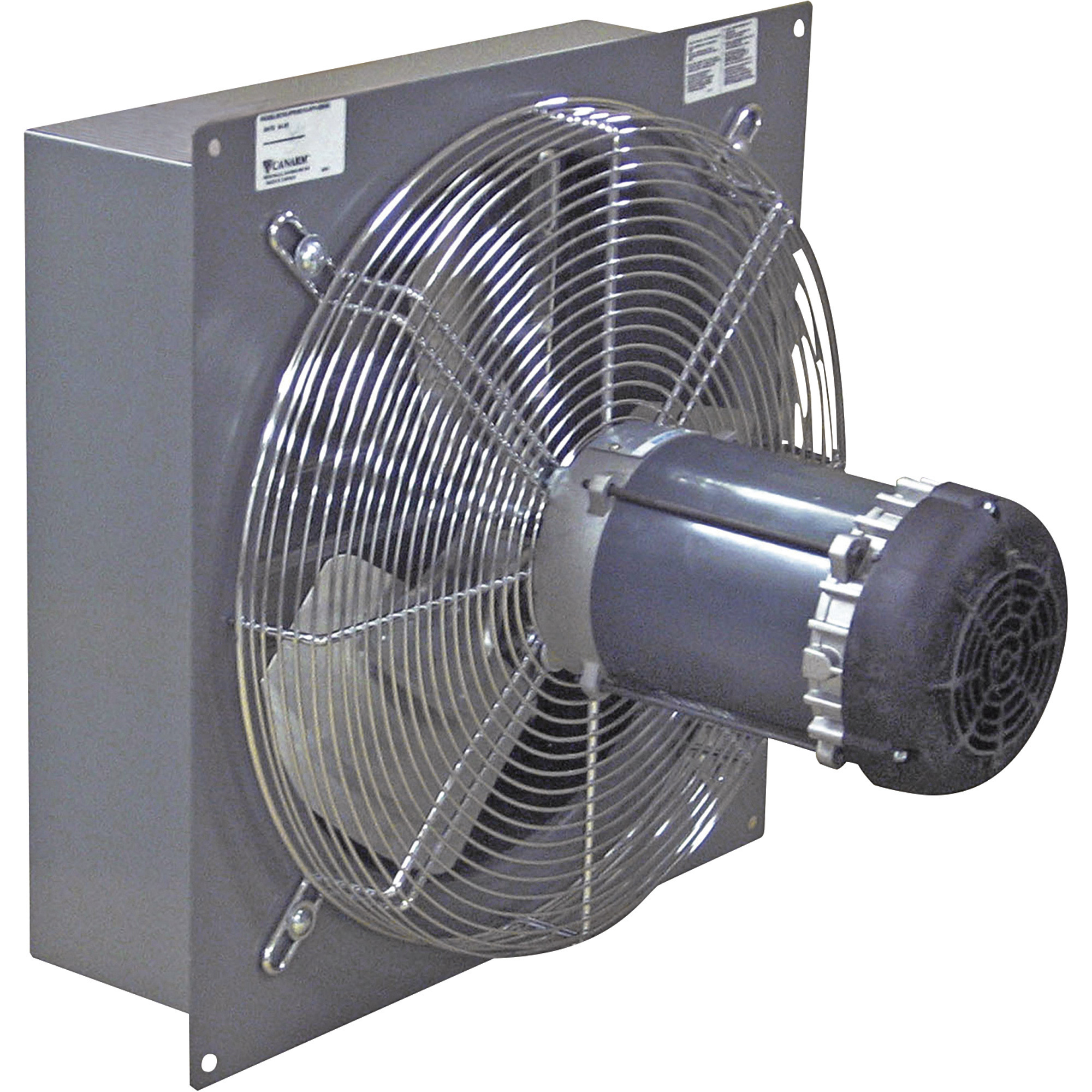

Canarm Explosion-Proof Totally Enclosed Exhaust Fan, 12in., 1/3 HP, 1640 CFM, Model# SD12-XPF

Item# 14770
Top Seller
Canarm Explosion-Proof Totally Enclosed Exhaust Fan, 12in., 1/3 HP, 1640 CFM, Model# SD12-XPF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Explosion-Proof Totally Enclosed Exhaust Fan, 12in., 1/3 HP, 1640 CFM, Model# SD12-XPF

Click or Tap image to Zoom

$769.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Rugged steel welded box housing has a durable powder-coated finish
  • Heavy wire chrome-plated OSHA guards
  • Totally enclosed ball bearing 1/3 HP motor with thermal overload protection ensures reliable performance
  • Installs from interior
  • Requires hardwired connection

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Canarm Explosion-Proof Exhaust Fan is a highly efficient and low-maintenance solution designed for demanding environments such as shops and farms. Featuring a direct drive type and a 12in. fan diameter, this fan delivers an impressive air delivery of 1640 cubic feet per minute (cfm). Engineered for quality and easy installation, it ensures reliable performance and safety in areas where explosion-proof equipment is essential. The robust construction and thoughtful design make it an ideal choice for maintaining optimal air quality and ventilation in hazardous locations.

What's Included

    (1) Fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Rugged steel welded box housing has a durable powder-coated finish
  • Heavy wire chrome-plated OSHA guards
  • Totally enclosed ball bearing 1/3 HP motor with thermal overload protection ensures reliable performance
  • Installs from interior
  • Requires hardwired connection
  • Aluminum louver shutters are supported by long-life nylon bushings

Key Specs

AttributeSpecification

item#

14770

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.6 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

12 in

Air Delivery

1,640 cfm

Volts

115/230

Speeds (qty.)

1

Horsepower

0.33 HP

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. What is the temperature operating range?

    1 answer

    1. The temperature range on the fan will be 14 degree F to 104 degrees F.

      Helpful?

  2. what is the CFM of this fan?

    1 answer

    1. This Canarm Explosion-Proof Totally Enclosed Exhaust Fan has a maximum CFM rating of 1,640.

      Helpful?

  3. Instead of hard-wiring, can I install a short appropriately rated cable and plug to use in an existing 230V receptacle?

    1 answer

    1. As long as appropriate cable and plug is used and it meets your local codes and regulations you would be able to install a cable and plug on the exhaust fan.

      Helpful?

  4. Is this rated for butane and other volatile gases?

    1 answer

    1. This explosion proof fan can be used with the following gasses. Acetaldehyde, cyclopropane, diethlether, Ethylene, isoprene, Acetone, acrylonitrile, ammonia, benzene, Butane, ethylene dichloride, gasoline, hexane, methane, methanol, naphtha, propane, propylene, styrene, toluene, vinyl, acetate, vinyl chloride and xylene. The product manual contains a full list of other products that can and cannot be used with this fan.

      Helpful?

  5. Can this fan be used in heavy dust removal as in a sand blasting room?

    1 answer

    1. This exhaust fan cannot be used for heavy dust removal.

      Helpful?

  6. can this be used in a paint booth?

    1 answer

    1. This Canarm Explosion-Proof Exhaust Fan can be used in a pant booth, if it is being used to exhaust the smell of the paint. It will not work if you need to have filters in front of the fan to catch the paint.

      Helpful?

  7. How loud is this fan?

    1 answer

    1. There is not a decibel rating on this fan. The decibels should be approximately between 65 and 70 depending on environmental and structural conditions.

      Helpful?

  8. Can duct be attached to inlet side of this fan?

    1 answer

    1. No, ducting should not be attached to this unit.

      Helpful?

  9. Do the shutters come on and off automatically when turned on and off? Is speed control available for this model or is it one speed only?

    1 answer

    1. The shutters would open when the fan is turned on and the close when it is turned off. It is only one speed. It runs at 1640 CFM.

      Helpful?

  10. Is this fan rated for a Class 1 Div 1 or Div 2 area?

    1 answer

    1. This fan is Class 1 Group C, Class 1 Group D, Class 2 Group F, and Class 2 Group G rated only.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
