I use 16/20 size plastic with no issues.

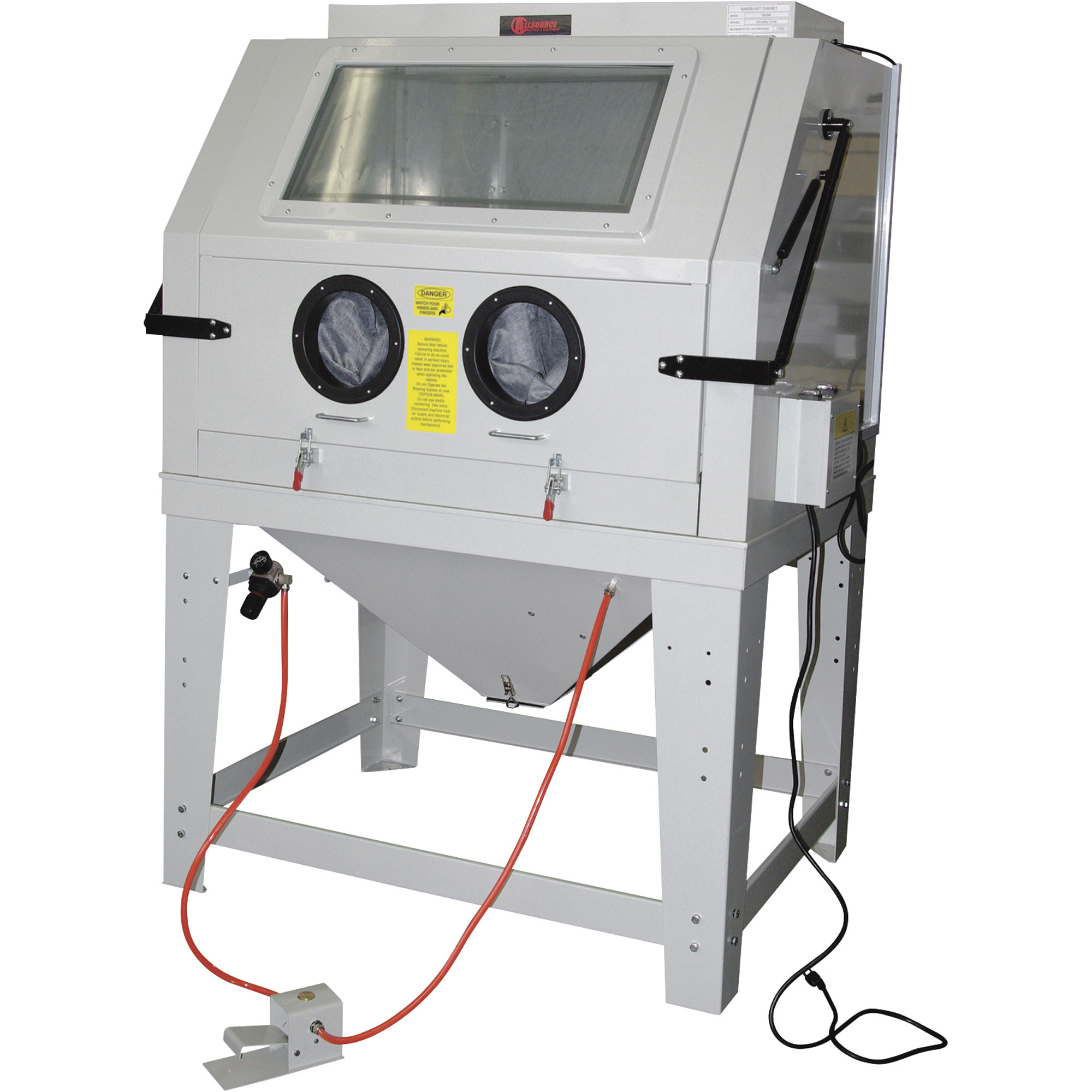

Allsource Monster Abrasive Blast Cabinet, 46in., Model# 41800
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
- Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
- 80-110 psi operating range
- Minimum air volume of 15-20 CFM @ 80 psi
- Extra-large viewing window measuring 30in. x 15in. gives the operator a wide viewing area
Prop 65 Warning: See Details
See full description
What's Included
- (1) Abrasive blaster cabinet (1) Gun (4) Ceramic nozzles (two 6mm, two 7mm) (1) Air regulator (2) Blast gloves
Downloads
Features + Benefits
- Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
- Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
- 80-110 psi operating range
- Minimum air volume of 15-20 CFM @ 80 psi
- Extra-large viewing window measuring 30in. x 15in. gives the operator a wide viewing area
- Oversized front door opening of 29in. x 38in. allows the operator to easily load a wide variety of items into the blast cabinet
- Great for heavy or bulky items due to the low loading point
- Gas-charged hydraulic hinges make opening the oversized front door effortless and safe
- Large inside work area of 46in.W x 33in.H x 34in.D allows the operator to easily maneuver bulky items inside the cabinet
- Heavy-duty 14-ga. steel legs provide strength and a stable footprint
- Florescent light kit and 90 CFM dust collector help the operator to maintain a good visual in heavy blasting operations
- Rear-mounted dust collector helps minimize floor space needed for operation
- Replaceable protective window and light underlay to protect and extend the life of the viewing window and light cover
- Foot pedal controlled siphon blast gun helps to reduce operator hand fatigue
- Grate capacity of 400 lbs. allows the operator to blast heavier items such as cylinder heads and engine blocks
-
What size Plastic Blast Media will work with this Cabinet?
-
Helpful?
-
This Allsource Abrasive Blast Cabinet can handle a maximum plastic media size of 16/20 grit.
Helpful?
-
-
Which replacement nozzles work with this cabinet.
-
There are two kits available for replacement nozzles for this cabinet. The first is a 6 millimeter kit consisting of 3 nozzles plus a O-ring (our part number 527350). The second is a 7 millimeter kit consisting of 3 nozzles plus a O-ring (our part number 527351).
Helpful?
-
We offer two size nozzles for this Blaster, a 6mm and 7mm. They are sold individually and in a 3 pack. The part numbers are:
(3) 6mm nozzles - 527350
(3) 7mm nozzles - 527351
(1) 6mm nozzle - 524146
(1) 7mm nozzle - 524147Helpful?
-
-
can this model blast cabinet do soda as media or just glass and sand?
-
This product can not be used with soda. It is intended to be used with aluminum oxide, glass bead, garnet, walnut shells, corn cob and plastic grit. Please see item 155665 for a soda blaster.
Helpful?
-
No, soda cannot be used. The Monster Blast Cabinet is a siphon cabinet and does not generate enough velocity to make soda an effective cleaning material. This cabinet is recommended for use with abrasives such as glass bead, aluminum oxide, garnet, corn cob to name a few. Sand is never recommended due to health concerns with the silica dust.
Helpful?
-
-
Are the consumables available at Northern tool? ie nozzles and glass protectors?
-
The machine comes with extra nozzles and glass protection. However, I have not tried to buy additional spares.
Helpful?
-
Northern Tool would have all consumables and all replacement parts.
Helpful?
-
-
Where can I find the lights for this cabinet?
I have been to two lighting stores and neither of them have these lights. The lights from the cabinet do not have any markings on them that I can use to search for a supplier. Do you have the light specs?
1 answer-
The fluorescent bulb, part number AC41869, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.
Helpful?
-
-
Is this a full standalone system or does it require other components?
Do you need to hook this blast cabinet up to any other components or it stands and works on its own? Thank you.
1 answer-
It would require being connected to an air compressor and requires a minimum of 15-20 CFM at 80 PSI.
Helpful?
-
-
Replacement Light Bulbs?
Having a hard time locating any replacement bulbs or information on the size of the bulbs needed. Any help would be appreciated. Thanks!
1 answer-
The fluorescent bulb, part number AC41869, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.
Helpful?
-
-
how much weight is it rated to hold inside?
1 answer-
The heavy duty steel grate in the Allsource Monster Blast Cabinet will hold up to 400 lbs.
Helpful?
-
-
What is the part numebr for the filter??
Looking for filter that goes with this the manual doesn't have any info and the filter has no info on it.
Do you have specs or info that would help me get these.
1 answer-
The filter, part number AC4150029, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Abrasive Blasting Cabinets
See All AllSource Abrasive Blasting Cabinets
Currently Viewing This Product
Specifications
Specifications
Allsource Monster Abrasive Blast Cabinet, 46in., Model# 41800
Allsource Dual Station Abrasive Blasting Cabinet, 71in., Model# 41200
Allsource Abrasive Pressure Blast Cabinet, 69in., Model# 42000
ALC Steel Abrasive Blasting Cabinet with LED Light Kit, 48in., Model# 40411L
Max. PSI
Same
125
110
110
125
Max. Air Consumption
Same
20 cfm
20 cfm
25 cfm
15 cfm
Body Material
Same
Steel
Steel
Steel
Steel
Body Finish
Same
Powder-Coat
Powder-Coat
Powder-Coat
Powder-Coat
Nozzle Size
Same
Multiple
0
0
1-1/4
Gun Included
Same
Yes
Yes
Yes
Yes
Foot Control Included
Same
Yes
Yes
Yes
Yes
Main Door Width
Same
29 in
29 in
29 in
13 in
Main Door Length
Same
38 in
38 in
38 in
47 in
For Use With
Same
Aluminum Oxide, Glass Bead, Plastic Grit, Garnet, Walnut Shell, Corn Cob
Any Type of Dry Abrasive Such As Glass Bead, Plastic Grit, Aluminum Oxide and Silicon Carbide
Any Type of Dry Abrasive Such As Glass Bead, Plastic Grit, Aluminum Oxide and Silicon Carbide
Any Type of Dry Abrasive Such As Glass Bead, Plastic Grit, Aluminum Oxide and Silicon Carbide
Media Capacity
Same
-
300 lb
45.06 lb
50 lb
Product Weight
Same
-
596 lb
580 lb
303 lb
