ALC Steel Abrasive Blasting Cabinet, 60in., Model# 40413

Item# 5240413
"ALC Steel Abrasive Blasting Cabinet, 60in., Model# 40413"
ALC Steel Abrasive Blasting Cabinet, 60in., Model# 40413

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ALC Steel Abrasive Blasting Cabinet, 60in., Model# 40413

Click or Tap image to Zoom

$2999.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
  • Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
  • 80-125 psi operating range
  • Minimum air volume of 15 CFM @ 80 psi
  • Fully-welded construction with no seams or leak points helps keep the blasting operation contained inside the cabinet

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • ALC Steel Abrasive Blasting Cabinet, 60in., Model# 40413
  • ALC Medium Glass Bead Abrasive Blast Media, 25 Lbs., Model# 40105
  • ALC Medium Aluminum Oxide Abrasive Blast Media, 25 Lbs., Model# 40098
  • ALC Abrasive Blaster Nut and Bolt Basket, Model# 41909
Price for all four:

$3195.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

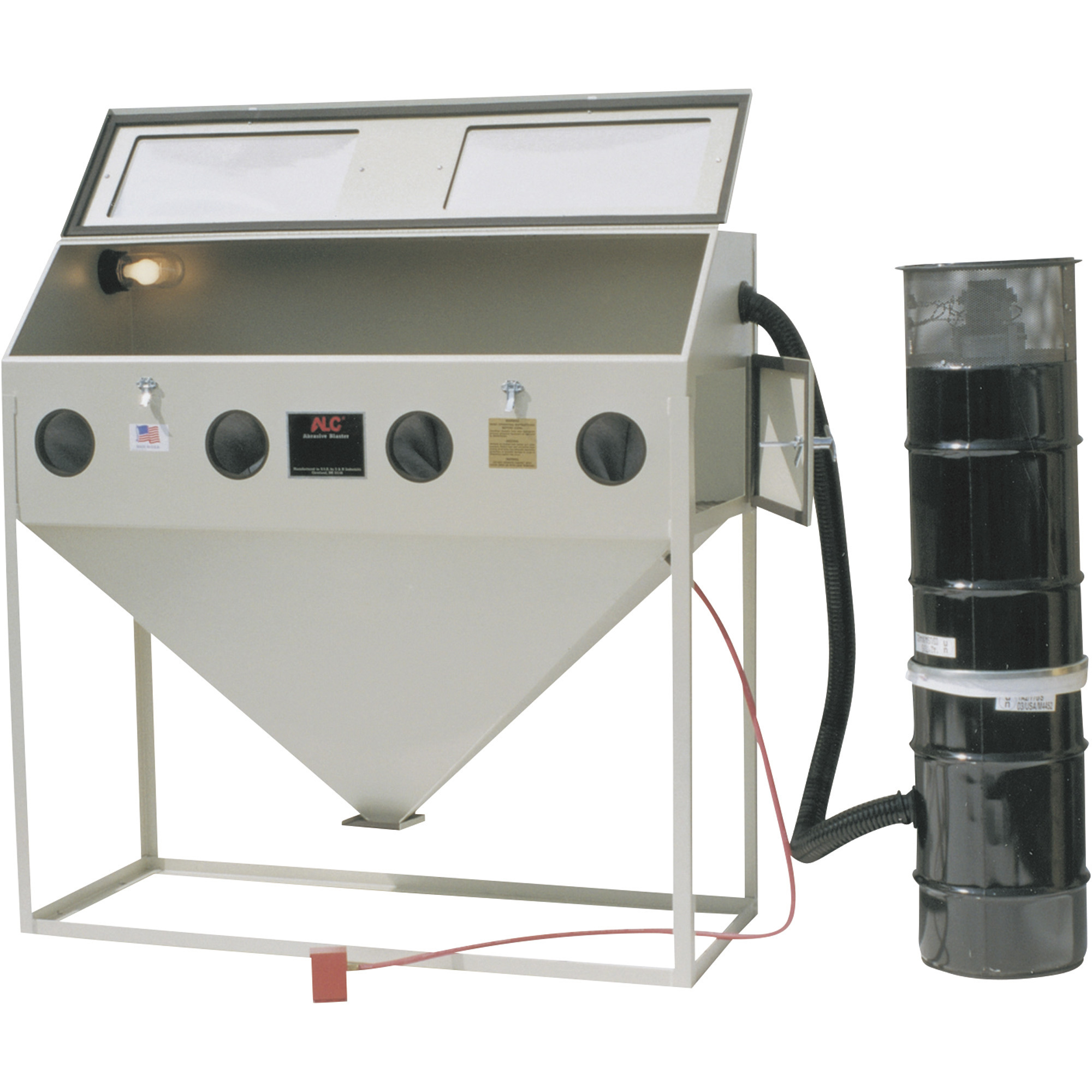

This ALC® Steel Abrasive Blast Cabinet is a durable 60in. x 24in. steel blast cabinet constructed of 14-ga. steel with heavy-duty angle iron legs. The fully-welded design means there are no seams to leak. Inside work area of 60in.W x 24in.H x 24in.D to accommodate a large variety of items, with side door access. Includes foot pedal controlled gun with 1/4in. nozzle, 150 watt light kit, high quality 24in. lined gloves, 112 CFM dust collector with 50 micron filter bag and protective window underlay. Full opening top door and side door.

What's Included

    (1) Abrasive blast cabinet (1) 112 CFM polymer dust collector with filter bag (1) Foot pedal and gun kit with 1/4in. nozzle (1) 150 Watt light kit (1) Pair of lined gloves (1) Window underlay (1) Steel grate
Play Item Video

Features + Benefits

  • Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
  • Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
  • 80-125 psi operating range
  • Minimum air volume of 15 CFM @ 80 psi
  • Fully-welded construction with no seams or leak points helps keep the blasting operation contained inside the cabinet
  • 2 large viewing windows measuring 12in. x 24in. give the operator a wide viewing area

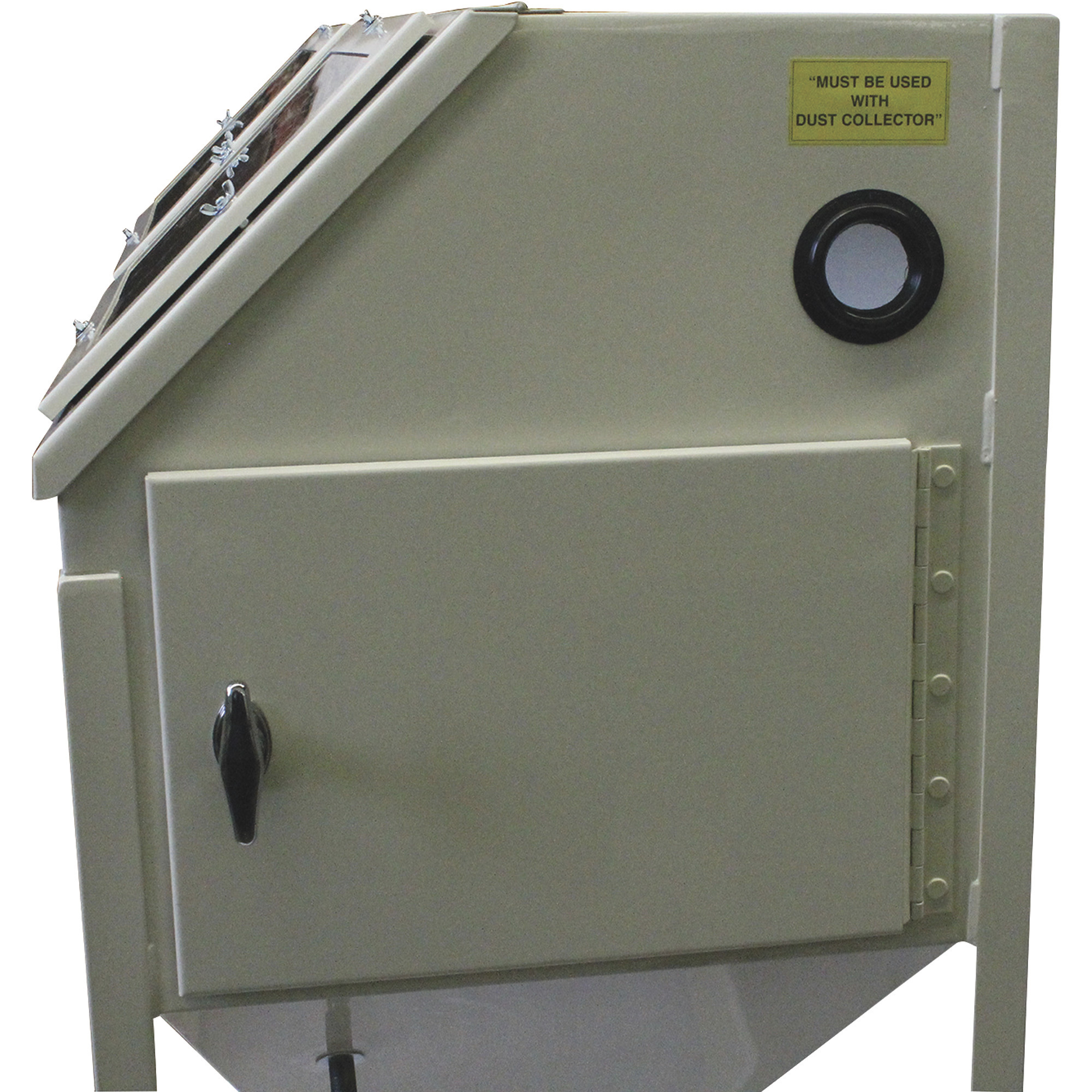

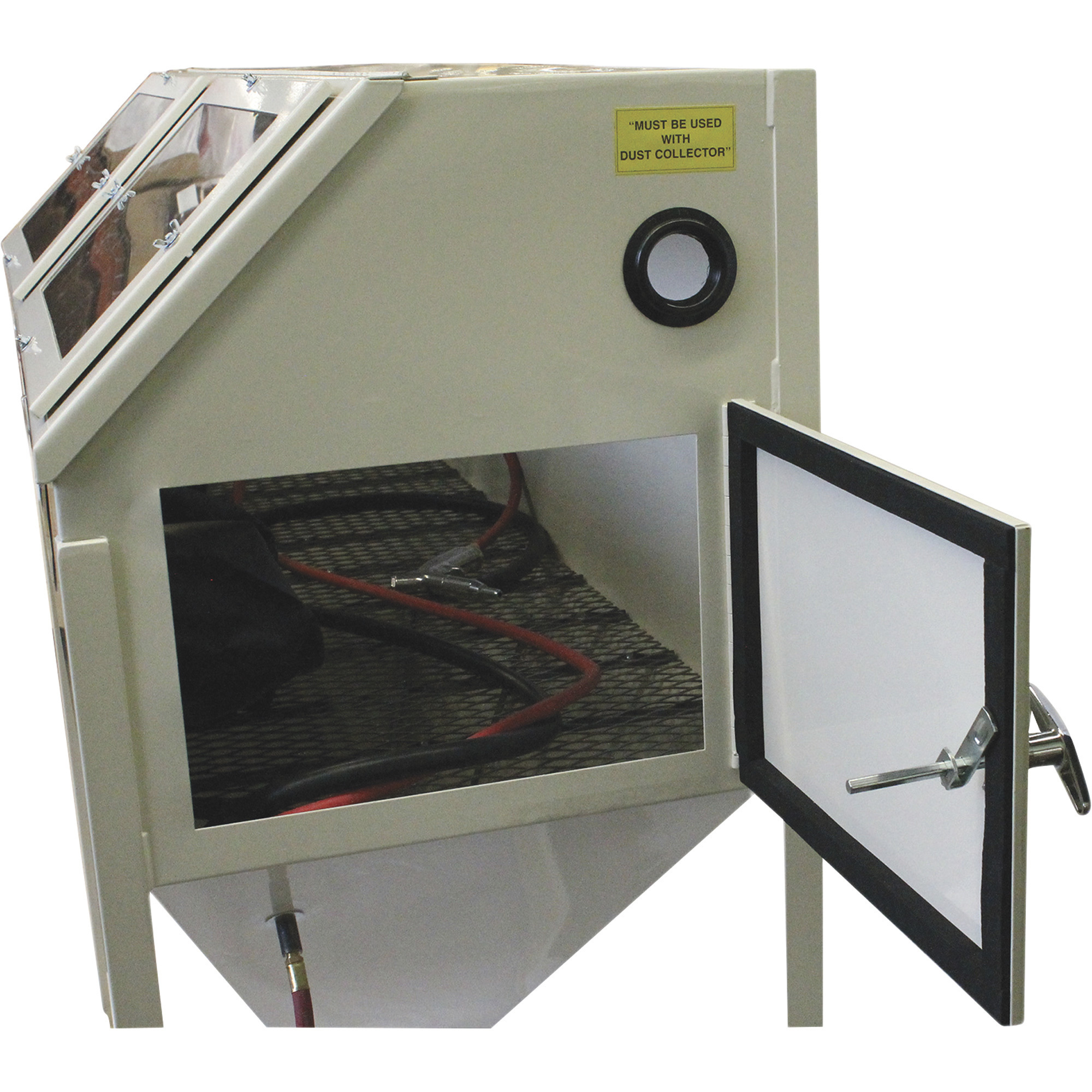

  • Oversized hinged top door opening of 13in. x 59in. and hinged side door opening of 11in. x 17in. allows the operator to easily load a wide variety of items into the blast cabinet
  • Large inside work area of 60in.W x 24in.H x 24in.D allows the operator to easily maneuver bulky items inside the cabinet
  • Heavy-duty angle iron legs provide strength and a stable foot print
  • 150 Watt max light kit and 112 CFM dust collector help the operator to maintain a good visual in heavy blasting operations

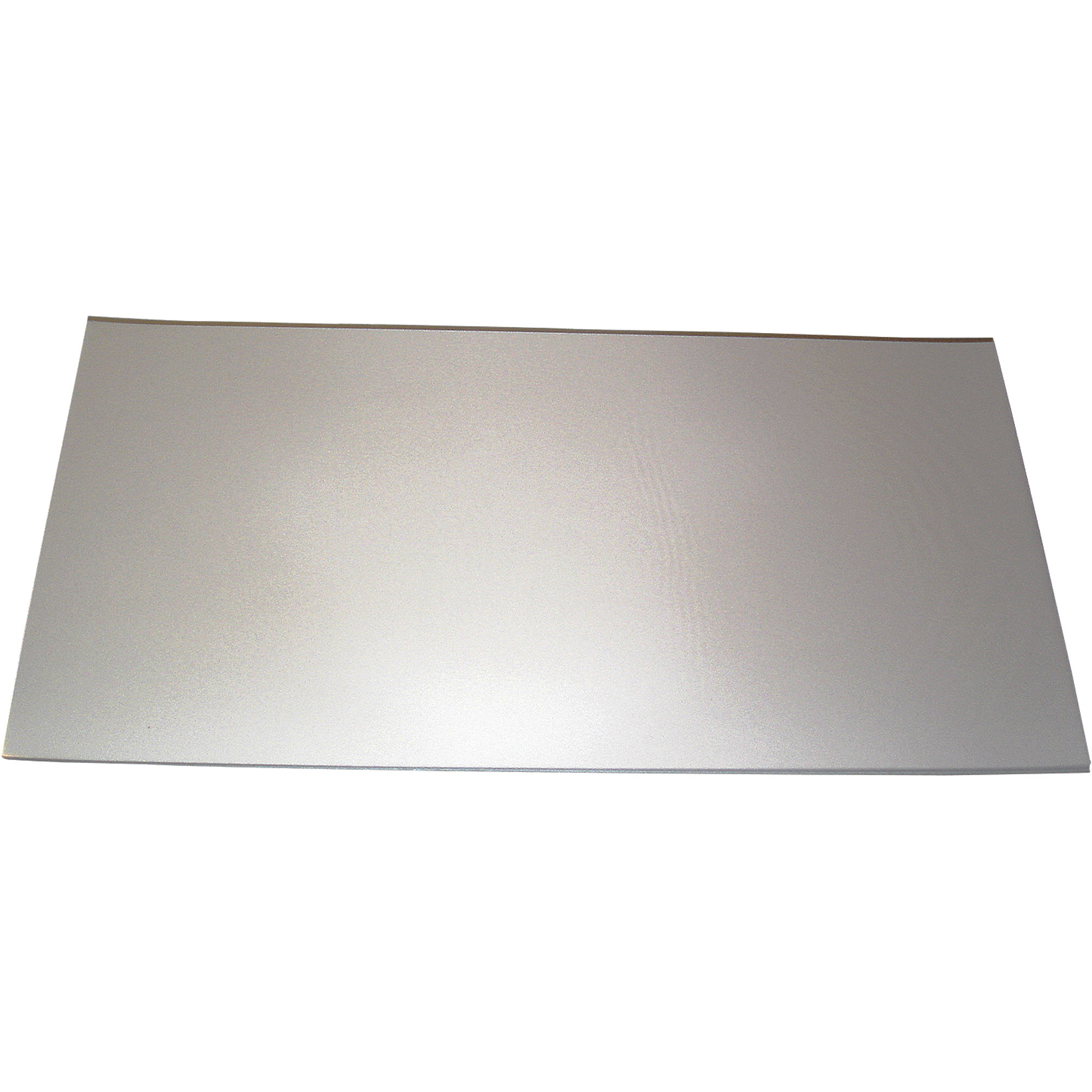

  • Replaceable protective window underlay to protect and extend the life of the viewing window
  • 4 armholes spanning the length of the cabinet allow the operator the versatility to work on longer items without moving the item
  • Foot pedal controlled siphon blast gun helps to reduce operator hand fatigue
  • Grate capacity of 200 lbs. allows the operator to blast heavier items such as cylinder heads

Key Specs

AttributeSpecification

item#

5240413

Brand

ALC

Ship Weight

333.0 LB

Max. PSI

100

Max. Air Consumption

25 cfm

Body Material

Steel
AttributeSpecification

Nozzle Size

1/4

Gun Included

Yes

Foot Control Included

Yes

Main Door Width

13 in

Main Door Length

59 in

For Use With

Dry Abrasive

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. can you use soda bicarbonate in this blaster?

    1 answer

    1. Soda is not considered a recyclable media making it not an ideal abrasive for blasting cabinets that recycle the media. Soda can be used in this cabinet however it will create a dustier environment inside the cabinet and require more frequent cleaning and filter replacements.

      Helpful?

  2. electrical svc. is 110V 15A svc. req. 50-60hz. Is this single or three phase please?

    1 answer

    1. The electrical service would be single phase.

      Helpful?

  3. Where is this product made?

    1 answer

    1. This abrasive blaster is manufactured in the United States.

      Helpful?

  4. Do you know the filter type on the vacuum?

    I am looking to retrofit the filter with a HEPA unit.

    1 answer

    1. The dust collector has a 100 cfm filter. There is no other filter currently available.

      Helpful?

  5. What is the volts and amps

    1 answer

    1. This cabinet would operate on 110 volts. It puts out 60 amps and would require a 15 amp service. It is 50-60 HZ.

      Helpful?

  6. Just wondering if there is a light upgrade kit for this unit

    Florescent if possible. Needs more lighting.

    1 answer

    1. This Blasting Cabinet comes with a light fixture that uses common household bulbs, incandescent or florescent lights.

      Helpful?

  7. Are replacement parts available?

    Is this cabinet designed for heavy industrial use? Are replacement parts and filters readily available?

    1 answer

    1. This blasting cabinet is designed for heavy duty use and comes with a 2 year warranty. Replacement parts are available from the manufacturer, ALC.

      Helpful?

  8. can I use media other than glass. how about various sands

    1 answer

    1. It is not advised to use sand in the sand blaster due the the moisture content of the sand which would result in clumping. Any other type of blasting media can be used.

      Helpful?

  9. I need a part number and price for steel nozzles for ALC blast cabinet model 40413. Also the same info for package of window protectors for the same m

    1 answer

    1. For availability and pricing of parts for this item, please contact our parts department @ 1-800-222-5381 and select the parts option.

      Helpful?

  10. does it come with the gun

    1 answer

    1. The blasting cabinet does not come with a trigger gun, but has the foot pedal operation.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Blasting Media
ALC Medium Glass Bead Abrasive Blast Media, 25 Lbs., Model# 40105
4.9 out of 5 stars. 24 reviews

ALC Medium Glass Bead Abrasive Blast Media, 25 Lbs., Model# 40105

Item # S1586

$67.99
See All Blasting Media

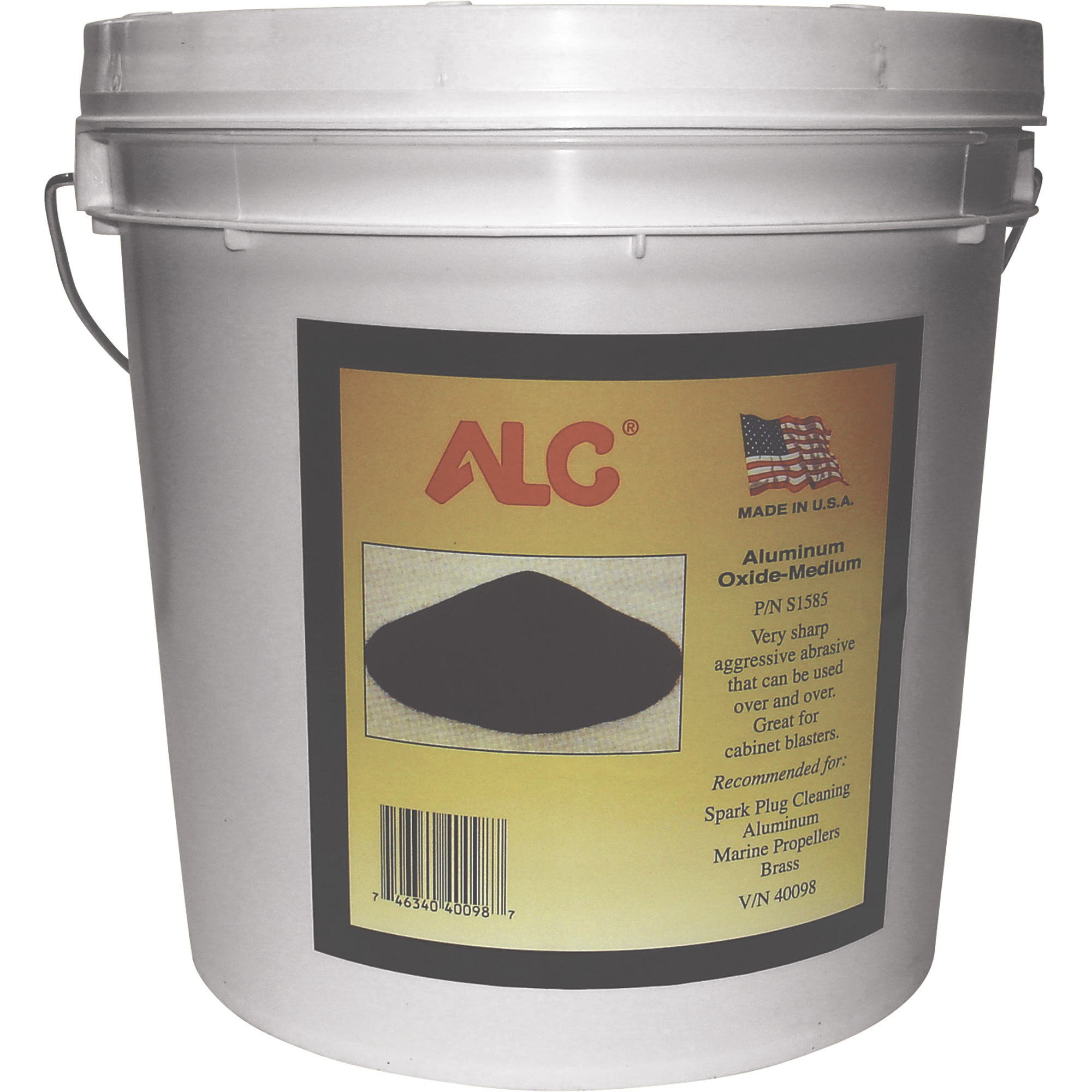

ALC Medium Aluminum Oxide Abrasive Blast Media, 25 Lbs., Model# 40098
