This unit has a maximum consumption of 20 CFM @80PSI. Your compressor will need to provide at least 20 CFM @80PSI to be able to use this blast cabinet with the largest nozzle without having to stop and wait for the compressor to catch up.
AllSource Abrasive Blast Cabinet, 48in., Model# 41500
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1999.99
- Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
- Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
- 80-110 psi operating range
- Minimum air volume of 15-20 CFM @ 80 psi
- Large viewing window measuring 12in. x 24in. gives the operator a wide viewing area
Prop 65 Warning: See Details
See full description
Price for all four:
$2195.96
What's Included
- (1) Siphon Abrasive Blaster Cabinet (1) Dust collector (1) 2-bulb light kit (1) Foot pedal (4) Ceramic nozzles
Downloads
Features + Benefits
- Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
- Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
- 80-110 psi operating range
- Minimum air volume of 15-20 CFM @ 80 psi
- Large viewing window measuring 12in. x 24in. gives the operator a wide viewing area
- Oversized hinged top door opening of 15in. x 47in., and 2 hinged side door openings of 20in. x 22in., allows the operator to easily load a wide variety of items into the blast cabinet
- Top and side doors include PSA foam seals for excellent containment
- Large inside work area of 48in.W x 23in.H x 24in.D allows the operator to easily maneuver bulky items inside the cabinet
- 52in.W x 36in.D x 67in.H overall size
- Hinged door on hopper allows for easy changing of the abrasive
- Heavy-duty 14 gauge steel legs provide strength and a stable footprint

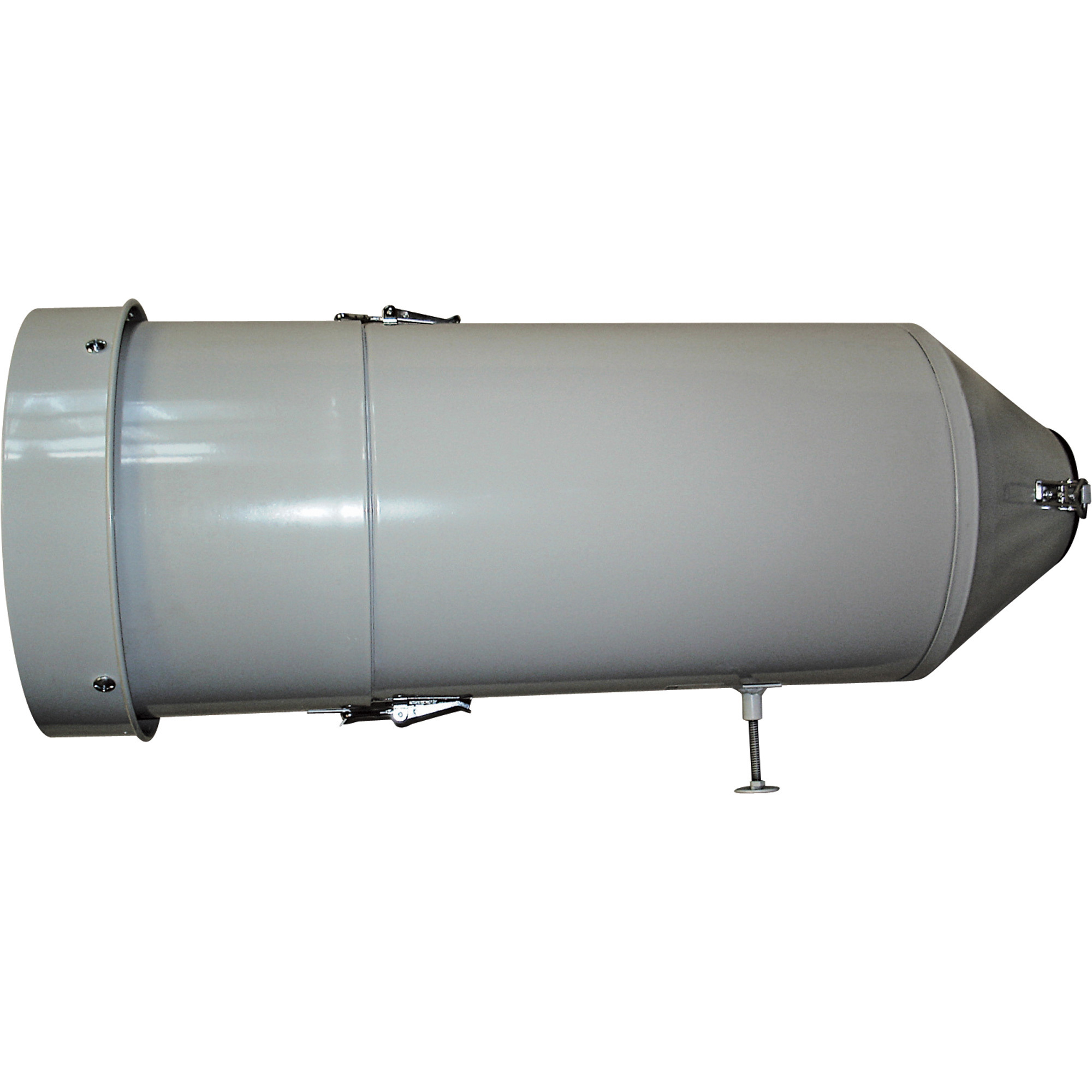

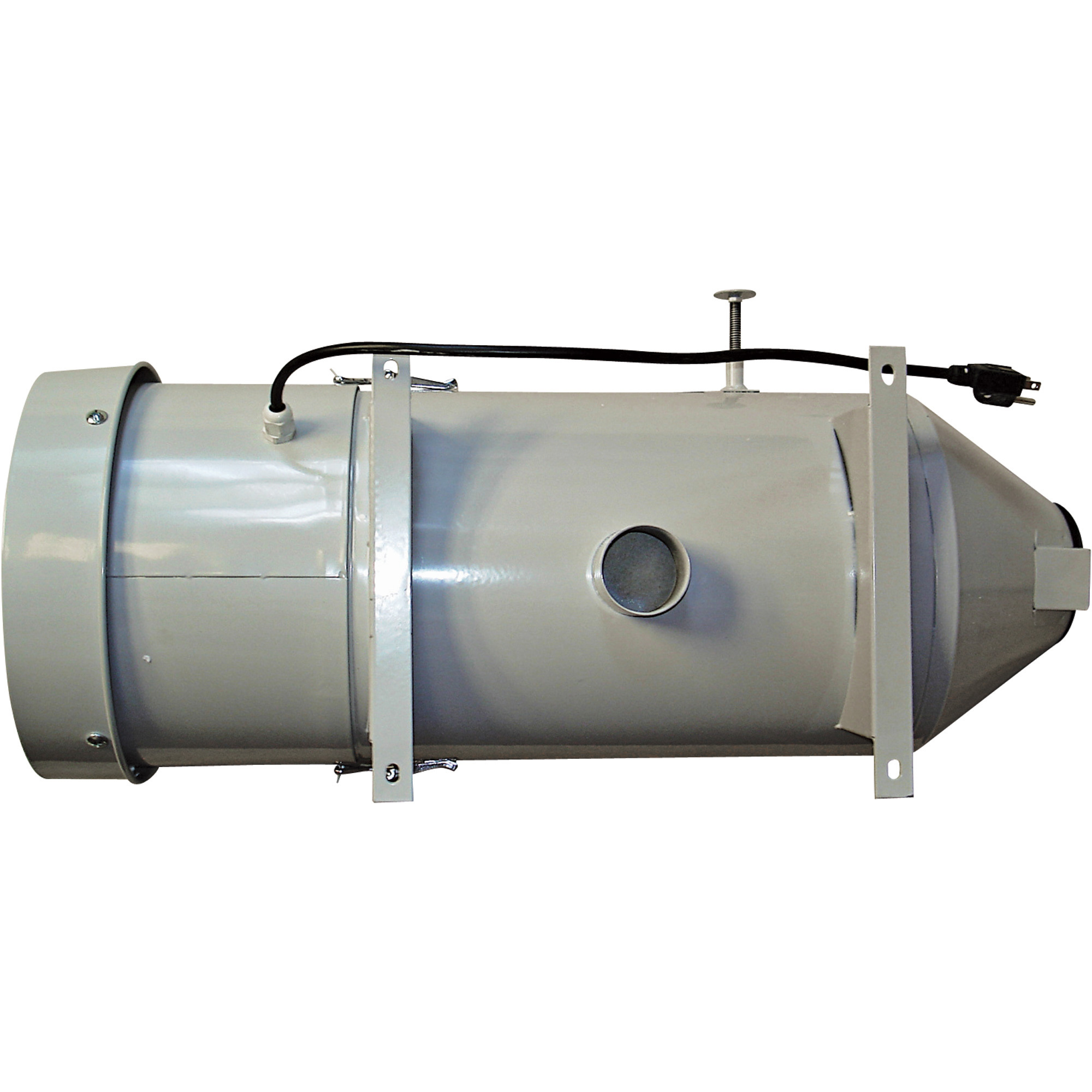

- 2-bulb fluorescent light kit and 90 CFM dust collector help the operator to maintain a good visual in heavy blasting operations (110V service required for light and dust collector)
- Rear-mounted dust collector helps minimize floor space needed for operation
- Replaceable protective window and light underlay to protect and extend the life of the viewing window and light cover

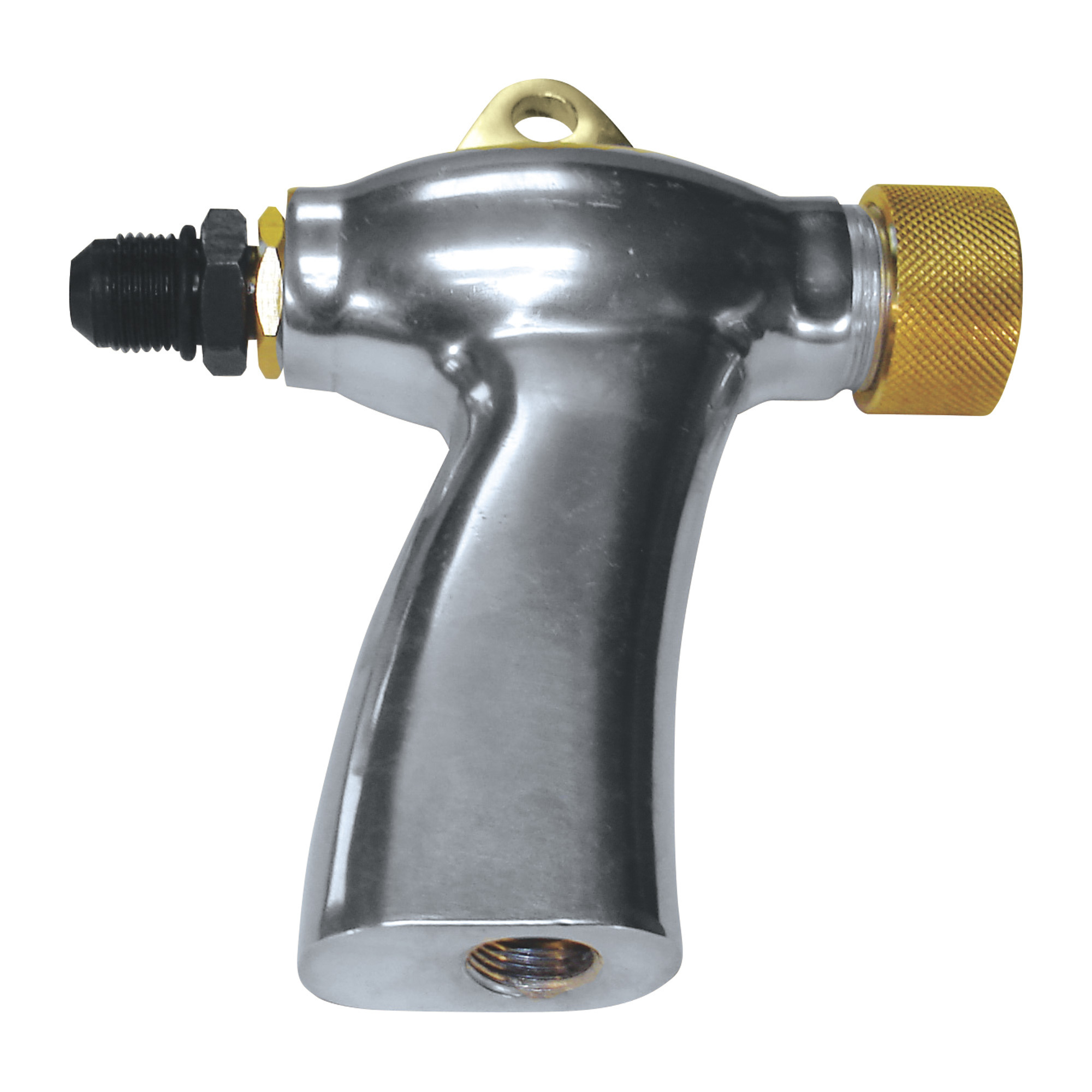

- Foot-pedal-controlled siphon blast gun helps to reduce operator hand fatigue
- Grate capacity of 150 lbs. allows the operator to blast heavier items such as cylinder heads
-
What is the compressor capacity requirements for this unit?
-
Helpful?
-
15-20 CFM 80-110 PSI
Helpful?
-
You need to have 60-80 psi and a tank that can supply that for the time you are sand blasting.
Helpful?
-
-
Can you use a Wood Shop dust collector with this unit?
-
Im sure you can "rig it" but the dust collector it comes with is a good functioning unit.
Helpful?
-
It's recommended that you only use the included dust collector with this AllSource blast cabinet.
Helpful?
-
-
can i purchase the dust collector separately?
-
The dust collector, part number AC4150063, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.
Helpful?
-
Yes. It would be ALC part number 4150063.
Helpful?
-
-
what is the height of the hand openings?
-
The opening dimension is 7 inches in diameter.
Helpful?
-
The opening dimensions of the gloves where they mount on the cabinet is 7 inches in diameter.
Helpful?
-
-
What are the power requirements?
Is it 110 or 220
-
110
Helpful?
-
Standard 110-120 volt AC power for the lamp and dust collector. Technically the lamp runs on 120 volt and the dust collector on 115 volt.
Helpful?
-
-
WHAT GAGE STEEL IS THE BLAST CABINET FAB'ED FROM ?
-
14
Helpful?
-
The AllSource 48in. triple-door blast cabinet is constructed of 14 gauge steel.
Helpful?
-
-
How many pounds of media does this blast cabinet hold and/or require?
-
The minimum amount of media is 25 pounds.
Helpful?
-
25 pounds minimum I put 50 pounds in at a time
Helpful?
-
-
Friends, Is this unit made in the U.S.A. ?
-
The crate I received it in said MADE IN CHINA
Helpful?
-
It has been verified with the manufacturer that this unit is made in China.
Helpful?
-
-
What type of gun or is there a single pen available to do sand crafting and etching
-
Comes with a standard gun with 4 nozzles of various sizes for generic sand blasting needs. If you are looking to etch or any other special purpose then you will need to install a different gun which should be pretty easy.
Helpful?
-
The cabinet comes with the standard gun. There is not a gun or pencil available for etching or crafting.
Helpful?
-
-
For Garnet, Plastic, and glass - what size blast media can be used with the included last nozzle?
1 answer-
The blast cabinet comes with a 6mm and a 7mm nozzle. Your media should be 3 sizes larger than the nozzle you are using.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Abrasive Blasting Cabinets
See All AllSource Abrasive Blasting Cabinets
Currently Viewing This Product
Specifications
Specifications
AllSource Abrasive Blast Cabinet, 48in., Model# 41500
Allsource Dual Station Abrasive Blasting Cabinet, 71in., Model# 41200
Allsource Abrasive Pressure Blast Cabinet, 69in., Model# 42000
ALC Steel Abrasive Blasting Cabinet with LED Light Kit, 48in., Model# 40411L
Max. PSI
Same
110
110
110
125
Max. Air Consumption
Same
20 cfm
20 cfm
25 cfm
15 cfm
Body Material
Same
Steel
Steel
Steel
Steel
Body Finish
Same
Powder-Coat
Powder-Coat
Powder-Coat
Powder-Coat
Nozzle Size
Same
Multiple
0
0
1-1/4
Gun Included
Same
Yes
Yes
Yes
Yes
Foot Control Included
Same
Yes
Yes
Yes
Yes
Media Capacity
Same
50 lb
300 lb
45.06 lb
50 lb
Main Door Width
Same
15 in
29 in
29 in
13 in
Main Door Length
Same
48 in
38 in
38 in
47 in
For Use With
Same
Glass Bead, Aluminum Oxide, Steel Grit, Garnet, Plastic Grit, Walnut Shells, Corn Cob
Any Type of Dry Abrasive Such As Glass Bead, Plastic Grit, Aluminum Oxide and Silicon Carbide
Any Type of Dry Abrasive Such As Glass Bead, Plastic Grit, Aluminum Oxide and Silicon Carbide
Any Type of Dry Abrasive Such As Glass Bead, Plastic Grit, Aluminum Oxide and Silicon Carbide
Product Weight
Same
-
596 lb
580 lb
303 lb
