ALC Steel Abrasive Blasting Cabinet with LED Light Kit, 60in., Model# 40413L

Item# 89457
ALC Steel Abrasive Blasting Cabinet with LED Light Kit, 60in., Model# 40413L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ALC Steel Abrasive Blasting Cabinet with LED Light Kit, 60in., Model# 40413L

Click or Tap image to Zoom

$3599.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Perfect for surface preparation on any type of irregular surfaces where other forms of preparation, such as sanding, are difficult
  • Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
  • 80-125 psi operating range
  • Minimum air volume of 15 CFM @ 80 psi
  • Fully-welded construction with no seams or leak points helps keep the blasting operation contained inside the cabinet

See full description

Complete Your Solution

  • ALC Steel Abrasive Blasting Cabinet with LED Light Kit, 60in., Model# 40413L
  • ALC Medium Glass Bead Abrasive Blast Media, 25 Lbs., Model# 40105
  • ALC Medium Aluminum Oxide Abrasive Blast Media, 25 Lbs., Model# 40098
  • ALC Replacement Pressure Abrasive Blasting Cabinet Gloves, 6in. x 24in., Pair, Model# 40248
Price for all four:

$3800.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This ALC® Steel Abrasive Blast Cabinet is a durable 60in. x 24in. steel blast cabinet constructed of 14-ga. steel with heavy-duty angle iron legs. The fully-welded design means there are no seams to leak. A 60in.W x 24in.H x 24in.D inside work area accommodates a large variety of items, with side door access. The included super-bright LED light kit and 112 CFM dust collector help the operator to maintain a good visual even during heavy blasting operations. Also includes a foot pedal controlled gun with 1/4in. nozzle, high-quality 24in. lined gloves, cushioned foam arm holes, and protective window underlay. Full opening top door and side door.

What's Included

    (1) ALC 40413L blast cabinet with LED light kit (1) Pair blast gloves (1) Foot pedal control (1) Gun with 1/4in. nozzle

Downloads

Product Manual

Features + Benefits

  • Perfect for surface preparation on any type of irregular surfaces where other forms of preparation, such as sanding, are difficult
  • Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
  • 80-125 psi operating range
  • Minimum air volume of 15 CFM @ 80 psi
  • Fully-welded construction with no seams or leak points helps keep the blasting operation contained inside the cabinet
  • 2 large 12in. x 24in. viewing windows give the operator a wide viewing area while blasting

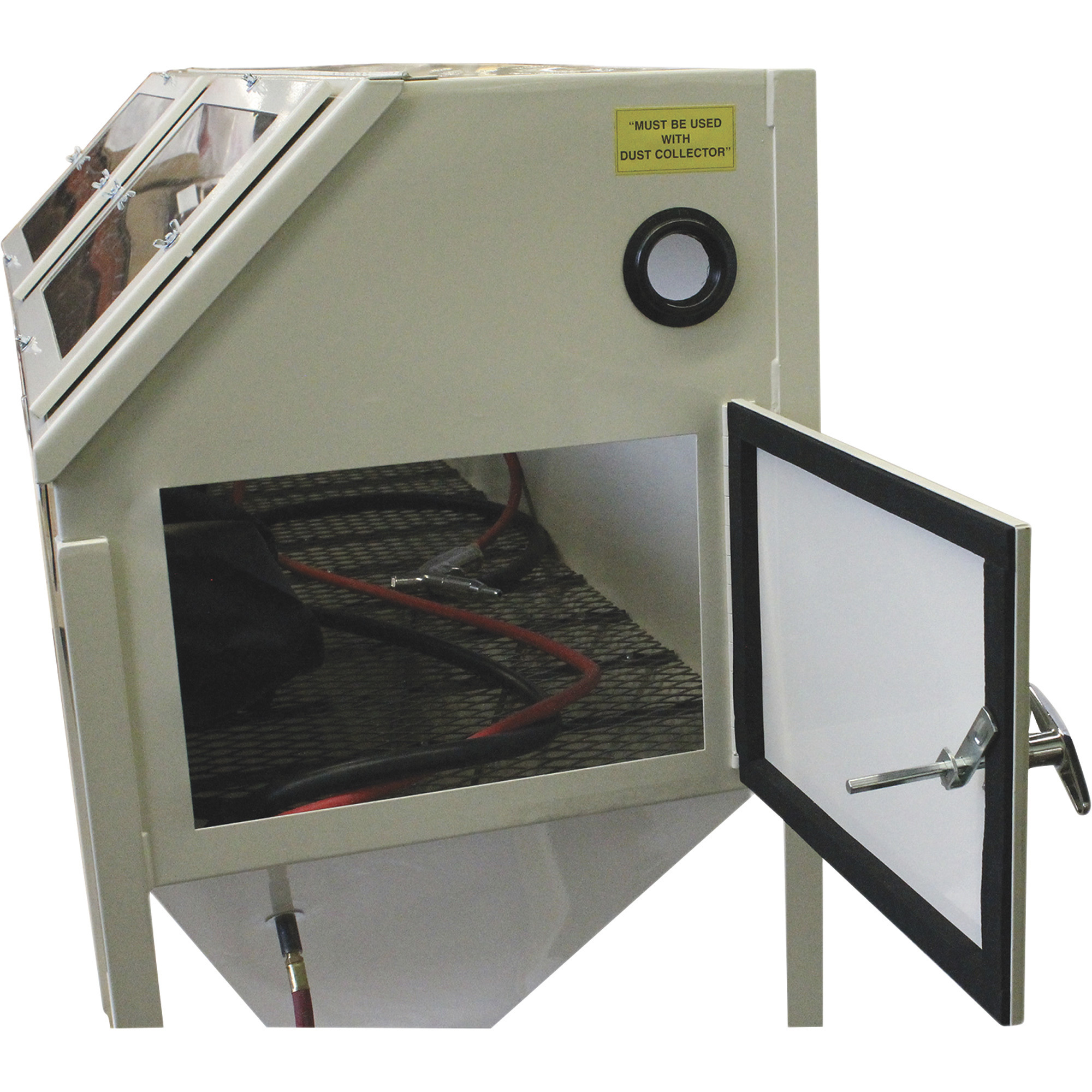

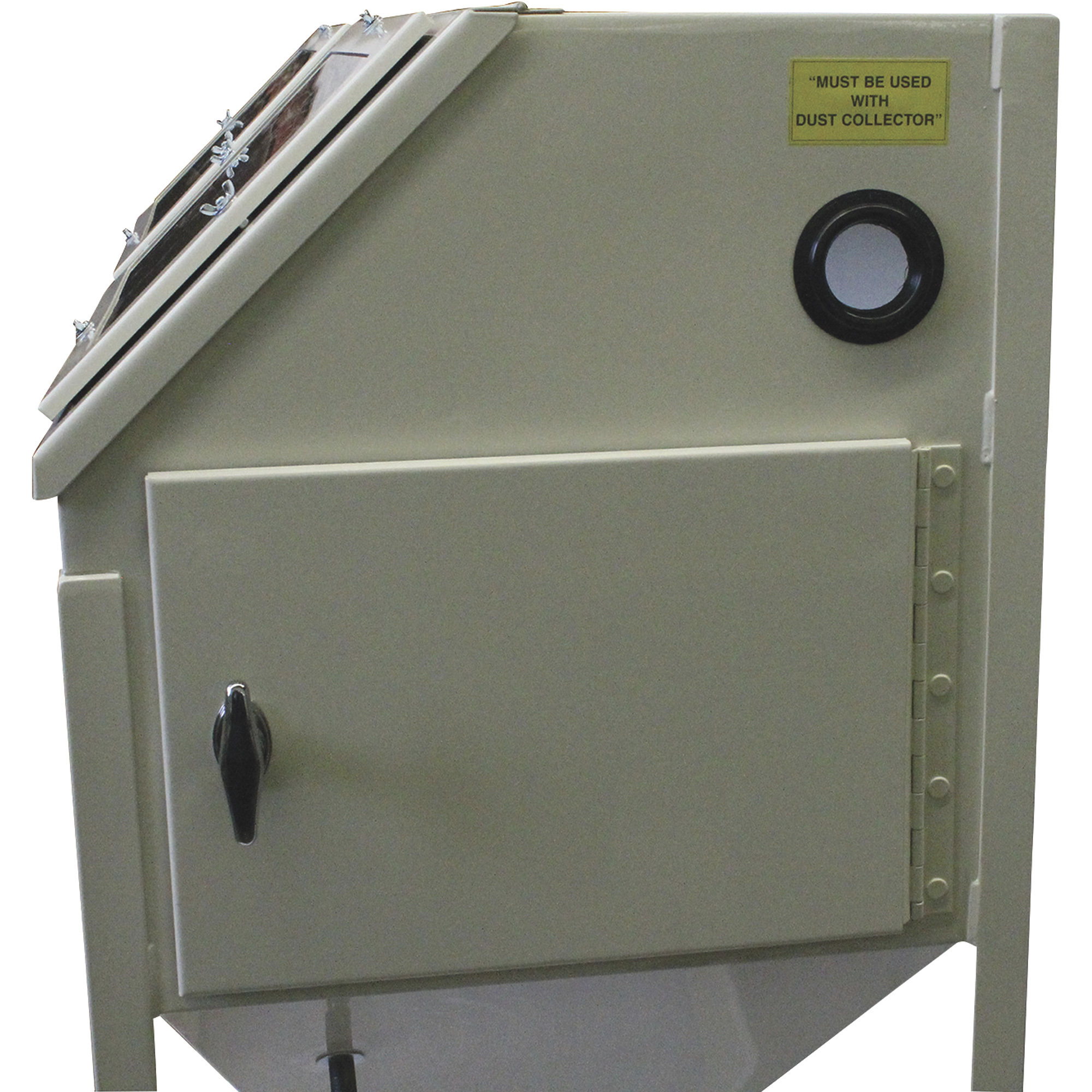

  • Oversized hinged top door opening of 13in. x 59in. and hinged side door opening of 11in. x 17in. allows operator to easily load a wide variety of items into blast cabinet
  • Large inside work area of 60in.W x 24in.H x 24in.D allows operator to easily maneuver bulky items inside the cabinet
  • Heavy-duty angle iron legs provide strength and a stable foot print
  • Super-bright LED light kit and 112 CFM dust collector help to maintain a good visual in heavy blasting operations
  • 4 armholes spanning length of cabinet allow versatility to work on longer items without moving the item
  • Replaceable protective window underlay to protect and extend the life of the viewing window
  • Foot pedal controlled siphon blast gun helps reduce operator hand fatigue
  • Grate capacity of 200 lbs. allows the operator to blast heavier items such as cylinder heads
  • Durable powder-coated finish helps prolong cabinet life

Key Specs

AttributeSpecification

item#

89457

Brand

ALC

Manufacturer's Warranty

1 year limited warranty

Ship Weight

400.0 LB

Max. PSI

125

Max. Air Consumption

15 cfm

Body Material

Steel

Body Finish

Powder-Coat
AttributeSpecification

Nozzle Size

1-1/4

Gun Included

Yes

Foot Control Included

Yes

Media Capacity

75 lb

Main Door Width

13 in

Main Door Length

59 in

For Use With

Any Type of Dry Abrasive Such As Glass Bead, Plastic Grit, Aluminum Oxide and Silicon Carbide
