This product does not come with a light kit. It is an optional item and can be purchased through our parts department at 1-800-657-0516. It can also be obtained directly from the manufacturer. The part number is AC40338.

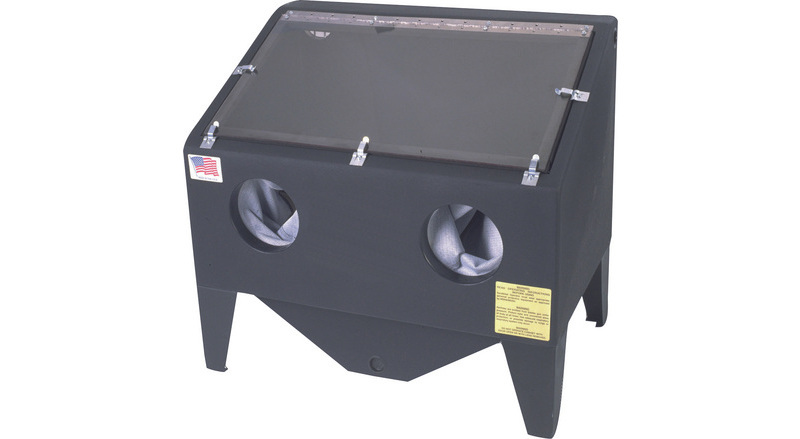

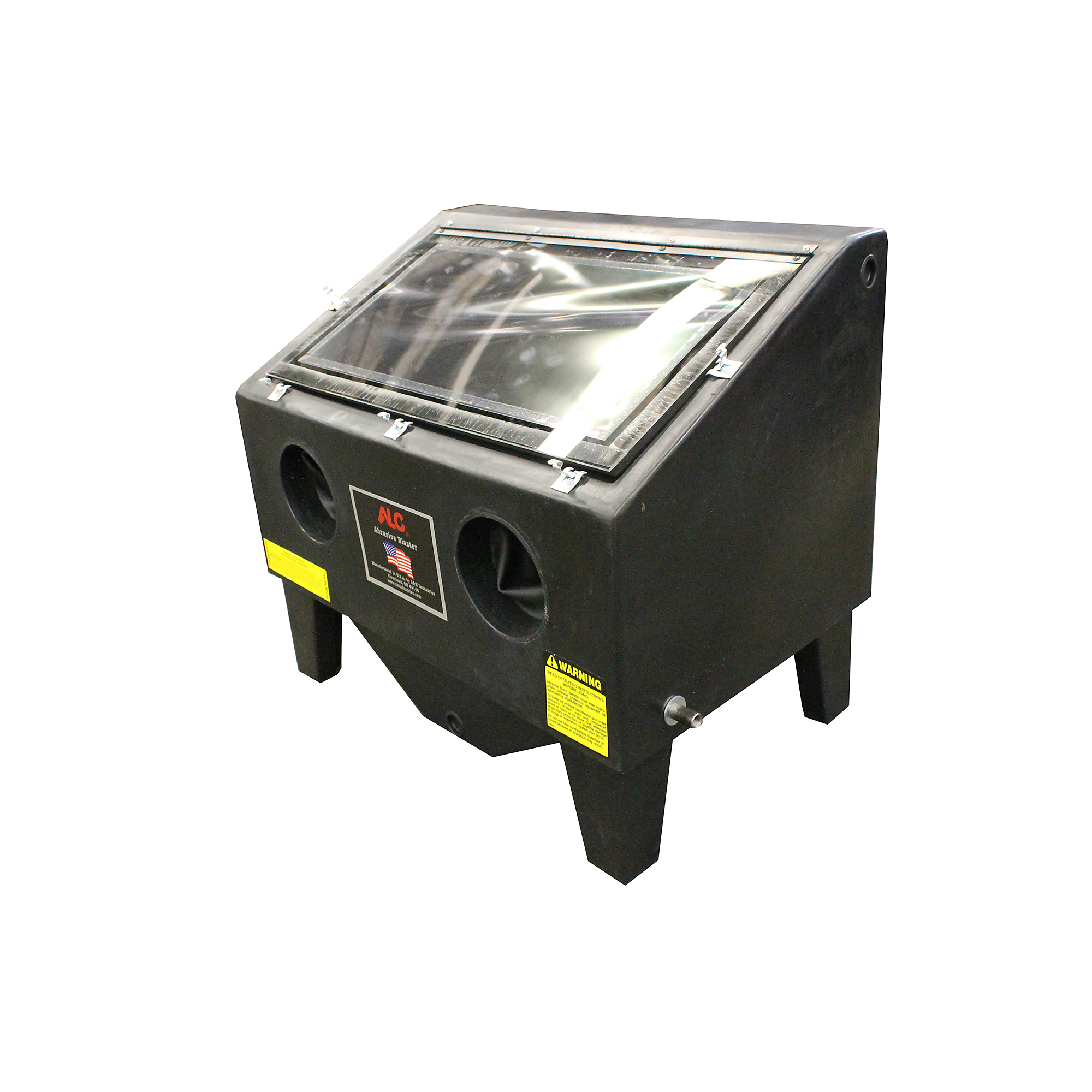

ALC Polymer Benchtop Abrasive Blasting Cabinet, 30in., Model# 41390
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$429.99
- Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
- Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
- 80-110 psi operating range
- Minimum air volume of 15 CFM @ 80 psi
- Replaceable self adhesive protective window underlay to protect and extend the life of the viewing window
See full description
Price for all four:
$648.96
What's Included
- (1) Polymer benchtop abrasive blast cabinet
Downloads
Features + Benefits
- Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
- Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
- 80-110 psi operating range
- Minimum air volume of 15 CFM @ 80 psi
- Replaceable self adhesive protective window underlay to protect and extend the life of the viewing window
- Tough LDPE polymer one-piece thick-walled construction will not leak
- One piece construction with no seams or leak points, which helps keep the blasting operation contained inside the cabinet
- Tough LDPE polymer plastic will not rust, greatly extending the life of the cabinet when compared to a steel blasting cabinet
- Oversized viewing window dimension of 15in. x 27in. gives the operator a wide viewing area
- Oversized top door opening of 13in. x 25in. allows the operator to easily load a wide variety of items into the blast cabinet
- Large inside work area of 30in.W x 27in.H x 20in.D allows the operator to easily maneuver bulky items inside the cabinet
- Cabinet comes predrilled with 1 1/4in. hole designed to be used with a 1-3 horsepower shop vac as dust collection system
- Recommended for use with an air compressor that creates minimum 15 CFM @ 90 psi
-
Is there a light kit that comes with this? If not do you sell this seperately and what is the part #?
-
Helpful?
-
No there is not. It is an option to buy seperately, our ALC part 40338.
Helpful?
-
-
What else is included in the package?
Not mentioned in the description of contents. Is there a gun, hose, nozzle(s) and pick up tube.
-
There is a gun, nozzle and pick up tube, but no air supply line for the gun and no fittings to seal off the mounted hose to the cabinet. Expect to buy a supply line, hose fitting for the gun and a connection for the line to the cabinet.
Helpful?
-
This ALC Top-Open Benchtop Abrasive Blaster, comes with a gun, one nozzle, hose, pick up tube, grate and cabinet.
Helpful?
-
-
Air Compressor Questions
Hi
I just purchased this item and I am curious as to what would be a good air compressor to use for it. I am doing small parts, mostly cleaning up brazed joints. Some paint removal. I might use it once a week.-
I use a craftsman 2HP/25 gal/150psi with mine. For short periods it is fine. There will be some cycling but not too bad. Bigger is always better but mine is a compromise due to cost and living in an HOA
Helpful?
-
The unit requires a minimum 80 PSI and different CFM requirements depending on the size nozzle you use.
It comes with a 1/4" nozzle that would require 15 CFM. With this you could get by with the compressor item #305174.Helpful?
-
-
Where is it made?
1 answer-
This is manufactured in the USA.
Helpful?
-
-
Media Capacity
How many lbs of aluminum oxide would I need to buy to initially fill this cabinet?
1 answer-
This blast cabinet requires a minimum of 25 lbs. of blasting media (aluminum oxide or other type). Its maximum media capacity is 50 lbs.
Helpful?
-
-
Can Sand not be used in this cabinet?
1 answer-
Sand is not a recommended media for abrasive blaster cabinets.
Helpful?
-
-
Are there replacement nozzles for the gun and if so, what are the numbers?
1 answer-
Yes, the replacement nozzles are available for this blaster cabinet. The 13/64 inch steel nozzle kit is item #155511. The 1/4 inch steel nozzle kit is item #155509. The 13/64 inch ceramic nozzle kit is item #155513. The 1/4 inch ceramic nozzle kit is item #155512. I have included links to some of the nozzle kits below.
Helpful?
-
-
Is an underlayment to protect the window available?
1 answer-
Yes, there is an underlay kit available for this ALC Blaster Cabinet. The underlay set is sold in a 50 pack, it is item #S1577. To view the underlay kit, please click the link below.
Helpful?
-
-
Will this do glass etching? What kind of media will do glass?
1 answer-
This ALC top open bench top blaster cabinet can be used to do glass etching. Walnut shells are recommended for "soft" surfaces such as glass.
Helpful?
-
-
Will this fit a 18x8 wheel?
1 answer-
This bench top cabinet will accommodate an 18"x8" wheel.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Abrasive Blasting Cabinets
See All ALC Abrasive Blasting Cabinets
Currently Viewing This Product
Specifications
Specifications
ALC Polymer Benchtop Abrasive Blasting Cabinet, 30in., Model# 41390
Grizzly Benchtop Sandblast Cabinet, 100 Max. PSI, 14 CFM, Model# M1114
BlackTeck Bench Top Portable Sand Blaster Cabinet Kit — 25 Gal., 80 PSI, Model# N2-41341
ALC Dust Collector Filter Bag — Model# 40267
Max. PSI
Same
110
100
100
0
Max. Air Consumption
Same
15 cfm
14 cfm
14 cfm
0 cfm
Body Material
Same
Other
Steel
Steel
Felt
Nozzle Size
Same
1/4
0
3-1/3
0
Gun Included
Same
Yes
Yes
-
No
Foot Control Included
Same
No
-
-
No
Media Capacity
Same
362.08 lb
-
-
-
Main Door Width
Same
17 in
-
-
-
Main Door Length
Same
30 in
10.75 in
-
0 in
For Use With
Same
Glass Bead, Plastic Bead, Aluminum Oxide
-
-
ALC model 40412
Product Weight
Same
-
50.0000 lb
34.3000 lb
0.8000 lb
Dimensions L x W x H (in.)
Same
-
18.75 x 24.75 x 21.5 in
24.8 x 19.3 x 19.3 in
23.0 x 0.1 x 25.0 in
Safety Valve
Same
-
-
-
No
Moisture Separator
Same
-
-
-
No
