Ultra-Tow Bolt-On Sidewind Marine Swivel Jack, 1500-Lb. Capacity

Item# 104484
On Sale
Ultra-Tow Bolt-On Sidewind Marine Swivel Jack, 1500-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow Bolt-On Sidewind Marine Swivel Jack, 1500-Lb. Capacity

Click or Tap image to Zoom

$42.99
Reg $64.99Save $22.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    3 in stock at Fredericksburg VA - Pickup in under 1 hr

  • 1,500-lb. capacity bolt-on sidewind marine swivel jack with sturdy 2-1/4in. tube is easy to use
  • Sidewind internal gear with large, grooved comfort handle for easy cranking
  • Deep-seated snap ring adds side load capacity
  • Durable 1/2in. pull pin activates swivel mechanism, allowing you to swing the jack up and out of the way when not in use
  • 6in. x 2in. wheel for easy maneuvering

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 1,500-lb. capacity Ultra-Tow Bolt-On Sidewind Marine Swivel Jack with sturdy 2-1/4in. tube is reliable and very easy to use. The sidewind internal gear design with large, grooved comfort handle makes cranking easy, while a deep-seated snap ring adds side load capacity. 6in. wheel for easy maneuvering. 12-3/4in. retracted length; 22-3/4in. extended length.

What's Included

    (1) 1,500-lb. capacity bolt-on sidewind swivel jack with wheel

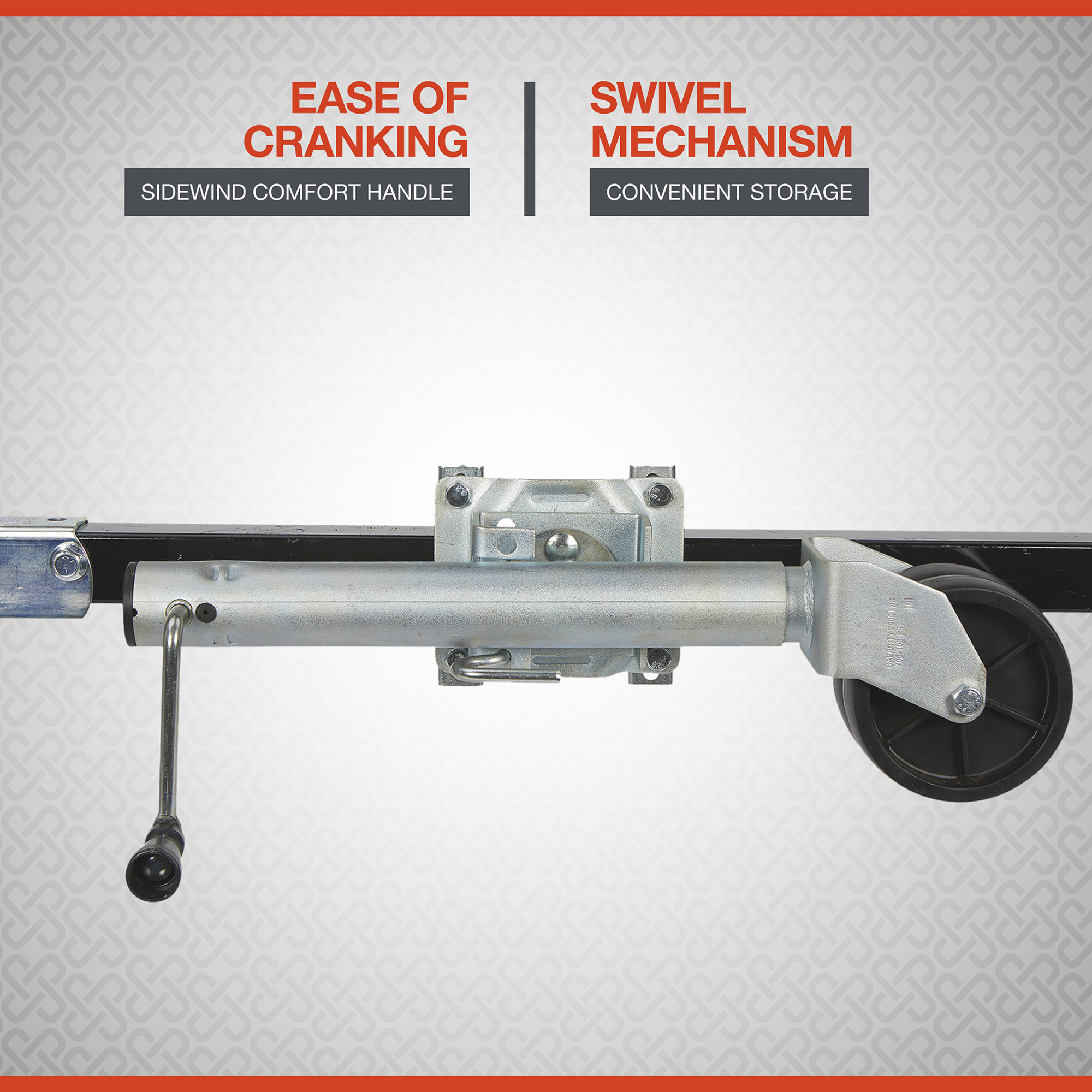

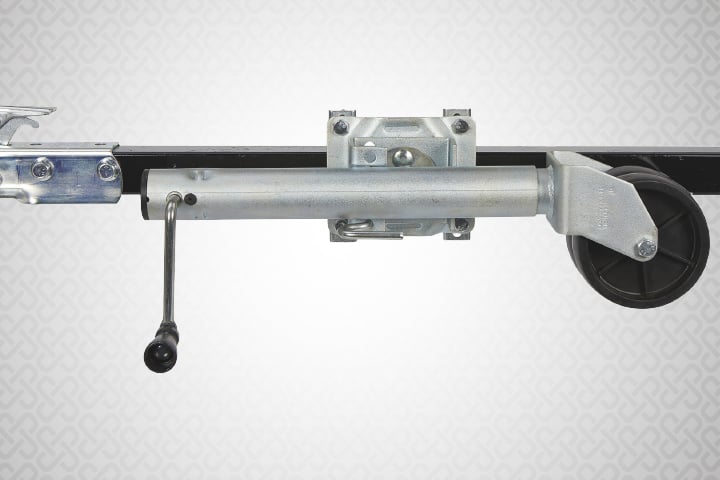

ENHANCED USABILITY

The SWIVEL MECHANISM, activated by a DURABLE 1/2 INCH PULL PIN, allows the jack to swing up and out of the way when not in use, offering convenience and reducing trip hazards

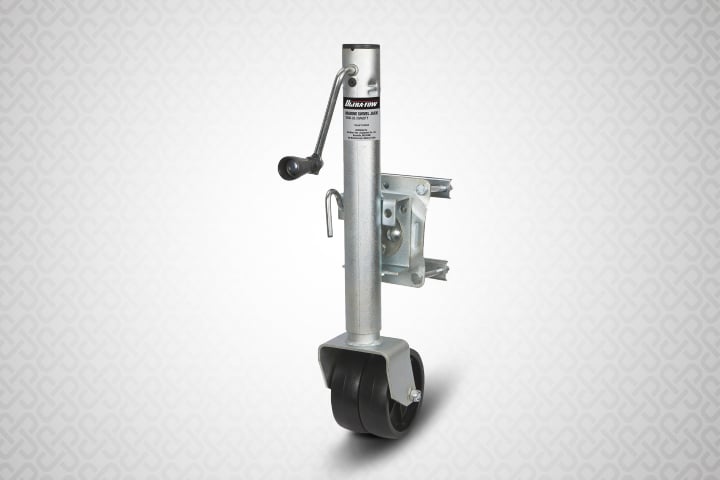

DURABLE DESIGN

Coated for CORROSION RESISTANCE and built with a DEEP-SEATED SNAP RING that increases side load capacity, this jack is designed to last and perform reliably under tough conditions

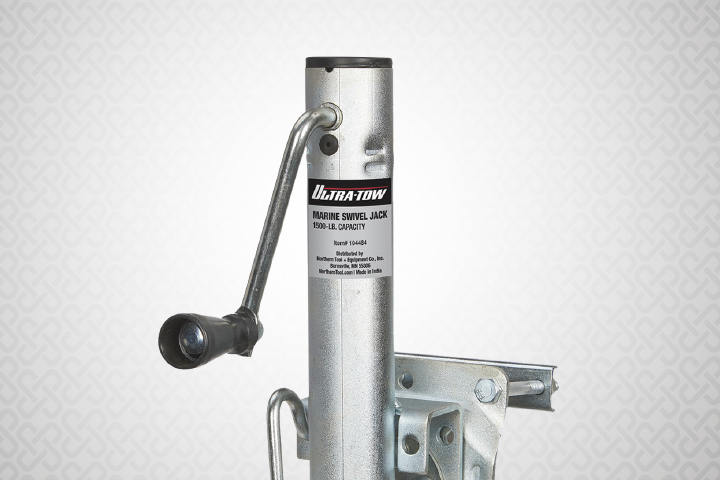

USER-FRIENDLY FEATURES

With its 1,500-lb. lift capacity, CORROSION-RESISTANT Coating and DEEP-SEATED SNAP RING that increases side load capacity, this jack is designed to last and perform reliably under tough conditions

Features + Benefits

  • 1,500-lb. capacity bolt-on sidewind marine swivel jack with sturdy 2-1/4in. tube is easy to use
  • Sidewind internal gear with large, grooved comfort handle for easy cranking
  • Deep-seated snap ring adds side load capacity
  • Durable 1/2in. pull pin activates swivel mechanism, allowing you to swing the jack up and out of the way when not in use
  • 6in. x 2in. wheel for easy maneuvering
  • Jack bolts onto trailer tongues 2in. x 2in. up to 3in. x 5in.
  • Includes mounting hardware
  • Measurements: A=Retracted (12-3/4in.), B=Extended (22-3/4in.), C=Clearance (10-1/2in.)

Key Specs

AttributeSpecification

item#

104484

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.8 LB

Lift Capacity

1,500 lb

Jack Type

Marine and Swivel

Mount Type

Bolt-On

Length Extended

24 in
AttributeSpecification

Length Retracted

13 in

Clearance: Bracket to Jack Top

8.5 in

Support Capacity

1,500 lb

Ground Support

Caster

Mount Height

12.75 in

Length of Travel

11 in

Product Weight

18.1400 lb

Dimensions L x W x H (in.)

24.5 x 7.0 x 10.0 in

Reviews

Questions & Answers

30 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. What is maximum lift height

    1 answer

    1. The mounting height is 12.75" and the maximum length of travel is 11". When extended, the overall length is 23.25".

      Helpful?

  2. Do the actual Wheels swivel and turn or are they fixed position?

    1 answer

    1. The base enables the tandem wheels to swivel, making the jack easier to maneuver.

      Helpful?

  3. Does the capacity weight mean the tongue weight or the entire trailer weight max capacity?

    1 answer

    1. The maximum support and lift capacity of the jack is 1500 pounds.

      Helpful?

  4. Does this have a grease fitting?

    1 answer

    1. This jack has a grease zerk fitting.

      Helpful?

  5. Are internal parts and crank handle available

    1 answer

    1. The jack side wind handle arm is part #IRN104484-4. The handle knob is part #IRN104484-20. The handle knob shoulder bolt and nut is part #IRN104484-11. These and other parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  6. Does this jack come with release spring on the right side or only the left ?

    1 answer

    1. The release spring would only be on the left side.

      Helpful?

  7. Can this wheel jack be bolted onto an aluminum I beam trailer

    1 answer

    1. This is designed to be bolted onto a trailer tongue measuring 2" x 2" up to 3" x 5". If the I-beam is within those dimensions, it could be mounted to the trailer.

      Helpful?

  8. Do I have two inches of space between the mounting bracket and the swiveling of the Jack?

    1 answer

    1. The jacks swivel is attached directly to the mounting bracket with no additional space in between.

      Helpful?

  9. does this jack item # 104484 have (2) wheels?

    1 answer

    1. This jack does have two wheels.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
