Ultra-Tow XTP Fast-Action Square Tube Trailer Jack, 2000-Lb., Topwind, A-Frame Mount, Bolt-On

Item# 47344
Ultra-Tow XTP Fast-Action Square Tube Trailer Jack, 2000-Lb., Topwind, A-Frame Mount, Bolt-On

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow XTP Fast-Action Square Tube Trailer Jack, 2000-Lb., Topwind, A-Frame Mount, Bolt-On

Click or Tap image to Zoom

$69.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Fast-action step-down base for quick hands-free use
  • Foot pedal release with auto return
  • Provides quick height adjustments with minimal cranking
  • Pin secures jack in selected positions for safety
  • 19.6in. total travel distance (29.9in. extended; 10.3in. retracted)

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ultra-Tow XTP Fast-Action Square Tube Trailer Jack, 2000-Lb., Topwind, A-Frame Mount, Bolt-On
  • Ultra-Tow XTP Fast-Action Trailer Jack 6in. Caster, Fits A-Frame Trailer Jack, Item# 47344
Price for all two:

$104.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This revolutionary Ultra-Tow XTP Fast-Action Trailer Jack is engineered with a unique fast-action step-down base for quick hands-free use, along with a foot pedal release with auto return for quick height adjustments with minimal cranking. Dual-action travel distance provides extended lift range.

What's Included

    (1) Ultra-Tow XTP Fast-Action Square Tube Trailer Jack

Downloads

Product Manual Product Manual2
Play Item Video

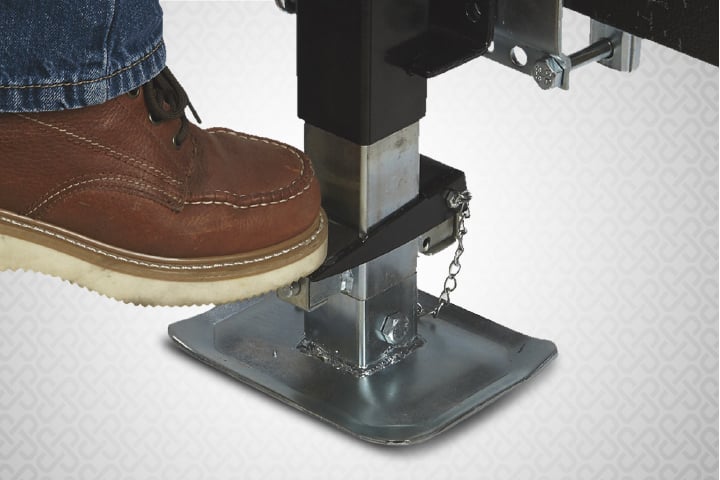

ADVANCED FUNCTIONALITY

This TRAILER JACK’S UNIQUE STEP-DOWN BASE and FOOT PEDAL RELEASE REVOLUTIONIZE ADJUSTMENTS, making it exceptionally user-friendly for frequent height modifications

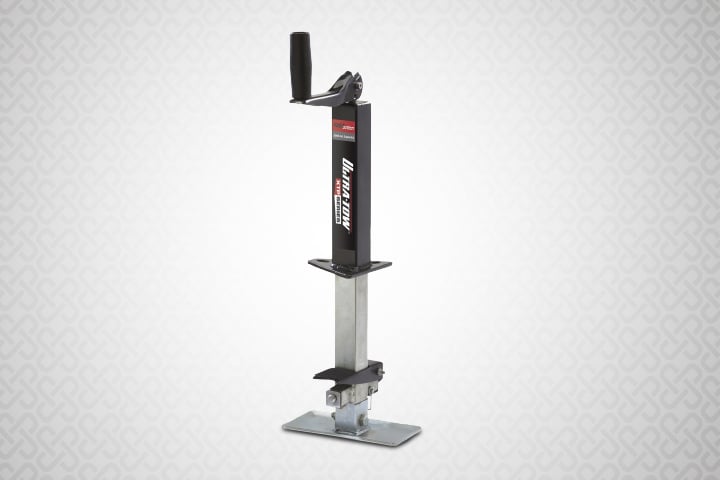

EFFICIENT OPERATION

The DUAL-ACTION TRAVEL FEATURE not only extends the LIFT RANGE from 10.3 inches extracted to 29.9 inches extended, but also SPEEDS UP THE PROCESS, reducing downtime and increasing productivity on the job

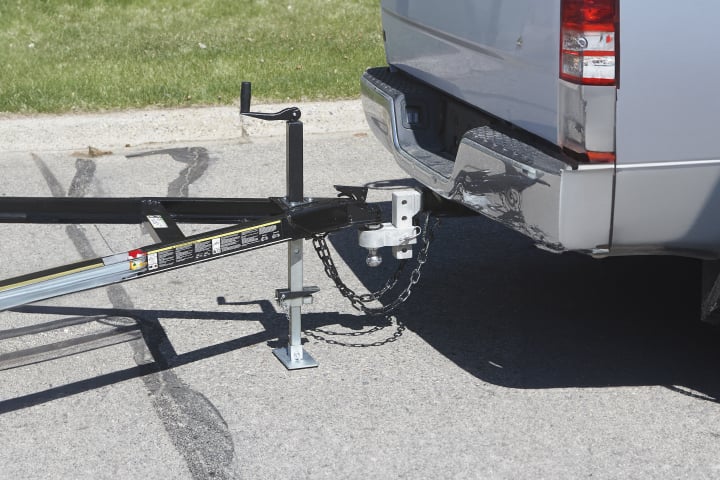

ROBUST MATERIAL USE

Built to last with HIGH-QUALITY MATERIALS and FINISHES, this jack withstands harsh environments and repeated use without compromising performance

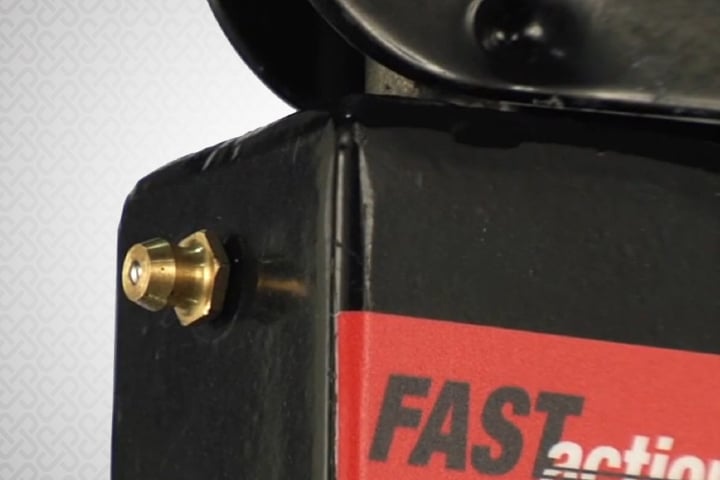

MAINTENANCE FEATURES

Equipped with a GREASE ZERK TO FACILITATE REGULAR LUBRICATION, which prolongs the jack’s lifespan and enhances its smooth operation

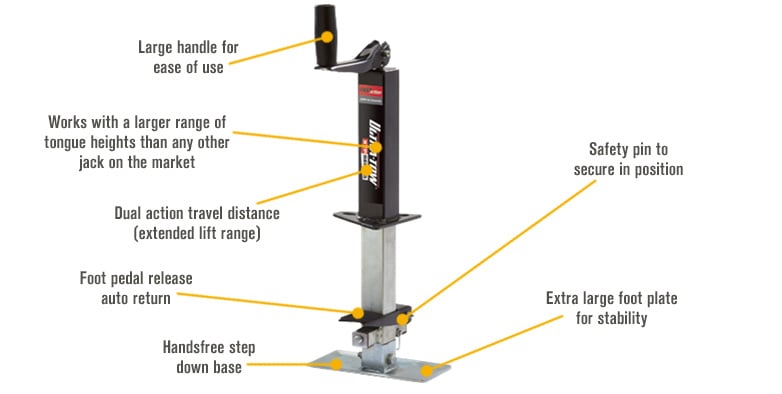

Features + Benefits

  • Fast-action step-down base for quick hands-free use
  • Foot pedal release with auto return
  • Provides quick height adjustments with minimal cranking
  • Pin secures jack in selected positions for safety
  • 19.6in. total travel distance (29.9in. extended; 10.3in. retracted)
  • Measurements: A=Retracted (10.3in.), B=Extended (29.9in.), C=Clearance 11in.
  • Constructed of sturdy 1-3/4in. square tube with a corrosion-resistant exterior-grade black powder-coat finish on the outside with a zinc finish on the inner tube and foot
  • Grease zerk for longer life
  • Large top crank handle for easy cranking
  • A-frame mount
  • Includes extra-large foot pad for stability
  • Optional 6in. caster wheel available (Item# 47503, sold separately)

Key Specs

AttributeSpecification

item#

47344

Brand

Ultra-Tow XTP

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.4 LB

Lift Capacity

2,000 lb

Jack Type

A-Frame

Mount Type

Bolt-On
AttributeSpecification

Length Extended

29.9 in

Length Retracted

10.3 in

Clearance: Bracket to Jack Top

11 in

Support Capacity

2,000 lb

Ground Support

Foot Plate

Mount Height

10.25 in

Length of Travel

19.625 in

Reviews

Questions & Answers

28 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. How do you install the spring loaded part through the tounge?

    1 answer

    1. The spring-loaded assembly is installed through the tongue as part of the jack installation process. To do this:

      Remove the middle tube assembly from the outer tube and set it aside.

      Position the outer tube through the trailer tongue (A-frame hitch) and align the mounting holes.

      Secure the outer tube to the A-frame using three 3/8" x 1" bolts, washers, and nuts (sold separately). Tighten all hardware securely.

      Reinsert the middle tube assembly into the outer tube.

      Complete mounting instructions can be found on page 5 of the Product Manual.

      Helpful?

  2. What is the length of body an what is fully lengthen

    1 answer

    1. The distance from the mount to the top of the jack is 9-1/2". When retracted, the length is 10-3/10" and when extended, the length is 29-9/10".

      Helpful?

  3. does this item come with bolt on hardware? I will not drill holes in the tongue.

    1 answer

    1. This A-frame jack requires three 3/8" x 1" bolts and nuts They are not included, they need to be purchased separately.

      Helpful?

  4. WHAT IS THE SUPPORT WEIGHT?

    1 answer

    1. The maximum weight capacity for this trailer jack is 2,000 lbs. That is the supporting and lifting weight capacity.

      Helpful?

  5. replacement parts

    Where can i get a replacement handle?

    1 answer

    1. Replacement parts would be available through the manufacturer.

      Helpful?

  6. Of the 19.6" of total travel, how much is actual lift and how much is from the drop down leg?

    1 answer

    1. This fast action trailer jack has a crank down distance of 8" and a speed travel (drop leg) distance of 11.625”.

      Helpful?

  7. Collapsed height

    WHAT IS THE DISTANCE FROM THE BOTTOM OF THE 3-BOLT PLATE TO BOTTOM OF FOOT IN THE FULL UP POSITION?

    1 answer

    1. On this trailer jack, the distance from the bottom of the 3-bolt plate to the bottom of the foot when it's completely retracted is approximately 10-1/4".

      Helpful?

  8. What diameter is required on the ball coupler for the jack tube to go through so it can be mount to the A-Frame?

    1 answer

    1. This trailer jack requires a hole size of 1-1/2" by 1-1/2" square (or 2-1/8" circular hole) to mount to an A-frame coupler.

      Helpful?

  9. what is the bolt spacing where it mounts?

    1 answer

    1. This trailer jack has bolt hole spacing of 3" on center in a triangular pattern.

      Helpful?
