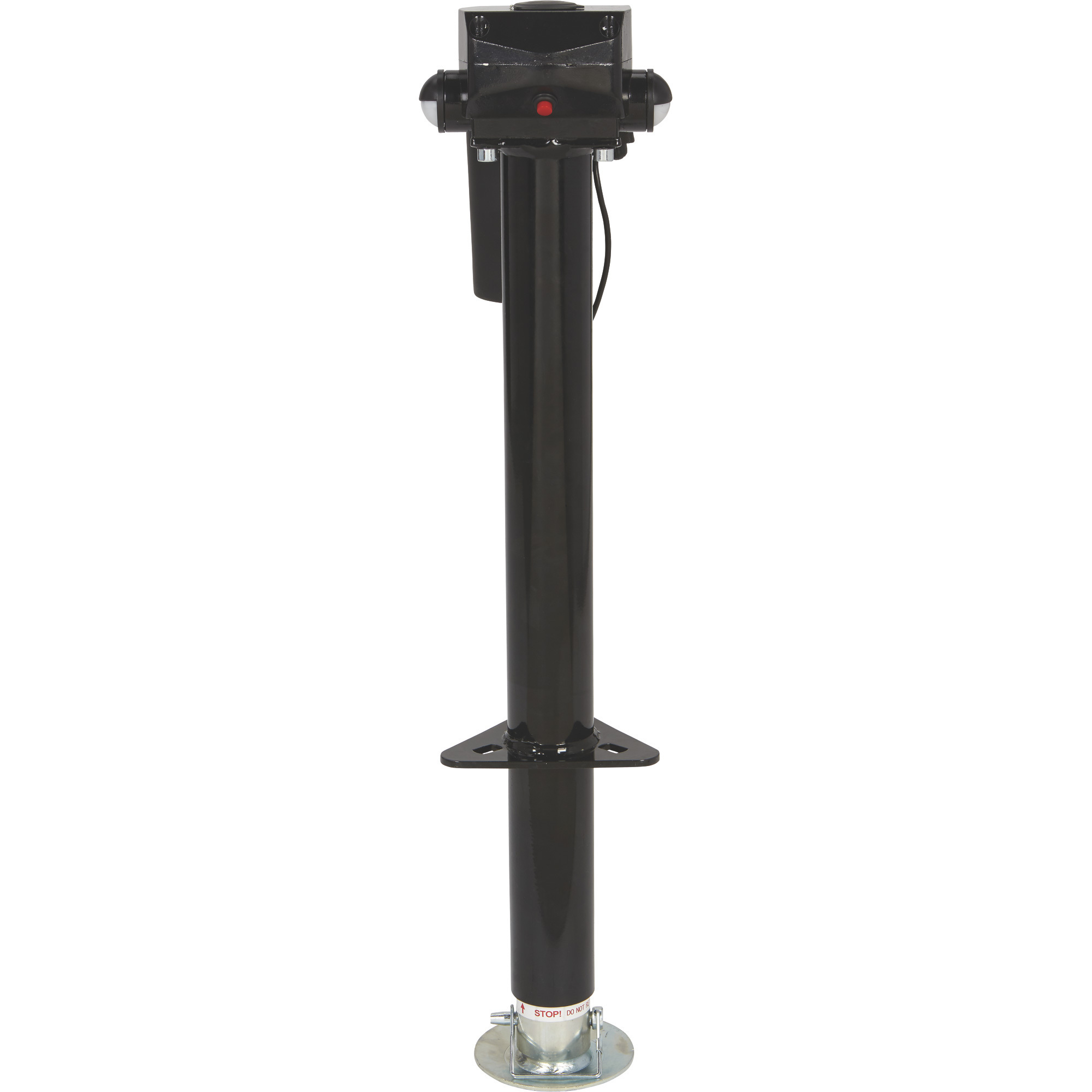

Ironton 12 Volt Electric Trailer Jack, 3500-Lb. Capacity

Item# 57402
Ironton 12 Volt Electric Trailer Jack, 3500-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton 12 Volt Electric Trailer Jack, 3500-Lb. Capacity

Click or Tap image to Zoom

$159.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    3 in stock at Fredericksburg VA - Pickup in under 1 hr

  • For hitching and leveling A-frame trailers

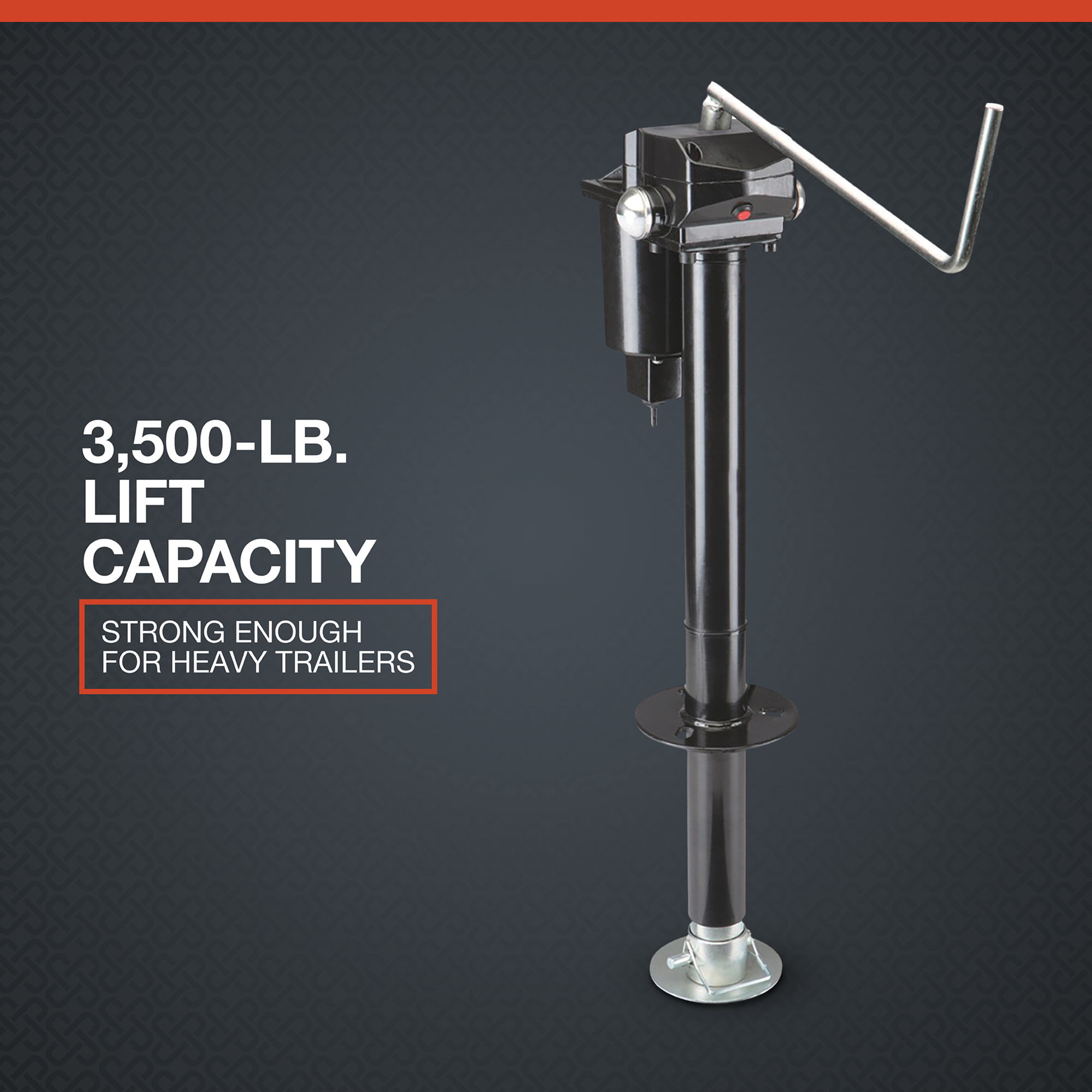

  • 3,500-lb. lift capacity
  • Provides height range of 9in.–31-1/2in. (ground to center of mounting point)
  • Fits 2-1/4in. mounting holes
  • Adjustable oversized foot prevents divots

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ironton 12 Volt Electric Trailer Jack provides a fast, easy and practical way to hitch and level trailers with A-frame couplers. With 3,500 lbs. of lifting power, it handles a wide range of trailers effortlessly. It features a height range of 9in.–31-1/2in., fits 2-1/4in. mounting holes and includes a 7-1/8in. foot pad for added stability. The adjustable oversized foot prevents ground divots, while the weather-sealed switch with manual crank override ensures reliable operation in any conditions. Operating at 23–25 Amp full-load amperage, this electric jack is built for powerful, consistent performance.

What's Included

    (1) 3,500-lb. electric trailer jack (1) Removable 7-1/8in. foot pad (1) Manual crank override

Downloads

Product Manual

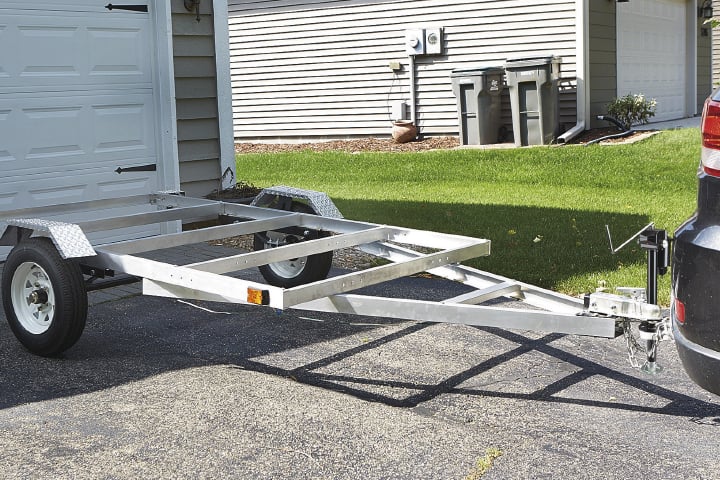

VERSATILE USE

Ideal for recreational and commercial use, this ELECTRIC JACK can efficiently service various types of trailers with its powerful lift and EXTENSIVE HEIGHT CAPABILITY

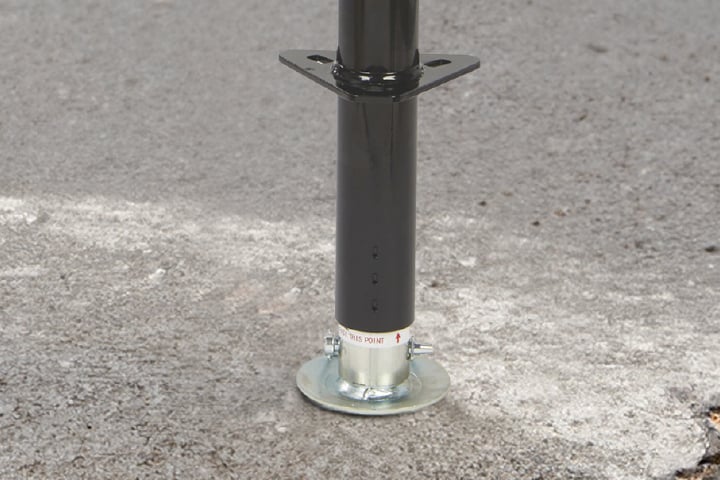

USER-FRIENDLY FEATURES

The OVERSIZED FOOT PAD not only enhances stability but also ensures the trailer remains level on soft ground, PREVENTING SINKAGE and INSTABILITY

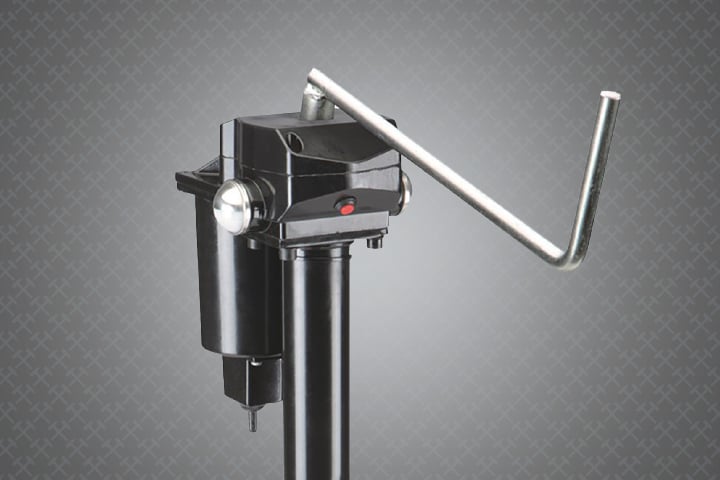

EFFICIENT OPERATION

The 12 VOLT MOTOR provides quick and EFFORTLESS LIFTING, significantly reducing setup time and physical strain compared to manual jacks

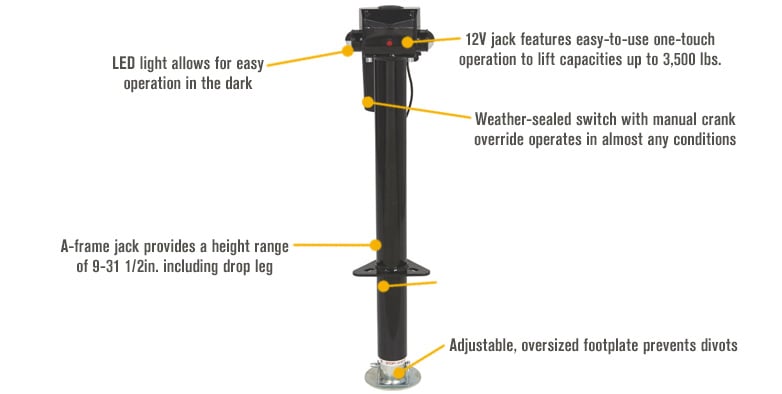

Features + Benefits

  • For hitching and leveling A-frame trailers
  • 3,500-lb. lift capacity
  • Provides height range of 9in.–31-1/2in. (ground to center of mounting point)
  • Fits 2-1/4in. mounting holes
  • Adjustable oversized foot prevents divots

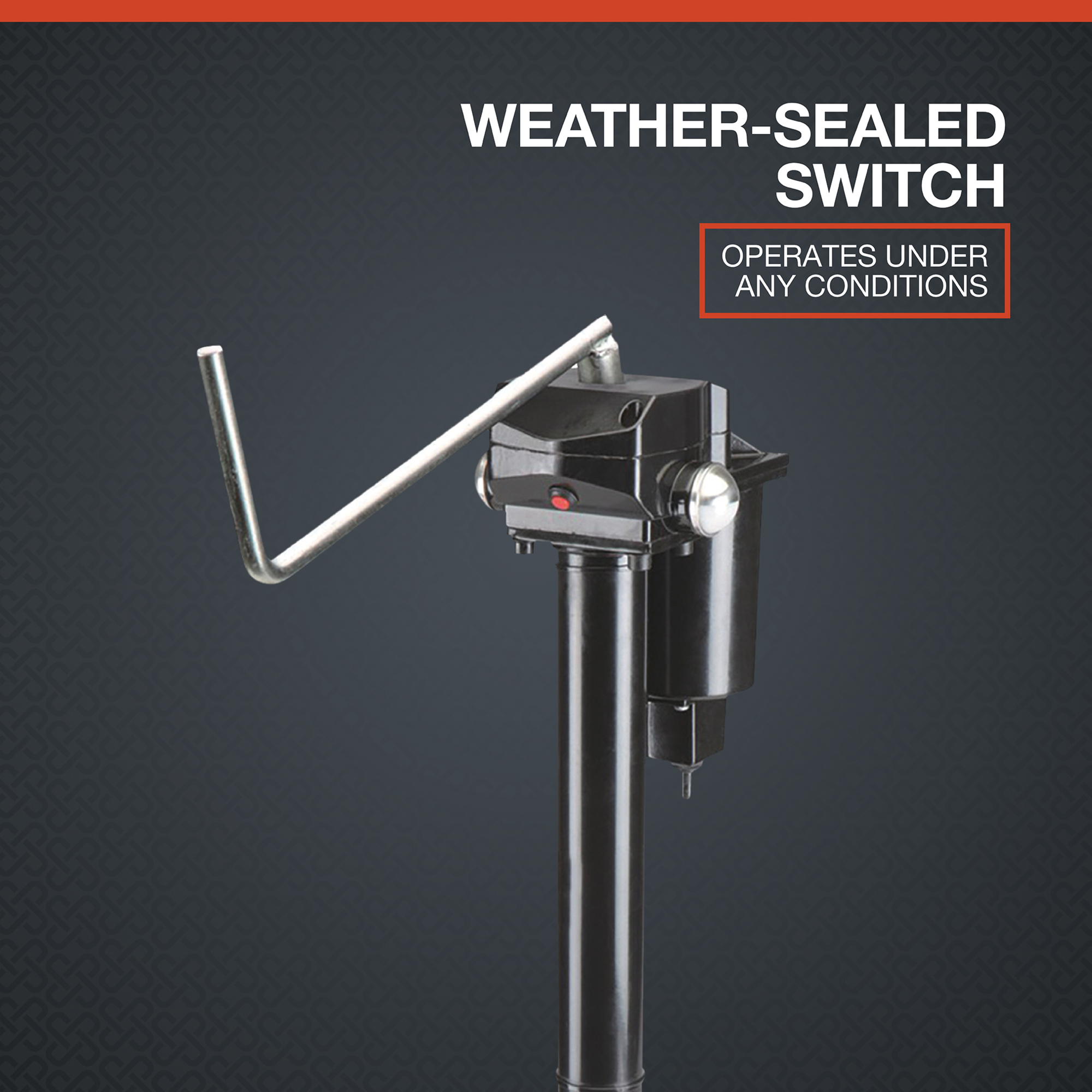

  • Weather-sealed switch with manual crank override operates in almost any conditions

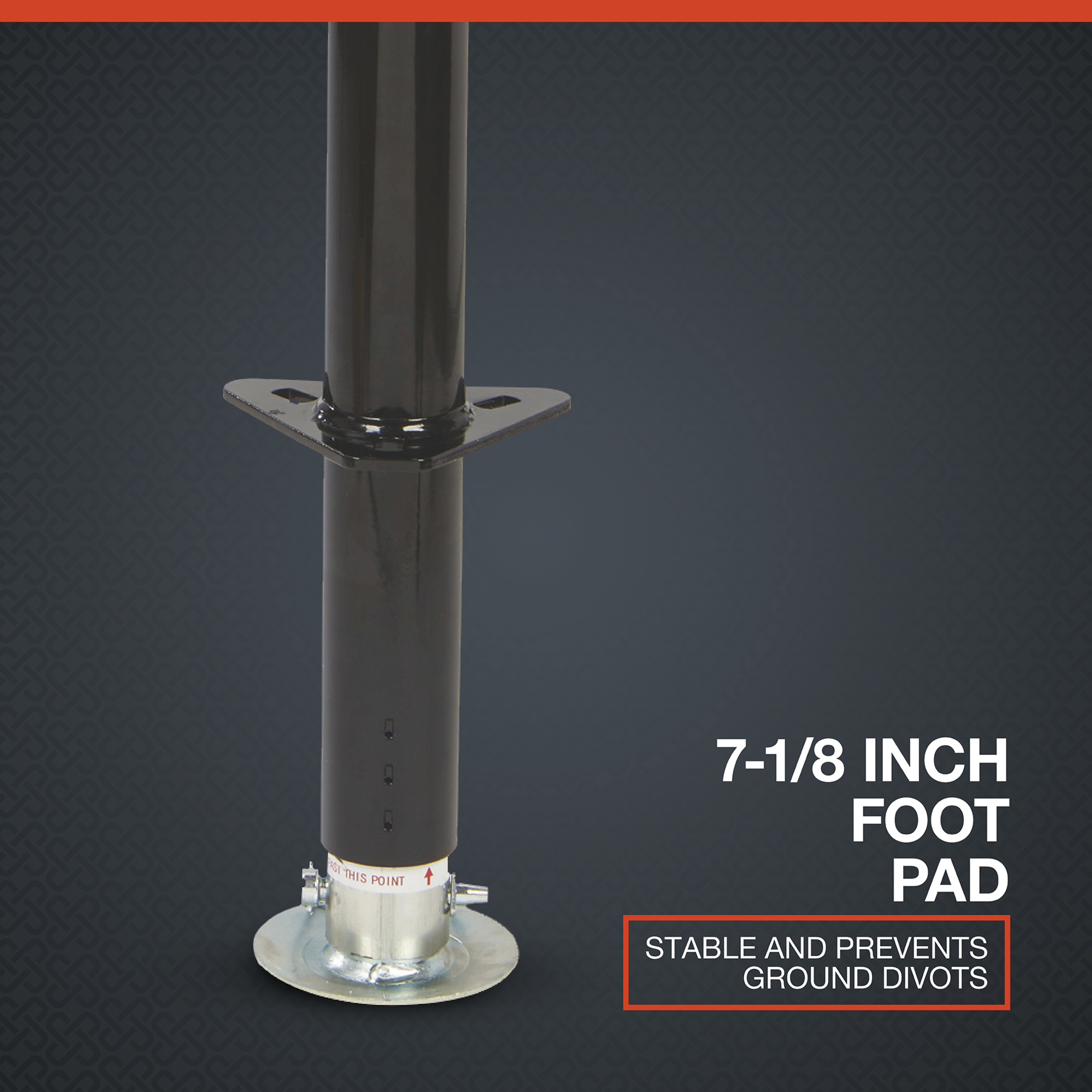

  • Includes 7-1/8in. foot pad
  • 23–25 Amp full-load amperage

Key Specs

AttributeSpecification

item#

57402

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23.8 LB

Lift Capacity

3,500 lb

Jack Type

A-Frame

Mount Type

Bolt-On

Length Extended

27 in

Length Retracted

9 in
AttributeSpecification

Clearance: Bracket to Jack Top

18 in

Support Capacity

5,000 lb

Ground Support

Foot Plate

Mount Height

8.5 in

Drop Leg Travel

4.5 in

Length of Travel

22.5 in

Product Weight

lb

Dimensions L x W x H (in.)

27.17 x 7.5 x 5.5 in

Reviews

Questions & Answers

48 Reviews This action will navigate to reviews.

Questions

1–10 of 15 Questions
Sort by:

  1. What is the travel speed/lift rate?

    1. slow with or without weight but adequate. About the same as cranking by hand without the sweat.

      Helpful?

    2. This jack takes 87 seconds to lift 18 inches under no load and 144 seconds to lift 18 inches under load. To lower 18 inches it take 84.9 seconds under no load and 90 seconds under load.

      Helpful?

  2. How is unit powered ?

    Can unit be powered from 7 pin trailer connector or must separate power be ran from battery of truck or auxiliary power terminals. ?

    1. My mechanic hooked mine up being powered from the trailer wiring harness using a round RV plug using the white wire for power the truck lights must be turned in when power is needed to the jack.

      Helpful?

    2. This trailer jack needs to be connected directly to a 12 volt battery and cannot be connected to the vehicles trailer light connection.

      Helpful?

  3. What plug adapts to a 4 flat

    1 answer

    1. This jack does not have a plug, it is designed to be wired directly to a battery.

      Helpful?

  4. What AH battery (or CCA) do I need?

    1 answer

    1. This jack is designed to be wired directly to a 12V battery. For this to operate, the battery needs to support a minimum of 23-25 amps.

      Helpful?

  5. how much clearance does it give you when fully up?

    1 answer

    1. This jack provides a height range of 9" - 31.5" from the ground to the center of the mounting point.

      Helpful?

  6. where is it made

    1 answer

    1. This is manufactured in China.

      Helpful?

  7. How do I get a switch replacement for the Ironton jack

    1 answer

    1. The on/off toggle switch, part number IRN57402-15, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  8. Can you put a wheel on vs a plate?

    1 answer

    1. Yes, the footpad can be removed and replaced with a wheel. The insert is 1-7/8" in diameter. The lock pin measures 3/8" in diameter.

      Helpful?

  9. Can I hook up a remote switch to run? I want run electrics from away from jack.

    1 answer

    1. A remote switch is not an option for this trailer jack.

      Helpful?

  10. Is there a wiring diagram for install

    1 answer

    1. There is not a wiring diagram but wiring instructions are included in the manual.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
