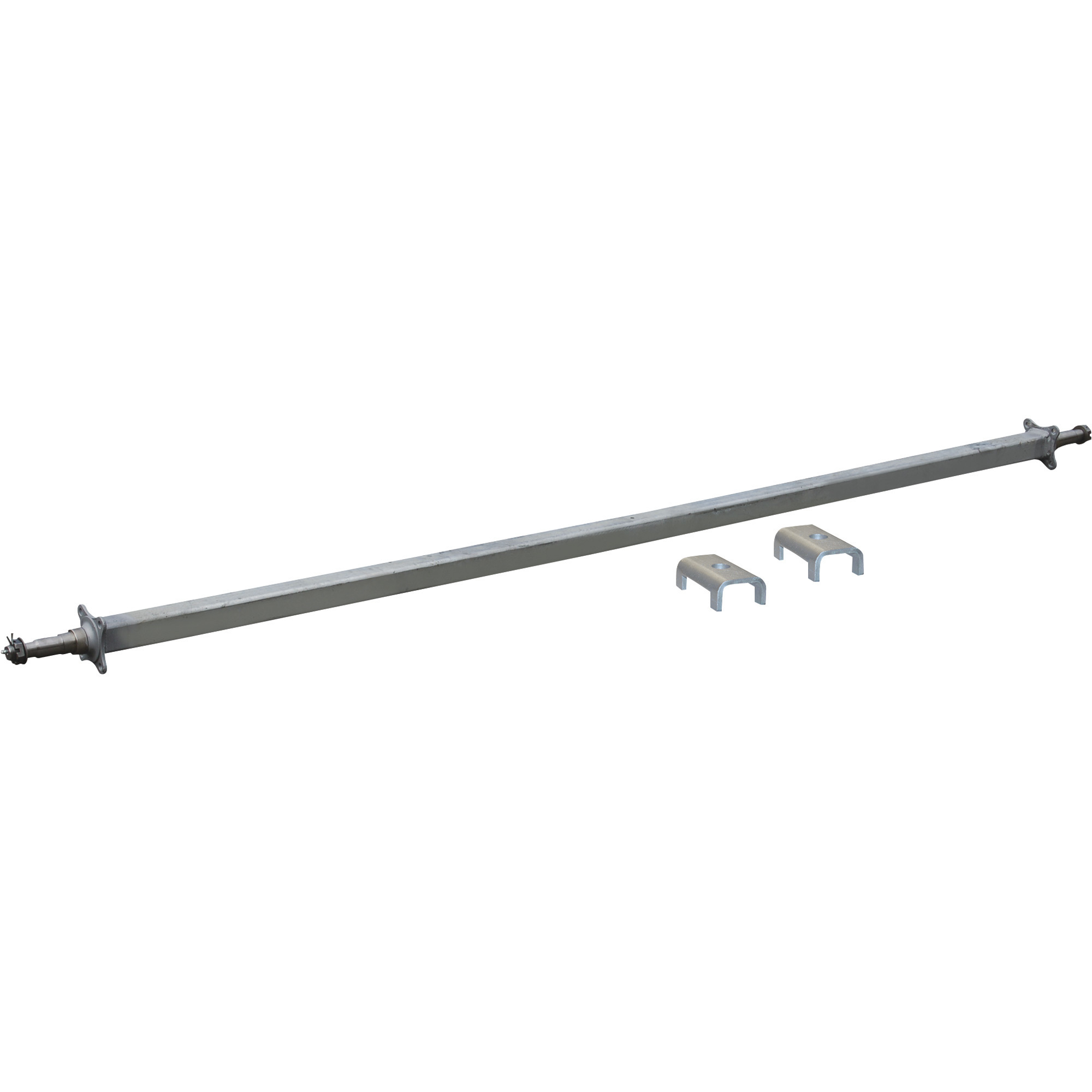

Ultra-Tow 3500-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 85in. Hubface, 69-1/2in.–73-1/2in. Spring Center, 90-1/4in.L, Straight

Item# 49093
"Ultra-Tow 3500-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 85in. Hubface, 69-1/2in.–73-1/2in. Spring Center, 90-1/4in.L, Straight"
Top Seller
Ultra-Tow 3500-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 85in. Hubface, 69-1/2in.–73-1/2in. Spring Center, 90-1/4in.L, Straight

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow 3500-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 85in. Hubface, 69-1/2in.–73-1/2in. Spring Center, 90-1/4in.L, Straight

Click or Tap image to Zoom

$239.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Beam only flanged design can be used as an idler or brake axle
  • Adjustable spring mounts offer a variety of mounting positions
  • Fast Lube spindles allow you to re-grease the bearings without removing the hubs
  • Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal
  • 2in. square tube steel axle is hot dip galvanized with adjustable spring centers

See full description

Complete Your Solution

  • Ultra-Tow 3500-Lb. Capacity Spring Trailer Axle with Adjustable Spring Mounts, 85in. Hubface, 69-1/2in.–73-1/2in. Spring Center, 90-1/4in.L, Straight
  • Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1750-Lb. Capacity
Price for all two:

$329.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The rugged Ultra-Tow Spring Trailer Axle with adjustable spring mounts features Fast Lube spindles that allow you to re-grease the bearings without removing the hubs (hubs not included). Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal. Adjustable spring mounts offer a variety of mounting positions. Square tube steel axle is hot dip galvanized, has adjustable spring centers and can be under or over slung. Axle includes castle nuts, cotter pins and washers. Made in the U.S.A.

What's Included

    (1) Axle beam with adjustable spring mounts (1) Hardware kit (castle nuts, cotter pins, washers)

Features + Benefits

  • Beam only flanged design can be used as an idler or brake axle
  • Adjustable spring mounts offer a variety of mounting positions
  • Fast Lube spindles allow you to re-grease the bearings without removing the hubs
  • Stainless steel wear sleeves prevent rust from wearing on the rubber oil seal
  • 2in. square tube steel axle is hot dip galvanized with adjustable spring centers
  • Can be under or over slung
  • Straight axle
  • 3,500-lb. capacity
  • 85in. hubface
  • 69-1/2in.–73-1/2in. adjustable spring centers
  • 90-1/4in. overall length
  • 1-3/8in. inner bearing
  • 1-1/16in. outer bearing
  • 1.72in. seal
  • Brake flange included

Key Specs

AttributeSpecification

item#

49093

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

41.0 LB

Max. Spring Centers Length

73.5 in

Min. Spring Centers Length

69.5 in

Weight Capacity

3,500 lb

Product Type

Spring Axle

Axle Tube Type

Square

Seal Size ID

1.71 in
AttributeSpecification

Bearing Size ID

1.375 in

Bearing Size OD

1.063 in

Axle Outside Diameter

2 in

Springs Included

No

Cambered

No

Hubs Included

No

Brakes Included

No

Track Length

85 in

Adjustable Bracket

Yes

Reviews

Questions & Answers

17 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Is this axle designed for spring over or under mount

    1 answer

    1. This trailer axle has adjustable spring centers and can be under or over slung.

      Helpful?

  2. How do I measure hub face?

    1 answer

    1. Identify the flat, outer surfaces where the wheel or rim mounts to the hub. Start at the outer edge of one hub face and extend to the outer edge of the opposite hub face to determine the hub face length.

      Helpful?

  3. Are the spindles replaceable?

    1 answer

    1. The spindles are not replaceable, the entire axle would need to be replaced.

      Helpful?

  4. what 5 lug hubs fit this axle?

    1 answer

    1. The hub kit, item 95437, is compatible with this trailer axle.

      Helpful?

  5. What’s the hub face

    1 answer

    1. This axle has an 85" hubface.

      Helpful?

  6. I purchased this axle and my grease gun zerk fitting does not fit the installed zerk fitting. What size zerk is installed on the axle?

    1 answer

    1. This axle uses a 1/4-28 Zerk fitting for a .230/.235 hole.

      Helpful?

  7. What size bearing buddies do I need for these hubs

    1 answer

    1. This axle does not include any hubs. Compatible hubs that we currently offer are items 57206 and 572061.

      Helpful?

  8. Can you cut and shorten the axle tube to make the hubface shorter?

    1 answer

    1. Cutting and shortening the axle is not recommended as it would alter the integrity of the axle.

      Helpful?

  9. I have 4 bolt wheel. What hub assembly 4 bolt can I use.

    1 answer

    1. We currently do not offer a 4 bolt assembly that has a 1-3/8" inner bearing size, 1-1/16 outer bearing size and 1.72" seal size.

      Helpful?

  10. Does the hole in the center of this axle need to face down?

    1 answer

    1. The hole in the center of the axle does need to be facing down.

      Helpful?
