Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1750-Lb. Capacity

Item# 572061
Top Seller
Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1750-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow XTP Ultra-Pack Trailer Hub, 5 on 4-1/2in., 1750-Lb. Capacity

Click or Tap image to Zoom

$99.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    13 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Fits 5 on 4-1/2in. bolt pattern; rated for 1,750-lb. capacity

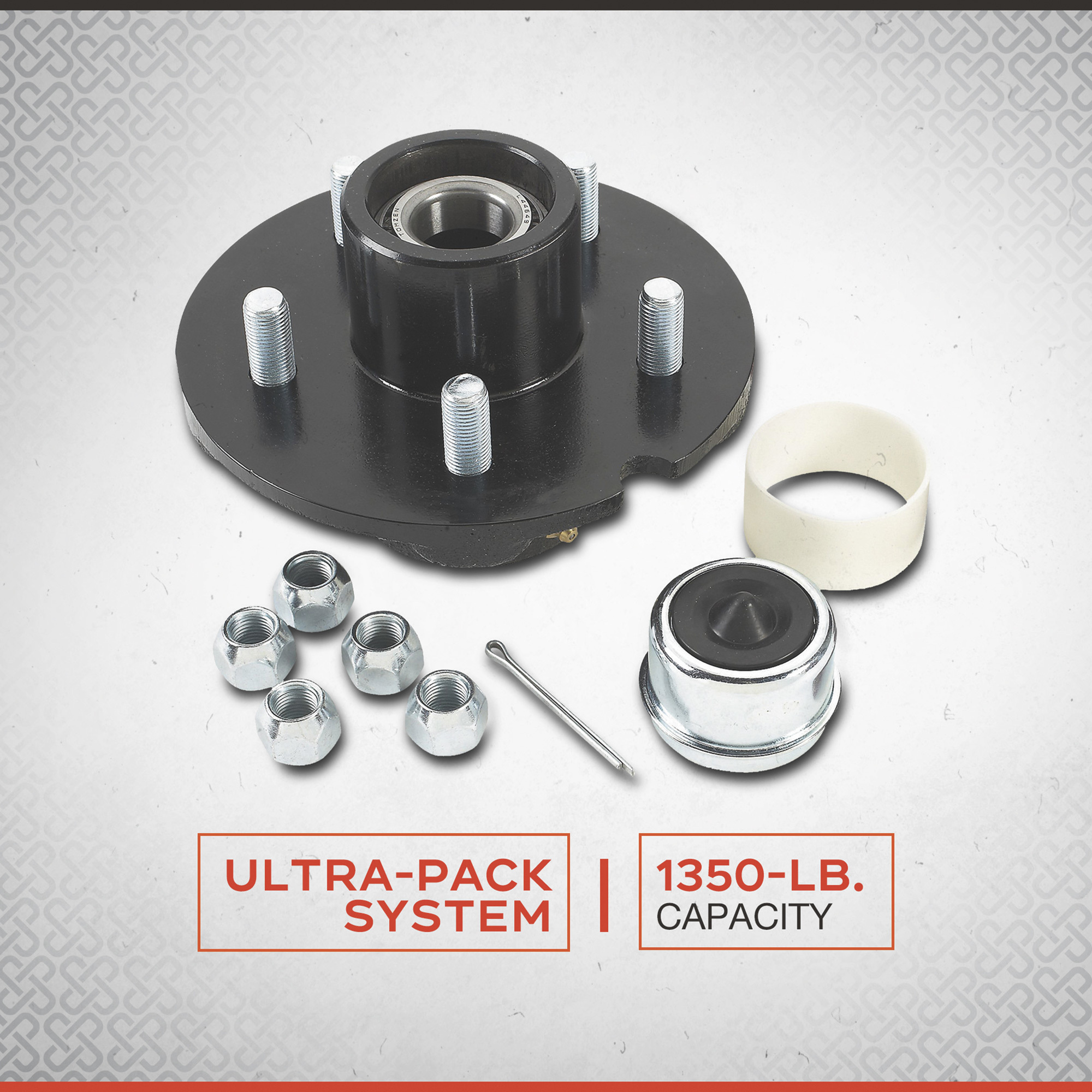

  • Ultra-Pack greasing system repacks inner and outer bearings without disassembly
  • Zerk fitting allows fresh grease to purge old grease from the front of the hub
  • Triple-lip, spring-loaded seal helps protect bearings from water and corrosion

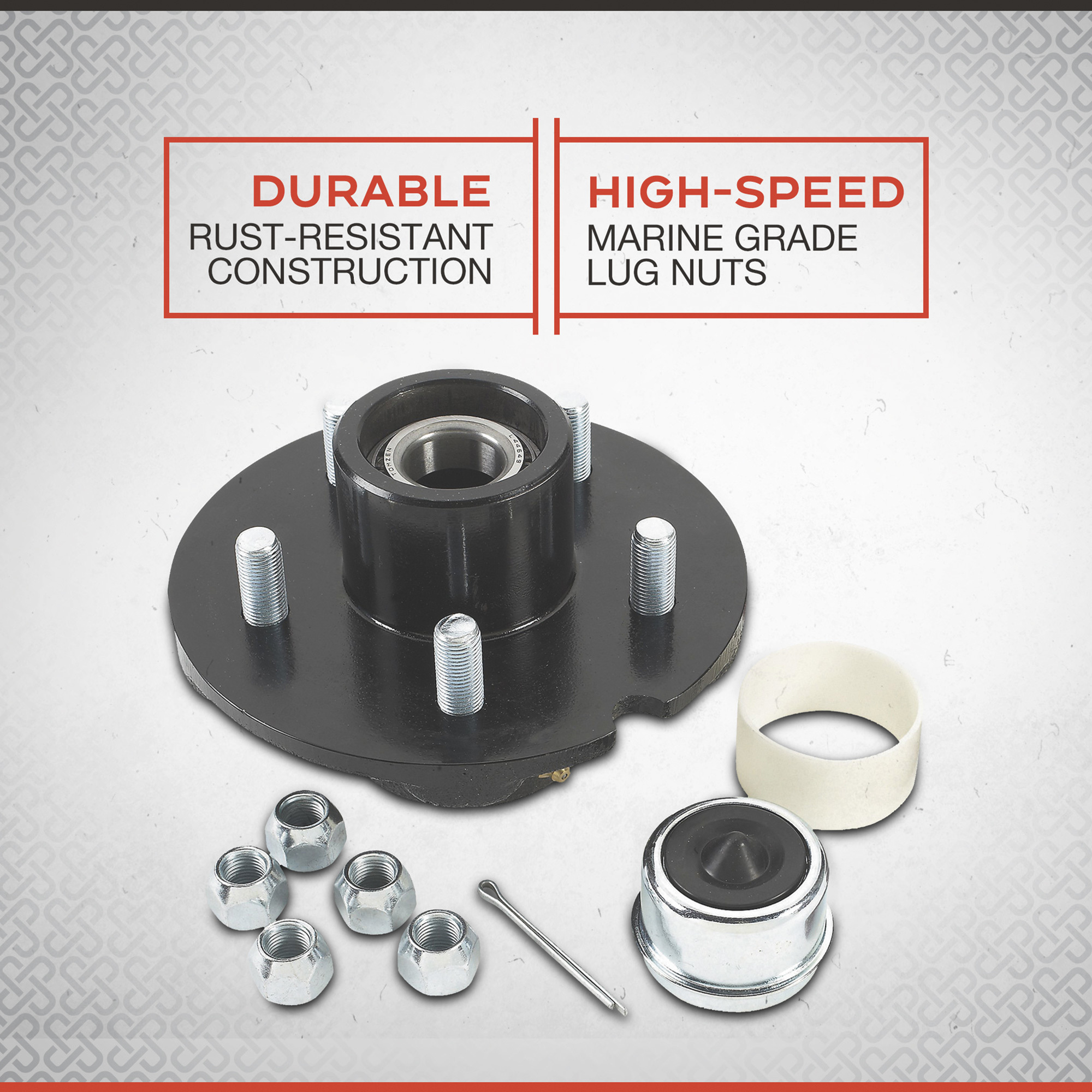

  • High-speed electroplated cast iron hub resists rust for marine and utility use

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ultra-Tow XTP Ultra-Pack Trailer Hub is a fully assembled, prelubed hub designed to simplify bearing maintenance and extend service life. Its proprietary Ultra-Pack greasing system allows bearings to be repacked through an integrated zerk fitting without hub removal, pushing old grease out the front for a complete refresh while protecting the rear seal.

What's Included

    (1) Ultra-Tow XTP Ultra-Pack Trailer Hub
Play Item Video

Features + Benefits

  • Fits 5 on 4-1/2in. bolt pattern; rated for 1,750-lb. capacity
  • Ultra-Pack greasing system repacks inner and outer bearings without disassembly
  • Zerk fitting allows fresh grease to purge old grease from the front of the hub
  • Triple-lip, spring-loaded seal helps protect bearings from water and corrosion
  • High-speed electroplated cast iron hub resists rust for marine and utility use

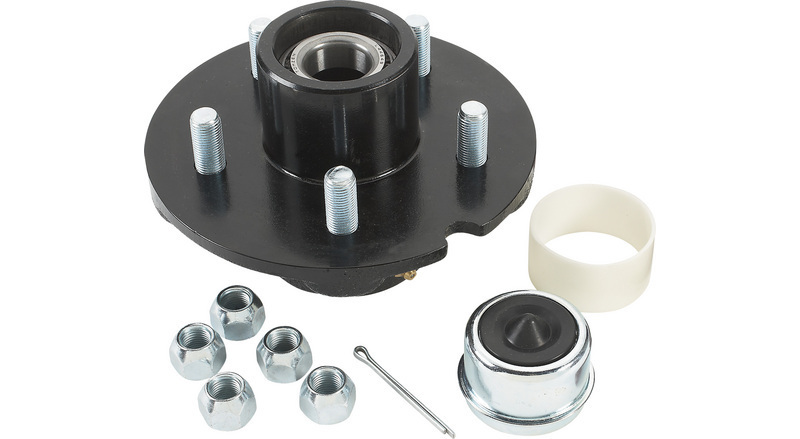

  • Includes hub with bearings, seal, grease cap with zerk, stud nuts and dust cap installation tool
  • Designed to work with existing trailer spindles

Key Specs

AttributeSpecification

item#

572061

Brand

Ultra-Tow

Manufacturer's Warranty

2 year limited warranty

Ship Weight

9.0 LB

Studs (qty.)

5

Bolt Circle Pattern

4.5 in
AttributeSpecification

Weight Capacity Each

1,750 lb

Seal Size ID

1.375 in

Bearing Size ID

1-3/8 in

Bearing Size OD

1-1/16 in

Spindle Size

1.72 in

Reviews

Questions & Answers

63 Reviews This action will navigate to reviews.

Questions

1–10 of 25 Questions
Sort by:

  1. Grease in hub

    hub # 572061
    comes with Jieling general purpose lithium grease installed

    is this grease marine grade?

    Hub is going on boat trailer

    1. Not likely marine grade. The hub is only painted so it is probably not marine rated. If putting it on a boat trailer just fill the hub with good marine grease. That will quickly push out the lithium grease.

      Helpful?

    2. This Ultra-Tow XTP utlra pack trailer hub uses general purpose grease, not marine grade. It has excellent water-resistance, it is hard to be emulsified and washout when contacting water. It has excellent rust-proof ability to prevent metal from rusting, good mechanical stability and excellent adhesiveness to ensure no softening and loss in use.

      Helpful?

  2. is this a set or just 1?

    1. Just one.

      Helpful?

    2. This trailer hub is sold individually.

      Helpful?

  3. What size bearing buddy will fit?

    1 answer

    1. The bearing buddy size required for this hub is 1.980".

      Helpful?

  4. Is this for both sides or do I need two different products?

    1 answer

    1. These hubs can be used on either side.

      Helpful?

  5. What is the length of the studs? I have an aluminum custom rim and need long studs

    1 answer

    1. The studs measures 1" long with a 5/8" diameter.

      Helpful?

  6. What diameter will the hub fit?

    1 answer

    1. This hub is designed to fit a 1.72" spindle. The bearing size is 1-1/16" OD and 1-3/8" ID.

      Helpful?

  7. Where is hub made at

    1 answer

    1. This hub is manufactured to our specifications in China.

      Helpful?

  8. Are they 14 inch tires

    1 answer

    1. The overall diameter of this hub is 6-3/8".

      Helpful?

  9. What are the bearing sizes and are they pre greased ?

    1 answer

    1. This hub has pre-greased bearings. The inner bearing is 1-3/8", the outer bearing is 1-1/16".

      Helpful?

  10. What size castle nut is needed for this assembly?

    1 answer

    1. This hub assembly will need a 1" castle nut.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
