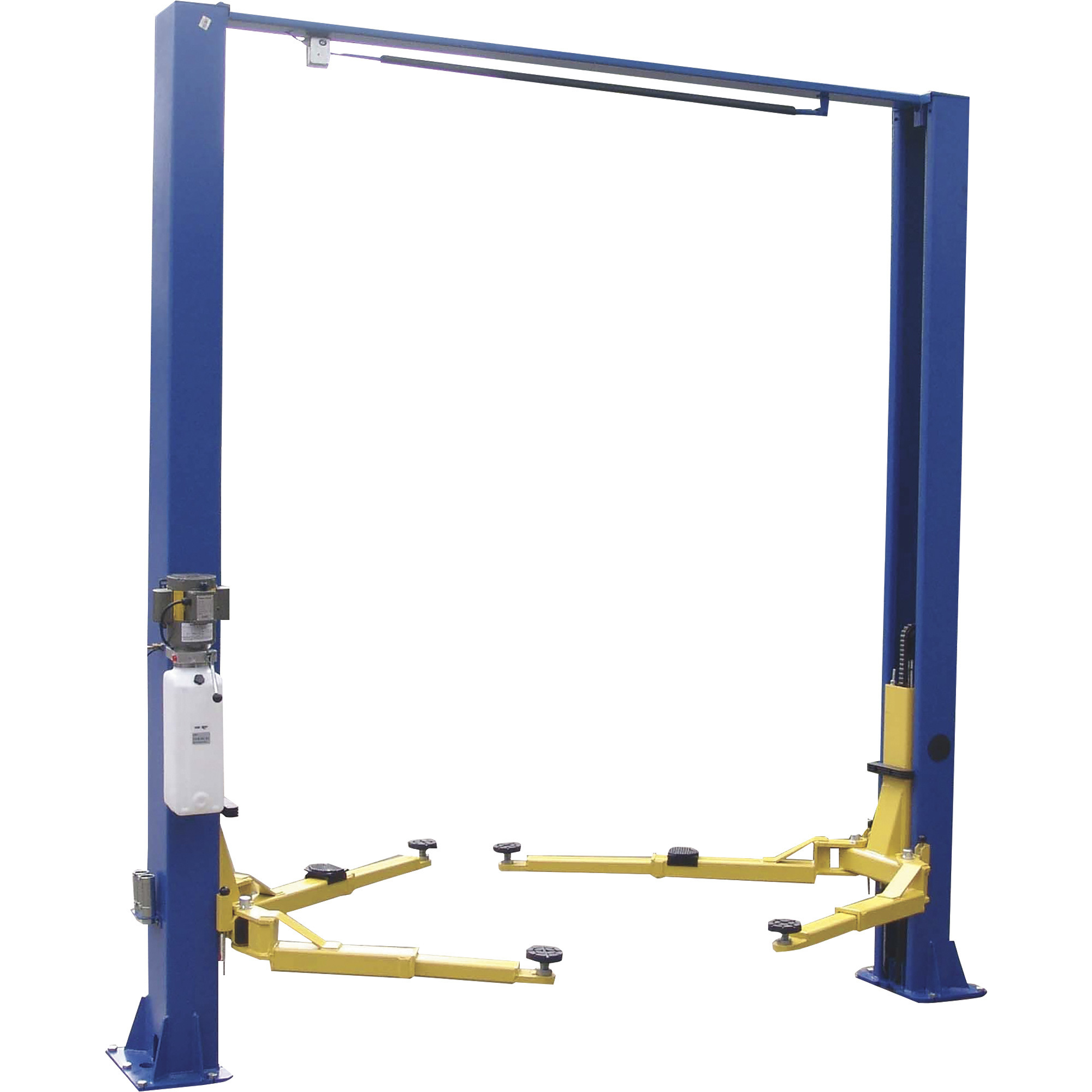

Tuxedo 2-Post Single-Piece Clear Floor Electric/Hydraulic Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KSCX

Item# 88311
"Tuxedo 2-Post Single-Piece Clear Floor Electric/Hydraulic Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KSCX"
Tuxedo 2-Post Single-Piece Clear Floor Electric/Hydraulic Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KSCX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tuxedo 2-Post Single-Piece Clear Floor Electric/Hydraulic Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KSCX

Click or Tap image to Zoom

$3250.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 9,000-lb. capacity
  • Clear Floor symmetric arm design with single-piece column construction
  • 2 HP, single phase chain drive electric/hydraulic motor
  • Internal hose routing
  • Reduced overall width takes up less floor space in the shop

See full description

Complete Your Solution

  • Tuxedo 2-Post Single-Piece Clear Floor Electric/Hydraulic Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KSCX
  • Tuxedo Automotive Lift Cradle Adapter Set, 4-Pieces, Model# TP9KX-SPNCA
  • Omega Wheel Arms, 2 13/16in.-5 11/16in. Width and Height, Model# 92100
Price for all three:

$3668.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 9,000-lb. capacity Tuxedo 2-Post Single-Piece Clear Floor Electric/Hydraulic Vehicle Lift is designed to keep the floor under the lift completely open, with no brackets or supports to get in the way. A strong and dependable design offers years of reliable service. The perfect 2-post lift for a variety of vehicles up to 9,000 lbs. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday--Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 2-post single-piece clear floor vehicle lift

Downloads

Product Manual

Features + Benefits

  • 9,000-lb. capacity
  • Clear Floor symmetric arm design with single-piece column construction

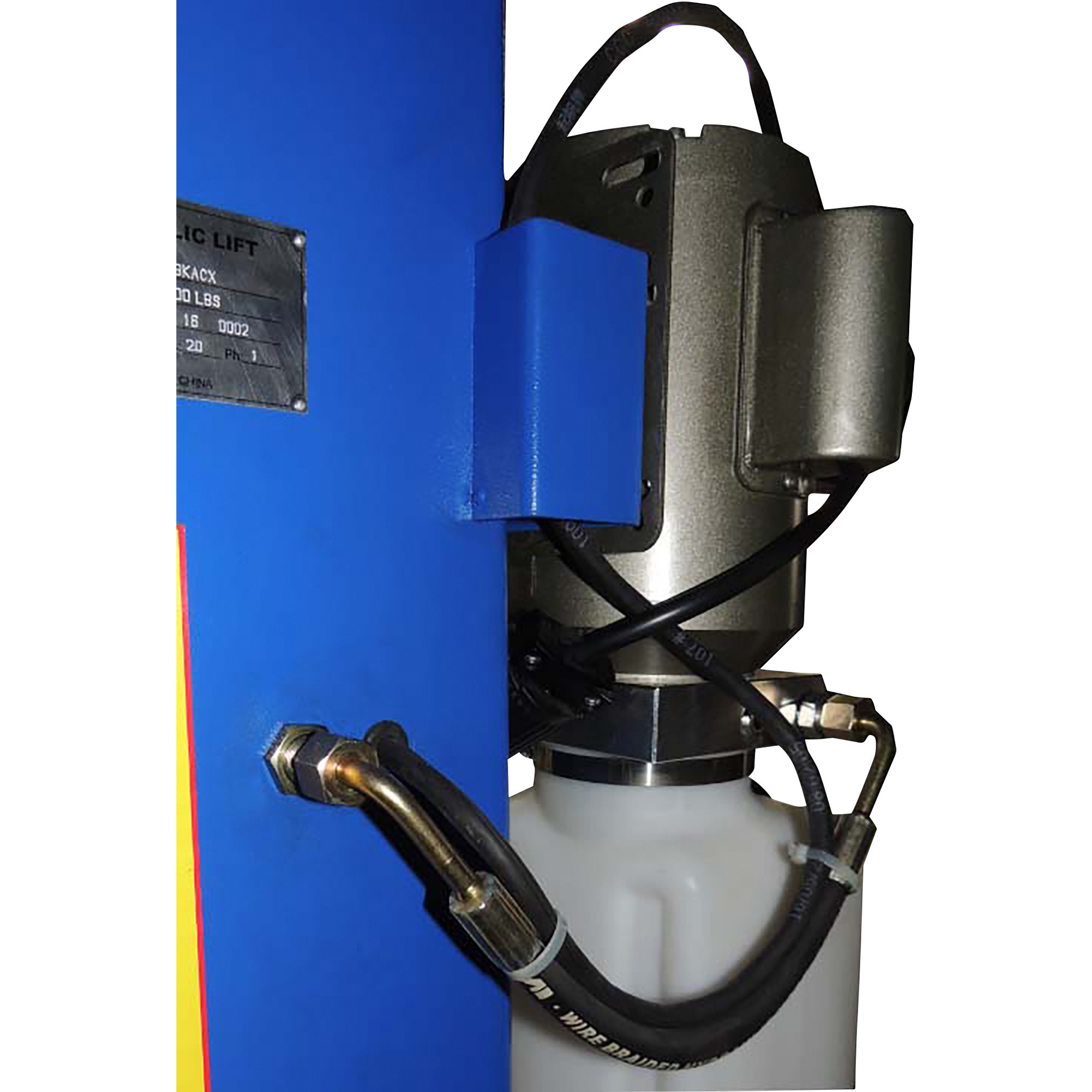

  • 2 HP, single phase chain drive electric/hydraulic motor
  • Internal hose routing
  • Reduced overall width takes up less floor space in the shop
  • Rubber door guards protect vehicles from nicks and scratches
  • Reaches 72in. max. rise in just 50 seconds
  • 142 7/8in. overall height with 96in. drive-through clearance
  • Padded overhead shutoff bar with kill switch for safety
  • Dual point pneumatic lock release

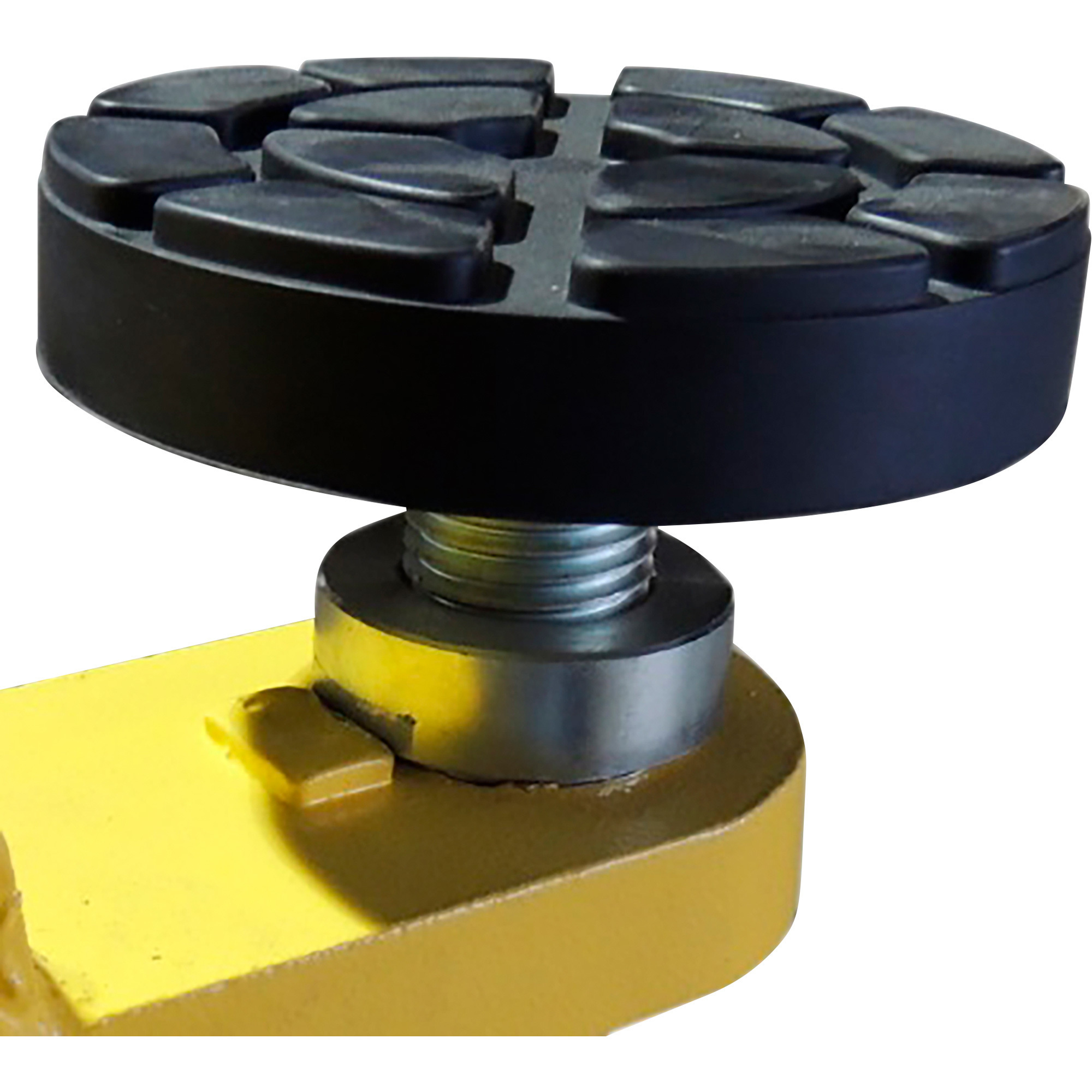

  • Drop-in adjustable swivel pads with height adapters are standard
  • Durable powder-coat paint finish

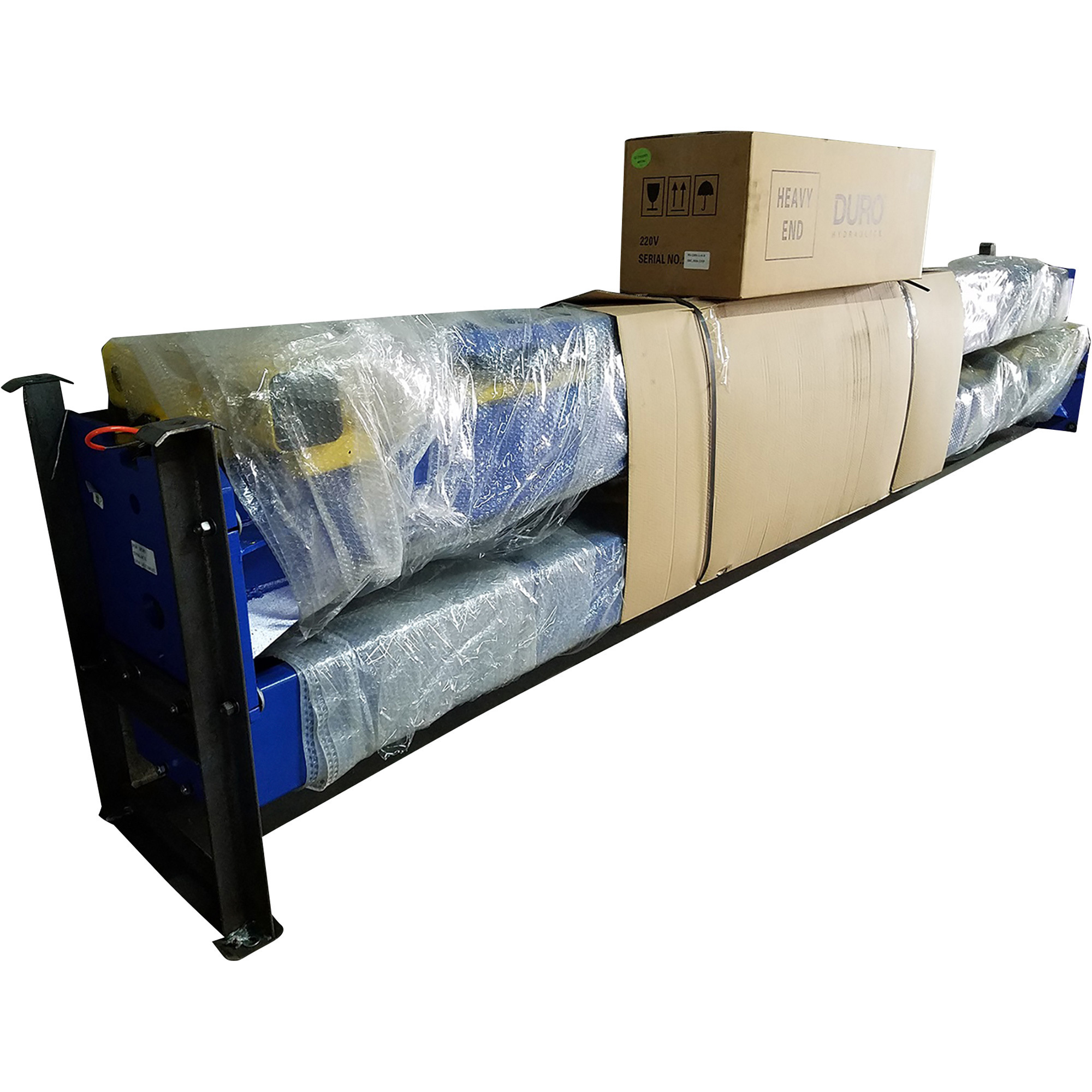

  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

88311

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1370.0 LB

Capacity

9,000 lb

Max. Rise

6 ft
AttributeSpecification

Horsepower

2 HP

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

2

Product Weight

2,250 lb

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Is this tuxedo lift TP9KSCX made in America ?? Tks, Ed/A

    1. No. It is made in China outside Shanghai. I've been to their factory when they first opened and they are very serious about quality and testing critical components like latch teeth and doing quality welds on critical parts. They're legit. Their distributor in the US is in Texas and is named Tuxedo Distributors. They have a web page. You can call them up if you need help, questions or spare parts. You don't have to deal direct with China at all. Good people. So, when I was ready to put a lift in my carport I went with Kernel/Tuxedo.

      Helpful?

    2. The Tuxedo lift model # TP9KSCX would be made in China.

      Helpful?

  2. is this lift ALI certified? TP9KSCX

    1 answer

    1. The lift is not ALI certified.

      Helpful?

  3. ARE REPLACEMENT LIFT CYLINDERS AVAILABLE

    1 answer

    1. Replacement cylinders are available from the manufacturer directly.

      Helpful?

  4. What is overall width?

    1 answer

    1. The overall width is 138''.

      Helpful?

  5. What is the warrantee ?

    1 answer

    1. Tuxedo provides a limited one year warranty on this lift. You may see complete details on page 26 of the manual featured on our product page.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Tuxedo Two-Post Lifts

Specifications

Specifications
Tuxedo 2-Post Single-Piece Clear Floor Electric/Hydraulic Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KSCX
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX
Capacity
Same

9,000 lb

9,000 lb

12,000 lb

10,000 lb

Max. Rise
Same

6 ft

6 ft

6 ft

5.9 ft

Horsepower
Same

2 HP

1 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Locking Position (qty.)
Same

2

14

1

10

Product Weight
Same

2,250 lb

1,370 lb

3,000 lb

1,705 lb
