TPI Shutter-Mounted Direct Drive Exhaust Fan - 24in. Dia., 3400 CFM, 1/4 HP, 120V, Model# CE-24-DS

Item# 255319
"TPI Shutter-Mounted Direct Drive Exhaust Fan - 24in. Dia., 3400 CFM, 1/4 HP, 120V, Model# CE-24-DS"
TPI Shutter-Mounted Direct Drive Exhaust Fan - 24in. Dia., 3400 CFM, 1/4 HP, 120V, Model# CE-24-DS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Shutter-Mounted Direct Drive Exhaust Fan - 24in. Dia., 3400 CFM, 1/4 HP, 120V, Model# CE-24-DS

Click or Tap image to Zoom

$728.32

  • Shipping:

    Factory shipped

  • Store Pickup:

  • For new or existing construction
  • 2-speed, 2770/3400 CFM enclosed motor ensures rapid ventilation
  • Permanently lubricated

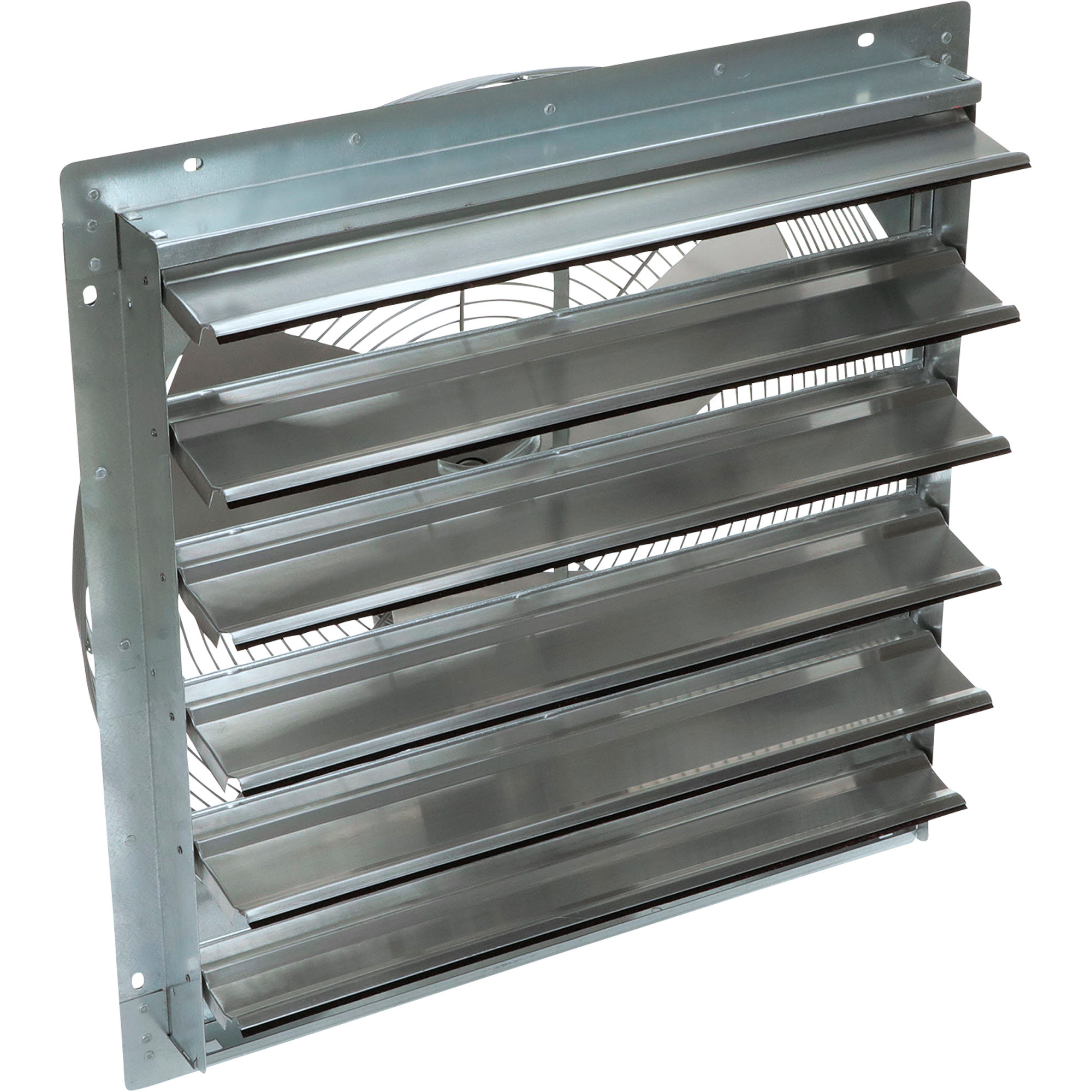

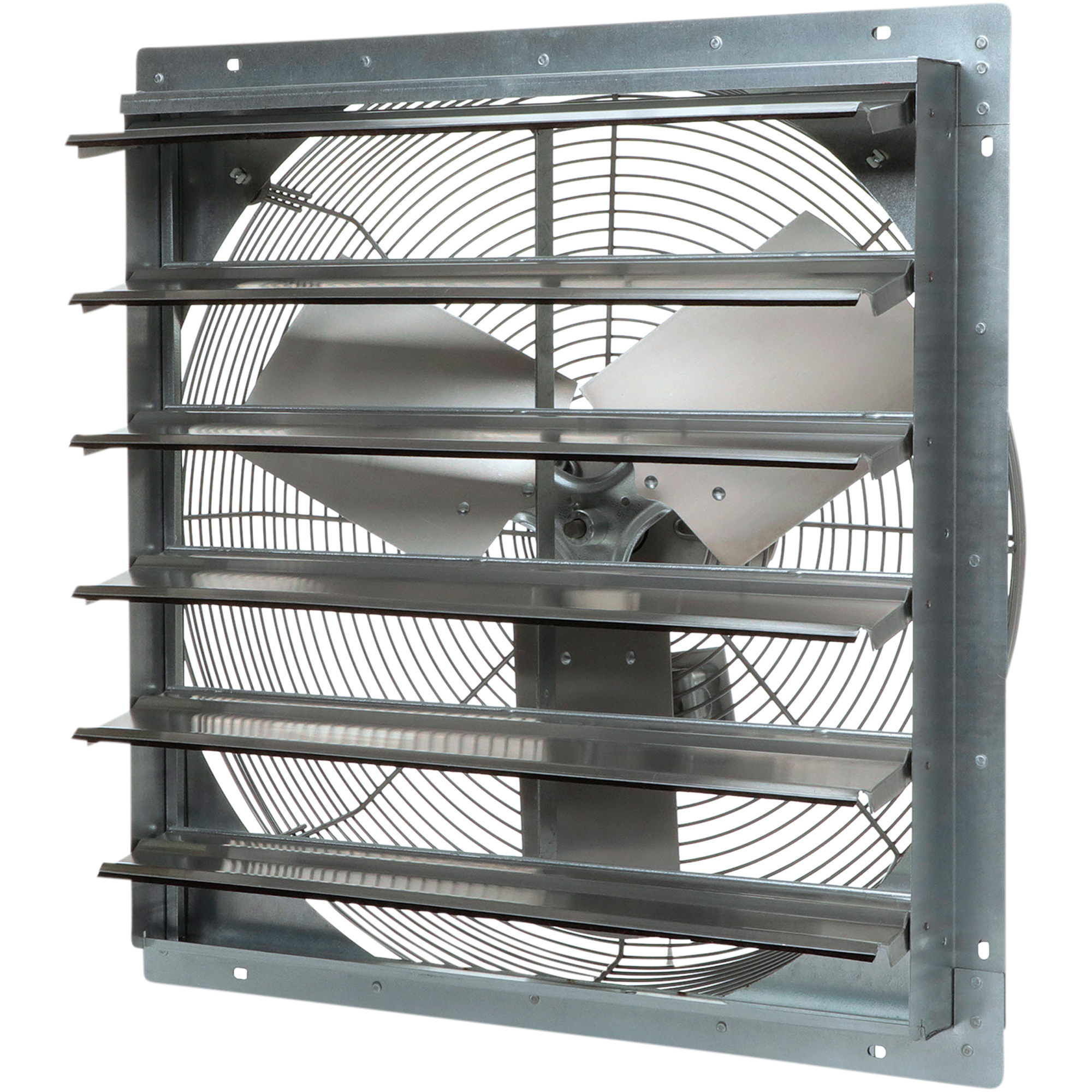

  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

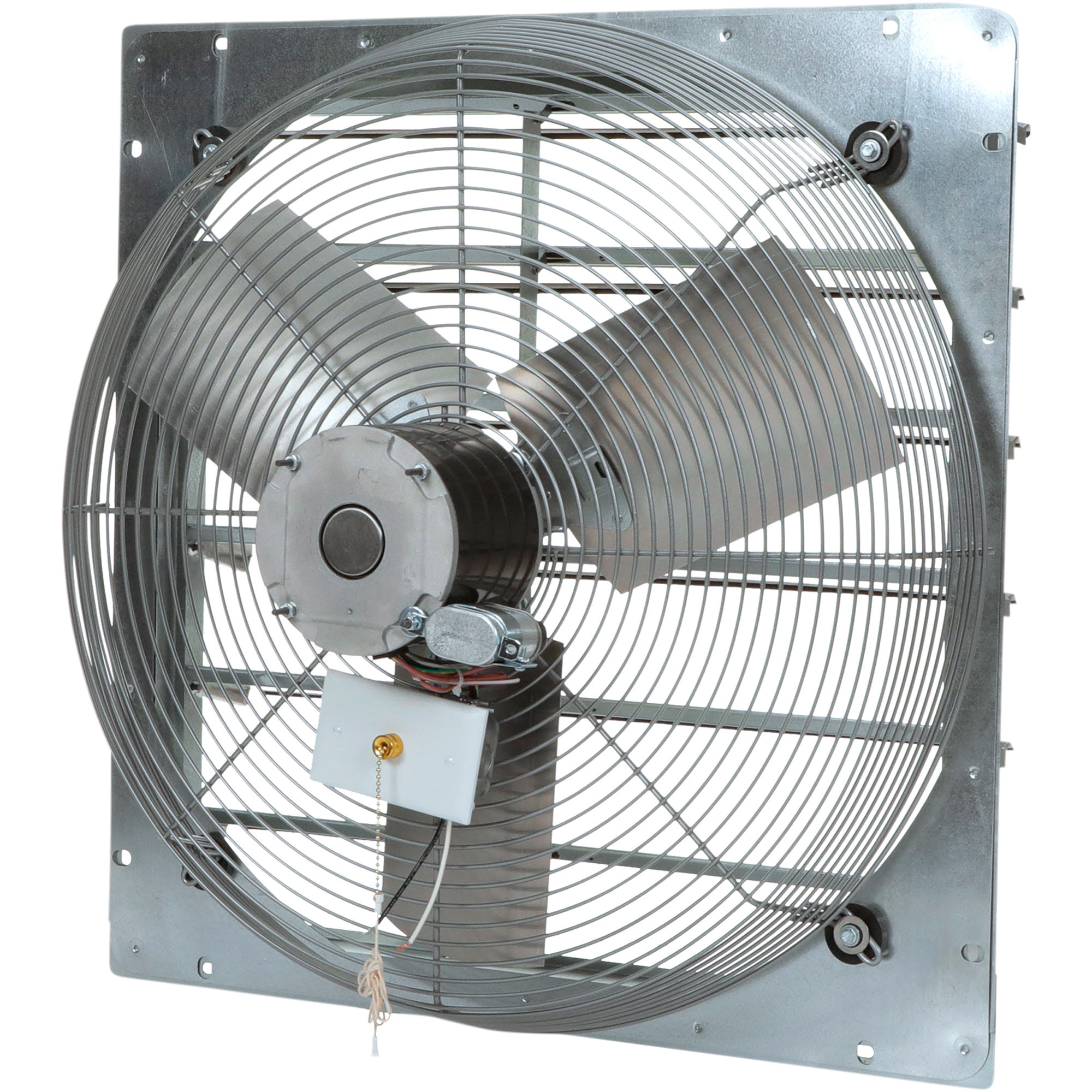

The TPI Shutter-Mounted Direct Drive Exhaust Fan is designed to exhaust stale air from rooms, barns, garages or small enclosed work areas. Mounts from the inside of the wall, eliminating the need for external framing and shutter. Totally enclosed 120V direct drive motor has 2 speeds and is permanently lubricated. 1/4 HP fan features pull chain switch, aluminum blades and steel spiral guards.

What's Included

    (1) Exhaust fan (1) Junction box

Downloads

Product Manual Product Manual2

Features + Benefits

  • For new or existing construction
  • 2-speed, 2770/3400 CFM enclosed motor ensures rapid ventilation
  • Permanently lubricated
  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise
  • 1/4 HP, 120V motor features pull chain
  • Aluminum blades
  • Steel spiral wire guards
  • Includes junction box for hardwiring
  • Shutter-mounted fans install on inside wall and eliminate the need for external framing and shutter
  • Quiet operation makes it ideal for commercial environments
  • Aluminum blades are enclosed in a sturdy steel spiral wire guard
  • Adjustable shutters regulate flow of ventilation
  • Meets OSHA standards
  • UL listed

Key Specs

AttributeSpecification

item#

255319

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

37.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

24 in

Air Delivery

3,400 cfm

Volts

120

Speeds (qty.)

2

Horsepower

0.25 HP

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Is this fan rated for outdoor use? How do you change the speeds?

    Fan will be mounted above the screen panels of a screened porch. If shutters are open and it rains, would this damage the fan blades or the motor?

    1. No. Pull-chain switch is supplied.

      Helpful?

    2. The fan is to be mounted on an exterior wall, with the louvers on the outside. Speeds are changed by a pull-chain switch, just like on your ceiling fan.

      Helpful?

    3. No. The air current from the fan opens the shutters. When the fan is off, the shutters are closed. When the fan is operating, the air flow and the angle of the louvers keep the rain out.

      Helpful?

    4. The fan is not rated for outdoor use. Water would eventually damage the motor. The speed of the fan is controlled by a pull chain.

      Helpful?

  2. so this fan actually pulls hot air out of the building?

    1. YES

      Helpful?

    2. It pulls ALL the air out. I have mine mounted in the garage, and it will exchange all the air in my 1600 sq. ft. house in about 5 minutes

      Helpful?

    3. A LOT of hot air.

      Helpful?

    4. The exhaust fan is designed to exhaust stale air from rooms, barns, garages or small enclosed work areas. When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements.

      Helpful?

  3. Electrical amp draw of this unit on high speed

    I need to know the gauge of wire I should use to hard wire.

    1. 2.5 amps

      Helpful?

    2. 2.5

      Helpful?

    3. The electrical amp draw of this unit on high speed is 2.5 amps.
      You will need to contact your local electrician to determine the wire gauge.

      Helpful?

  4. Does this fan come in two pieces?

    Does this fan come in two pieces? my wall is 8 inches thick. i need to know if i will get a inside mounting plate for the fan and then a plate for the outside louvers.

    1. Yes. It is recommended to be mounted with the louvers mounted to the outside of the house and the fan on the inside. I replaced a window with mine, and modified the framing specifically for this fan. a 3/4" piece of plywood with a round hole cut into it was what I attached the fan housing to.

      Helpful?

    2. One piece. The fan unit can be separated from the louvers, but then there would be no guard on the outside.

      Helpful?

    3. No, this TPI shutter-mounted exhaust fan is a single unit that mounts to your inside wall and eliminates the need for external framing and shutter.

      Helpful?

  5. What is the motor RPM?

    1. RPM for the 24 inch TPI Shutter-Mounted Direct Drive Exhaust Fan will be 1140 RPM when on high speed, and 1070 when on low.

      Helpful?

    2. 1070 on low, and 1140 on high.

      Helpful?

  6. Is this fan explosion proof

    Would it be able to handle paint fumes from a larger area/ warehouse to ventilated

    1 answer

    1. This fan has an enclosed motor and can be used for applications where it would be exposed to paint fumes; however, it is not an explosion-proof fan. We do offer item 13770 which is a 24" panel fan that is explosion-proof and can be used in paint applications, please view this item below.

      Helpful?

  7. what is the SQ FT that this unit will cover

    1 answer

    1. There are several variables that factor into this answer.
      The formula used is W x L x H divided by M = CFM.
      W is the width of the room. L is the length of the room. H is the height of the room.
      M is number of minutes it takes to exchange all the air in the room.
      This calculation equals the CFM (cubic feet per minute) of the fan.
      This fan has two speeds Assuming an 8 foot ceiling and an air exchange rate of 3 minutes, the
      coverage in low would be 1000 SQ FT and the coverage in high would be 1200 SQ FT.

      Helpful?

  8. What is the R.O. Rough Opening needed to frame in this fan in a new building?

    1 answer

    1. This exhaust fan fits into a wall cutout measuring 24-1/2" W x 24-1/2" H.

      Helpful?

  9. Is this a plug in unit or is it hard wired?

    also I will be using this in a paint booth with the fan being inside a boxed unit with a filter the back end and the fan acting as the exhaust end. the trailer is 50 feet long with a clean air intake at the opposite end pushing air towards the fan. will this work?

    1 answer

    1. This is a hard wired unit with a junction box included and the unit will work for this application.

      Helpful?

  10. Can this fan be used with ducting?

    1 answer

    1. This TPI Shutter-Mounted Direct Drive Exhaust Fan is designed to be installed in an exterior wall. It is not designed to be used with duct work.

      Helpful?
