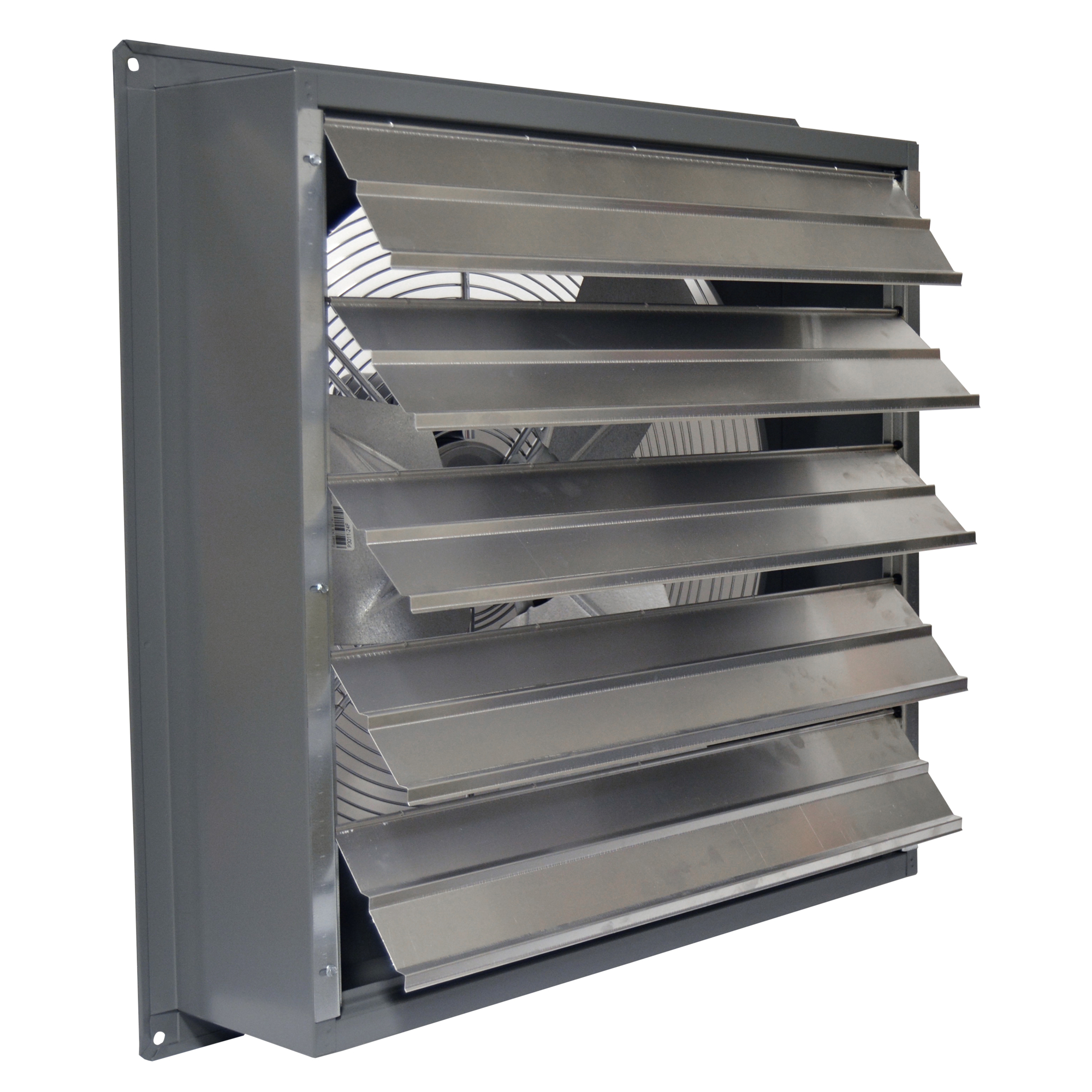

Canarm Single Speed Wall Exhaust Fan, 24in., 5,000 CFM, 1/3 HP, Model# SD24-F1

Item# 25448
Canarm Single Speed Wall Exhaust Fan, 24in., 5,000 CFM, 1/3 HP, Model# SD24-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Single Speed Wall Exhaust Fan, 24in., 5,000 CFM, 1/3 HP, Model# SD24-F1

Click or Tap image to Zoom

$439.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Totally enclosed and thermally protected motor
  • Blades are galvanized and well-balanced for durability and efficiency
  • Heavy wire chrome-plated OSHA guards
  • Rugged steel welded box housing with durable powder-coat finish
  • Aluminum louver shutters with long life nylon bushing

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Canarm Wall Exhaust Fan is a 24-inch single-speed, direct-drive fan designed for efficient air movement and easy installation. With a fan diameter of 24 inches, it delivers a powerful airflow of 5000 cubic feet per minute (cfm), making it ideal for ventilating large spaces. This fan is built for low maintenance, ensuring long-term reliability and performance. Its direct-drive design minimizes the need for frequent servicing, while the robust construction ensures durability in various environments. Whether used in commercial, industrial, or agricultural settings, the Canarm Wall Exhaust Fan provides effective ventilation, helping to maintain a comfortable and healthy atmosphere.

What's Included

    (1) Fan

Downloads

Product Manual Product Manual2

Features + Benefits

  • Totally enclosed and thermally protected motor
  • Blades are galvanized and well-balanced for durability and efficiency
  • Heavy wire chrome-plated OSHA guards
  • Rugged steel welded box housing with durable powder-coat finish
  • Aluminum louver shutters with long life nylon bushing
  • Requires hard-wired connection

Key Specs

AttributeSpecification

item#

25448

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

49.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

24 in

Air Delivery

5,000 cfm

Volts

115

Speeds (qty.)

1

Horsepower

0.33 HP

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Do the lovers automatically open/close when fan turns on and off? Would this fan work for a laundry facility behind commercial dryers to pull out hot air?

    1 answer

    1. The SD24 fan uses a tightly closing, gravity-assisted aluminum shutter system designed to minimize backdrafts when the fan is not in use. If installed correctly you can use this unit in the same room as a commercial dryer but we do not recommend placing the fan directly behind the dryer.

      Helpful?

  2. how much noise do the fans produce

    1 answer

    1. The decibel level from 5 feet away is 70.

      Helpful?

  3. Can this fan be used with a variable speed fan rheostat?

    1 answer

    1. This exhaust fan is a single speed. It cannot be used with a variable speed fan rheostat.

      Helpful?

  4. I am looking for a exhaust fan to refresh the dust filled air in my woodworking shop. the shop space is 40' x60' x10'. I live in Montana so I am looking for a fan that is sealed and insulated when not in use. do you have a fan for winter conditions?

    1 answer

    1. This exhaust fan is not sealed and insulated to keep out the cold when not in use. We do offer a fan hood like item 28909 which would help protect this fan from snow, rain and so on though. Currently, we do not offer a similar exhaust fan that would be sealed and insulated.

      Helpful?

  5. Can this fan be used in a kitchen?

    1 answer

    1. This product is not rated for kitchen exhaust. It was not designed to handle kitchen fumes, grease, etc.

      Helpful?

  6. can you add a hood to this fan

    1 answer

    1. A hood can be added to this Canarm wall exhaust fan. The model EH24 fan hood would fit on this fan. Please see my link below for the hood.

      Helpful?

  7. can motor be field rewired for 2 speed?

    120 volt source supply

    1 answer

    1. The exhaust fan is a single speed. The motor cannot be rewired for 2 speed.

      Helpful?

  8. My shop is 10 x 24 x 10, looking for a fan that will create a breeze. Will this fan work?

    1 answer

    1. This is an exhaust fan. It would not create a breeze for you. We would suggest looking at an air circulation fan such as item #258741.

      Helpful?

  9. what are the dimesions the hole in the wall need to be

    1 answer

    1. The rough in dimensions for the wall would be 27" x 27".

      Helpful?

  10. how wide of wall can this be mounted in?

    form the inner wall to the outer wall is 8", how thick of a wall does this fit in. we are trying to find an exhaust fan to mount in our welding area. The shop is 40'x60', it would also be for exhaust fumes from our farm equipment.would this fan be a good fit?

    1 answer

    1. When the exhaust fan is mounted to the wall surface, the unit will extend 6" into the wall. Depending on the height of your building, this fan would provide the correct RPM needed for a building 40' x 60' x 10'.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
