MaxxAir Ventamatic Exhaust Fan with Integrated Shutters, 4,100 CFM, 24in. Dia., Model# IF24UPS

Item# 517233
"MaxxAir Ventamatic Exhaust Fan with Integrated Shutters, 4,100 CFM, 24in. Dia., Model# IF24UPS"
MaxxAir Ventamatic Exhaust Fan with Integrated Shutters, 4,100 CFM, 24in. Dia., Model# IF24UPS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

MaxxAir Ventamatic Exhaust Fan with Integrated Shutters, 4,100 CFM, 24in. Dia., Model# IF24UPS

Click or Tap image to Zoom

$379.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Moves up to 4,100 CFM

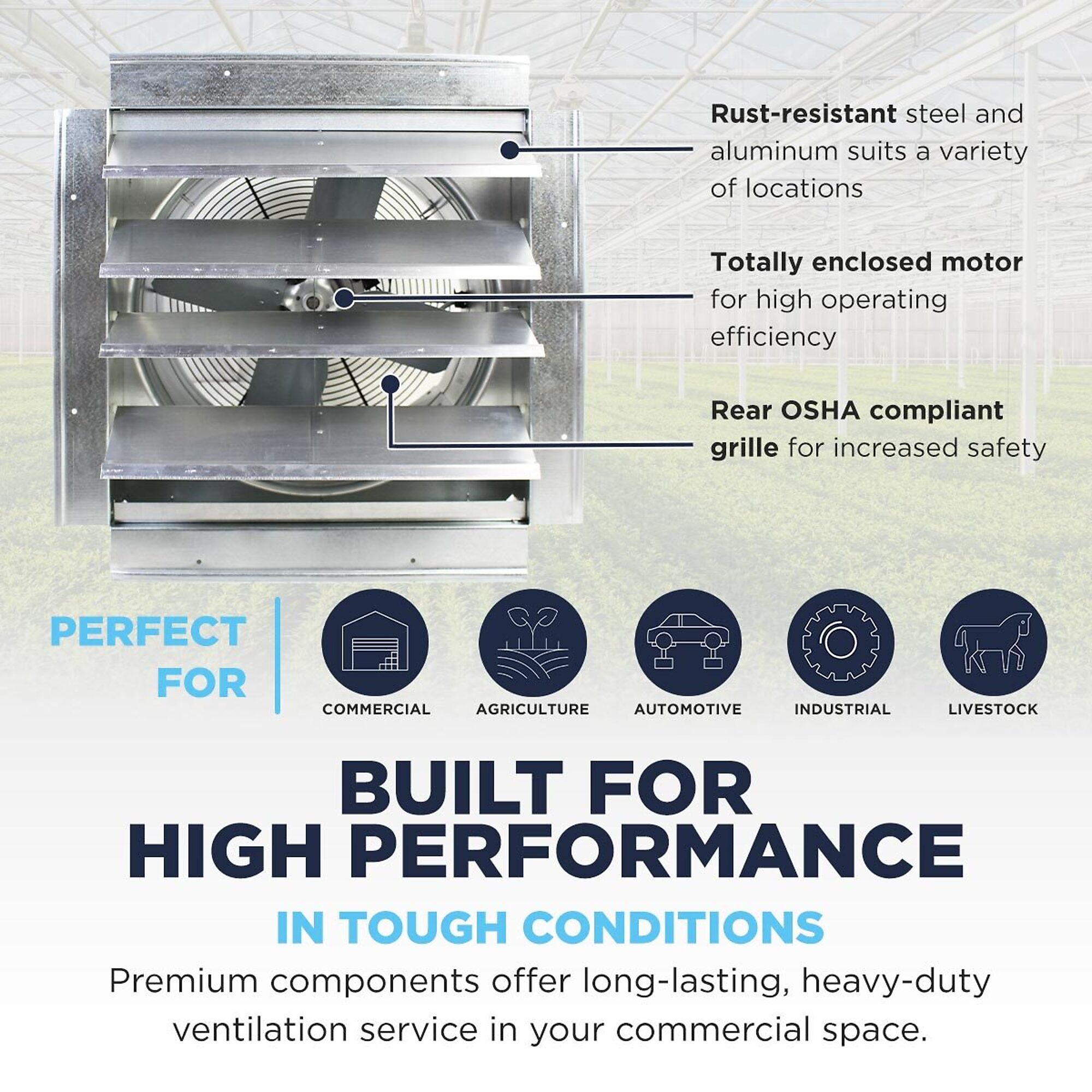

  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation
  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Maxx Air 24in. Exhaust Fan can be used in a garage, barn, greenhouse, warehouse, and a variety of other agricultural and industrial locations to quickly remove unwanted odors, dust and humidity, and refresh stale or warm air in your space. This metal wall exhaust fan is constructed of a sturdy 20 gauge steel housing with aluminum shutter louvers, a safety grille and a totally enclosed, thermally protected motor. Arrives fully assembled, just mount to your desired building wall and wire into your electrical system to complete installation. Pair this vent fan with our adjustable thermostat with firestat (XXFIRESTAT) for greater operational control and safety.

What's Included

    (1) Exhaust fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Moves up to 4,100 CFM
  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation
  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor
  • Requires wiring to your building's electrical system and 13.5 sq. ft. of NFA intake ventilation
  • Not intended to exhaust hazardous fumes or chemicals
  • 1-year limited warranty

Key Specs

AttributeSpecification

item#

517233

Brand

Maxx Air

Manufacturer's Warranty

1 year limited warranty

Ship Weight

54.0 LB

Drive Type

Direct

Fan Diameter

24 in

Air Delivery

4,100 cfm
AttributeSpecification

Volts

115

Amps

4.35

Hardwired

Yes

Speeds (qty.)

1

Horsepower

0.33 HP

Product Weight

46.0000 lb

Dimensions L x W x H (in.)

13.1 x 31.5 x 31.5 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What is the rough in dimensions of this fan

    1 answer

    1. The overall dimensions of the fan are 17"L x 33"W x 34"H.

      Helpful?

  2. How many HP does this fans motor have?

    1 answer

    1. The motor is 1/3 HP.

      Helpful?

  3. what can i use to controll the speed of this fan

    1 answer

    1. There is only one speed on this unit. It cannot be controlled.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
