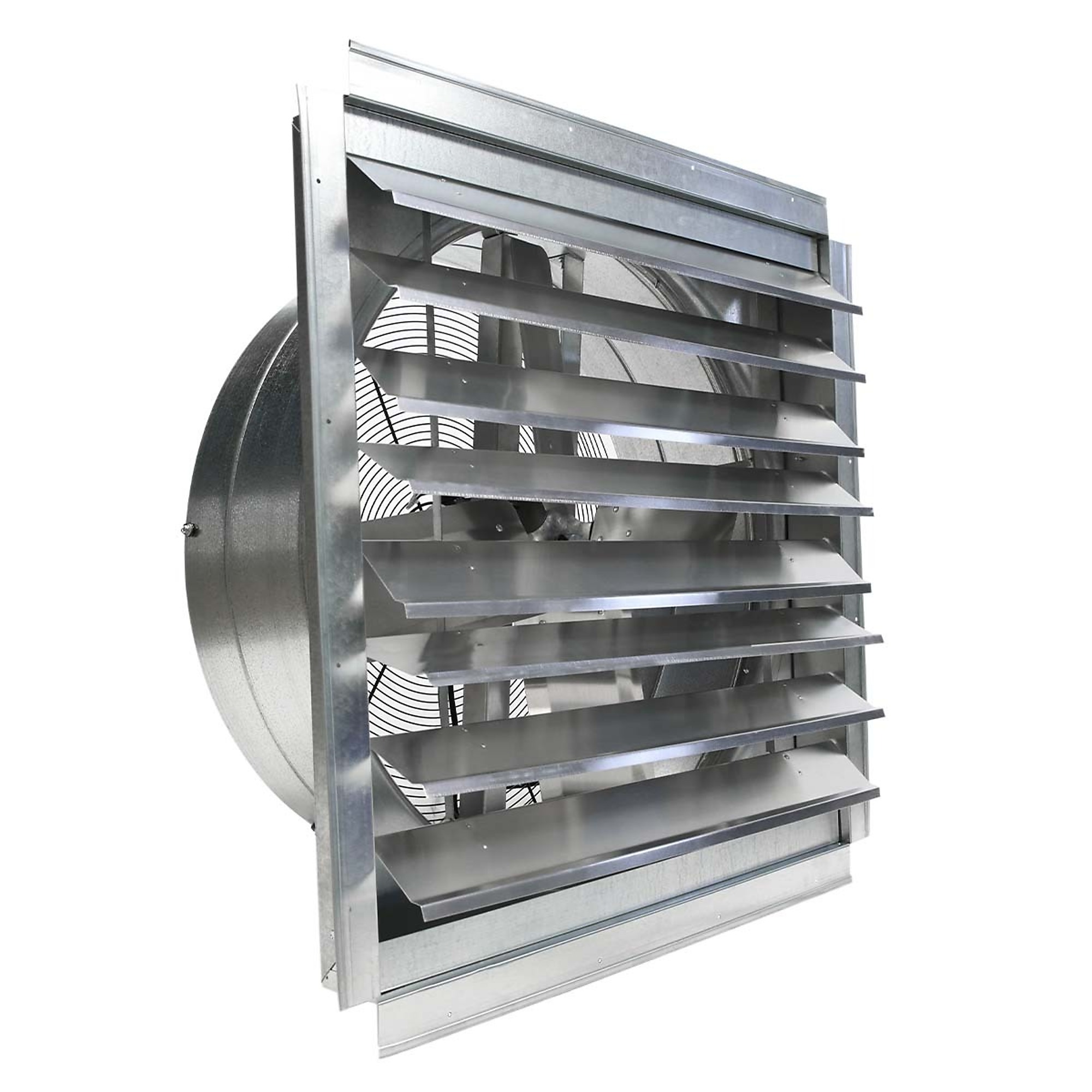

MaxxAir Exhaust Fan with Shutter, 30in., 1/2 HP, 5,500 CFM, Model# IF30

Item# 21579
"MaxxAir Exhaust Fan with Shutter, 30in., 1/2 HP, 5,500 CFM, Model# IF30"
MaxxAir Exhaust Fan with Shutter, 30in., 1/2 HP, 5,500 CFM, Model# IF30

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

MaxxAir Exhaust Fan with Shutter, 30in., 1/2 HP, 5,500 CFM, Model# IF30

Click or Tap image to Zoom

$554.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Moves up to 5,500 CFM
  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation

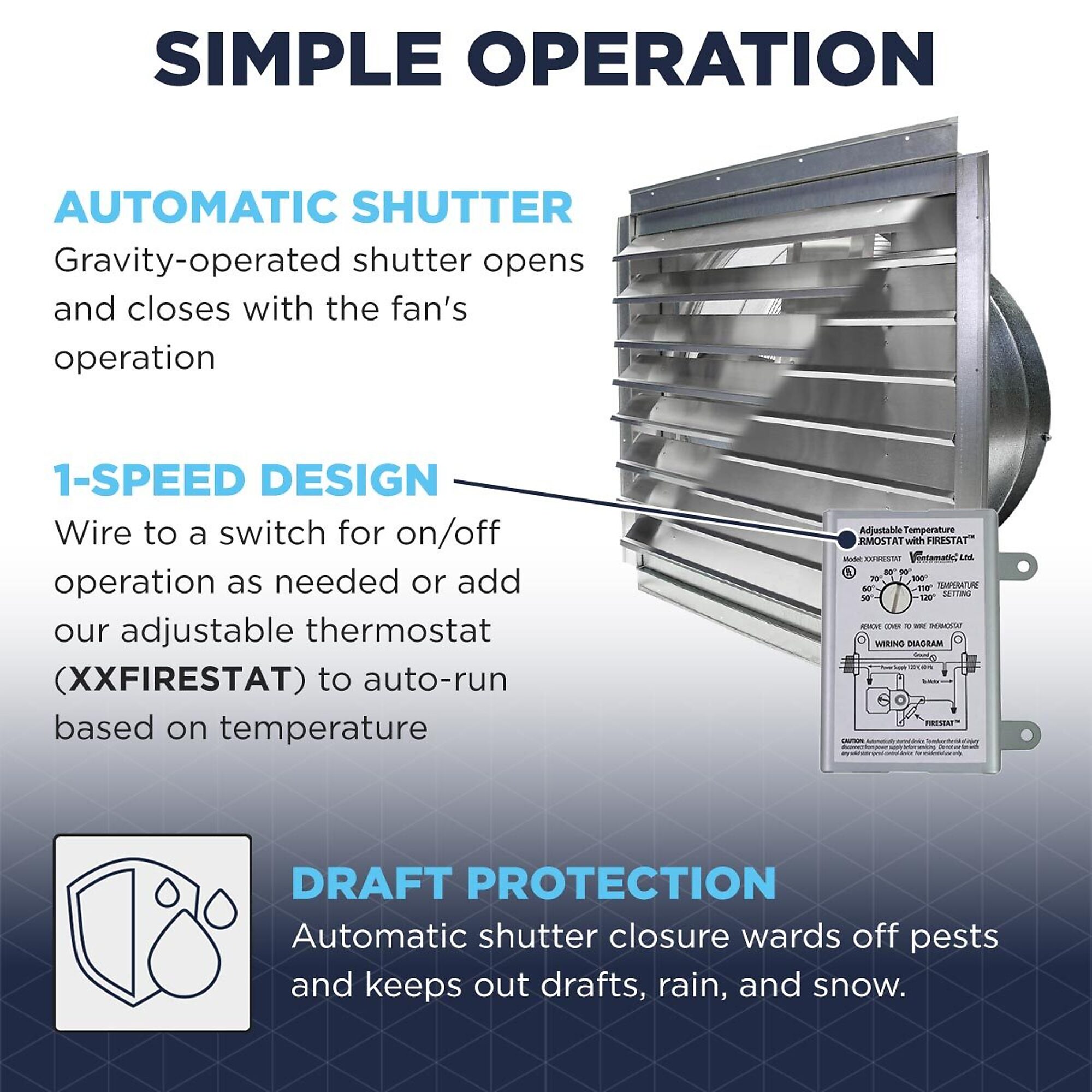

  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

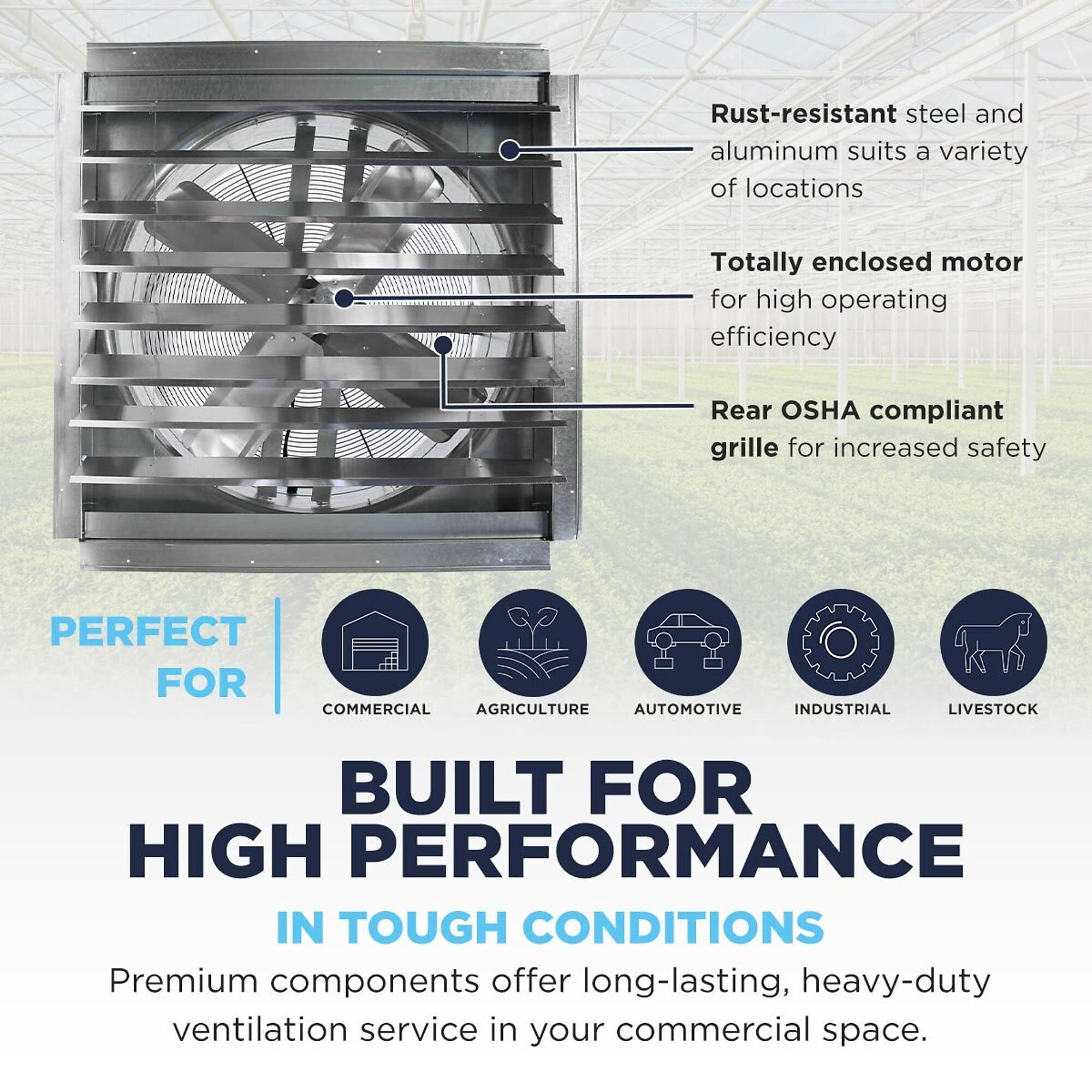

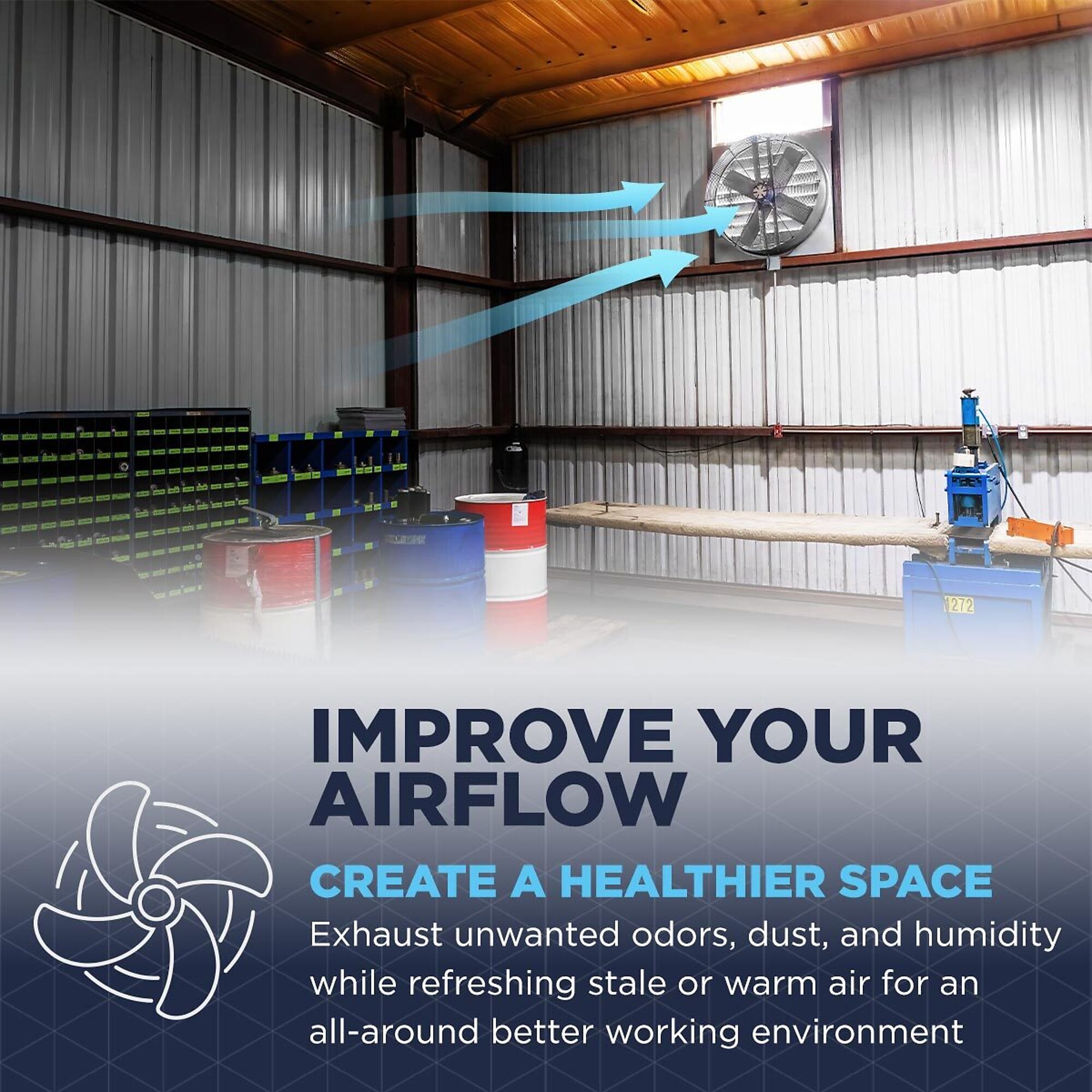

The Maxx Air 30in. Exhaust Fan can be used in a garage, barn, greenhouse, warehouse, and a variety of other agricultural and industrial locations to quickly remove unwanted odors, dust and humidity, and refresh stale or warm air in your space. This industrial fan is constructed of a sturdy 20 gauge steel housing with aluminum shutter louvers, a safety grille and a totally enclosed, thermally protected motor. Arrives fully assembled, just mount to your desired building wall and wire into your electrical system to complete installation. Pair this shop fan with our adjustable thermostat with firestat (XXFIRESTAT) for greater operational control and safety.

What's Included

    (1) Exhaust Fan

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Moves up to 5,500 CFM
  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation
  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor
  • Requires wiring to your building's electrical system and 18 sq. ft. of NFA intake ventilation
  • Not intended to exhaust hazardous fumes or chemicals.
  • 1-year limited warranty

Key Specs

AttributeSpecification

item#

21579

Brand

Maxx Air

Manufacturer's Warranty

1 year limited warranty

Ship Weight

69.0 LB

Drive Type

Direct

Fan Diameter

30 in

Air Delivery

5,500 cfm

Volts

120

Amps

6.3
AttributeSpecification

Hardwired

Yes

Speeds (qty.)

1

Primary Color

Silver

Secondary Color

Silver

Assembly Required

No

Horsepower

0.5 HP

Product Weight

69.0000 lb

Dimensions L x W x H (in.)

14.1 x 37.5 x 37.5 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Can this fan be used in a paint booth

    1 answer

    1. The manufacturer would not recommend this fan to be used in a paint booth. It is not explosion prof.
      Northern Tool has explosion prof fans that can be used in a paint booth (see below).

      Helpful?

  2. Is this unit mounted in ceiling or wall and do the shutters face out or inside?

    1 answer

    1. The fan should be located in the side or end of the building walls away from prevailing winds. The shutters should be facing the outside. If more than one fan is to be installed, the fans should be placed evenly throughout the building so that a balanced of air is established.

      Helpful?

  3. Fan Controls

    Can this fan be wired to an on/off switch with variable speed controls.

    Thanks

    1 answer

    1. If you were to wire an on/off switch with variable speed controls to this exhaust fan, it could severely damage the exhaust fan and void the warranty.

      Helpful?

  4. is the fan reversable

    I want to know if I have the option of reversing the air flow with a switch.if so how do the flanges stay open.

    1 answer

    1. The air flow of the fan is not reversible.

      Helpful?

  5. when flaps closed is it weather resistant from rain snow from getting inside

    1 answer

    1. Yes, when the shutters are closed the exhaust fan is resistant from the rain and/or snow from getting inside.

      Helpful?

  6. What is the thickness of the flange area? I would be attaching it to a metal siding that has ridges and want to make sure the frame would cover them

    1 answer

    1. The flange is 20 gauge galvanized steel.

      Helpful?

  7. Is 35x35 the rough opening, not including the flange? Also does air from the fan open the shutters? So it couldnt be wired as a puller fan?

    1 answer

    1. Yes, the 35 x 35 measurement is the rough opening, not including flange. The shutters open and close automatically, but this fan cannot be wired as a puller fan.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
