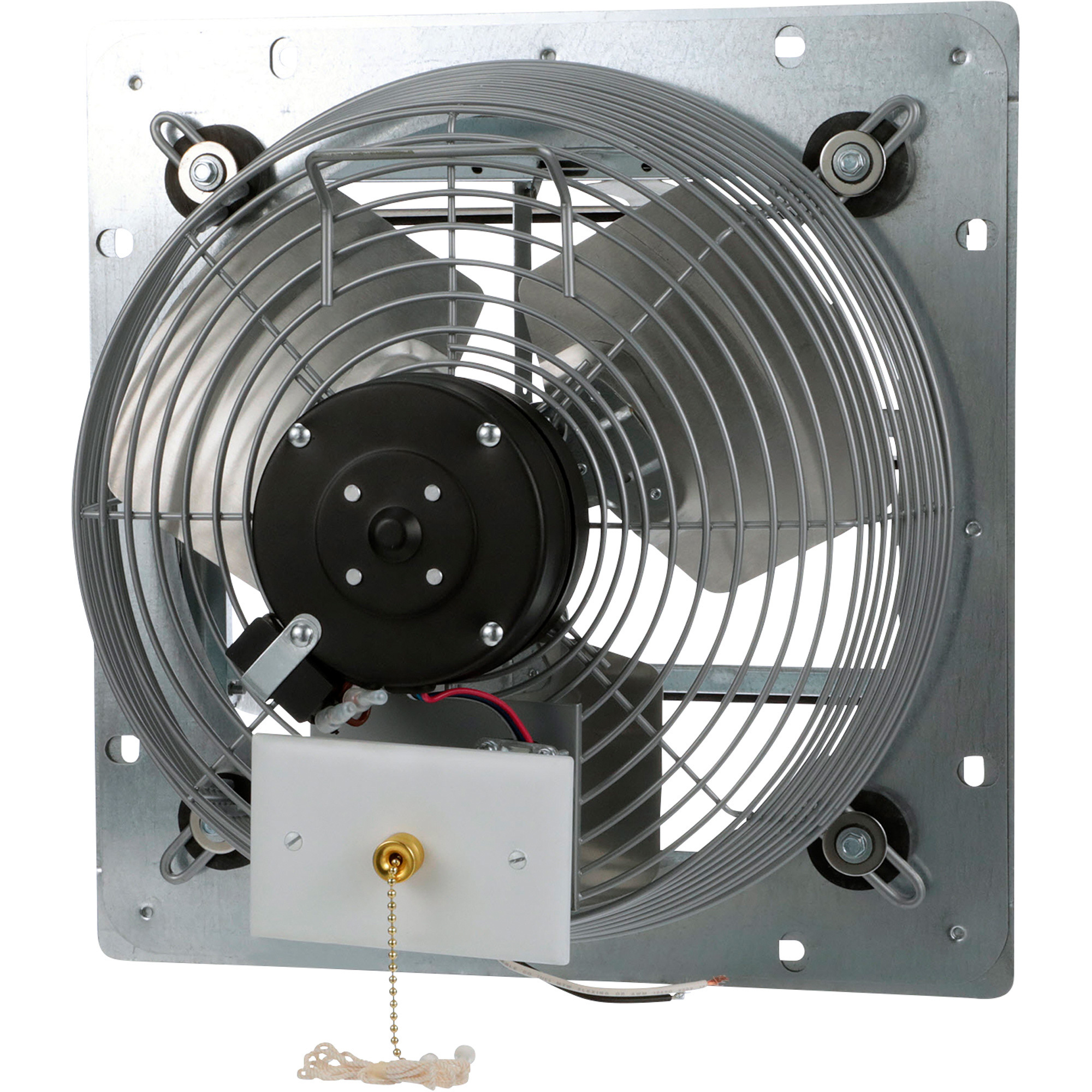

TPI Shutter-Mounted Direct Drive Exhaust Fan - 12in. Diameter, 1560 CFM, 120V, 3-Speed, Model# CE-12-DS

Item# 255316
"TPI Shutter-Mounted Direct Drive Exhaust Fan - 12in. Diameter, 1560 CFM, 120V, 3-Speed, Model# CE-12-DS"
TPI Shutter-Mounted Direct Drive Exhaust Fan - 12in. Diameter, 1560 CFM, 120V, 3-Speed, Model# CE-12-DS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Shutter-Mounted Direct Drive Exhaust Fan - 12in. Diameter, 1560 CFM, 120V, 3-Speed, Model# CE-12-DS

Click or Tap image to Zoom

$384.64

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • For new or existing construction
  • 3-speed; 560/710/825 CFM enclosed motor ensures rapid ventilation
  • Permanently lubricated
  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The TPI Shutter-Mounted Direct Drive Exhaust Fan is designed to exhaust stale air from rooms, barns, garages or small enclosed work areas. Mounts from the inside of the wall, avoiding the time and expense of dismantling and replacing siding. Totally enclosed 120V direct drive motor has 3 speeds and is permanently lubricated. Features pull chain switch, aluminum blades and steel spiral guards.

What's Included

    (1) Exhaust fan (1) Junction box

Downloads

Product Manual Product Manual2

Features + Benefits

  • For new or existing construction
  • 3-speed; 560/710/825 CFM enclosed motor ensures rapid ventilation
  • Permanently lubricated
  • When fan is turned on, shutter automatically opens; when fan is turned off, shutter automatically closes to seal out the elements
  • Fan is isolated from shutters with rubber pads to eliminate vibration and noise
  • Includes junction box for hardwiring
  • Shutter mounted fans install on inside wall and eliminate the need for external framing and shutter
  • Quiet operation makes it ideal for commercial environments
  • Aluminum blades are enclosed in a sturdy steel spiral wire guard
  • Adjustable shutters regulate flow of ventilation
  • Meets OSHA standards
  • UL listed

Key Specs

AttributeSpecification

item#

255316

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

12 in

Air Delivery

1,560 cfm

Volts

120

Speeds (qty.)

3

Horsepower

0.08 HP

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

1–10 of 15 Questions
Sort by:

  1. Can the motor be inverted to draw air in instead of exhausting?

    1 answer

    1. The fan motor cannot be altered for changing the air flow.

      Helpful?

  2. Is it explosion proof?

    I want to install it in the attic of my garage to primarily help reduce heat, but also to occasionally evacuate overspray from spraying auto paint. I intend to use another certified explosion proof fan to pull out the majority of paint fumes from the paint area. This fan would be a secondary source of fume evacuation when I do paint.

    1 answer

    1. This TPI Exhaust Fan is not explosion proof.

      Helpful?

  3. Hi There -- Is this Fan " Explosion Proof " , meaning can it remove paint fumes when doing an occasional car paint job? --- (Mod. #CE-12-DS) -------- Thank You

    1 answer

    1. This fan is not explosion proof.

      Helpful?

  4. What is the ampere rating for the motor?

    1 answer

    1. The amperage rating on this motor is 1.1.

      Helpful?

  5. is ceiling mount ok

    need to mount fan in bath room ceiling and push air up

    thru roof skylight ...can it be mounted horizonal and will shutters open or can I remove shutters

    1 answer

    1. Mounting this fan in the ceiling is OK, however the shutters would not open up in this position and I would not suggest removing them.

      Helpful?

  6. Can I install this in a garage wall that is 2x4 studs with drywall on inside and brick on outside?

    1 answer

    1. The fan and shutter actually come apart and would mount on opposite sides of the wall (the fan on one side the and the shutter on the other side) even if the wall is thicker.

      Helpful?

  7. exhaust for indoor generator

    I am wanting to run my emergency generator from inside my shed. Will this fan handle the heated exhaust coming from the generator? And yes, I plan on having fresh air coming in also.

    1 answer

    1. This unit would handle between 110 degrees to 115 degrees Fahrenheit.

      Helpful?

  8. Is this designed to be installed on an outside wall?

    Just checking... This is designed to handle wind, rain, etc.

    (We get a fair bit of rain up here). ;)

    1 answer

    1. This fan can be mounted on the outside of the building but would need an optional weather hood. This can be purchased through the manufacturer.

      Helpful?

  9. Can the fan be mounted horizontally instead of vertical?

    On some fan designed for vertical mounting, the bearings do not hold up when they are mounted horizontally. Does the manufacturer indicate the fan will provide good service life if mounted horizontally?

    1 answer

    1. Yes this TPI exhaust fan can be mounted in any direction as long as the shutters are not obstructed. It does not void the warranty either.

      Helpful?

  10. Can this fan be connected to a timer switch?

    I'd like to be able to leave the workshop, but still leave the fan running to clear fumes out for up to an hour after I've left. If you can wire up to a timer switch, do you still retain the ability to use all 3 speeds while the timer is on?

    1 answer

    1. The exhaust fan can be connected to a timer switch. This will still provide the ability to use all 3 speeds of the fan.

      Helpful?
