The outer tube width of this jack is 2". The distance from the attach plate to the bottom of the foot, fully retracted it is 9"; fully extended, it is 31.5". This includes the 4.5" drop leg.

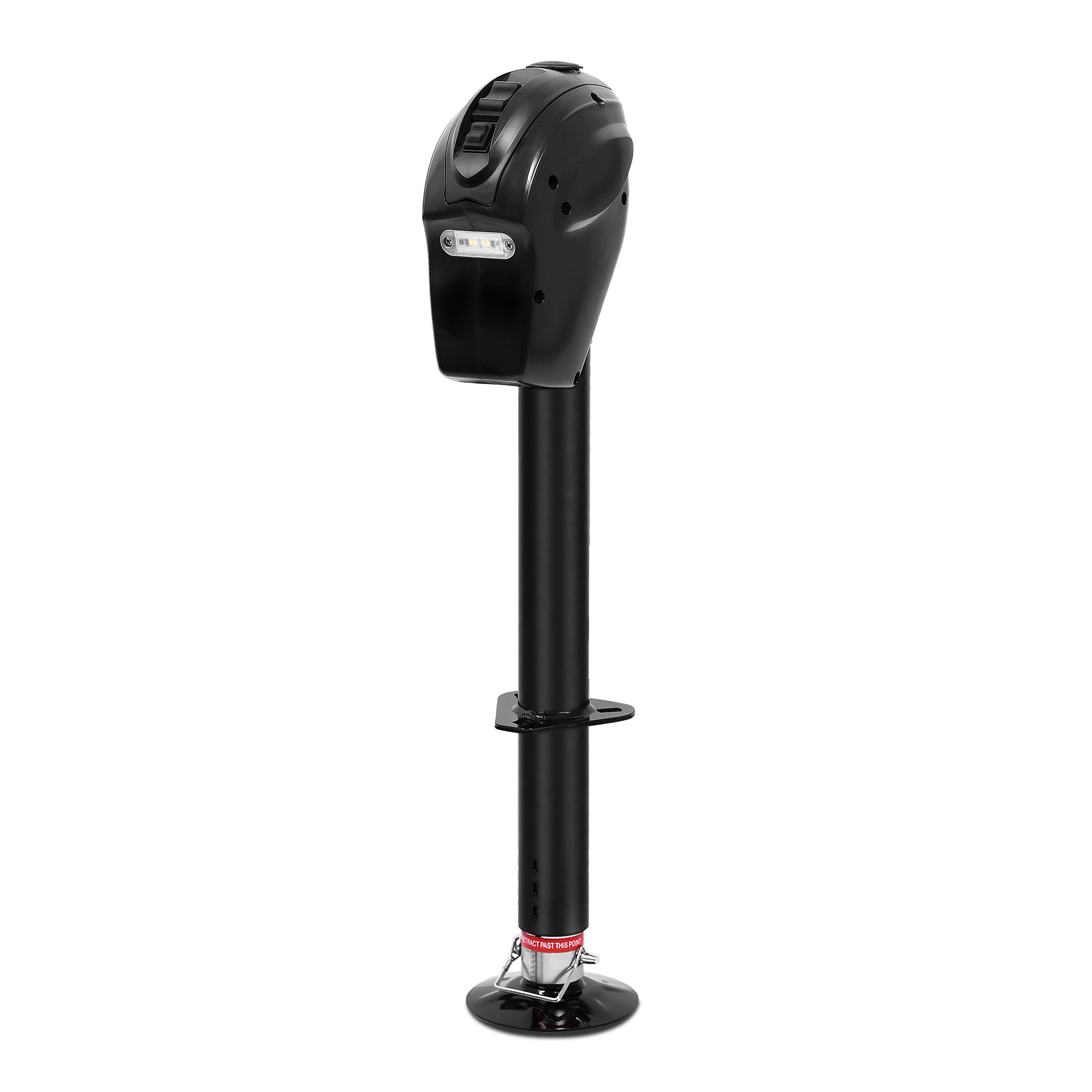

TowingMaster, 3500lbs electric jack with ground wire
On Sale
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$119.99
Reg $149.99Save $30.00
Order today to get this price.
- NEW smarter, upgraded and patented technology are the highlights of this 3500lb jack

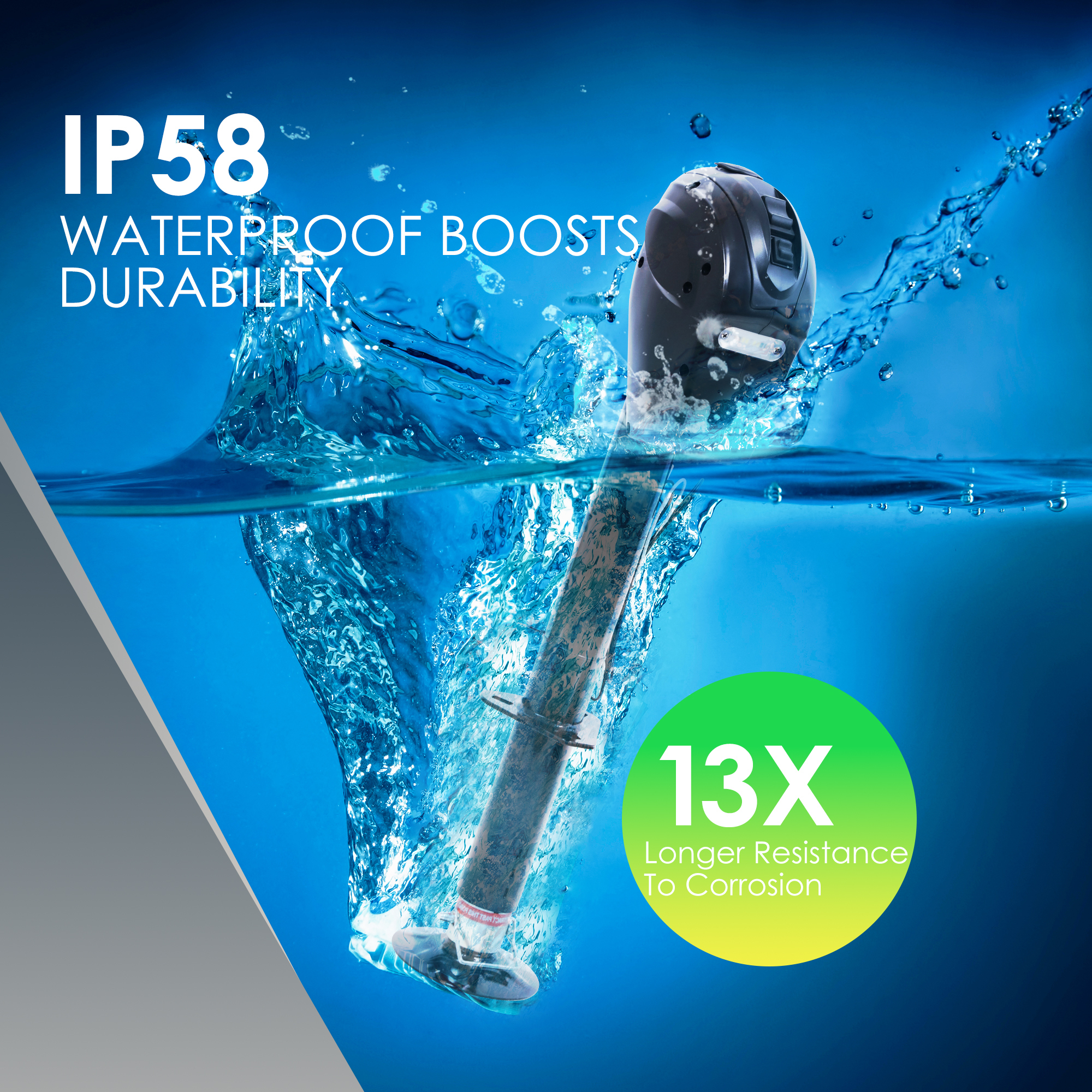

- NEW redesigned one-piece industrial cover is extremely waterproof
- ONE-TOUCH OPERATION No more cranking your arm to raise or lower your trailer. With one simple push of a button, the Power Stroke Plus system raises or lowers your trailer 18 inches in just 30 seconds.
- NEW upgraded motor and trans- mission structure provides a higher rotation speed, less noise and a longer lifetime!
- Available with direct grounding wire to trailer battery to connect to rear of vehicle.
Prop 65 Warning: See Details
See full description
See All Trailer Jacks
See All TowingMaster Trailer Jacks
Currently Viewing This Product
Item # 6051837
$119.99Reg $149.99Save $30.00Order today to get this price.
Item # 113359
$127.49Reg $149.99Save $22.50Order today to get this price.
- $40.79Reg $47.99Save $7.20
Order today to get this price.
Item # 113361
$46.74Reg $54.99Save $8.25Order today to get this price.
Specifications
Specifications
TowingMaster, 3500lbs electric jack with ground wire
Ultra-Tow Square Tube Sidewind Jack, Weld-On, 30-1/4in. Extended Length, 5000-Lb. Lift Capacity
Ultra-Tow A-Frame Sidewind Jack, 23.5in. Extended Length, 3000-Lb. Lift Capacity
Ultra-Tow Snap Ring Swivel Sidewind Jack, 21-1/4in. Extended Length, 2000-Lb. Lift Capacity
Lift Capacity
Same
3,500 lb
5,000 lb
3,000 lb
2,000 lb
Jack Type
Same
Electric
-
A-Frame
-
Mount Type
Same
Bolt-On
Weld-On
Bolt-On
Weld-On
Support Capacity
Same
3,500 lb
8,000 lb
5,000 lb
3,000 lb
Ground Support
Same
Foot Plate
Foot Plate
-
Foot Plate
Product Weight
Same
20.3800 lb
27.0000 lb
13.0000 lb
14.9000 lb
Dimensions L x W x H (in.)
Same
32.28 x 9.84 x 7.2 in
24.6 x 7.87 x 5.9 in
21.0 x 8.88 x 4.38 in
17.3 x 10.82 x 5.9 in
Length Extended
Same
-
30.25 in
23.5 in
21.25 in
Length Retracted
Same
-
15.25 in
8.5 in
11.25 in
Clearance: Bracket to Jack Top
Same
-
9 in
8.5 in
6 in
Mount Height
Same
-
10.25 in
9 in
11.25 in
Drop Leg Travel
Same
-
8 in
-
-
Length of Travel
Same
-
15 in
15 in
10 in
