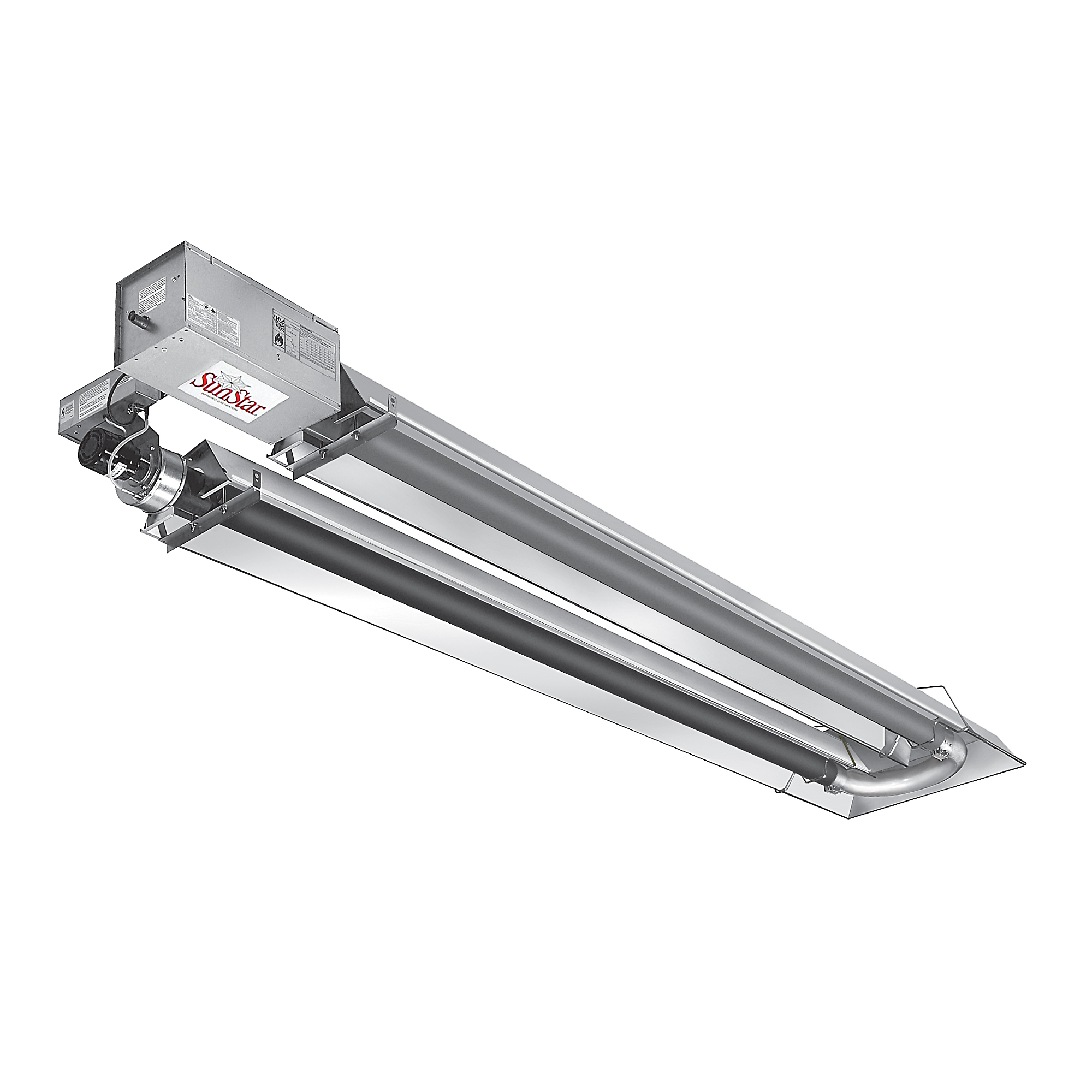

SunStar Tough Guy U-Tube Vacuum Infrared Tube Heater - Propane, 50,000 BTU, 20ft. Emitter Tube, Model# SIU75-20-TG-L5

Item# 4745245
SunStar Tough Guy U-Tube Vacuum Infrared Tube Heater - Propane, 50,000 BTU, 20ft. Emitter Tube, Model# SIU75-20-TG-L5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Tough Guy U-Tube Vacuum Infrared Tube Heater - Propane, 50,000 BTU, 20ft. Emitter Tube, Model# SIU75-20-TG-L5

Click or Tap image to Zoom

$1293.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 20 Foot Emitter Tube Length. Pull Through System-Vacuum system utilizing a draft inducer pulls the products of combustion through combustion chamber for increased radiant efficiency and greater safety.
  • Ideal for high heat loss areas including loading docks, warehouses, car repair shops, farm buildings or other spot heating applications where uniform energy distribution is desired.
  • Tough Guy Constuction utilizes heat treated aluminized steel tube construction for unsurpassed corrosion resistance, higher operating temperatures, higher surface emissivity and longer life expectancy. Standard 4" flue and 4" outside combustion air supply.

See full description

Complete Your Solution

  • SunStar Tough Guy U-Tube Vacuum Infrared Tube Heater - Propane, 50,000 BTU, 20ft. Emitter Tube, Model# SIU75-20-TG-L5
  • SunStar Heating Products Line Voltage Thermostat, Model# 30348020
  • SunStar Heating Products Exhaust Hood for SIR Series Heaters, Model# 42924000
  • SunStar Heating Products Combustion Air Cap, 4in., Model# 41000020
Price for all four:

$1427.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Offers fuel savings up to 50%. Tough Guy U-Tube heaters are great for high heat loss areas including loading docks, warehouses, car repair shops or other spot heating applications . Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar's Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater and the model that's right for you, view the Heat Loss Estimating Chart for proper heater selection.

What's Included

    (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors

Features + Benefits

  • 20 Foot Emitter Tube Length. Pull Through System-Vacuum system utilizing a draft inducer pulls the products of combustion through combustion chamber for increased radiant efficiency and greater safety.
  • Ideal for high heat loss areas including loading docks, warehouses, car repair shops, farm buildings or other spot heating applications where uniform energy distribution is desired.
  • Tough Guy Constuction utilizes heat treated aluminized steel tube construction for unsurpassed corrosion resistance, higher operating temperatures, higher surface emissivity and longer life expectancy. Standard 4" flue and 4" outside combustion air supply.

Key Specs

AttributeSpecification

item#

4745245

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

146.0 LB

Heat Output

50,000 Btu/hour

Heat Type

Infrared
AttributeSpecification

Heating Capability

500 ft²

Blower Included

Yes

Thermostat Included

No

Volts

120

Product Weight

116.8000 lb

Dimensions L x W x H (in.)

144.0 x 31.0 x 8.0 in
