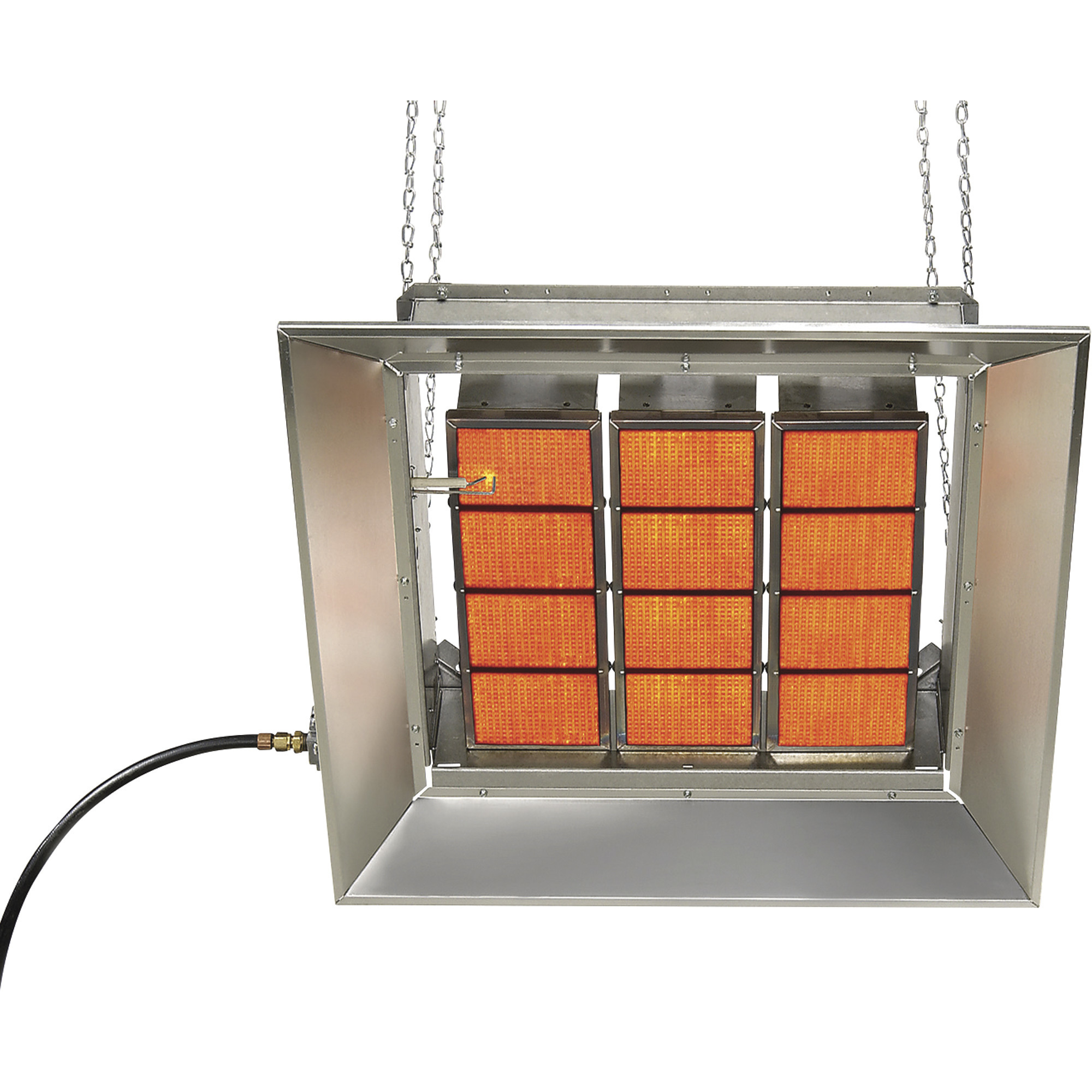

SunStar Heating Products Infrared Ceramic Heater, Propane, 100,000 BTU, Model# SG10-L

Item# 16307
SunStar Heating Products Infrared Ceramic Heater, Propane, 100,000 BTU, Model# SG10-L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Heating Products Infrared Ceramic Heater, Propane, 100,000 BTU, Model# SG10-L

Click or Tap image to Zoom

$616.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 16ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 65in. above, 129in. below and 49in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar Heating Products Infrared Ceramic Heater, Propane, 100,000 BTU, Model# SG10-L
  • SunStar Heating Products Line Voltage Thermostat, Model# 30348020
  • SunStar Heating Products SIR Series Garage Heater Regulator, Above 2 PSIG, Model# 03483070
  • SunStar Heating Products SIR Series Garage Heater Regulator, Up To 2 PSIG, Model# 03307260
Price for all four:

$824.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SunStar Heating Products Ceramic Heater is ideal for spot heating or area heating of remote locations, farm buildings, shops, service areas, pump houses or other hard-to-heat spaces, providing both fuel efficiency of radiant heat and installation flexibility (not recommended for car washes). This is an energy-saving Direct Spark Ignition heater and can be controlled by a line voltage, Item #16284 or 24V thermostat, Item #16342, (both sold separately). May require the following second stage regulators prior to the heater based on gas supply pressure: A regulator up to 2 PSIG line pressure or a regulator above 2 PSIG line pressure (both sold separately). NOT CERTIFIED OR APPROVED FOR RESIDENTIAL USE. Indoor use only. U.S.A.

NOTE: Please review the detailed Installation Operating Instructions (attached) for other specific installation requirements (gas pressure, ventilation etc.) prior to purchasing the heater.

What's Included

    (1) Infrared ceramic heater

Downloads

Product Manual

Features + Benefits

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 16ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 65in. above, 129in. below and 49in. from the sides of the heater
  • The minimum supply gas pressure is 7.0in. Water Column (WC) and the maximum supply pressure is 14in. WC gas pressure
  • If higher gas pressure is supplied, you will need to install a line pressure regulator (sold separately) to reduce it to less than 14in. WC (or 1/2 PSIG)
  • No assembly required
  • Heaters are 100% test-fired prior to shipment
  • CSA design certified

Key Specs

AttributeSpecification

item#

16307

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.0 LB

Heat Output

100,000 Btu/hour

Heat Type

Infrared
AttributeSpecification

Heating Capability

2,500 ft²

Needs Direct Venting

Yes

Blower Included

No

Thermostat Included

No

Dimensions L x W x H (in.)

33 x 31 x 11

Reviews

Questions & Answers

Questions

1–7 of 7 Questions
Sort by:

  1. Is there a kit that switches these propane heaters over to natural gas?

    1 answer

    1. There is not conversion kit available to change the heater from propane to natural gas. Each heater is designed to work specifically with either propane or natural gas. This unit for natural gas is item #16305.

      Helpful?

  2. Which regulator does this heater require?

    1 answer

    1. The maximum supply pressure to the heater is 14" water column or 1/2 PSI. If the pressure is more than the maximum supply pressure then a line regulator would be used. If the maximum pressure is less than 1/2 PSI a second stage regulator is not required. The item number on the two stage regulator is 25819.

      Helpful?

  3. Dose this unit need to be vented?

    1 answer

    1. The heater would require ventilation in the building to provide fresh air for efficient combustion. It would require a minimum ventilation flow of 4 CFM per 1,000 BTU per hour of total installed capacity. Power ventilation is recommended, the minimum vent air flow for this heater would be 400 CFM. See page 11 of the product manual listed on our web.

      Helpful?

  4. will this operate on a 100lb propane cylinder?

    1 answer

    1. The recommended propane tank for this heater would be a minimum 500 gallon.

      Helpful?

  5. would this heater work in a body shop around paint and paint fumes ?

    1 answer

    1. This heater would not work in an area where flammable vapors are present from paint and paint fumes.

      Helpful?

  6. does this item come with a millivolt lp valve

    1 answer

    1. This heater does not come with a millivolt lp valve.

      Helpful?

  7. What size heater should I get?

    My garage workshop is a 12 X 25x12 ft side walls and a peaked roof. It is an all metal building with no insulation. I live in upstate NY and 0 degrees is common. What size heater and type should I purchase? It will need to run off propane and I would like electronic ignition so there is no pilot to have to light.

    1 answer

    1. The SunStar Infrared Ceramic Heater would not be recommended for installation for any height less than 16 feet above finished floor surface. A good option for your apparent situation would be Northern Item # 29127. Always check with local codes and ordinances to make sure you are in compliance for installation.

      Helpful?
