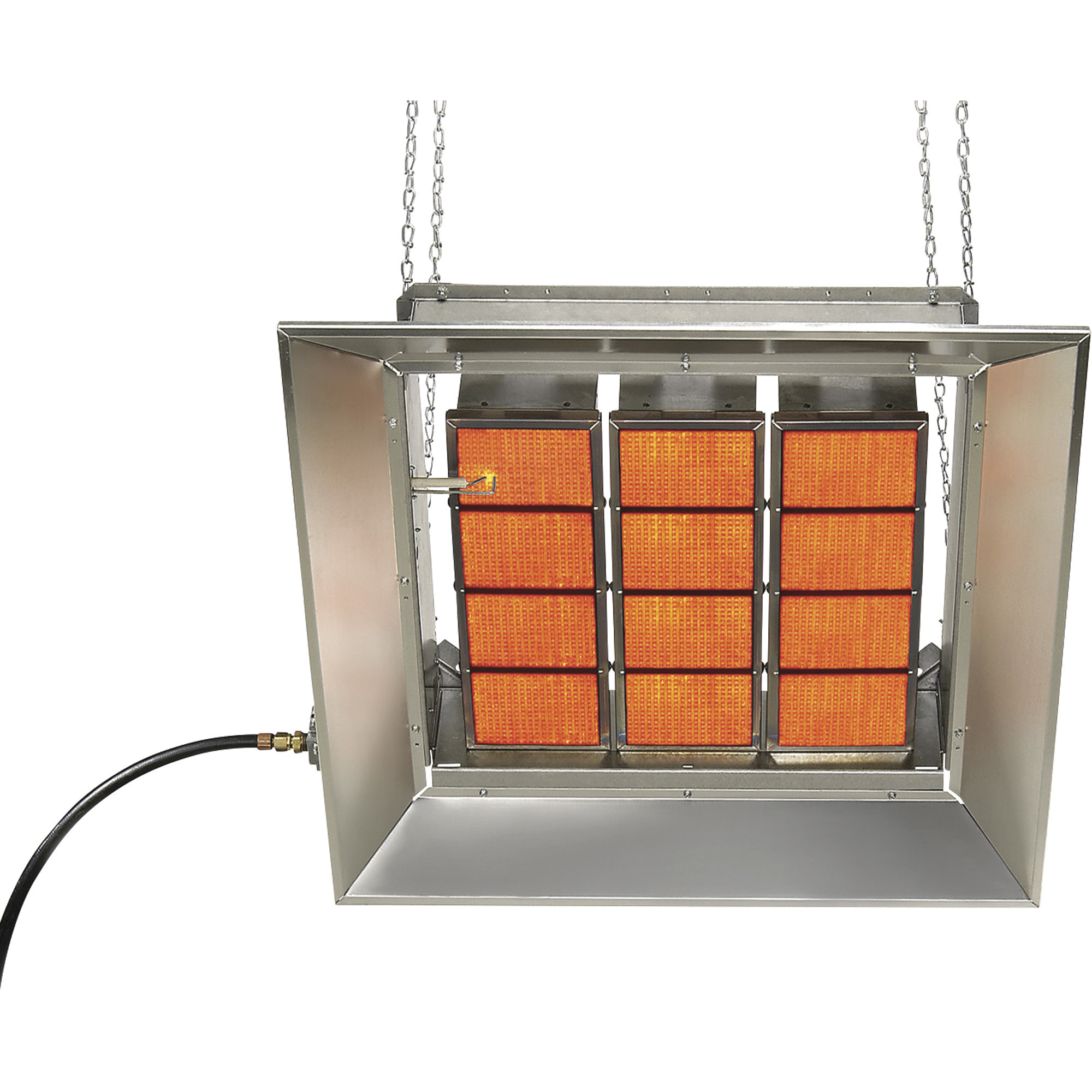

SunStar Heating Products Infrared Ceramic Heater, Propane, 65,000 BTU, Model# SG6-L

Item# 16298
"SunStar Heating Products Infrared Ceramic Heater, Propane, 65,000 BTU, Model# SG6-L"
SunStar Heating Products Infrared Ceramic Heater, Propane, 65,000 BTU, Model# SG6-L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Heating Products Infrared Ceramic Heater, Propane, 65,000 BTU, Model# SG6-L

Click or Tap image to Zoom

$464.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally up to 30 degrees
  • The minimum mounting height is 13ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 49in. above, 99in. below and 49in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar Heating Products Infrared Ceramic Heater, Propane, 65,000 BTU, Model# SG6-L
  • Worthington Cylinders Propane Tank, 100 Lbs., Model# 303953
  • SunStar Heating Products SIR Series Garage Heater Regulator, Above 2 PSIG, Model# 03483070
  • SunStar Heating Products SIR Series Garage Heater Regulator, Up To 2 PSIG, Model# 03307260
Price for all four:

$884.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SunStar Heating Products Ceramic Heater is ideal for spot heating or area heating of remote locations, farm buildings, shops, service areas, pump houses or other hard-to-heat spaces, providing both fuel efficiency of radiant heat and installation flexibility (not recommended for car washes). This is an energy-saving Direct Spark Ignition heater and can be controlled by a line voltage or 24V thermostat (sold separately). May require the following second stage regulators prior to the heater based on gas supply pressure: A regulator up to 2 PSIG line pressure or a regulator above 2 PSIG line pressure (both sold separately). NOT CERTIFIED OR APPROVED FOR RESIDENTIAL USE. Indoor use only. U.S.A.

NOTE: Please review the detailed Installation Operating Instructions (attached) for other specific installation requirements (gas pressure, ventilation etc) prior to purchasing the heater.

What's Included

    (1) Infrared ceramic heater

Downloads

Product Manual

Features + Benefits

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally up to 30 degrees
  • The minimum mounting height is 13ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 49in. above, 99in. below and 49in. from the sides of the heater
  • The minimum supply gas pressure is 11.0in. Water Column (WC) and the maximum supply pressure is 14in. WC gas pressure
  • If higher gas pressure is supplied, you will need to install a line pressure regulator (sold separately) to reduce it to less than 14in. WC (or 1/2 PSIG)
  • No assembly required
  • Heaters are 100% test-fired prior to shipment
  • CSA design certified

Key Specs

AttributeSpecification

item#

16298

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.5 LB

Heat Output

65,000 Btu/hour

Heat Type

Infrared
AttributeSpecification

Heating Capability

2,500 ft²

Needs Direct Venting

Yes

Blower Included

No

Thermostat Included

No

Dimensions L x W x H (in.)

28 x 31 x 11 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. How much heat is loss through the ceiling with this model?

    I am wondering if I would have to put insulation in the ceiling of my shop. It has 14 foot side walls with a concrete floor.

    1. I would suggest insulating the ceiling as heat rises and you would have significant heat loss. We have a sprayed foam insulated ceiling that was cheap to do and works great in winter for the heat in and summer to lessen the heating from the sun.

      Helpful?

    2. The SunStar Infrared Heater is designed to heat the objects below it. When the objects below the heater warm up the air in the room will also. Of course, heat rises so any insulation in your ceiling would help to retain the heat better than an uninsulated ceiling.

      Helpful?

  2. How long will it run on a 100 pound tank

    1 answer

    1. This heater would run approximately 28-30 hours on a 100 pound tank.

      Helpful?

  3. Can this propane heater be converted to natural gas?illinois

    1 answer

    1. This unit cannot be converted to Natural Gas. Please see item #16296 for a unit compatible with Natural Gas.

      Helpful?

  4. Can this heater be mounted on the wall?

    1 answer

    1. This heater cannot be mounted to the wall.

      Helpful?

  5. What thermostat will work with this unit. I want a thermostat that will turn on and off

    1 answer

    1. Our item #16342, 24 volt thermostat will work with this heater or our line voltage thermostat, item #16284 will work with it.

      Helpful?

  6. how do know if you need regulator, i am using 100 lb tank

    1 answer

    1. The heater is equipped with a snap opening combination gas valve. The maximum supply pressure to the appliance is 14" water column or 1/2 PSI. If the inline pressure is more than the maximum supply pressure, then a use of an inline regulator is needed.

      Helpful?

  7. Does it self ignite ?

    1 answer

    1. The heater will self ignite as needed with the thermostat.

      Helpful?

  8. HOW DO YOU VENT IT IF IT,S VENTLESS?

    1 answer

    1. This heater is for indoor installation only and is used in an unvented mode. The term unvented means indirect venting. The product of combustion is expelled into the building, national code will require ventilation in the building to dilute these products of combustion. This can be provided by gravity or mechanical means. A ventilation chart is listed in the manual for reference.

      Helpful?

  9. Does this heater requires venting to the outside?? If is, is it a force vent?

    1 answer

    1. This is a vent free heater. It does not have a direct vent.

      Helpful?

  10. How do you turn it on ? Can I use a thermostat?

    1 answer

    1. This is turned on and controlled by a line voltage or 24V thermostat that would be purchased separately.

      Helpful?
