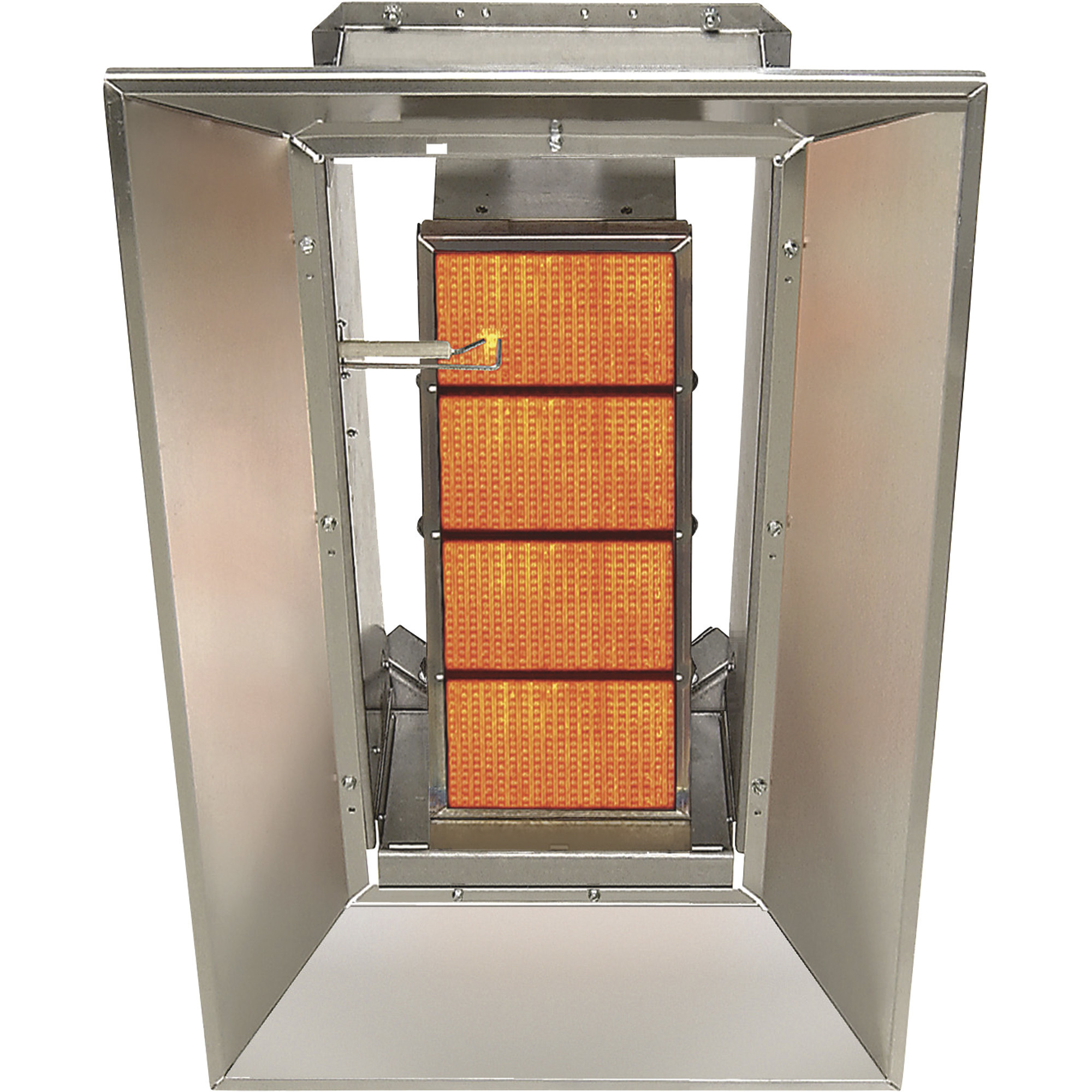

SunStar Heating Products Infrared Ceramic Heater, Propane, 32,000 BTU, Model# SG3-L5B

Item# 16293
"SunStar Heating Products Infrared Ceramic Heater, Propane, 32,000 BTU, Model# SG3-L5B"
SunStar Heating Products Infrared Ceramic Heater, Propane, 32,000 BTU, Model# SG3-L5B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SunStar Heating Products Infrared Ceramic Heater, Propane, 32,000 BTU, Model# SG3-L5B

Click or Tap image to Zoom

$479.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 12ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 37in. above, 73in. below and 31in. from the sides of the heater

See full description

Complete Your Solution

  • SunStar Heating Products Infrared Ceramic Heater, Propane, 32,000 BTU, Model# SG3-L5B
  • Worthington Cylinders Propane Tank, 100 Lbs., Model# 303953
  • SunStar Heating Products SIR Series Garage Heater Regulator, Above 2 PSIG, Model# 03483070
  • SunStar Heating Products SIR Series Garage Heater Regulator, Up To 2 PSIG, Model# 03307260
Price for all four:

$899.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SunStar Heating Products Ceramic Heater is ideal for spot heating or area heating of remote locations, farm buildings, shops, service areas, pump houses or other hard-to-heat spaces, providing both fuel efficiency of radiant heat and installation flexibility (not recommended for car washes). This is an energy-saving Direct Spark Ignition heater and can be controlled by a line voltage or 24V thermostat (sold separately). May require the following second stage regulators prior to the heater based on gas supply pressure: A regulator up to 2 PSIG line pressure or a regulator above 2 PSIG line pressure (both sold separately). NOT CERTIFIED OR APPROVED FOR RESIDENTIAL USE. Indoor use only. U.S.A.

NOTE: Please review the detailed Installation Operating Instructions (attached) for other specific installation requirements (gas pressure, ventilation etc.) prior to purchasing the heater.

What's Included

    (1) Infrared ceramic heater

Downloads

Product Manual

Features + Benefits

  • Constructed from aluminized steel for corrosion resistance and long life
  • Aluminum reflectors are designed to maximize radiant efficiency
  • Heaters can be angle mounted horizontally and up to 30 degrees
  • The minimum mounting height is 12ft. above finished floor for uniform energy distribution and human comfort
  • Requires the following clearances from any combustible material: 37in. above, 73in. below and 31in. from the sides of the heater
  • The minimum supply gas pressure is 11.0in. Water Column (WC) and the maximum supply pressure is 14in. WC gas pressure
  • If higher gas pressure is supplied, you will need to install a line pressure regulator (sold separately) to reduce it to less than 14in. WC (or 1/2 PSIG)
  • No assembly required
  • Heaters are 100% test-fired prior to shipment
  • CSA design certified

Key Specs

AttributeSpecification

item#

16293

Brand

SunStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.0 LB

Heat Output

32,000 Btu/hour

Heat Type

Infrared
AttributeSpecification

Heating Capability

1,500 ft²

Needs Direct Venting

Yes

Blower Included

No

Thermostat Included

No

Dimensions L x W x H (in.)

31 x 23 x 11 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. What is the dimensions on this unit?

    1 answer

    1. This heater is 31'' long, 23'' wide and 11'' high.

      Helpful?

  2. I have 2 100 pound cylinders to supply this. (not in sequence) How do I determine which regulator I need

    1 answer

    1. This appliance is equipped with a snap-opening, combination gas valve. The maximum supply pressure to the appliance is 14” W.C. or 1/2 P.S.I. If the line pressure is more than the maximum supply pressure, then use a line regulator or a line regulator which corresponds to the supply pressure. If a second stage regulator is used and gas seeps through it, the redundant combination gas valve is designed to lock out.

      Helpful?

  3. Does this require electricity

    1 answer

    1. The heater will require electricity. See page 9 of the manual on our web for the electrical connection instructions. The manual can be found below the product summary.

      Helpful?

  4. Can I run this off a standard 20 lb tank and also what are the dimensions

    1 answer

    1. The propane requirements will be a water column of 11-14 inches. The burner pressure requirement is 10" water column. The dimensions on the heater are 31" L x 23" W x 11" H.

      Helpful?

  5. How is the temperature regulated with this unit?

    1 answer

    1. The heater is controlled by a line voltage thermostat. Alternatively, you may use a 24-volt thermostat with a relay kit or an on/off switch. The thermostat would be sold separately.

      Helpful?

  6. Can you wire this into a switch instead of using a thermostat?

    1 answer

    1. The power supply to the unit should be protected with a fused disconnect switch or circuit breaker. Check local codes and regulations for electrical requirements.

      Helpful?

  7. Can you throttle the propane to control how much heat it puts off? Or does it have to stay full blast all the time?

    1 answer

    1. The propane cannot be throttled. We offer thermostats, item 16281 and 16279 to control the temperature you would like to operate at.

      Helpful?

  8. Two Heaters using one thermostat?

    I just ordered two heaters to be connected to a 200 gallon propane tank. Can I use one thermostat for both heaters for each heater to run independent of the other. If yes which thermostat do you recommend? And do I need to buy electrical wiring for it and what is the power source for the thermostat?

    1 answer

    1. These heaters can share a single thermostat but will not function independently of each other. The thermostat will turn on or shut off both heaters simultaneously. A line voltage thermostat is recommended as using a 24 volt thermostat would require the use of relays and complicate the installation.

      Helpful?

  9. CAN MULTIPLE UNITS BE USED IN THE SAME GARAGE. IF SO ARE THEY DAISY CHAINED TO THE PROPANE TANK OR CONNECTED INDIVIDUALLY TO THE SAME TANK

    1 answer

    1. You can use multiple units in the same garage as long as there is enough indirect venting for the units used. Two heaters can be connected to the same propane line as long as there is sufficient pressure from the tank. We recommend contacting a certified installer in your area who can give you suggestions based on your garage setup and is familiar with any local codes regarding propane heater installations.

      Helpful?

  10. What is the minimum size LP cylinder needed for this heater

    1 answer

    1. The minimum size propane cylinder that we recommend for this heater is 100 pound.

      Helpful?
