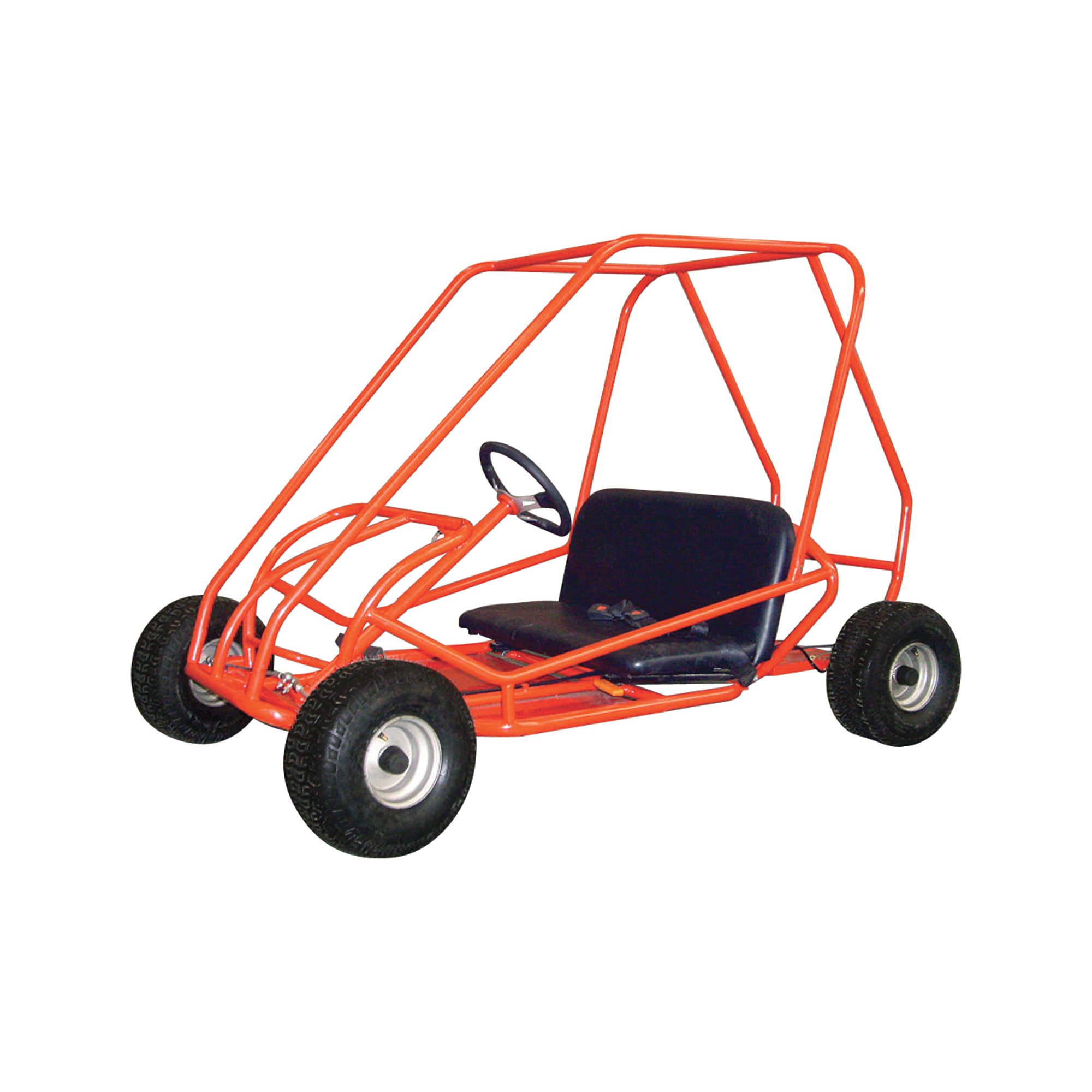

Stingray Complete Go-Kart Chassis Kit — Model# Stingray Go-Kart Kit

Item# 13135
Stingray Complete Go-Kart Chassis Kit - Model# Stingray Go-Kart Kit
Stingray Complete Go-Kart Chassis Kit — Model# Stingray Go-Kart Kit

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Stingray Complete Go-Kart Chassis Kit — Model# Stingray Go-Kart Kit

Click or Tap image to Zoom

  • Brakes, cables, seat belts and seats are installed
  • 60-tooth sprocket
  • Includes a universal engine mounting plate
  • Ready for installation of a small 3–5 HP horizontal shaft gas engine with 3/4in. tapped 5/16in.-24 shaft with 3/16in. keyway
  • Some assembly required

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Complete rolling chassis from Stingray is ready to add the motor of your choice.

What's Included

  • (1) Go-kart chassis kit

Downloads

Product Manual

Features + Benefits

  • Brakes, cables, seat belts and seats are installed
  • 60-tooth sprocket
  • Includes a universal engine mounting plate
  • Ready for installation of a small 3–5 HP horizontal shaft gas engine with 3/4in. tapped 5/16in.-24 shaft with 3/16in. keyway
  • Some assembly required

Key Specs

AttributeSpecification

item#

13135

Brand

Stingray

Manufacturer's Warranty

6 months parts / 3 months labor
AttributeSpecification

Ship Weight

221.0 LB

Product Type

Go-Kart

Dimensions L x W x H (in.)

72 x 43.5 x 47.25 in

Reviews

Questions & Answers

24 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. Does the clutch come with it?

    1. Yes, the clutch and chain come with it - it comes complete with everything, cables too!

      Helpful?

    2. This Stingray go-kart chassis comes with a 10 tooth clutch.

      Helpful?

  2. Do I need to buy a clutch?

    Do I need to buy a clutch for this chasis?

    1. No, it comes complete with Chain, Clutch, Throttle Cables, everything!!!

      Helpful?

    2. The clutch is included in the kit.

      Helpful?

  3. i was wondering if this gokart kit has a Live rear axle or is it one wheel drive

    wanted to know if the rear axle goes all the way through the rear tube? or if the kart is One wheel drive ? thank you

    1. Its a one wheel drive

      Helpful?

    2. The go kart kit has a fixed axle sometimes called the one wheel drive. So the rear axle does not go through the rear tube.

      Helpful?

  4. MY ENGINE HAS A 3/4" SHAFT BUT 3/8"X24 THREAD WILL IT WORK

    1. I see no reason why your engine will not work. A bolt holds the clutch on the engine shaft. The 5/16" bolt in the kit won't work so buy a 3/8" bolt of the same length and hardness and use that to hold the clutch on. All you need is a different bolt, not a different motor.

      Helpful?

    2. Your engine will not work being the go kart kit requires a 3/4" x 5/16-24 thread shaft.

      Helpful?

  5. What is the maximum size of occupant and weight? Will a 6foot person weighing 190 lbs fit?

    1. I am 5'11" and weigh 270lbs and I can ride it!!!

      Helpful?

    2. This item will handle two adults with a maximum combined weight of 450 lbs.

      Helpful?

  6. Does this chassis have a live rear axle?

    I want to know if the rear wheels/tires are connected with an axle or if they spin independently of one another. In other words, is just the left rear tire driven or are both tires driven via a common axle?

    1. The rear axles are NOT connected--This is a one wheel drive --also a one wheel braking kart.

      Helpful?

    2. This has a fixed axle.

      Helpful?

  7. If I buy the Stingray Go-kart Chassis kit, what else (besides a motor) will I need to buy to make a complete functional go kart? Thanks.

    1 answer

    1. This Stingray Go-kart Chassis kit will require only an engine to make it a fully operational go-kart. Be sure the engine being installed is approximately 3–5 HP(90-160cc), has a 3/4" horizontal shaft that is tapped with 5/16"-24 thread and a 3/16" keyway.

      Helpful?

  8. Can you raise it and put suspension on this kart? Also can I use a engine that is more than 5 horse power?

    1 answer

    1. This item should only be used with 3-5 horse power engine and extra suspension should not be added as it may void the warranty.

      Helpful?

  9. How big is it.

    1 answer

    1. This chassis kit is 72 inches long, by 43 1/2 inches wide, and 47 1/4 inches high.

      Helpful?

  10. can you put in an DC motor? And if so which one?

    1 answer

    1. No. A DC Motor cannot be used in the Go-Kart Chassis kit.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

6 months parts / 3 months labor
