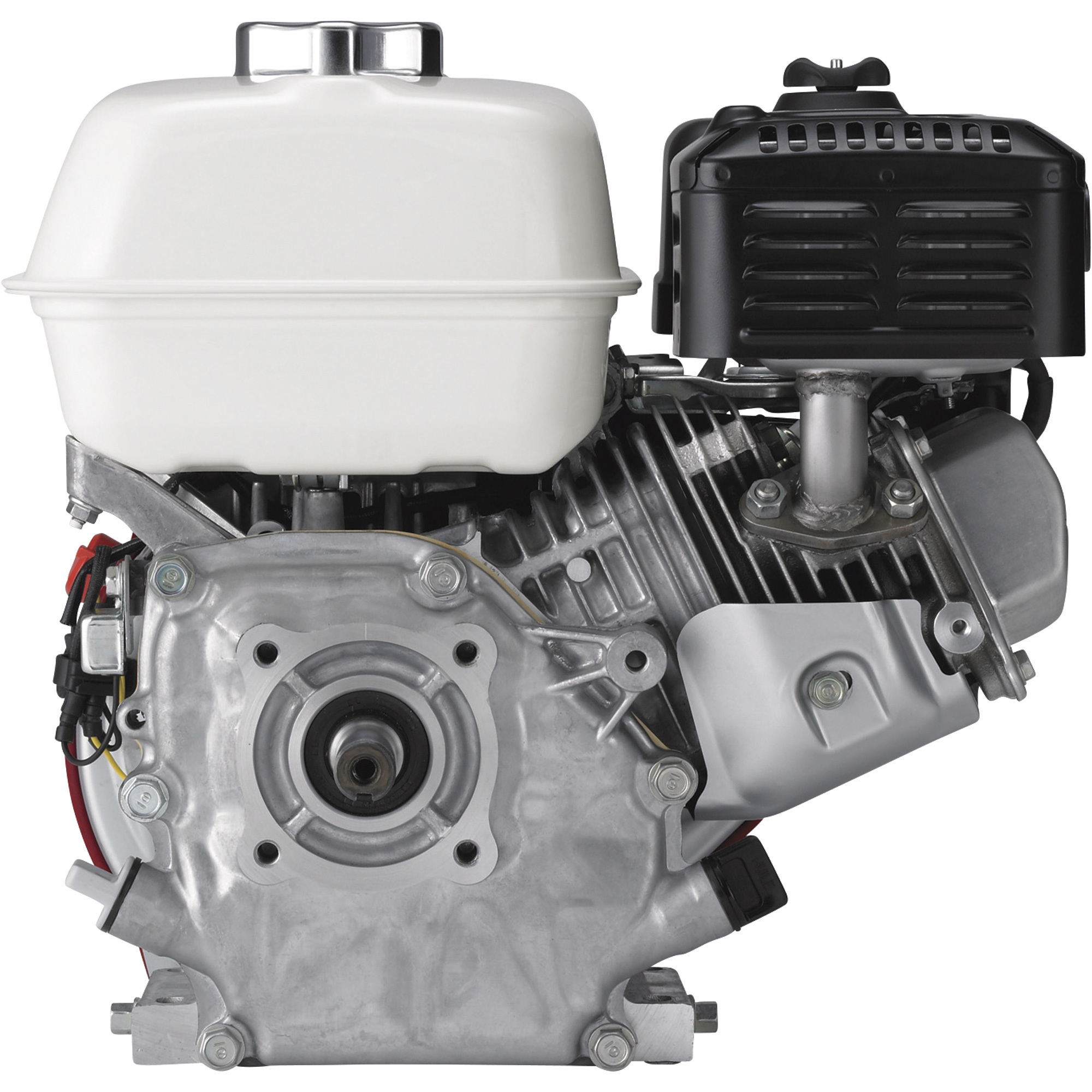

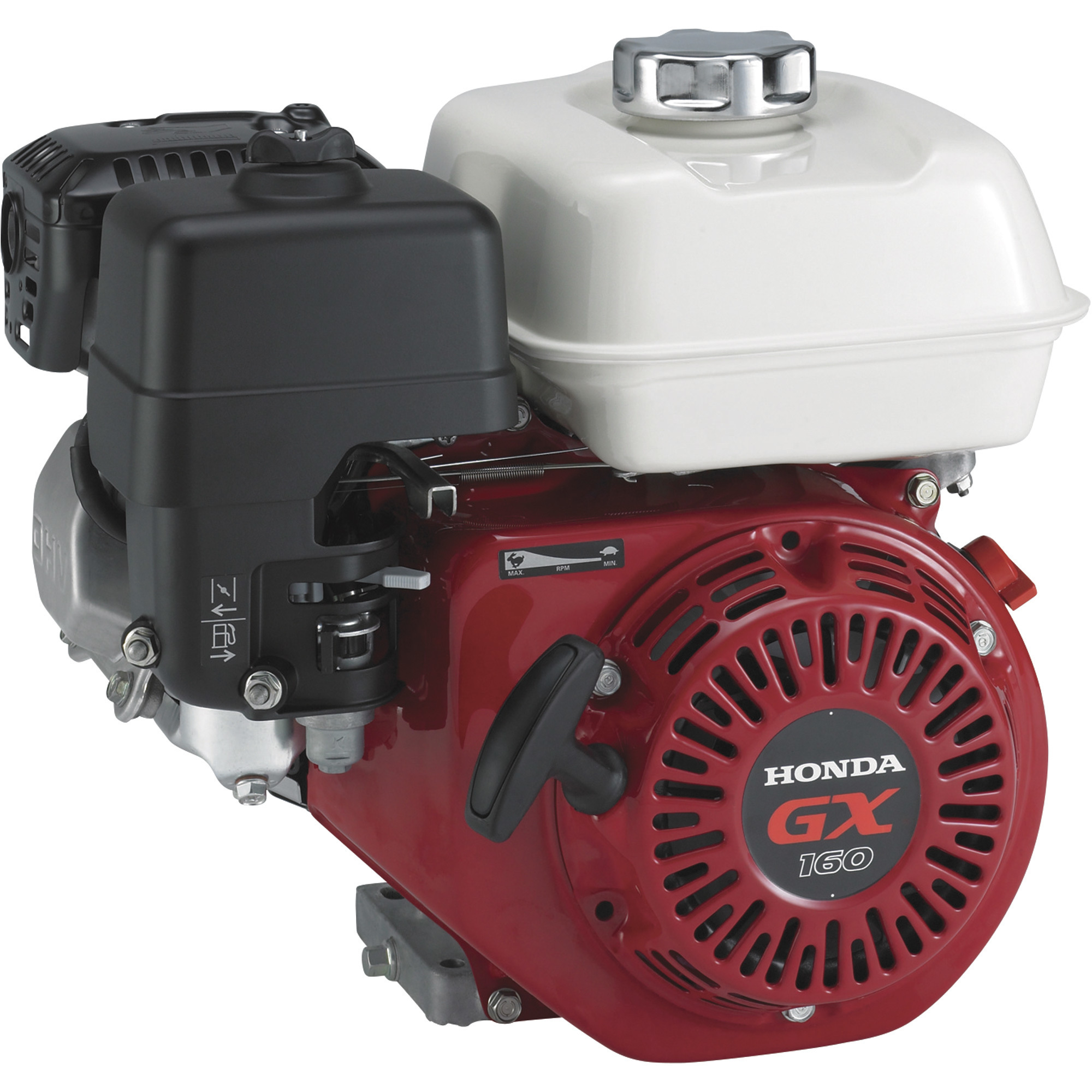

Honda GX Series Horizontal OHV Engine, 163cc, 3/4in. x 2 7/16in. Shaft, Model# GX160UT2QX2
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$479.99
- Model# GX160UT2QX2; Honda 163cc, 4.8 HP air-cooled, 4-stroke engine with 3/4in. x 2 7/16in. horizontal shaft
- OHV overhead valve design delivers increased efficiency and optimal power transfer
- Electronic ignition system with a heavy-duty recoil starter featuring
Oil Alert® and automatic decompression system for quick starts - Flange-mount bolt circle: 3 5/8in.; Mounting base: 6 3/8in. L x 3 5/32in. to 3 11/32in. W (approx.)
- Cast iron cylinder sleeve
See full description
Price for all three:
$530.97
What's Included
- (1) Honda GX Series Horizontal OHV Engine, Model# GX160UT2QX2
Genuine Honda Performance
Honda's Experience Counts
There are many reasons to insist on genuine Honda engines — reasons like less down time, lower costs of ownership and better performance. As the world's largest engine manufacturer, Honda offers more engine experience than anyone, experience born on racetracks and roadways around the globe. Honda has a well-earned reputation for engine quality and performance. When you choose a Honda engine, or a product powered by Honda, you know what you're getting: an engine you can count on, now and in the future.
Commercial-Grade Honda GX Series
The Honda GX Series OHV commercial-grade engine is designed to perform in the most demanding commercial applications and has set the industry standard for reliability and durability. It's the preferred engine for construction equipment, pressure washers, compressors, go-karts, log splitters and more.
Insist on the Best
Superior Performance
Better fuel efficiency. Higher power output. Quieter performance. Easier use. No matter how you define superior engine performance, Honda engines set the standard, with best-in-class engineering and technology.
Legendary Easy Starting
Honda engines are renowned for being consistently easy to start. With a unique automatic mechanical decompression system, heavy-duty recoil ropes and advanced variable ignition timing, Honda engines are designed with quick, easy starts in mind.
Environmental Focus
Honda is committed to producing one engine for use in all 50 states. Honda engines meet the new, more stringent CARB emission requirements, and will be ready for the future lower EPA and CARB standards as they are introduced. Additionally, Honda engines meet CARB exhaust emission requirements without the use of a catalytic converter.
A Brand You Can Trust
Superior Reliability and Quality
Honda sets the standard for reliable, hard-working engines, built with high-quality components designed for optimum performance in the harshest environments. Honda stands behind its engines with an industry-leading 3-year limited commercial warranty on all GX engines 100cc and larger.
Nationwide Parts and Service Support
Honda understands the importance of getting you back to work quickly. Honda has a vast nationwide support network of over 14,000 dealers. From parts to service, Honda engine dealers are there to assist you whenever and wherever you need it.
Features + Benefits
- Model# GX160UT2QX2; Honda 163cc, 4.8 HP air-cooled, 4-stroke engine with 3/4in. x 2 7/16in. horizontal shaft
- OHV overhead valve design delivers increased efficiency and optimal power transfer
- Electronic ignition system with a heavy-duty recoil starter featuring
Oil Alert® and automatic decompression system for quick starts - Flange-mount bolt circle: 3 5/8in.; Mounting base: 6 3/8in. L x 3 5/32in. to 3 11/32in. W (approx.)
- Cast iron cylinder sleeve
- Preferred engine for construction equipment including pressure washers, compressors, log splitters and chipper/shredders
- Fuel efficient, high-output operation with precision camshaft design and a high compression ratio
- Smooth performance and reduced vibration from precision-balanced crankshaft and reduced piston weight
- Ball bearing-supported crankshaft offers greater stability
- Aluminum push roads reduce both valve clearance and noise level
- Muffler, breather valve, case cover, air intake system, rigid crankcase, helical-cut gears and lightweight materials are also designed to reduce noise level
- Oil alert protects engine
- Carburetor coating and filter help protect fuel from impurities
- Reliability comes from high-quality materials, fit and finish
- Dual-element air cleaner
- Easy to use and maintain with simple throttle control, large fuel tanks, wide-mouth automotive-style fuel cap, dual oil fills and drains, easy-to-use control box and easily accessible spark plug
- 50-state compliant engine
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda GX Series Horizontal OHV Engine, 163cc, 3/4in. x 2 7/16in. Shaft, Model# GX160UT2QX2
Powerhorse OHV Horizontal Engine, 212cc, 6 HP, 3/4in. x 2-7/16in. Shaft
Honda Engines, 270CC HONDA,12V,W/O FUEL TANK, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270RT2XRSC2
Honda Engines, HONDA 389CC 18AMP ES NO TANK, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390RT2QNGN
Engine Displacement
Same
163 cc
212 cc
270 cc
389 cc
Engine Type
Same
GX Series OHV Commercial-duty
OHV
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
Shaft Diameter
Same
3/4 in
3/4 in
1 in
1 in
Shaft Length
Same
2.43 in
2.43 in
3.23 in
3.48 in
Start Type
Same
Recoil
Recoil
Recoil
Electric and Recoil
Shaft Keyway
Same
0.18 in
0.18 in
-
0.25 in
Net Torque
Same
7.6 ft-lbs.
-
14.1 ft-lbs.
19.5 ft-lbs.
Crankshaft
Same
Q-type
-
R-type
Q-type
PTO Height
Same
4.17 in
-
5.25 in
5.25 in
Cylinders (qty.)
Same
1
1
1
1
Cylinder Bore
Same
Cast Iron
-
Cast Iron
Cast Iron
Net Power Output
Same
4.8 HP
6 HP
8.5 HP
11.7 HP
Compression Ratio
Same
9:1
-
8.5:1
8.0:1
Fuel Tank
Same
Yes
-
No
No
Fuel Tank Capacity
Same
3.3 qt
3.8 qt
-
-
Oil Capacity
Same
0.61 qt
0.63 qt
1.16 qt
1.16 qt
Low Oil Shutdown
Same
Yes
-
-
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Mechanical Centrifugal
Centrifugal Mechanical
Centrifugal Mechanical
Ignition System
Same
Electronic
CDI
Electronic
Electronic
Carburetor
Same
Float, External Vent
Horizontal Type, Butterfly Valve
Float, External Vent
Float, External Vent
Lubrication System
Same
Splash
Splash
Splash
Splash
Bearing Type
Same
Ball
-
Ball
Ball
Auto Compression Release
Same
Yes
-
Yes
Yes
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.7 in
2.75 in
3 in
3.5 in
Stroke
Same
1.8 in
2.16 in
2.3 in
2.5 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Dual Element
Choke Control
Same
Manual
-
Manual
Manual
Throttle Control
Same
Remote
-
Remote
Remote
Muffler Included
Same
Yes
Yes
Yes
Yes
Low Oil Alert
Same
-
Yes
Yes
Yes
CARB Approved
Same
-
No
-
-
Product Weight
Same
-
38.6000 lb
-
-
Dimensions L x W x H (in.)
Same
-
17.0 x 14.0 x 15.0 in
-
-
Charging System Amps
Same
-
-
-
18
