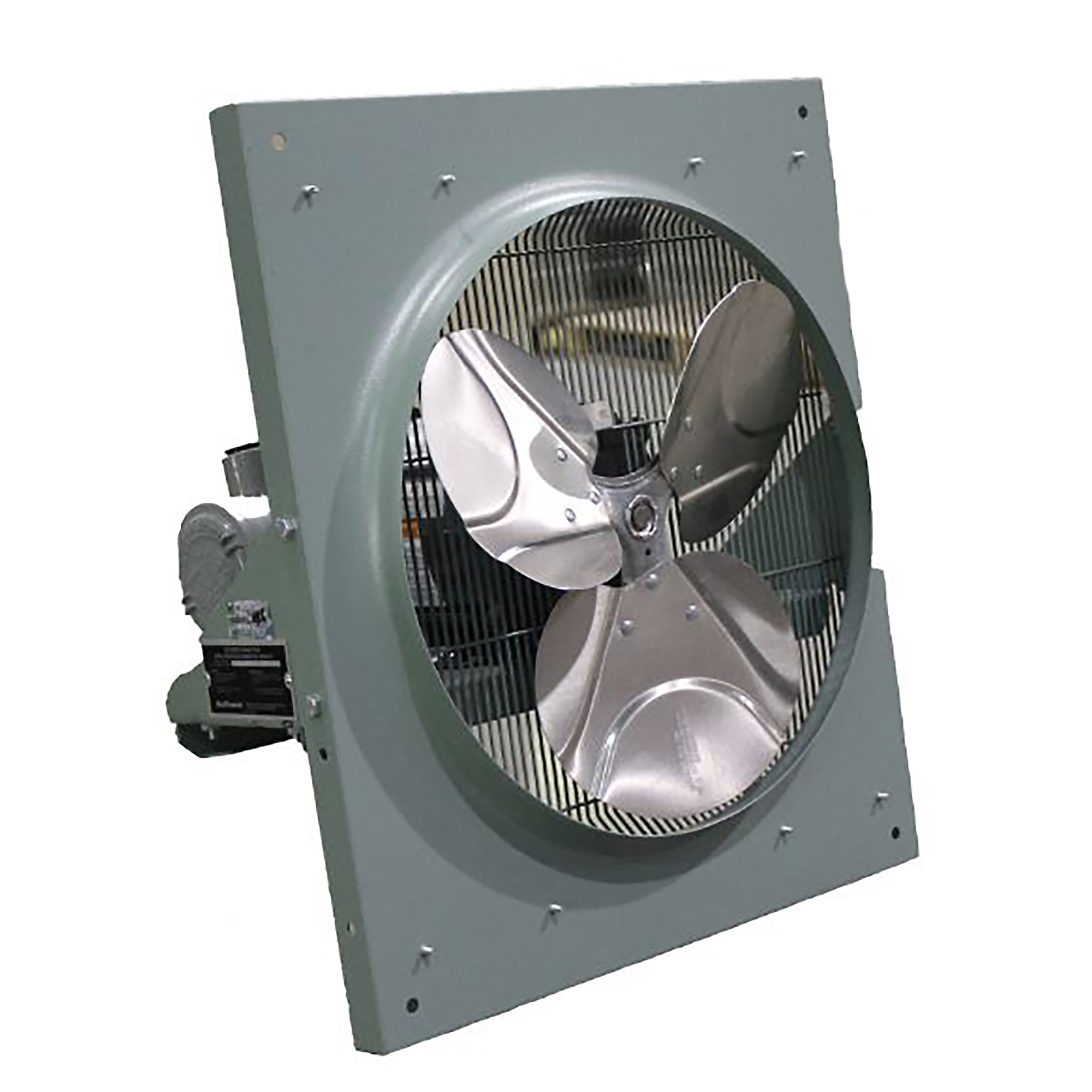

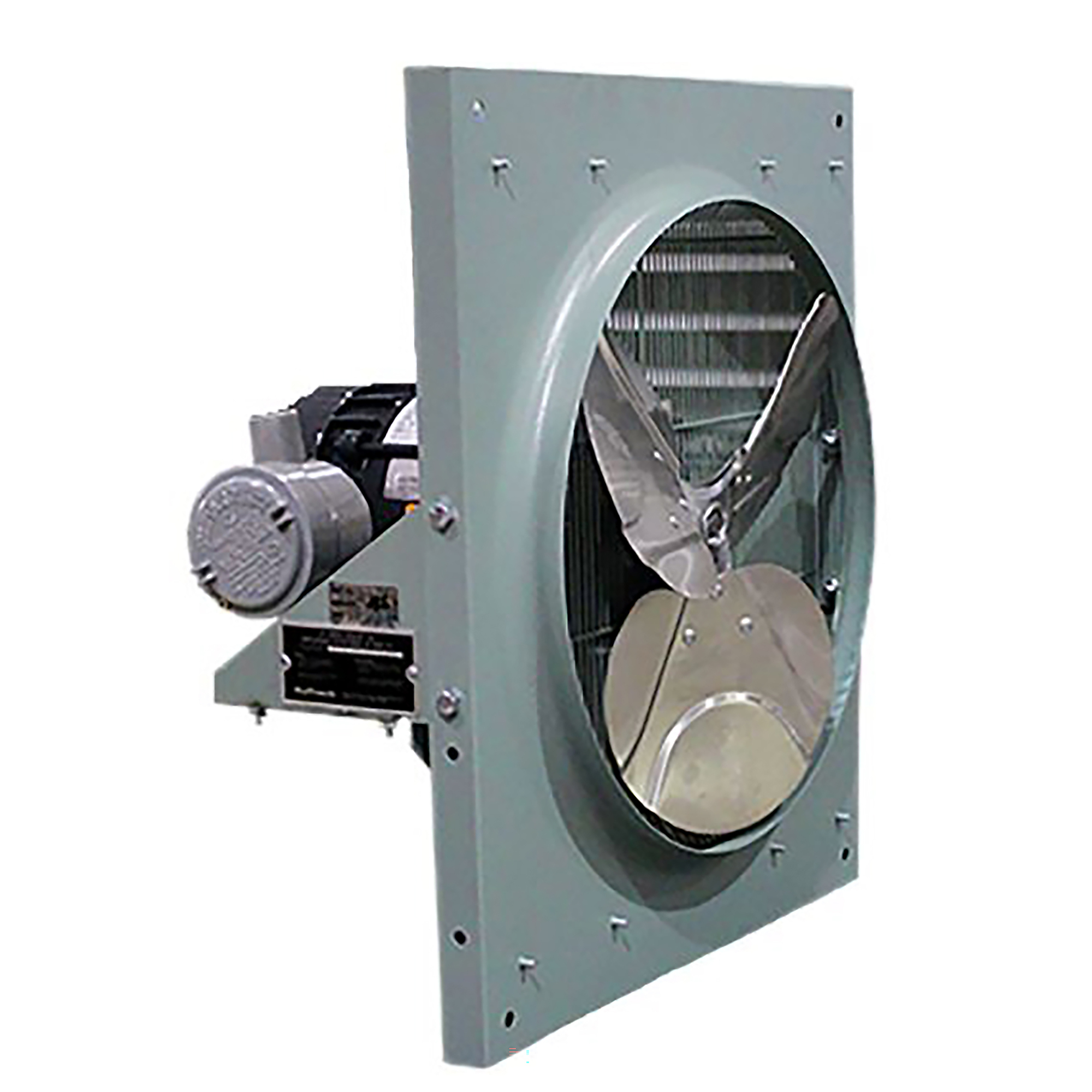

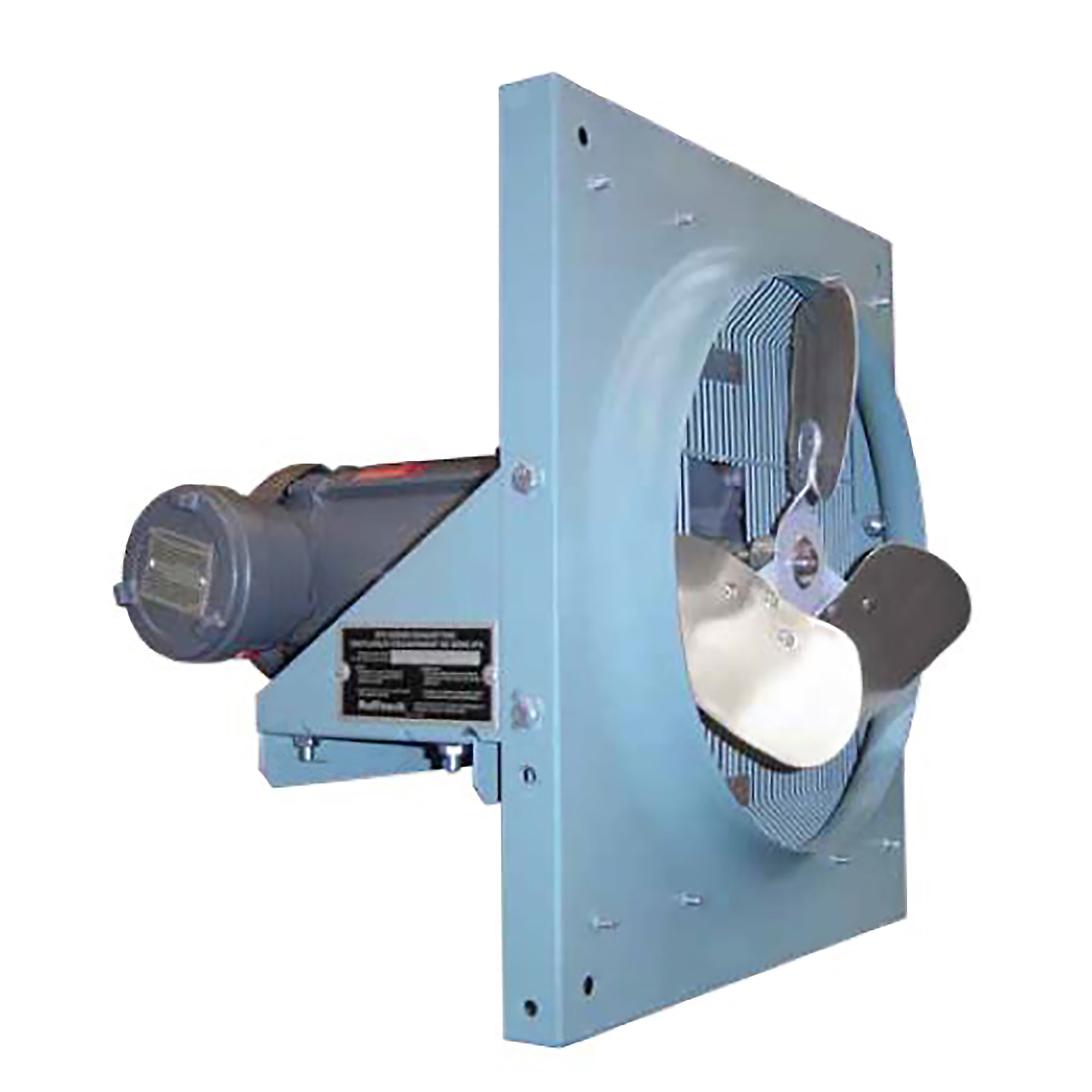

Ruffneck™ Totally Enclosed 12” Exhaust Fan, 208V, 3Ø, 60HZ

Item# 7388829
Ruffneck™ Totally Enclosed 12” Exhaust Fan, 208V, 3Ø, 60HZ

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ruffneck™ Totally Enclosed 12” Exhaust Fan, 208V, 3Ø, 60HZ

Click or Tap image to Zoom

$1479.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Hazardous Location Classification: Class I, Div 1 & 2, Groups C, D Class II, Div 1 & 2, Groups E, F, G.
  • Temperature Code: T3B 165°C (329°F) EAC, Ex d IIB T3 Gb X 2.
  • Ambient Temperature: ?20°C (4°F) to 40°C (104°F)
  • Approvals: Motors are CSA approved and/or UL listed
  • Fan: Aluminum blade. Steel spider and hub with 5/8" (15.875 mm) bore. Optional Heresite® coating for corrosive atmospheres.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ruffneck™ EFX Series Explosion-Proof Exhaust Fan is designed for hazardous and general purpose industrial applications. The EFX is constructed with epoxy-coated steel panels and spark resistant aluminum fan blades for ventilation of combustible materials, vapors and hazardous fumes. The EFX is fully assembled for easy installation, has explosion-proof motors that are CSA approved and/or UL listed with fan guards conforming to OSHA specifications.

What's Included

    (1) Ruffneck™ Totally Enclosed 12” Exhaust Fan, 208V, 3Ø, 60HZ

Features + Benefits

  • Hazardous Location Classification: Class I, Div 1 & 2, Groups C, D Class II, Div 1 & 2, Groups E, F, G.
  • Temperature Code: T3B 165°C (329°F) EAC, Ex d IIB T3 Gb X 2.
  • Ambient Temperature: ?20°C (4°F) to 40°C (104°F)
  • Approvals: Motors are CSA approved and/or UL listed
  • Fan: Aluminum blade. Steel spider and hub with 5/8" (15.875 mm) bore. Optional Heresite® coating for corrosive atmospheres.

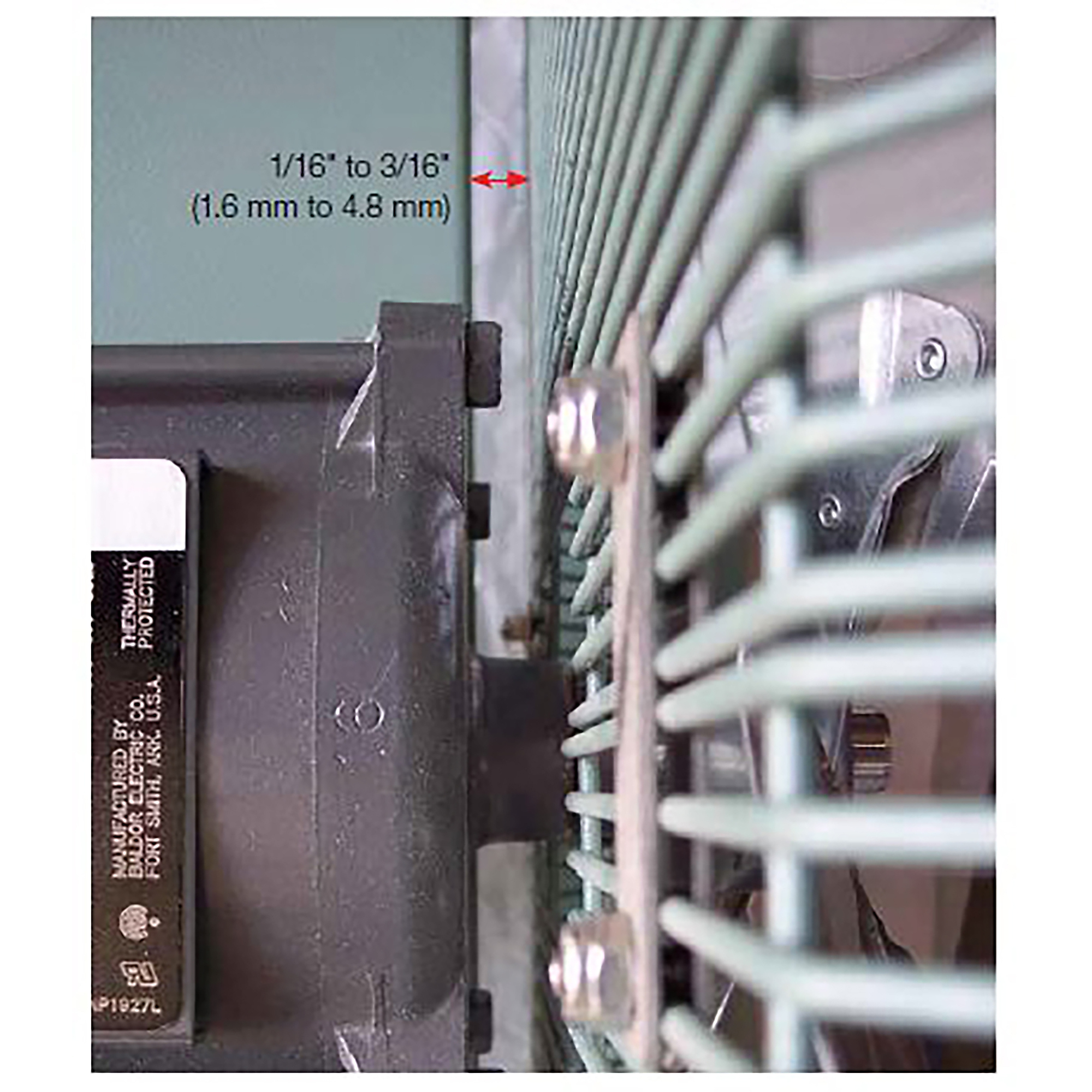

  • Fan Guard: Split design with close wire spacing, meets OSHA requirements
  • Motors: CSA approved and/or UL listed permanently lubricated ball bearing type with rigid base. Explosion?proof or totally enclosed construction. All standard voltages for 60 and 50 hertz are available.
  • Frame Material: 16 ga. (0.060" or 1.52 mm) epoxy?coated steel. Optional stainless steel or Heresite® coating for corrosive atmospheres.
  • Mounting: Four 3/8" (9.5 mm) diameter holes. Must be mounted to a rigid structure.

Key Specs

AttributeSpecification

item#

7388829

Brand

Ruffneck

Manufacturer's Warranty

3 year limited warranty

Ship Weight

65.0 LB

Drive Type

Direct

Fan Diameter

12 in

Volts

208

Hardwired

No

Speeds (qty.)

1
AttributeSpecification

Max. Fan Speed

1,725 rpm

Primary Color

Green

Secondary Color

Silver

Assembly Required

Yes

Outdoor Rated

No

Phase

Three-phase

Horsepower

0.5 HP

Product Weight

65.0000 lb

Dimensions L x W x H (in.)

20.0 x 21.0 x 25.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
