Rigid Hitch, Pair of 5-Bolt on 4.5 Inch Electric Hub-Drum Assembly, 10 inch Drums and Electric Brakes, Flanged 1-3/8 inch to 1-1/16 inch Tapered Spindles, Bearings/Seals/Caps Included, Model# AKRD-3500545F-HD-E

Item# 6972767
Rigid Hitch, Pair of 5-Bolt on 4.5 Inch Electric Hub-Drum Assembly, 10 inch Drums and Electric Brakes, Flanged 1-3/8 inch to 1-1/16 inch Tapered Spindles, Bearings/Seals/Caps Included, Model# AKRD-3500545F-HD-E

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, Pair of 5-Bolt on 4.5 Inch Electric Hub-Drum Assembly, 10 inch Drums and Electric Brakes, Flanged 1-3/8 inch to 1-1/16 inch Tapered Spindles, Bearings/Seals/Caps Included, Model# AKRD-3500545F-HD-E

Click or Tap image to Zoom

$419.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

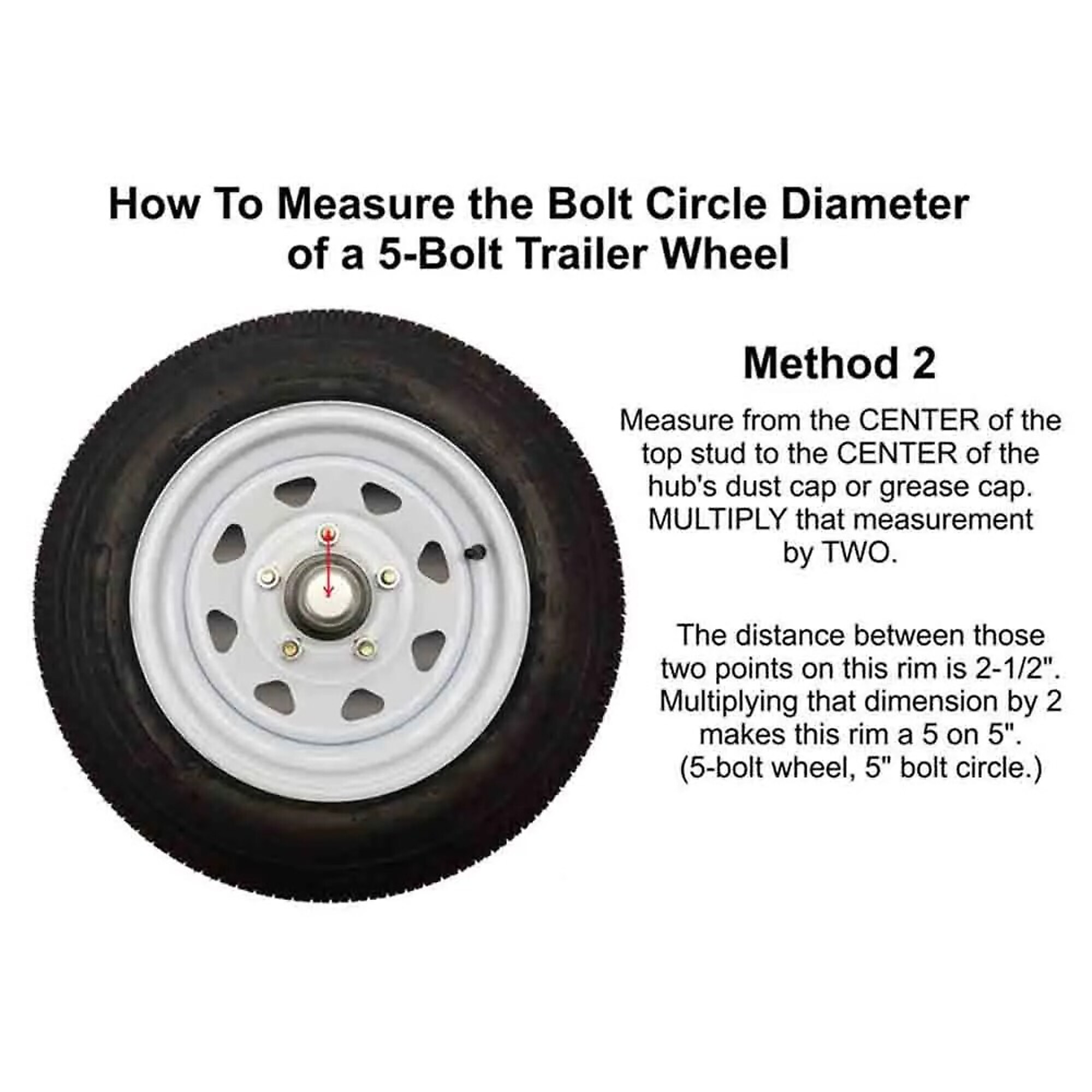

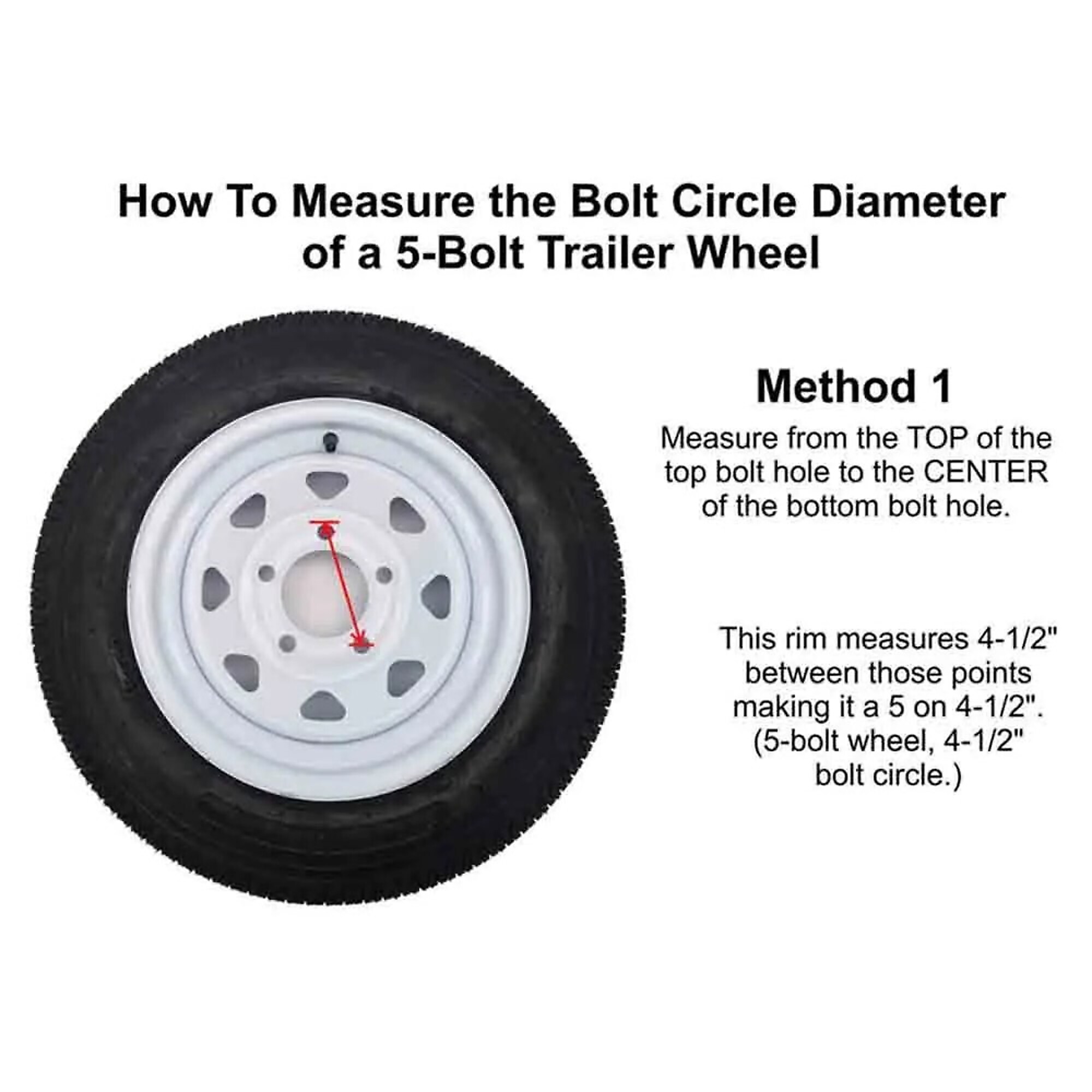

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 4-1/2" bolt circle hub is correct. * * *

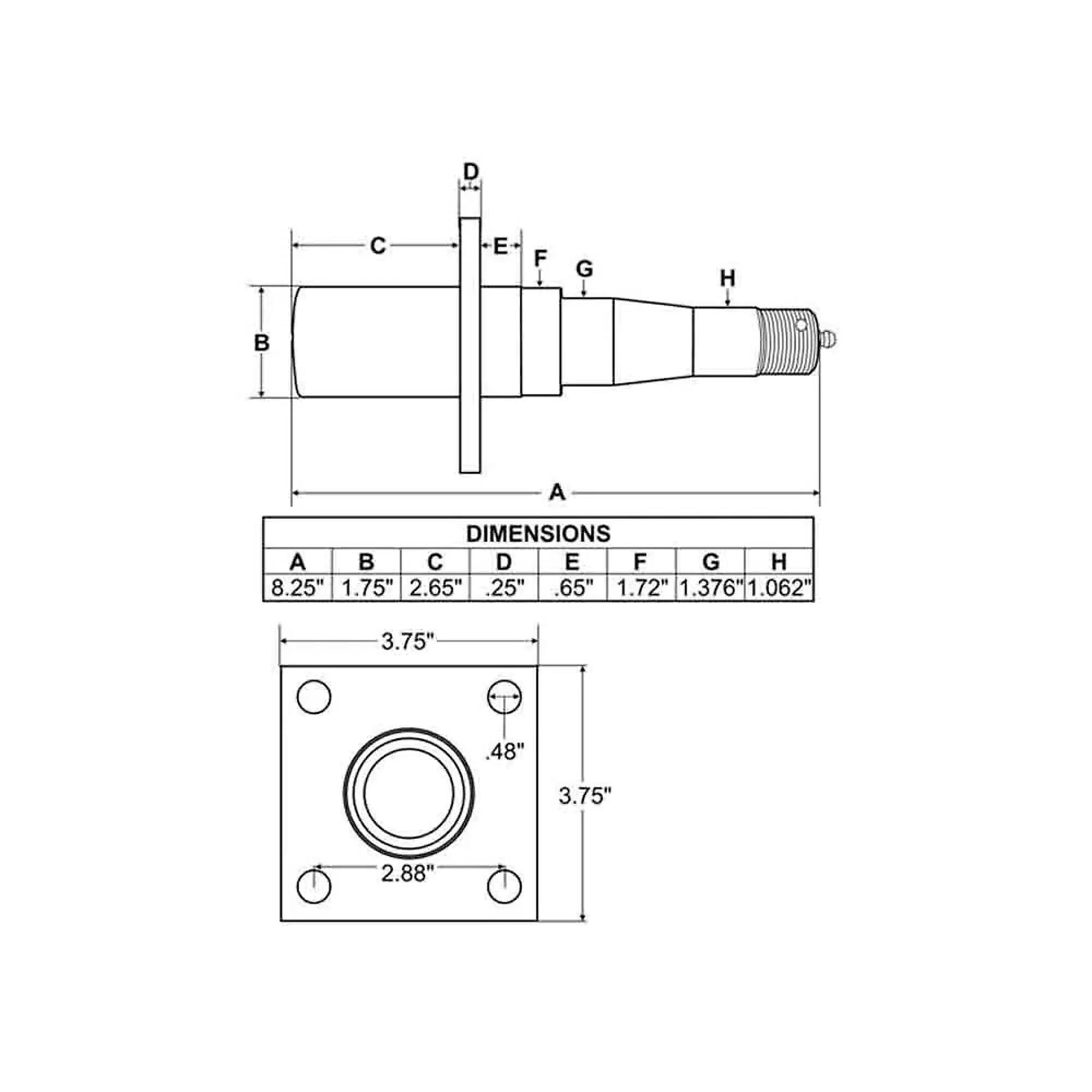

  • Spindles feature a brake flange and a round 1-3/4 inch stock diameter with a tapered spindle surface of 1-3/8 inch and 1-1/16 inch
  • Hub/drums have pre-installed pressed in races
  • Bearings included - (2) L-68149 1-3/8 inch I.D. and (2) L-44649 1-1/16 inch I.D.
  • Hub/drums have a 5-bolt pattern on 4-1/2 inch bolt circle.  10 inch inside diameter x 2-1/2 inch depth.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

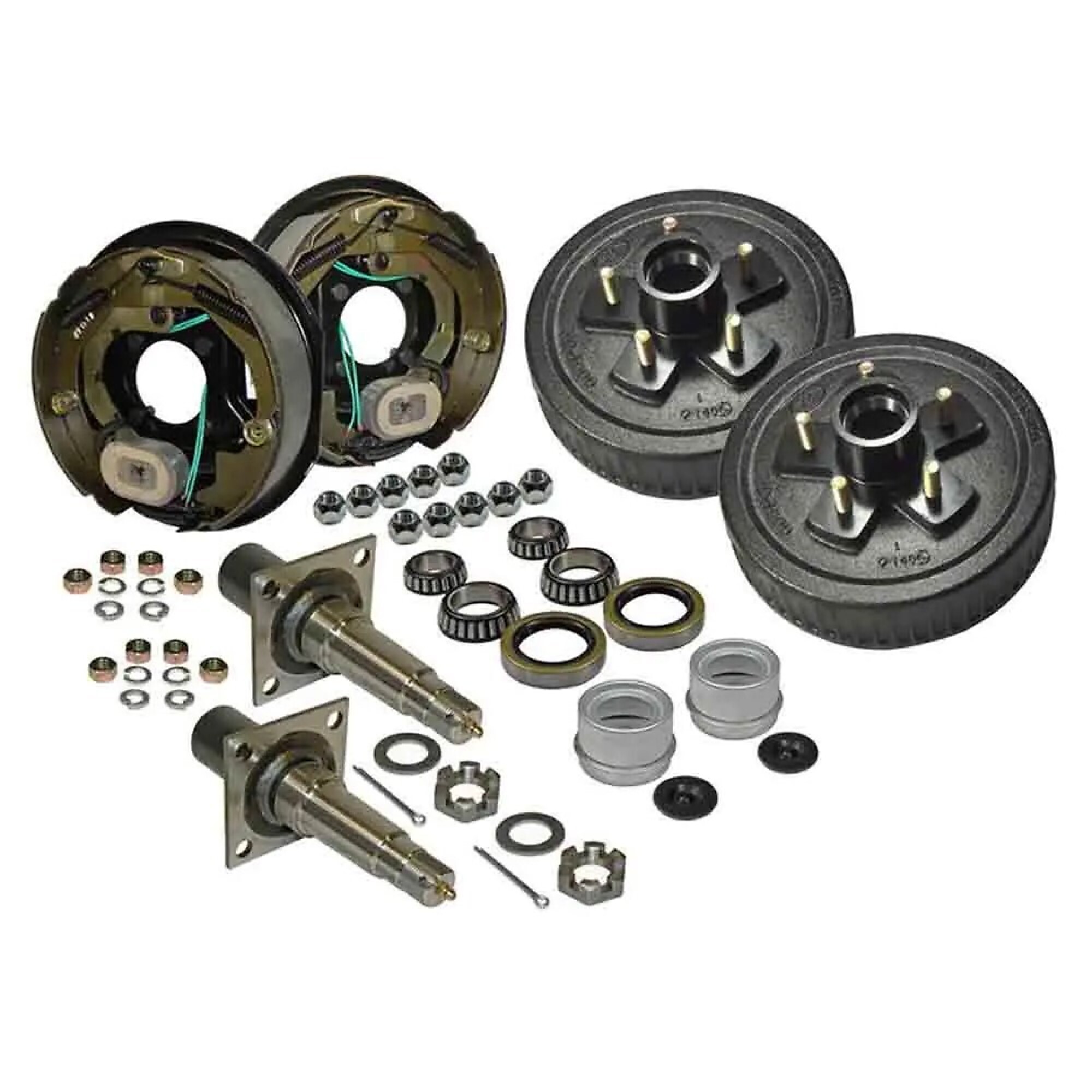

Easily build your own axle with this 3,500 lb rated hub/drum assembly. This kit includes (2) 5-bolt on 4-1/2in. bolt center hub/drums for 3,500 lb axles, (2) 1-3/8in. to 1-1/16in. tapered spindles with brake flanges, (2) castle nuts, (2) cotter pins, (10) 1/2-20 lug nuts, (2) 2.561in. O.D. x 1.719in. I.D. grease seals, (2) L-44649 1-1/16in. I.D. bearings, (2) L-68149 1-3/8in. bearings, (2) spindle washers and (2) 1.986in. O.D. dust caps with plugs. Also included are a pair of 10in. x 2-1/4in. electric brake backing plates with mounting hardware.

What's Included

    (2) Drums and Brakes with bearings (2) spindles

Features + Benefits

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 4-1/2" bolt circle hub is correct. * * *
  • Spindles feature a brake flange and a round 1-3/4 inch stock diameter with a tapered spindle surface of 1-3/8 inch and 1-1/16 inch
  • Hub/drums have pre-installed pressed in races
  • Bearings included - (2) L-68149 1-3/8 inch I.D. and (2) L-44649 1-1/16 inch I.D.
  • Hub/drums have a 5-bolt pattern on 4-1/2 inch bolt circle.  10 inch inside diameter x 2-1/2 inch depth.
  • 10 inch x 2-1/4 inch electric brake assemblies fit 3,500 lb. axles with 4-bolt pattern on 2-7/8 inch center. Includes mounting studs. REPLACES Alko numbers 363383.1 and 363383.2.
  • Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.

Key Specs

AttributeSpecification

item#

6972767

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

38.0 LB

Weight Capacity

3,500 lb

Product Type

Parts

Axle Tube Type

Round

Studs (qty.)

5

Bolt Circle Pattern

4.5 in
AttributeSpecification

Seal Size ID

1.72 in

Bearing Size ID

1.378 in

Double-Lip

Yes

Springs Included

No

Hubs Included

Yes

Brakes Included

Yes

Product Weight

38.0000 lb

Dimensions L x W x H (in.)

16.0 x 15.0 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
