Rigid Hitch, 8-Lug Hub/Square Spindle End Unit, 8-Bolt on 6-1/2 inch Circle, 1-3/4 Inch to 1-1/4 Inch Tapered Spindles, 3000lb Capacity Per Hub, Model# SQ-6000825

Item# 6973049
Rigid Hitch, 8-Lug Hub/Square Spindle End Unit, 8-Bolt on 6-1/2 inch Circle, 1-3/4 Inch to 1-1/4 Inch Tapered Spindles, 3000lb Capacity Per Hub, Model# SQ-6000825

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, 8-Lug Hub/Square Spindle End Unit, 8-Bolt on 6-1/2 inch Circle, 1-3/4 Inch to 1-1/4 Inch Tapered Spindles, 3000lb Capacity Per Hub, Model# SQ-6000825

Click or Tap image to Zoom

$144.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Hub has a 8-bolt pattern on 6-1/2" bolt circle. Pilot diameter 4-1/2", flange diameter 8-1/2". 1/2" diameter lug studs.

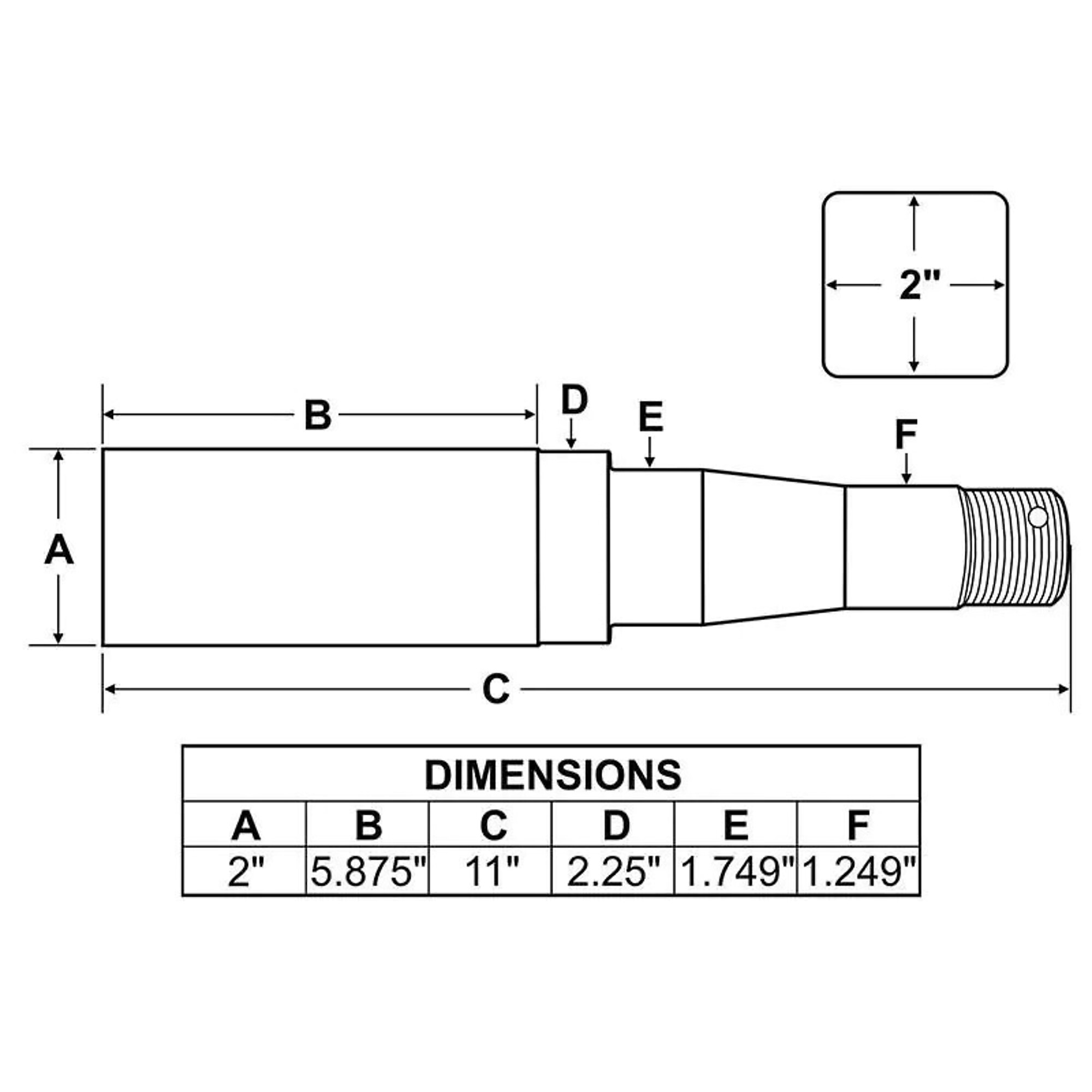

  • Spindle features a SQUARE 2" stock diameter with a tapered spindle surface of 1-3/4" & 1-1/4".
  • Hub has pre-installed pressed in races
  • Bearings included - (1) L-25580 1-3/4" I.D & (1) L-14125A 1-1/4" I.D.
  • Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

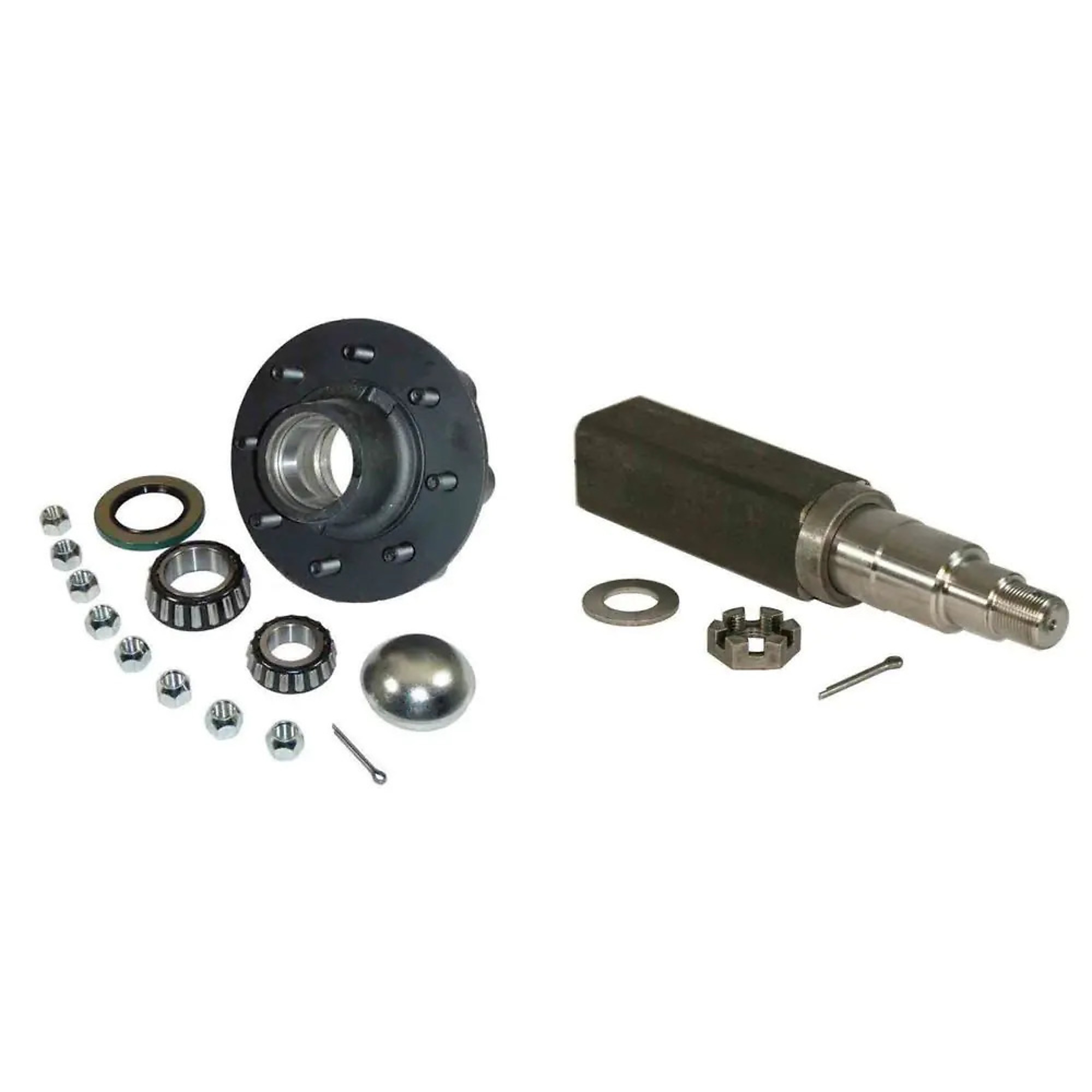

Easily build your own axle with this 6,000 lb rated* hub assembly (*rating as a pair). This kit includes (1) - 8-Bolt on 6-1/2in. bolt center hubs for 6,000 lb axles, (1) - 1-3/4in. to 1-1/4in. tapered spindles, (1) castle nut, (1) cotter pin, (8) 1/2-20 lug nuts, (1) 2.25in. I.D grease seal, (1) L-14125A 1-1/14in. I.D bearing, (1) L-25580 1-3/4in. bearing, (1) spindle washer, and (1) dust cap.

What's Included

    (1) Hub with cap/seal/bearings (1) Spindle

Features + Benefits

  • Hub has a 8-bolt pattern on 6-1/2" bolt circle. Pilot diameter 4-1/2", flange diameter 8-1/2". 1/2" diameter lug studs.
  • Spindle features a SQUARE 2" stock diameter with a tapered spindle surface of 1-3/4" & 1-1/4".
  • Hub has pre-installed pressed in races
  • Bearings included - (1) L-25580 1-3/4" I.D & (1) L-14125A 1-1/4" I.D.
  • Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.

Key Specs

AttributeSpecification

item#

6973049

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

30.0 LB

Weight Capacity

3,000 lb

Product Type

Parts

Axle Tube Type

Square

Studs (qty.)

8

Bolt Circle Pattern

6.5 in
AttributeSpecification

Seal Size ID

2.13 in

Bearing Size ID

1.75 in

Double-Lip

Yes

Springs Included

No

Hubs Included

Yes

Brakes Included

No

Product Weight

30.0000 lb

Dimensions L x W x H (in.)

16.0 x 15.0 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
