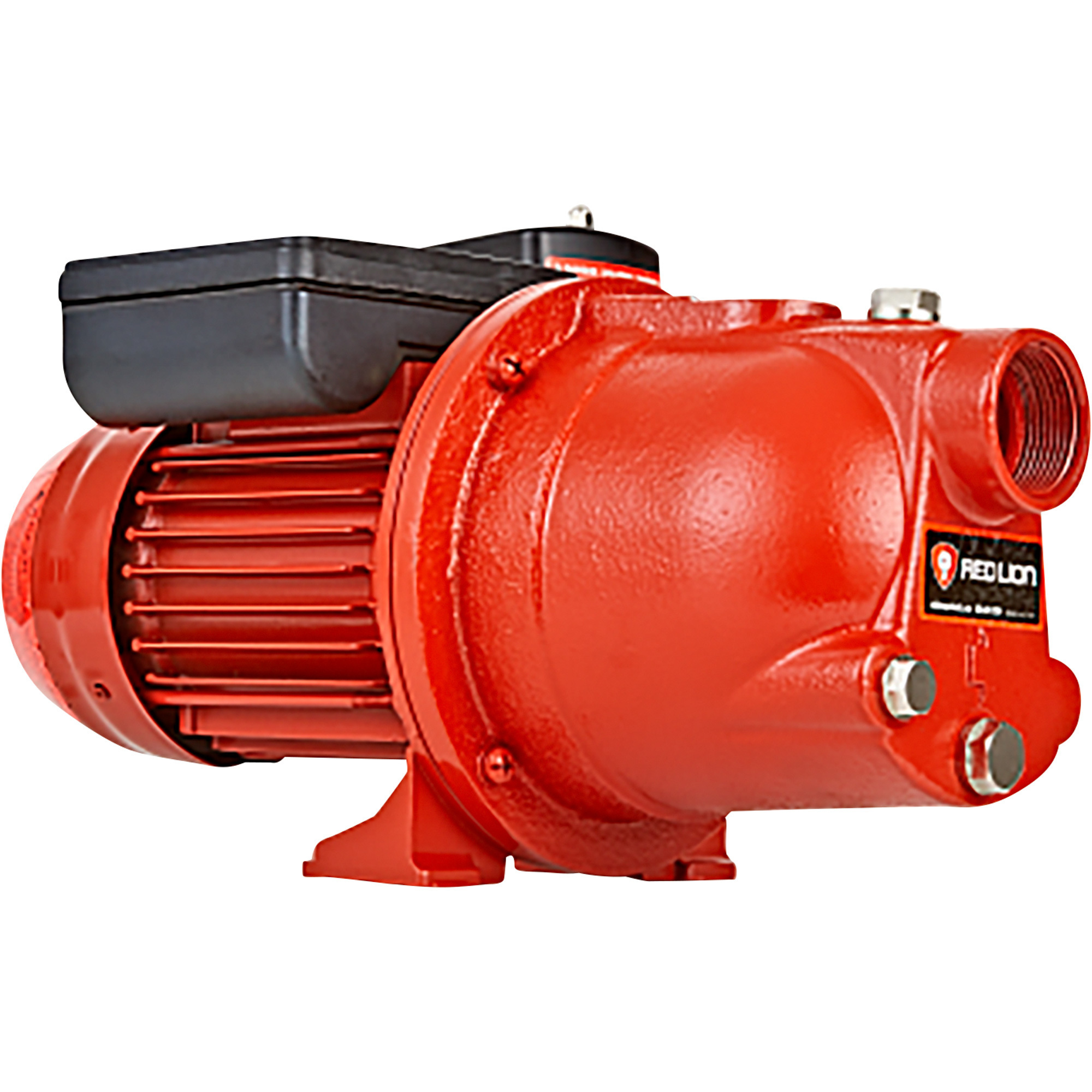

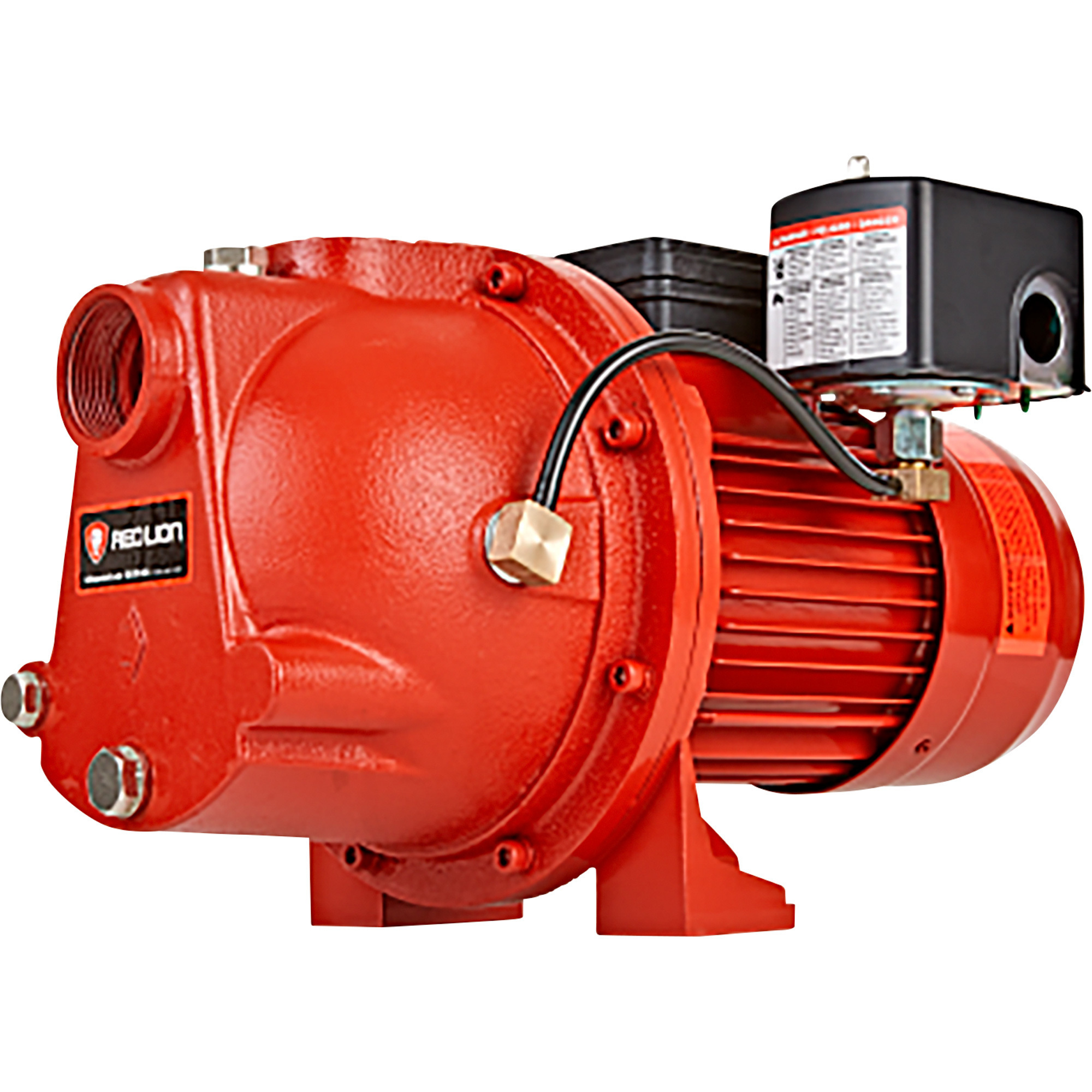

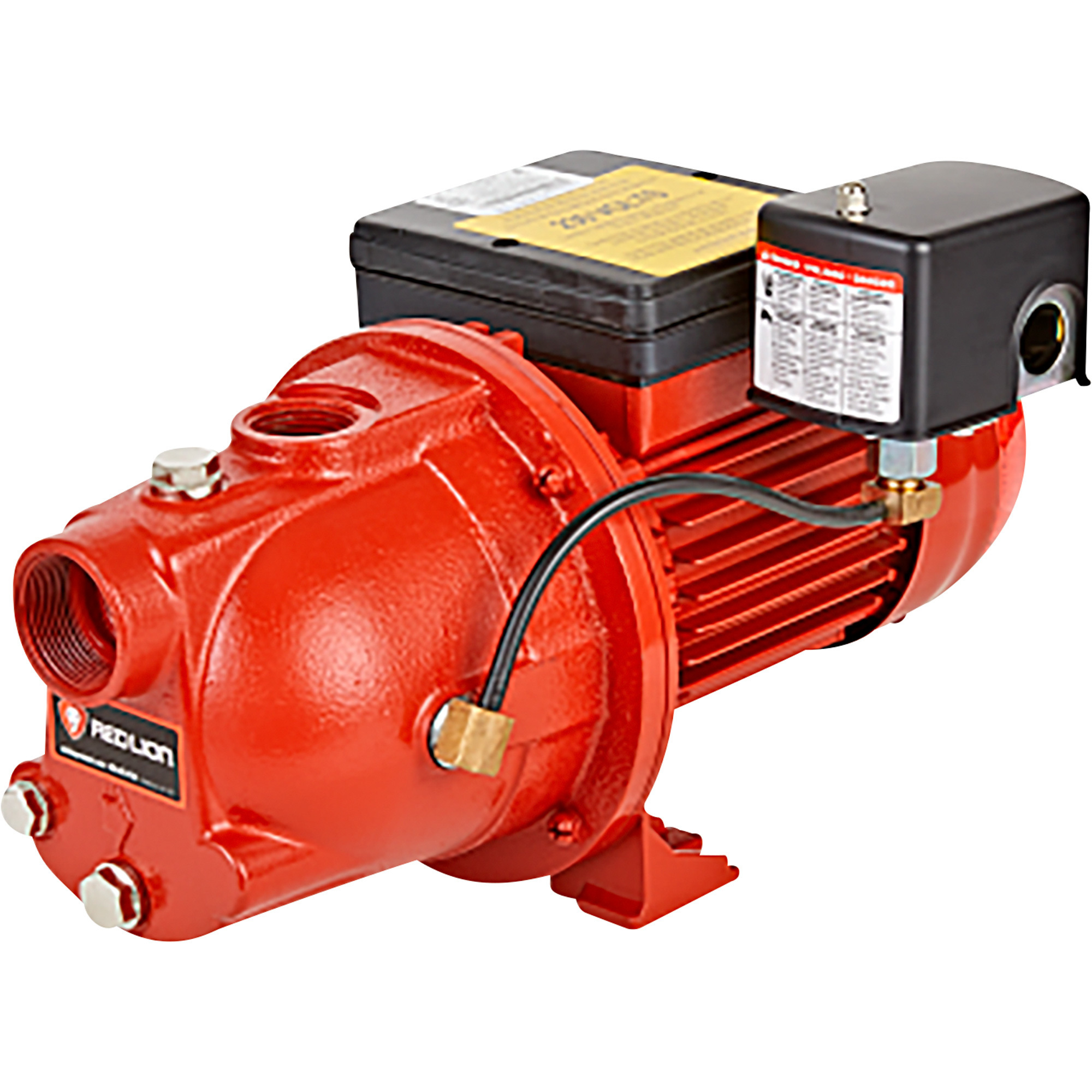

Red Lion Cast Iron Shallow Well Jet Water Pump, 864 GPH, 3/4 HP, 1 1/4in. Intake/1in. Discharge Ports, Model# RL-SWJ75

Item# 81302
"Red Lion Cast Iron Shallow Well Jet Water Pump, 864 GPH, 3/4 HP, 1 1/4in. Intake/1in. Discharge Ports, Model# RL-SWJ75"
Top Seller
Red Lion Cast Iron Shallow Well Jet Water Pump, 864 GPH, 3/4 HP, 1 1/4in. Intake/1in. Discharge Ports, Model# RL-SWJ75

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Red Lion Cast Iron Shallow Well Jet Water Pump, 864 GPH, 3/4 HP, 1 1/4in. Intake/1in. Discharge Ports, Model# RL-SWJ75

Click or Tap image to Zoom

$319.99

  • Shipping:

  • Store Pickup:

    Not Available
  • Heavy-duty cast iron construction for years of service and reliability
  • Included factory pre-set 30/50 pressure switch produces up to 50 PSI with automatic shutoff
  • 115/230 Volt heavy-duty motor
  • TEFC design with simple connection to existing power source
  • 1 1/4in. F-NPT intake/1in. F-NPT discharge ports

See full description

Complete Your Solution

  • Red Lion Cast Iron Shallow Well Jet Water Pump, 864 GPH, 3/4 HP, 1 1/4in. Intake/1in. Discharge Ports, Model# RL-SWJ75
  • JGB Enterprises Discharge Hose, 1in. x 25ft., Model# A008-0166-0025
Price for all two:

$396.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Red Lion Cast Iron Shallow Well Jet Water Pump is ideal for supplying fresh water to rural homes, farms and cabins with wells up to 25ft. deep.

What's Included

    (1) 3/4 HP shallow well jet pump

Downloads

Product Manual

Features + Benefits

  • Heavy-duty cast iron construction for years of service and reliability
  • Included factory pre-set 30/50 pressure switch produces up to 50 PSI with automatic shutoff
  • 115/230 Volt heavy-duty motor
  • TEFC design with simple connection to existing power source
  • 1 1/4in. F-NPT intake/1in. F-NPT discharge ports

Key Specs

AttributeSpecification

item#

81302

Brand

Red Lion

Manufacturer's Warranty

2 year limited warranty

Ship Weight

24.2 LB

Max. Flow

864 GPH

Volts

115/230
AttributeSpecification

Amps

9

Housing Material

Cast-Iron

Horsepower

0.75

Product Weight

24.6000 lb

Dimensions L x W x H (in.)

12.5 x 17.5 x 11.5 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. how many feet can this pump lift?

    1. The Red Lion Cast Iron Shallow Well Jet Water Pump (Model RL-SWJ75) can lift water from a depth of up to 25 feet.

      Helpful?

    2. 25

      Helpful?

  2. Is this pump self priming after the initial filling

    1 answer

    1. This pump is self-priming.

      Helpful?

  3. What is the maximum head height discharge?

    1 answer

    1. The water pump would have a maximum head of 161 feet. It has a 25 foot lift.

      Helpful?

  4. Can this pump be mounted vertically

    1 answer

    1. The pump cannot be mounted vertically.

      Helpful?

  5. What is the warranty

    1 answer

    1. The water pump would have a 2 year manufacturer warranty.

      Helpful?

  6. running amps of pump?

    1 answer

    1. The pump is rated at 9 amps.

      Helpful?

  7. Gallons per minute output

    1 answer

    1. This pump can produce 14.4 GPM (gallons per minute).

      Helpful?

  8. Do you offer a check valve for your pump

    1 answer

    1. We do not offer a check (foot) valve for this water pump.

      Helpful?

  9. How loud is it? Does anyone know of a decibel level reading? This will be in an attached garage with an insulated surround around it.

    1 answer

    1. The manufacturer does not test decibel ratings on their pumps. The manufacturer lists it as average decibels to similar size pumps.

      Helpful?

  10. Can the factory set 30/50 pressure switch be adjusted down to 20/40?

    1 answer

    1. The pressure could be adjusted to 20/40 on the water pump.

      Helpful?
