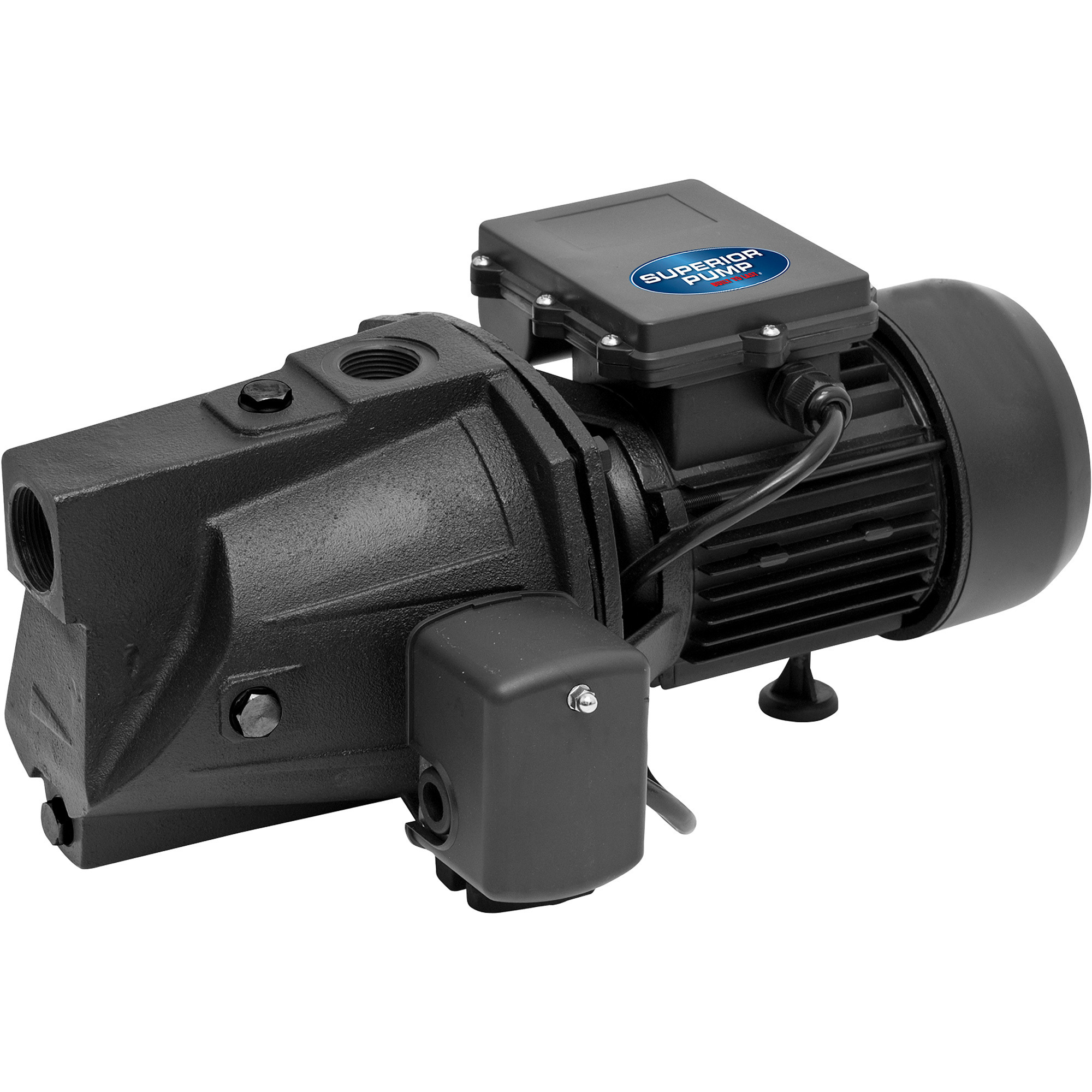

Superior Pump Cast Iron Shallow Well Jet Pump, 750 GPH, 1/2 HP, Model# 94505

Item# 95108
Superior Pump Cast Iron Shallow Well Jet Pump, 750 GPH, 1/2 HP, Model# 94505

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Superior Pump Cast Iron Shallow Well Jet Pump, 750 GPH, 1/2 HP, Model# 94505

Click or Tap image to Zoom

$209.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1/2 HP dual voltage motor (115/230V)
  • Rugged cast iron body for durability
  • Pre-mounted, fully adjustable pressure switch
  • Solid copper motor windings
  • Heavy-duty stainless steel jacketed shaft seal

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Superior Pump Shallow Well Jet Pump features rugged cast iron construction for long-lasting durability and a dual voltage design (115 and 230 Volt operation).

What's Included

    (1) Shallow well jet pump

Downloads

Product Manual

Features + Benefits

  • 1/2 HP dual voltage motor (115/230V)
  • Rugged cast iron body for durability
  • Pre-mounted, fully adjustable pressure switch
  • Solid copper motor windings
  • Heavy-duty stainless steel jacketed shaft seal
  • Double O-ring seals on motor plate
  • Electronically controlled split capacitor

Key Specs

AttributeSpecification

item#

95108

Brand

Superior Pump

Manufacturer's Warranty

3 year limited warranty

Ship Weight

35.8 LB

Max. Flow

750 GPH

Volts

115/230
AttributeSpecification

Amps

6.4

Housing Material

Cast-Iron

Max. PSI

67

Horsepower

0.5

Product Weight

35.8000 lb

Dimensions L x W x H (in.)

17.25 x 10.5 x 8.0 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can the pressure switch be adjusted down to 10/30 psi? If not, can the pressure switch be bypassed and used with an on/off switch?

    1 answer

    1. The pressure switch could not be adjusted down to 10/30. It may be able to go down to 15/35. The pressure switch can be bypassed to use an on/off switch on it.

      Helpful?

  2. Is the pressure tank required?

    1 answer

    1. The pump would require a pressure tank when installed as a well pump. It would require 18 PSI minimum. If using it to pull water from a lake, a pressure tank may not be required.

      Helpful?

  3. Is the 220 volt configuration U.S. or E.U.

    1 answer

    1. This pump is configured for U.S. use.

      Helpful?

  4. Could this pump be powered by a generator?

    1 answer

    1. The unit can be used with a generator so long as the wattage requirement is met. The unit would need more than 1,472 watts with a 230 volt plug as an example.

      Helpful?

  5. what type and size are the inlet and outlet for the pump

    1 answer

    1. This jet pump has a 1-1/4" inlet and a 1" outlet.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
