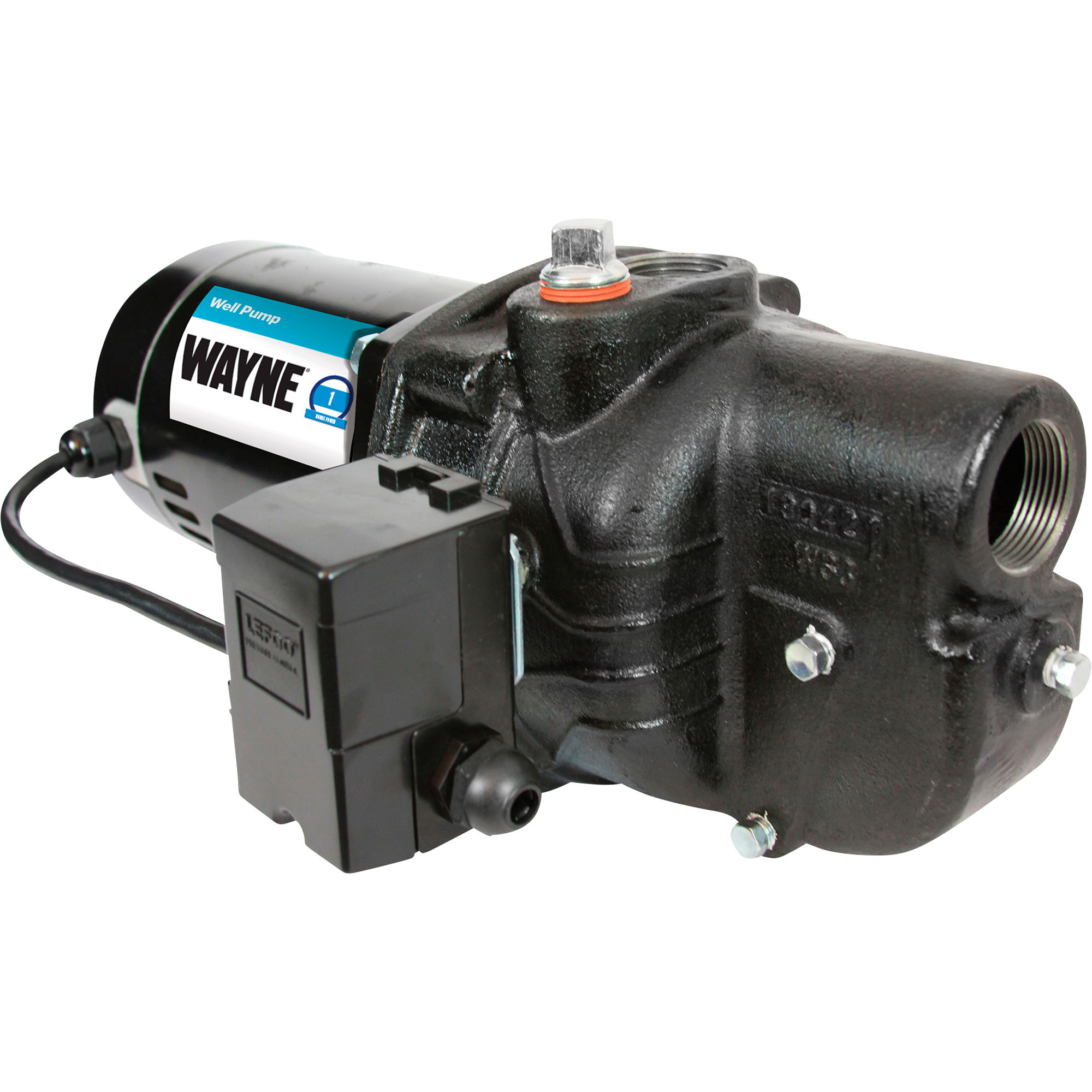

Wayne Heavy-Duty Shallow Well Jet Water Pump, 513 GPH, 1 HP, 1 1/4in., Model# SWS100

Item# 109844
"Wayne Heavy-Duty Shallow Well Jet Water Pump, 513 GPH, 1 HP, 1 1/4in., Model# SWS100"
Top Seller
Wayne Heavy-Duty Shallow Well Jet Water Pump, 513 GPH, 1 HP, 1 1/4in., Model# SWS100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wayne Heavy-Duty Shallow Well Jet Water Pump, 513 GPH, 1 HP, 1 1/4in., Model# SWS100

Click or Tap image to Zoom

$384.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1 HP heavy-duty thermally protected split-phase motor is square flange type
  • 115V/230V dual voltage switch
  • Pumps 513 GPH @ 0ft., 451 @ 5ft., 389 @10ft., 328 @ 15ft. 266 @ 20ft. and 204 @ 25ft., all at 50 PSI
  • Volute-mounted 30/50 PSI pressure switch for automatic operation
  • Dedicated priming port for convenient volute filling

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Wayne Heavy-Duty Shallow Well Jet Water Pump will draw water from 25-ft. depth. Efficient square flange motor is thermally protected to prevent overheating and universally available if replacement is ever required. Requires hardwired electrical connection.

What's Included

    (1) Heavy-duty shallow well jet water pump (1) Universal mounting bracket

Downloads

Product Manual

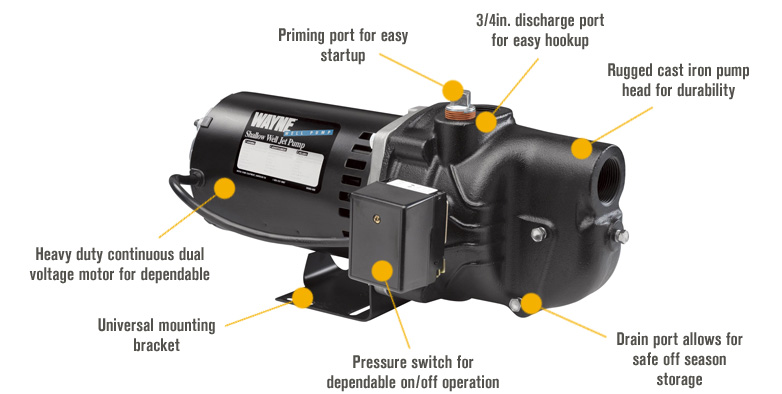

Features + Benefits

  • 1 HP heavy-duty thermally protected split-phase motor is square flange type
  • 115V/230V dual voltage switch
  • Pumps 513 GPH @ 0ft., 451 @ 5ft., 389 @10ft., 328 @ 15ft. 266 @ 20ft. and 204 @ 25ft., all at 50 PSI
  • Volute-mounted 30/50 PSI pressure switch for automatic operation
  • Dedicated priming port for convenient volute filling
  • Glass-reinforced thermoplastic impeller and diffuser for corrosion resistance
  • 3/4in. NPT discharge (1in. adapter included); 1 1/4in. NPT suction
  • Includes universal mounting bracket

Key Specs

AttributeSpecification

item#

109844

Brand

Wayne

Manufacturer's Warranty

3 year limited warranty

Ship Weight

40.4 LB

Max. Flow

525 GPH
AttributeSpecification

Volts

115/230

Max. PSI

50

Horsepower

1

Product Weight

lb

Dimensions L x W x H (in.)

12.0 x 11.0 x 23.0 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. In case my water supply temporarily 'dries up', does this pump have automatic shut-off?

    1. NO.

      Helpful?

    2. no it doesn't. if water supply goes dry motor will run until it heats up and locks up

      Helpful?

    3. This item does not have a shutoff that will keep the pump from running dry. Do not run the pump dry or damage will occur and will void the warranty.

      Helpful?

  2. does this pump include a check valve

    1. This Wayne Heavy-Duty Shallow Well Jet Pump does not include a check valve.

      Helpful?

    2. No, Wayne shallow well jet pumps do not have a check valve built in.

      Helpful?

  3. Where this product is made ? USA or China ?

    1. I spoke to the Wayne mfg. rep. and found out that all pumps are made in China; however, this brand seems to stand out from the rest. I bought two others, one shot our sparks after two months and the exact replacement started leaking as soon as I hooked it up. This one seems to be built pretty solid.

      Helpful?

    2. The Wayne Heavy-Duty Shallow Well Jet Pump is made in China.

      Helpful?

  4. my well is app 35ft deep. this pump would be used to supply lawn sprinklers. would model SWS100" be what I need?

    1 answer

    1. The pump would be suitable for operating lawn sprinklers. It would not work with a well that is 35ft deep. It has a maximum depth of 25ft.

      Helpful?

  5. Warranty?

    1 answer

    1. The pump model SWS100 will come with a three year limited consumer warranty through the manufacturer.

      Helpful?

  6. Is this considered an "automatic booster pump"? meaning does it turn on and off automatically?

    1 answer

    1. This pump is equipped with a pressure switch, this allows automatic operation.

      Helpful?

  7. Country of Manufacture - Pump and ALL Parts

    Where is this pump assembled?

    Where are the parts made that this pump is assembled from?

    1 answer

    1. This pump and all parts are manufactured and assembled in China.

      Helpful?

  8. Can I use this pump for continous use?

    I have a pond and I pull from a creek when the pond is low, the pump may run straight for a few days.

    1 answer

    1. This is not a continuous duty pump. It would not be recommended to run continuously for a few days.

      Helpful?

  9. Can the SWS 100 pump be used with a pressure washer pulling water from a lake?

    1 answer

    1. This pump is not designed to use with with a pressure washer.

      Helpful?

  10. what is the maximum dept this pump will draw from and what is the best dia inlet pipe?

    1 answer

    1. This pump has a maximum suction lift of 25 feet. The inlet pipe size that is needed is 1 1/4 inches.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
