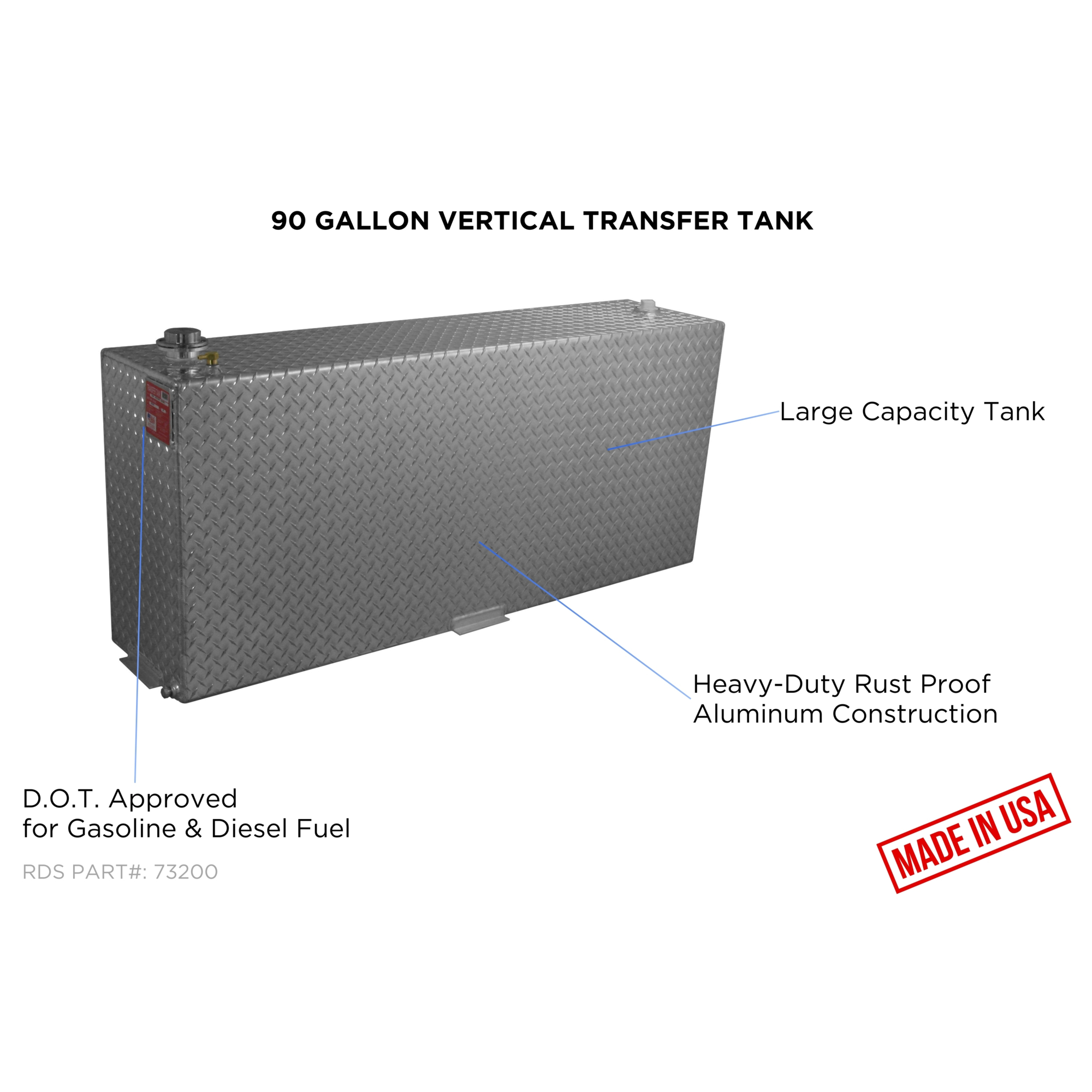

RDS Aluminum Transfer Fuel Tank, 90 Gallons, Vertical, Diamond Plate, Model# 73200

Item# 47061
RDS Aluminum Transfer Fuel Tank, 90 Gallons, Vertical, Diamond Plate, Model# 73200

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

RDS Aluminum Transfer Fuel Tank, 90 Gallons, Vertical, Diamond Plate, Model# 73200

Click or Tap image to Zoom

$1149.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • Tank comes with a 2in. female pipe thread coupling for manual or 12V transfer pump (not included)
  • No-rust aluminum construction is built to last
  • Dot Approved Tank can be used to transport diesel, gasoline, or aviation fuel
  • DOT Approved Tank
  • Space-saving vertical design

See full description

Complete Your Solution

  • RDS Aluminum Transfer Fuel Tank, 90 Gallons, Vertical, Diamond Plate, Model# 73200
  • RDS Diesel Install Kit for Auxiliary Transfer Tank Conversion, Fits 1999-Current Ford, 2011-Current Chevrolet and GMC and Dodge 1999-2012, Model# 011025
  • RDS Diesel Install Kit for Auxiliary Transfer Tank Conversion, Fits Chevy/GMC 1999-2010, Model# 011029
  • RDS Diesel Install Kit for Auxiliary Transfer Tank Conversion, Fits 2013-Current Dodge Diesel Passenger Trucks, Model# 011408
Price for all four:

$1442.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This RDS Vertical Fuel Transfer Tank is designed for transferring diesel fuel, gasoline or aviation fuel from the bed of a pickup to automobiles, heavy equipment, boats, 4-wheelers, generators, or anything else requiring fuel that you may have. Enjoy the convenience of a gas station that goes where you go. DOT approved aluminum fuel tanks do not rust, which protects fuel from contamination. The tank can also be used as an auxiliary unit to provide additional capacity for a diesel factory tank with the use of an RDS diesel install kit (Item#s 3490901, 3490902 and 43748, sold separately). Diesel install kits will work with any RDS tank with a drain fitting. Auxiliary tank function is for use with diesel fuel only and is not for use with gasoline, which cannot be gravity-fed. It is the user's responsibility to comply with local, state and federal requirements pertaining to safe transportation, loading and discharging tank contents.

What's Included

    (1) Vertical fuel transfer tank (1) 3/8in. FTP drain plug

Features + Benefits

  • Tank comes with a 2in. female pipe thread coupling for manual or 12V transfer pump (not included)
  • No-rust aluminum construction is built to last
  • Dot Approved Tank can be used to transport diesel, gasoline, or aviation fuel
  • DOT Approved Tank
  • Space-saving vertical design
  • 0.125in. heavy-duty aluminum construction
  • Fully welded seams offer built-in strength
  • 100% pressure tested for safety
  • Aluminum mounting brackets keep the tank secure
  • Built-in baffles reduce sloshing during transport
  • Lockable gas cap adds security
  • Has a rollover valve (vent)
  • Includes 3/8in. FTP drain plug
  • Diesel install kits (Item#s 43748, 3490901 and 3490902), are also available for diesel gravity feed (sold separately)
  • Add 2-1/2" measurement from top of tank to top of fuel fill

Key Specs

AttributeSpecification

item#

47061

Brand

RDS

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

133.0 LB

Capacity

90 Gal

Shape

Rectangle

Material

Aluminum
AttributeSpecification

Finish

Diamond Plate

Inlet Port

2 in

Outlet Port

2 in

Mounting Hardware Included

Yes

DOT Approved

Yes

Compatible With

Gasoline, Diesel, and Aviation Fuel

Product Weight

80 lb

Reviews

Questions & Answers

23 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Mounting hardware

    Is the mounting hardware included with the purchase of this unit.

    1. This product includes the mounting hardware.

      Helpful?

    2. Yes. You get bolts, nuts, washers, and springs, also neoprene rubber in a roll, to place between the tank and the truck bed to prevent it from rubbing a whole in the aluminum tank over time.

      Helpful?

    3. Yes, it includes special bolts with springs to mount it to a pickup truck bed.

      Helpful?

    4. Yes hardware was included

      Helpful?

  2. Can you recommend a locking gas cap that fits please?

    1 answer

    1. The RDS lockable fuel cap is item number 98688 (Model 013690).

      Helpful?

  3. Is this a double wall tank

    1 answer

    1. This fuel tank does not have a double wall.

      Helpful?

  4. What is the tanks dimensions?

    1 answer

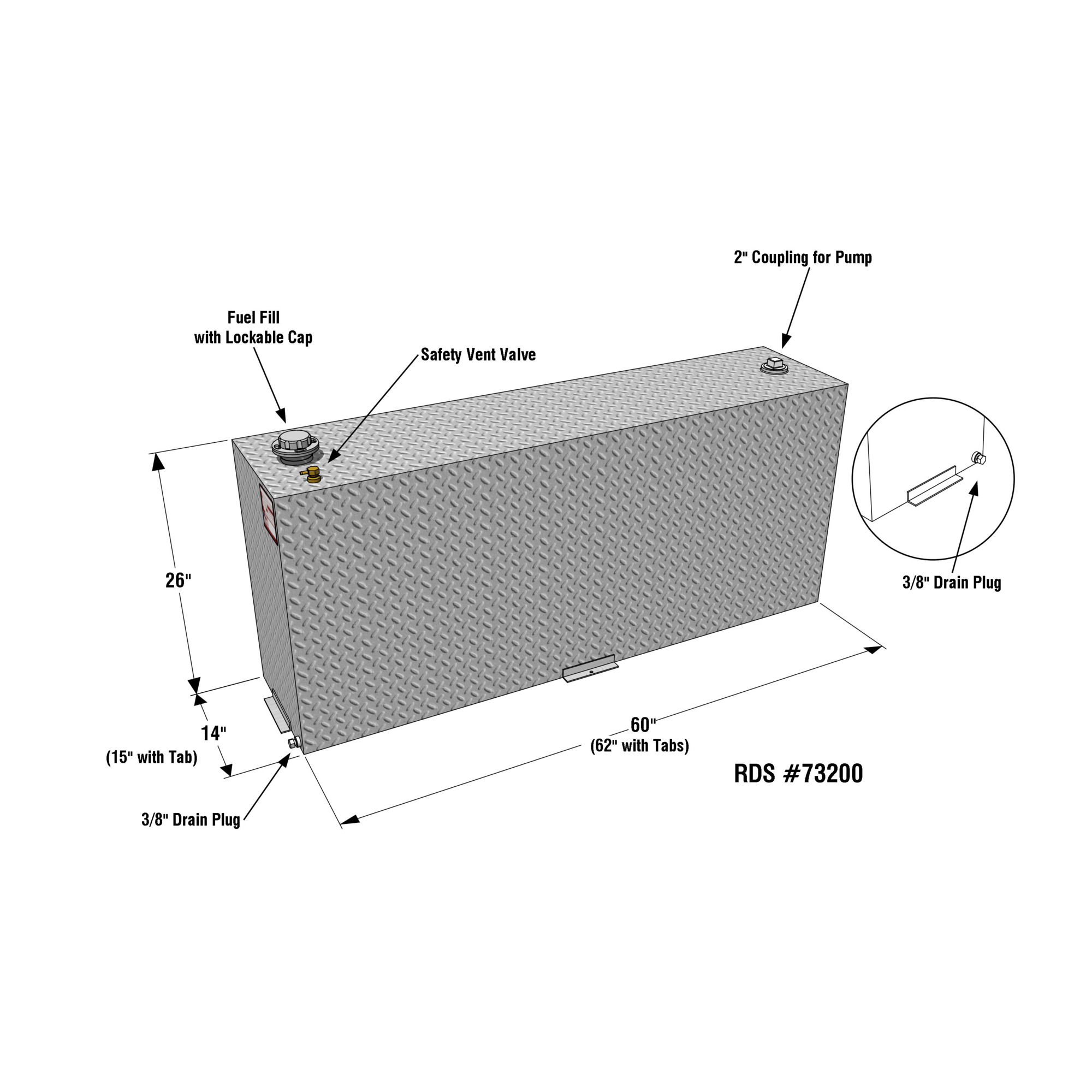

    1. The tank dimensions are 60" Lx 14" W x 26" H.

      Helpful?

  5. Can you get this tank in black powder coated

    1 answer

    1. Please see our item #47062 for this tank in Black power coat.

      Helpful?

  6. Is the aluminum 1/8" thick?

    1 answer

    1. The aluminum is 1/8" thickness for this tank.

      Helpful?

  7. What pump is recommended for this tank? Rotary or 120V preferred

    1 answer

    1. This tank is compatible with 120 volt pump item 57129 or rotary pump item 360570.

      Helpful?

  8. Is the drain plug on the same side as the fill neck ? And is the drain plug on the bottom or the side next to the bottom ?

    1 answer

    1. The drain plug is on the same side as the fill neck. The drain plug is located on the bottom of that side.

      Helpful?

  9. Does this tank actually hold 90 gallons of fuel?

    1 answer

    1. This tank is designed to hold 90 gallons of fuel.

      Helpful?

  10. Can the tank be lifted and removed from truck while it is full?

    1 answer

    1. The tank can prove to be difficult to move by hand when full with the added weight. It would be best to remove the tank when empty.
