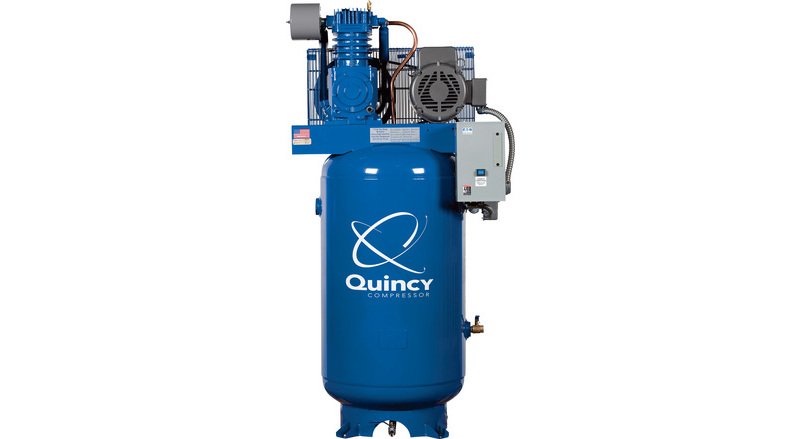

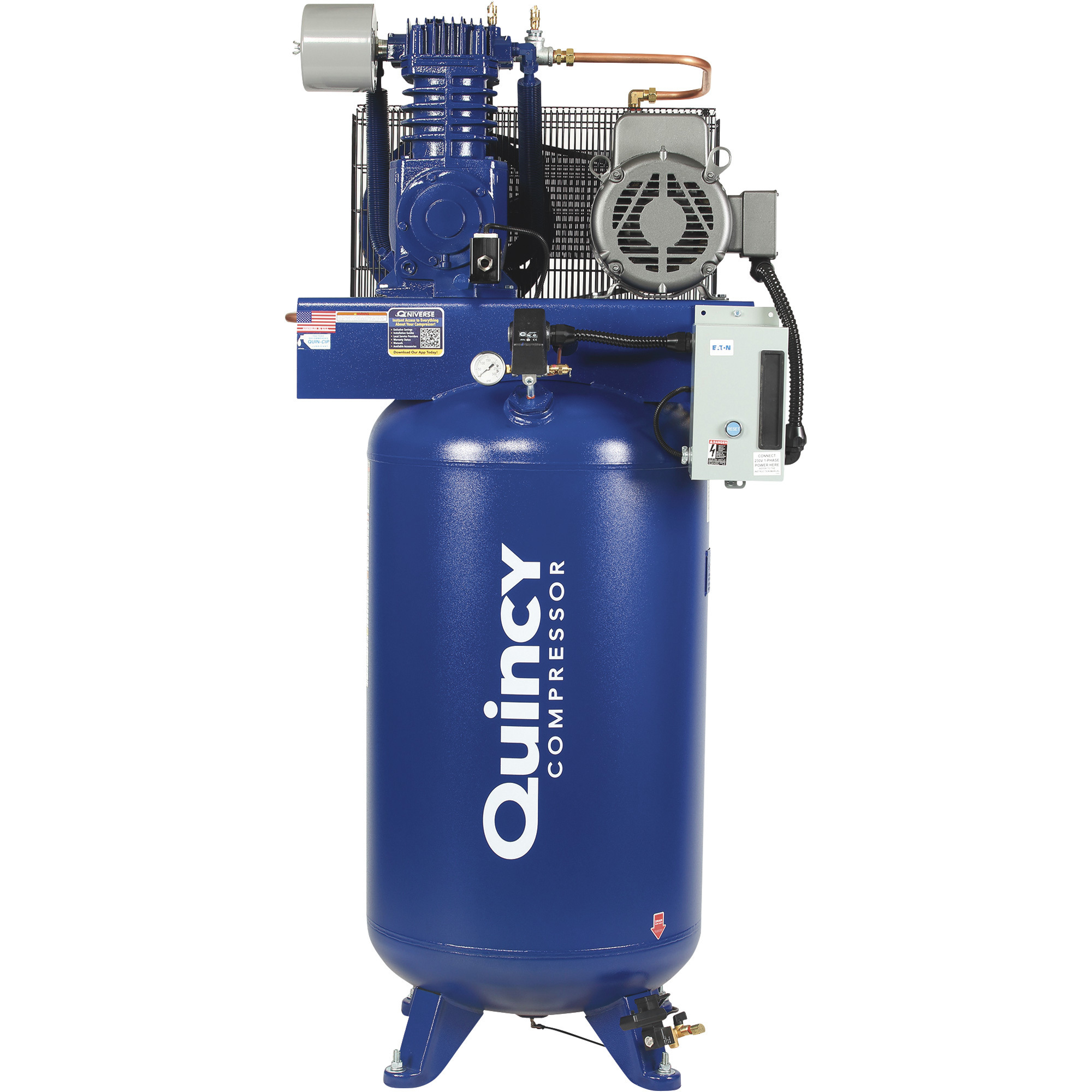

Quincy QT-7.5 Splash Lubricated Reciprocating Air Compressor with MAX Package, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 271C80VCBM

Item# 35239003M
Quincy QT-7.5 Splash Lubricated Reciprocating Air Compressor with MAX Package, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 271C80VCBM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy QT-7.5 Splash Lubricated Reciprocating Air Compressor with MAX Package, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 271C80VCBM

Click or Tap image to Zoom

  • Heavy-duty industrial motor
  • Industrial-duty, general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 working PSI
  • Motor RPM: 1,750

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

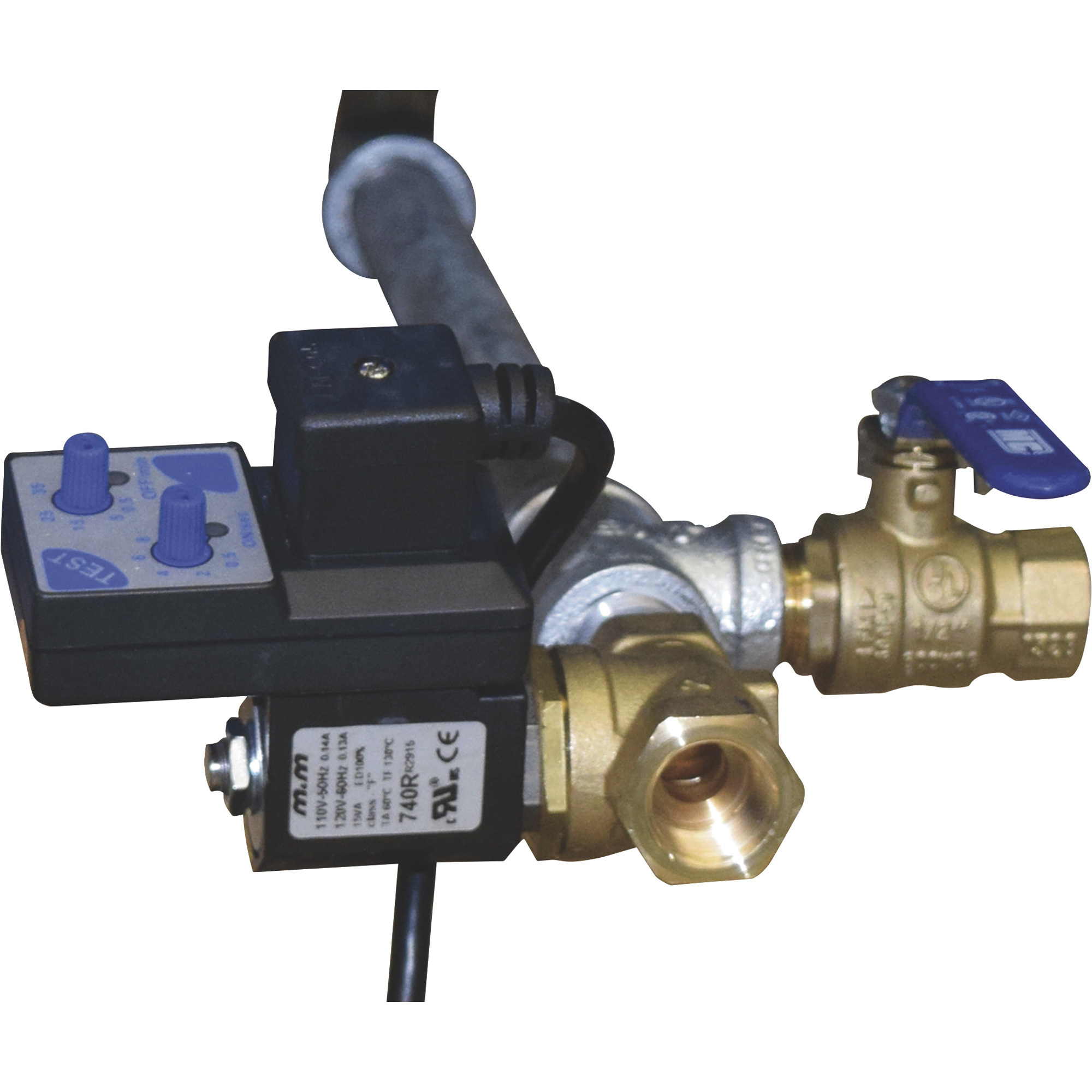

Quincy QT reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. 1-year limited warranty without extended warranty kit purchase. Purchase an extended warranty kit (Item# 42,637) at the same time (on the same receipt) as your Quincy 80-gallon air compressor and register online within 10 days of receipt, and it will double the package warranty to 2 years and triple the pump warranty to 3 years (parts and labor). MAX configuration features automatic tank drain, low oil shutdown and heavy-duty aftercooler included. Not for sale in CA, OR and WA.

What's Included

    (1) Compressor
Play Item Video

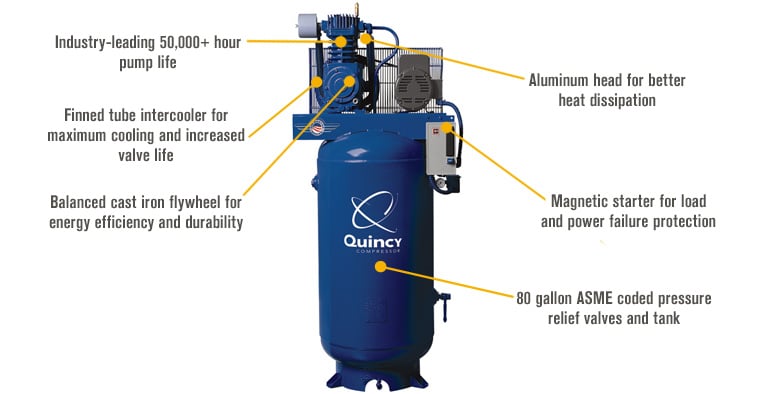

Features + Benefits

  • Heavy-duty industrial motor
  • Industrial-duty, general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 working PSI
  • Motor RPM: 1,750
  • Pump RPM: 1,025
  • 2-cylinder pump design
  • 2-stage belt drive pump with solid cast iron cylinder
  • Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • 100% duty cycle
  • Splash lubrication

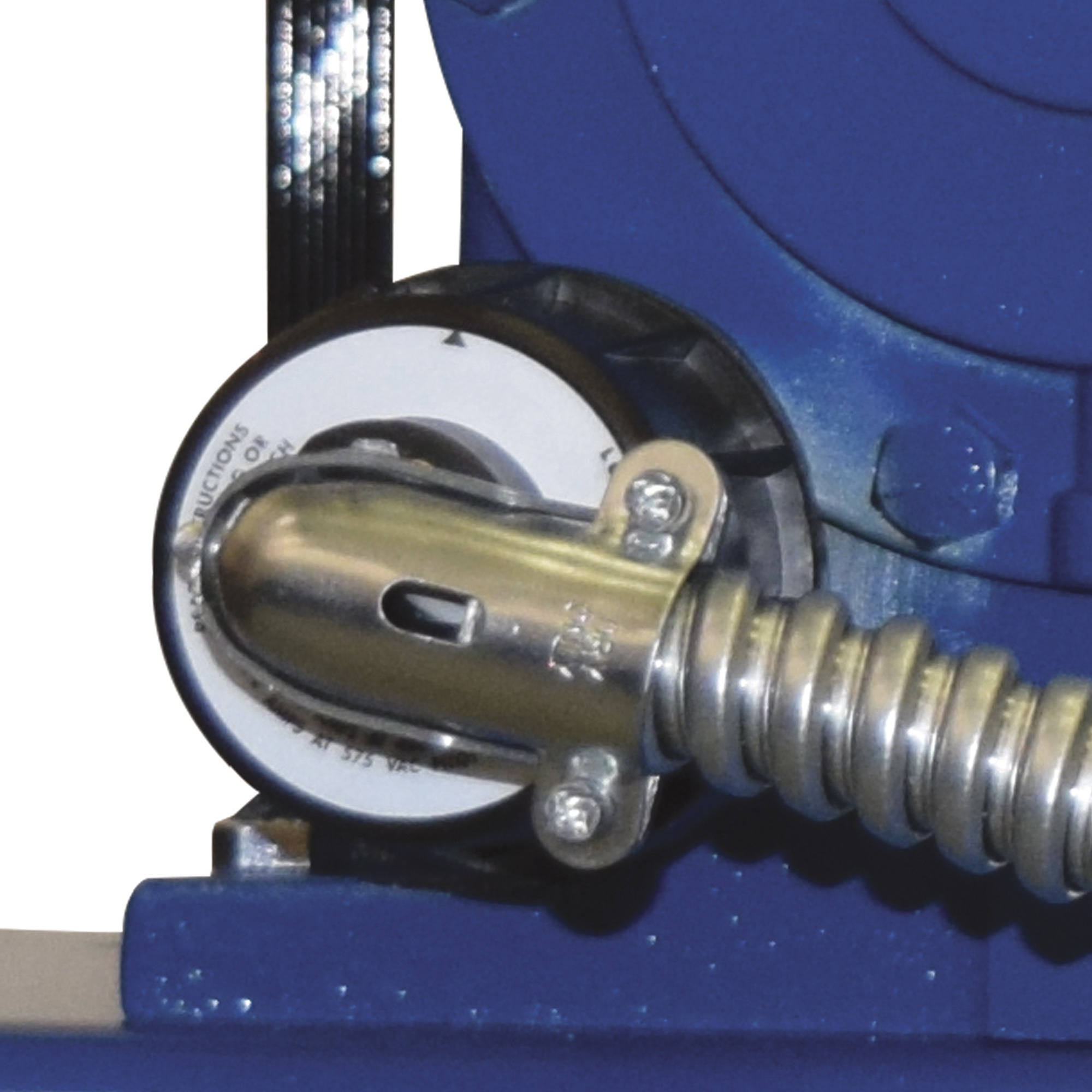

  • Low oil shutdown
  • Heavy-duty aftercooler
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • 80-gallon vertical tank
  • 1-year limited warranty without extended warranty kit purchase

Key Specs

AttributeSpecification

item#

35239003M

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

720.0 LB

Horsepower

7.5 HP

Air Tank Size

80 Gal

Volts

230

Max. PSI

175

Stage

2

Amps

40

Duty Cycle

100%

Motor RPM

1,750
AttributeSpecification

Working Pressure

175 PSI

Motor Phase

1

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

22.6

Oil Required

Yes

Lubrication System

Splash

Drain Type

Automatic

Product Weight

750.0000 lb

Dimensions L x W x H (in.)

37.0 x 24.0 x 74.0 in

Reviews

Questions & Answers

15 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. what is the cfm rating at the tank also how much free air delivrey does this machine produce

    1. The tank outlet is a 3/4" full bore valve. The limitation will be your piping and hose system. For the pump keeping the tank full this will be typical of any 7.5hp compressor. The after cooler with the MAX package will help to keep the air cooler and dryer during extended operation also helping increase efficiency of your tools.

      Helpful?

    2. The Quincy air master air compressor - 7.5 HP, 230 volt single phase delivers 22.6 CFM (cubit feet per minute of air) at the max PSI (pounds per square inch of pressure) of 175 and has a working PSI of 145 to 175 PSI.

      How much free air delivery the compressor produces is gauged by variable factors including the temperature reading at the air inlet and outlet which can vary on any given day and therefore precludes the ability to give a definitive answer. The formula for calculating free air delivery is as follows:

      Free air delivery (FAD) is a standardized measure of the capacity of an air compressor.

      To calculate the free air delivery of a compressor firstly the pressure and temperature at the inlet of the compressor are needed. Then the pressure and temperature of the outlet air along with the volume discharged are also measured. The output volume of the air is referenced back to inlet conditions using the Ideal Gas Law.

      The standard method for measuring free air delivery is given in the Standard ISO 1217, annex C. The CAGI-Pneurop PN2 CPTC 2 standard can also be applied.

      Helpful?

  2. Will this work at 208V, 2 pole,1 Phase? We do not have 230V in the building.

    1 answer

    1. The air compressor would need to be connected to 230 volt, 1 phase, it could not be connected to 208 volt.

      Helpful?

  3. Is a regulator included?

    1 answer

    1. The Quincy QT-7.5 does not include a regulator. Please see item 37580 for a regulator for this compressor.

      Helpful?

  4. What air dryer is adequate for this compressor? Model# 271C80VCBM

    Does it have to be a high temp air dryer even with the max package that includes an after cooler?

    1 answer

    1. As this air compressor has a built in after-cooler, a high temp air dryer is not required. Both air dryers that have been listed, items 325027 and 325023 are suitable for use with this compressor. Item 51727 is also suitable for this air compressor.

      Helpful?

  5. Cable Requirements

    I understand that #8 wire is required for this compressor but would that be 8/2 (plus ground) or 8/3 (plus ground) as I am renovating my shop and need to buy the wire now to prepare?

    1 answer

    1. This Quincy Compressor requires 8/3 plus a ground wire.

      Helpful?

  6. what are the electrical requirements for this compressor

    what gauge wire what size breaker

    1 answer

    1. Quincy recommends an 80 amp. breaker, and a minimum of 8 gauge wire for installation.

      Helpful?
