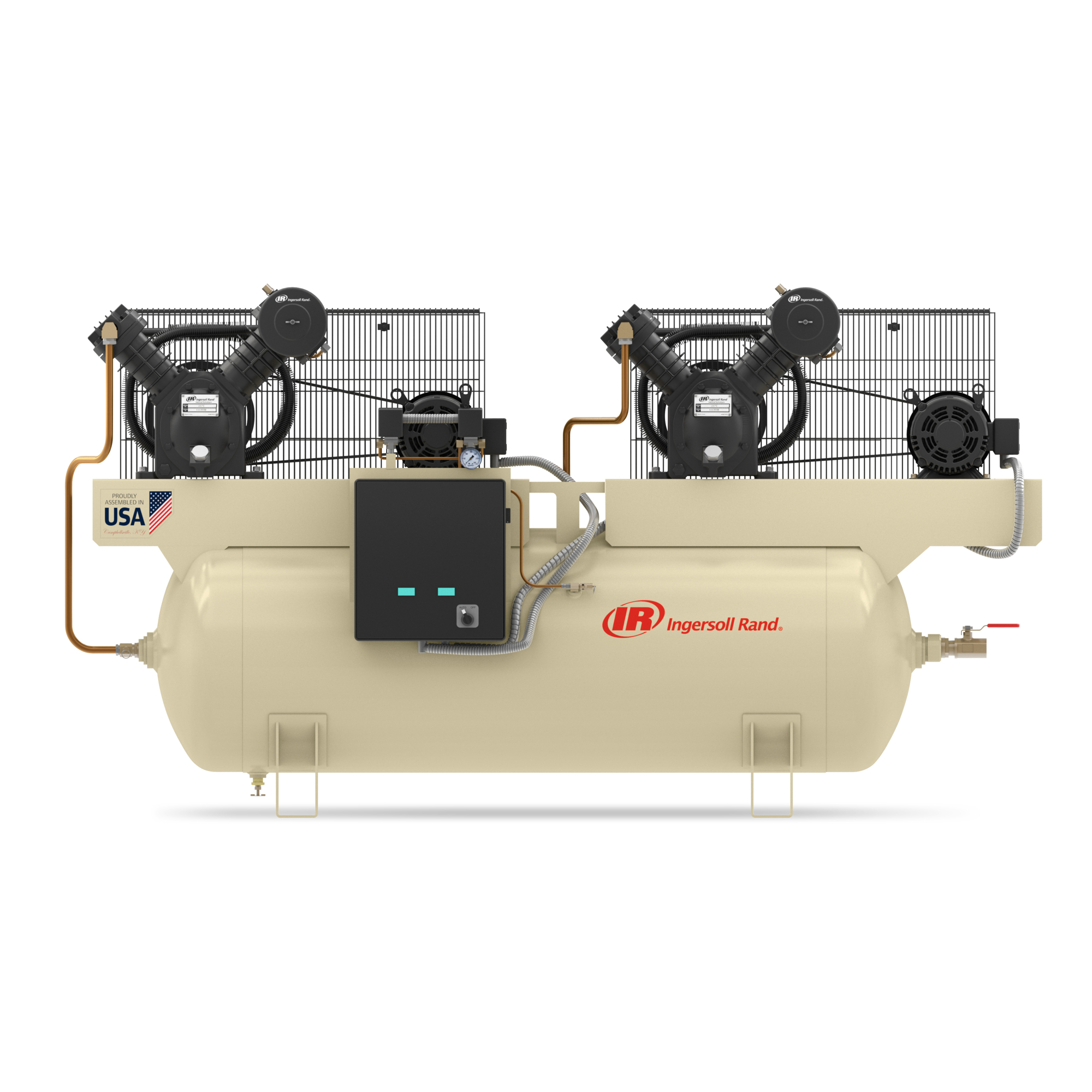

Ingersoll Rand Air Compressor, Duplex, 5 HP, 230 Volt 3 Phase, Model# 2475E5-V

Item# 305501
Ingersoll Rand Air Compressor, Duplex, 5 HP, 230 Volt 3 Phase, Model# 2475E5-V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Air Compressor, Duplex, 5 HP, 230 Volt 3 Phase, Model# 2475E5-V

Click or Tap image to Zoom

$7539.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Our duplex reciprocating air compressors offer two individual compressor pumps and two motors mounted on a single tank, providing 100% built-in backup or additional air power. The latest generation includes the legendary Type 30 pump with added features.
  • Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use.
  • Flexible, Compact Design: 100% continuous duty with automatic duplexing or alternating of compressors, ideal for applications where space is at a premium.
  • Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service.
  • Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants. Two-Year Warranty available.

See full description

Complete Your Solution

  • Ingersoll Rand Air Compressor, Duplex, 5 HP, 230 Volt 3 Phase, Model# 2475E5-V
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2200/2340/2475/TS4 Model# 47853635004-R
  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 42 CFM, R513A Refrigerant, Model# DA72INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/4in., 45 CFM, Model# FA75IG
Price for all four:

$11,488.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Protect your business from unproductive and expensive downtime! The Ingersoll Rand Duplex Reciprocating Compressor offers two individual 2-stage pumps and two motors mounted on a single 120-gallon horizontal tank, providing 100% built-in backup (you'll have a motor and pump running even when one is down) or additional air power for large-capacity jobs. Features the legendary T30 pump with value-added features in a space-saving design. 175 max. PSI, 230V, three-phase. Extend the warranty on both pumps to 2yrs by purchasing using 2qty of the 2yr Warranty Start Up Kit (Item# 6131984 - sold seperately).

What's Included

    (1) Duplex air compressor

Features + Benefits

  • Our duplex reciprocating air compressors offer two individual compressor pumps and two motors mounted on a single tank, providing 100% built-in backup or additional air power. The latest generation includes the legendary Type 30 pump with added features.
  • Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use.
  • Flexible, Compact Design: 100% continuous duty with automatic duplexing or alternating of compressors, ideal for applications where space is at a premium.
  • Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service.
  • Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants. Two-Year Warranty available.
  • Value Feature Package includes 100% cast iron pump, ASME-coded receiver tank, ODP motor, automatic start/stop control with pressure switch and manual drain.
  • Extend the warranty on both pumps to 2yrs by purchasing 2qty of the 2yr Warranty Start Up Kit (Item# 6131984 - sold seperatley)

Key Specs

AttributeSpecification

item#

305501

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

1250.0 LB

Air Tank Size

80 Gal

Volts

230

Motor Phase

3

Stage

2

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

15.2

Duty Cycle

1 %

Motor RPM

1,775
AttributeSpecification

Working Pressure

175 PSI

Engine Start Type

Electric

Pump Life

15,000 hr

Pump Material

Cast Iron

Air Outlet Size

1/2 in. NPT

Noise Level

85 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Product Weight

920.0000 lb

Dimensions L x W x H (in.)

82.0 x 33.0 x 48.0 in

Reviews

Questions & Answers

Questions

  1. voltage change

    can item # 305501 be ordered with 460/3/60 inplace of the 230/3

    1 answer

    1. Unfortunately, this air compressor cannot be ordered 460/3/60.
