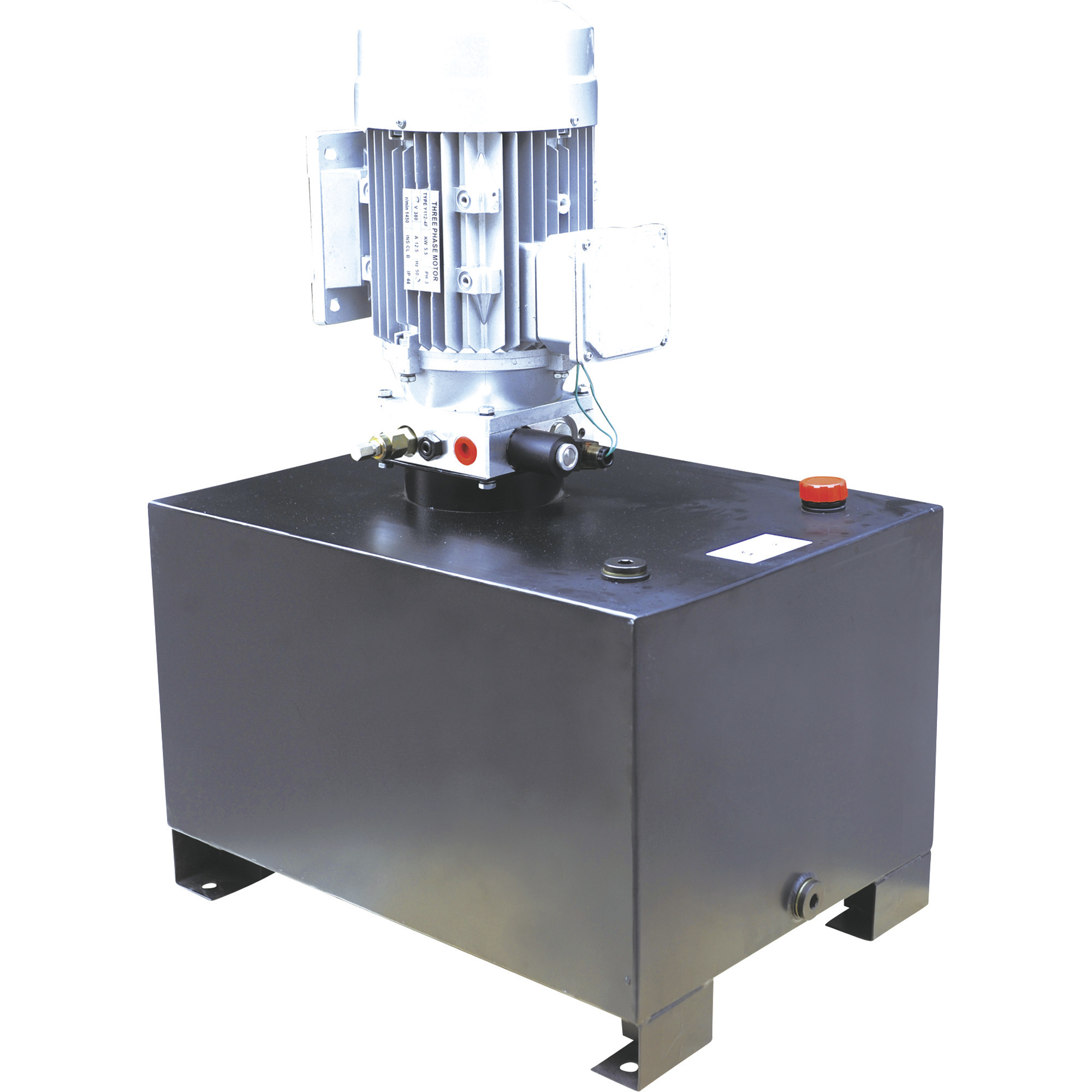

NorTrac Industrial AC Power Unit with Electric Motor, 230/460V, 15-Gal. Reservoir Tank

Item# 53453
NorTrac Industrial AC Power Unit with Electric Motor, 230/460V, 15-Gal. Reservoir Tank

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Industrial AC Power Unit with Electric Motor, 230/460V, 15-Gal. Reservoir Tank

Click or Tap image to Zoom

$1199.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 09/22/26

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Solenoid valve can be swapped out for a return port plug assembly to add versatility
  • Pressure and return port add auxiliary hydraulic power for all industrial applications
  • Integrated valving for self-contained assembly for lifting applications or for multipurpose industrial applications with external control valve
  • Large 15-gallon rectangular steel reservoir
  • High-efficiency gear pump delivers a flow rate of up to 3.75 GPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This NorTrac Industrial AC Power Unit features a heavy-duty electric motor for long life. The 230/460V pressure-balanced high-efficiency gear pump is high speed with a high flow rate. Has a 15-gal. reservoir tank that can be used for lift-hold-lower functions or pressure and return port only by removing solenoid valve and installing return port plug assembly. Ideal for use with lift tables, scissor lifts, aerial work platforms and other industrial and logistic applications.

What's Included

    (1) AC power unit (1) Return port plug adapter

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Solenoid valve can be swapped out for a return port plug assembly to add versatility
  • Pressure and return port add auxiliary hydraulic power for all industrial applications
  • Integrated valving for self-contained assembly for lifting applications or for multipurpose industrial applications with external control valve
  • Large 15-gallon rectangular steel reservoir
  • High-efficiency gear pump delivers a flow rate of up to 3.75 GPM
  • 5.4 HP motor with 9cc displacement

Key Specs

AttributeSpecification

item#

53453

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

172.0 LB

Max. Flow Rate

3.75 GPM

Max. PSI

2,300

Max. RPM

1,800
AttributeSpecification

Power Source

Hardwired

Port Outlet Size

3/4 in

Thread Type

SAE

Reservoir Capacity

15 Gal

Volts

460

Horsepower

5.4

Action

Single Acting

Reviews

Questions & Answers

Questions

1–10 of 11 Questions
Sort by:

  1. can this be wired to run on 230 only?

    1 answer

    1. This power unit can be wired for 230V operation. We recommend that installation be performed by a licensed electrician.

      Helpful?

  2. What is the current draw for the 24 VDC solenoids for the #53453 unit?

    1 answer

    1. The current draw for the 24V DC solenoid is approximately 2 amps.

      Helpful?

  3. amp draw at 460 volts

    1 answer

    1. This unit draws a maximum of 9 amps at 460 volts.

      Helpful?

  4. What is the lowest pressure the relief valve will go to? Also how much flow will this unit do at 1,000 psi?

    1 answer

    1. The lowest pressure setting is 1500 PSI. The flow at 1000 PSI is 4.0 GPM.

      Helpful?

  5. What are the dimensions of this unit?

    1 answer

    1. The overall height is 35.67" (906mm +\- 5mm). The overall length is 17.72" (450mm +\- 5mm). The overall width is 13.78" (350mm +\- 5mm).

      Helpful?

  6. Where is the return line

    1 answer

    1. If this power unit is used as shipped from the factory, as a Lift-Hold-Lower function and operation, then the return line is the same as the pressure line. The flow returns back to the reservoir this way.

      If the two-way valve assembly (coil & stem) was removed and the return port plug adapter (shipped in the box) was installed, the flow goes out the outlet pressure port to some directional control valve and flow oil comes back into the return port plug adapter.

      Helpful?

  7. what is the motor frame size

    1 answer

    1. This electric motor follows more European standards and therefore does not have a frame size designation.

      Helpful?

  8. is this unit availible in singe phase

    1 answer

    1. This power unit is not available with a single phase motor.

      Helpful?

  9. What voltage is the solenoid? My application is a simple extend and retract a cylinder. Will the supplied solenoid work for that?

    1 answer

    1. This power unit has a 24 volt DC solenoid. It would work for your application,if you have 24 volt.

      Helpful?

  10. Can I install a lowering manual valve to this unit ?

    So when the power is off I can lowering the platform.

    1 answer

    1. You are able to change the valve on the unit for that application. Be sure to replace the coil with the same branded part as well to ensure the parts function properly. Please note that custom modifications may void the warranty.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
