BravePro Hydraulic Power Pack, Honda GC160 Recoil Start, 7 GPM, 900 PSI, 3600 RPM, Model# HBH16GC

Item# 53449
"BravePro Hydraulic Power Pack, Honda GC160 Recoil Start, 7 GPM, 900 PSI, 3600 RPM, Model# HBH16GC"
BravePro Hydraulic Power Pack, Honda GC160 Recoil Start, 7 GPM, 900 PSI, 3600 RPM, Model# HBH16GC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BravePro Hydraulic Power Pack, Honda GC160 Recoil Start, 7 GPM, 900 PSI, 3600 RPM, Model# HBH16GC

Click or Tap image to Zoom

$1499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Quiet, dependable Honda GC160 engine
  • 3,600 max. RPM
  • Low oil shutdown
  • 5.6 gallon capacity
  • Flow rate is 7 GPM @ 900 PSI

See full description

Complete Your Solution

  • BravePro Hydraulic Power Pack, Honda GC160 Recoil Start, 7 GPM, 900 PSI, 3600 RPM, Model# HBH16GC
  • Honda Engines, HONDA MAINT. KIT GC GCV, Pieces (qty.) 4 Model# HONDAKIT1
Price for all two:

$1532.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

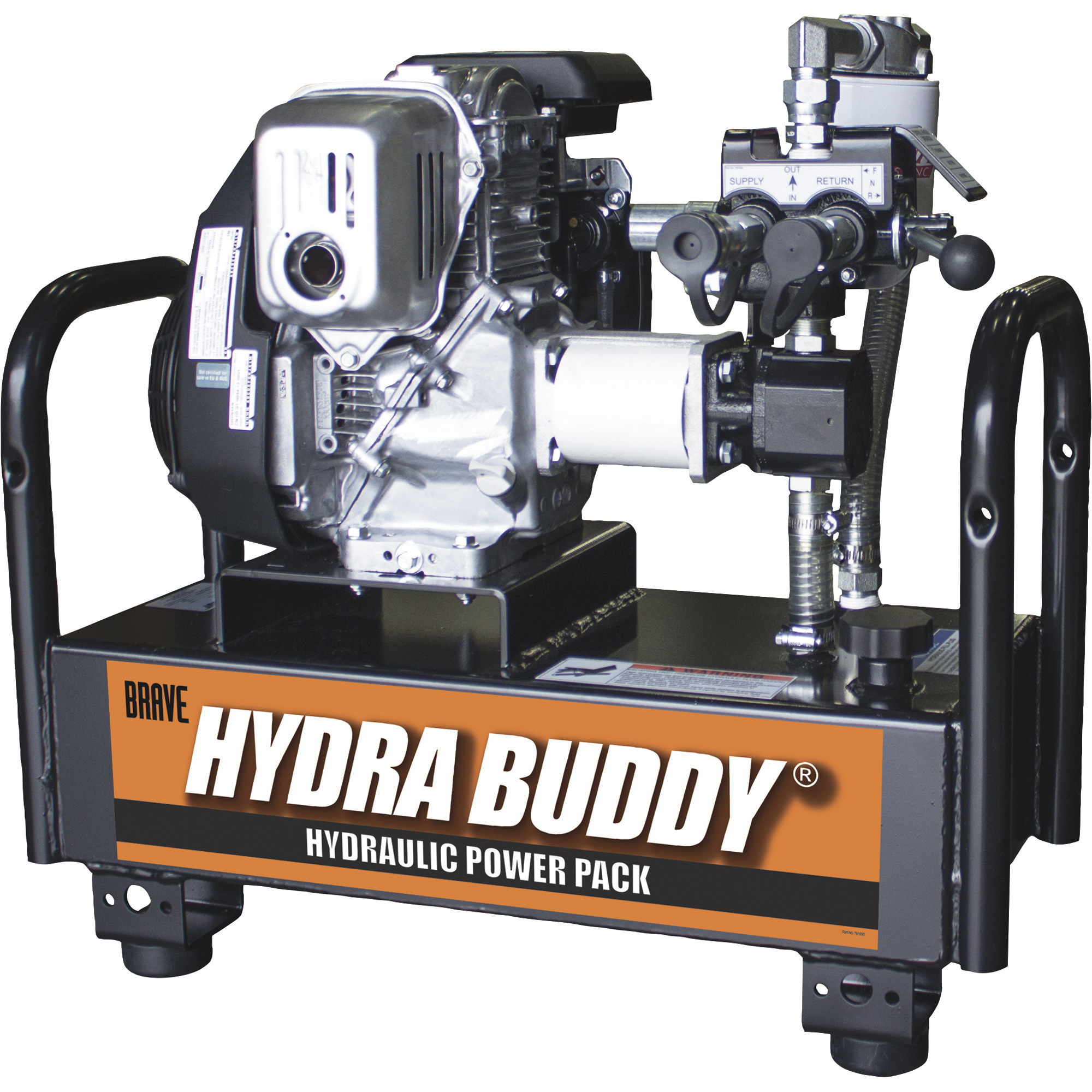

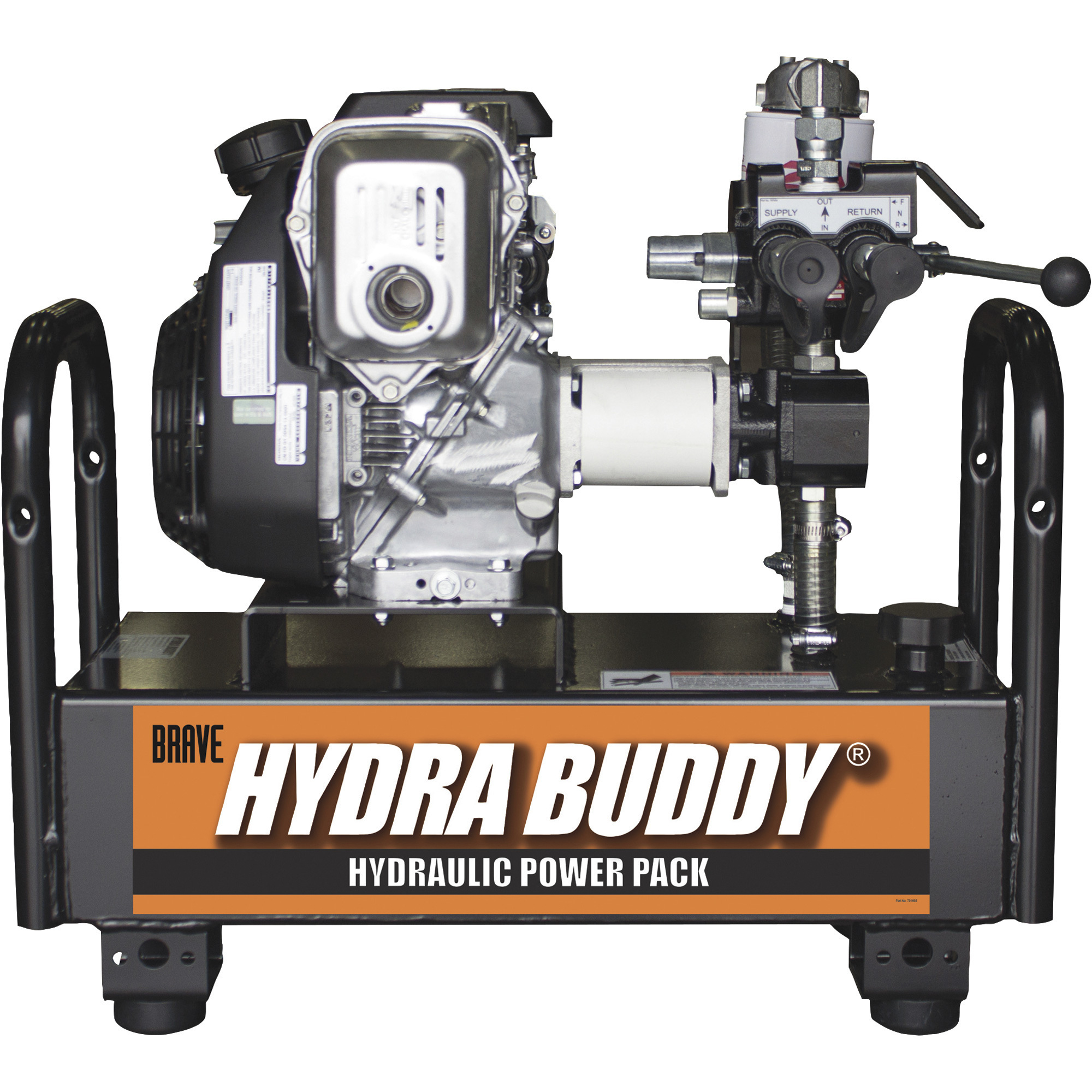

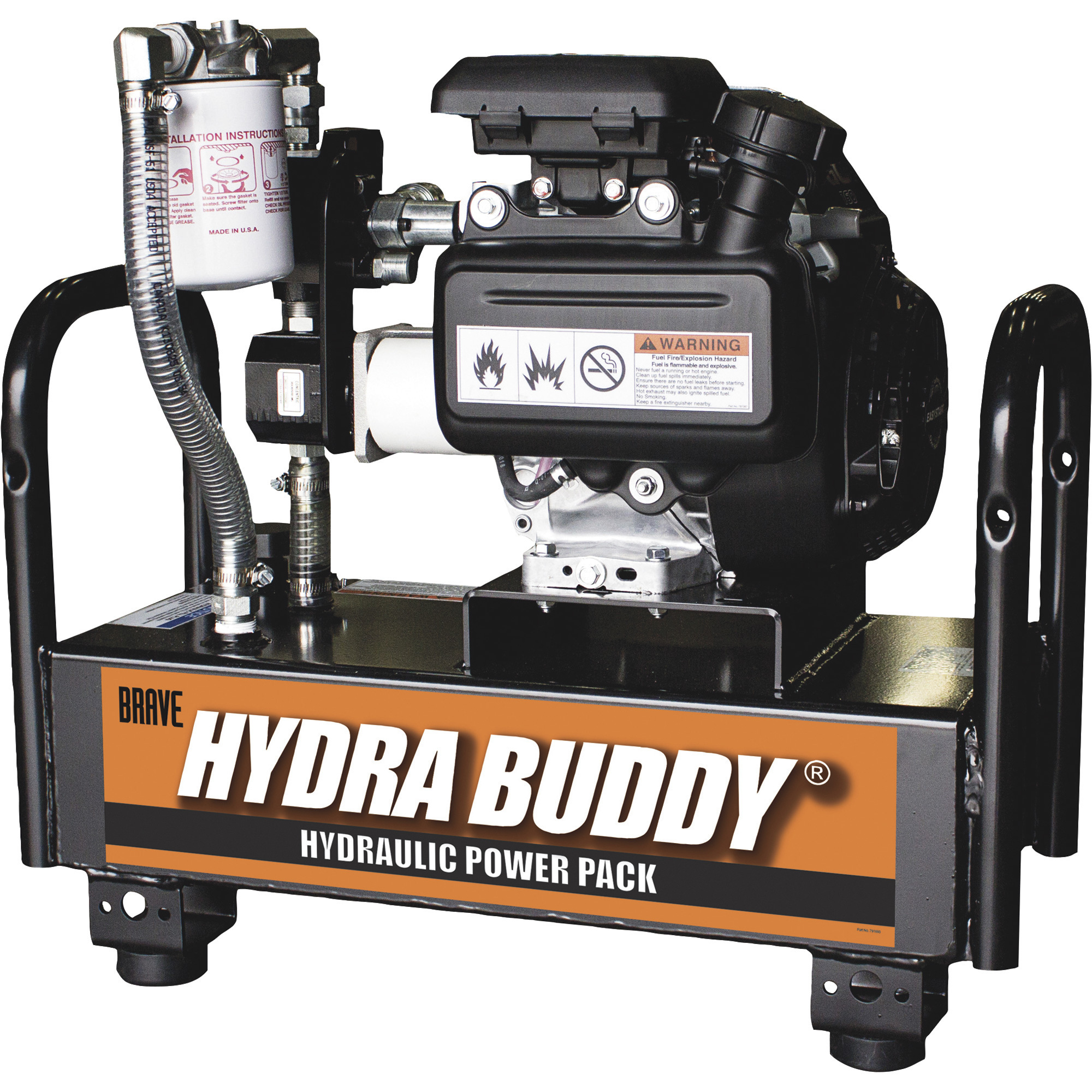

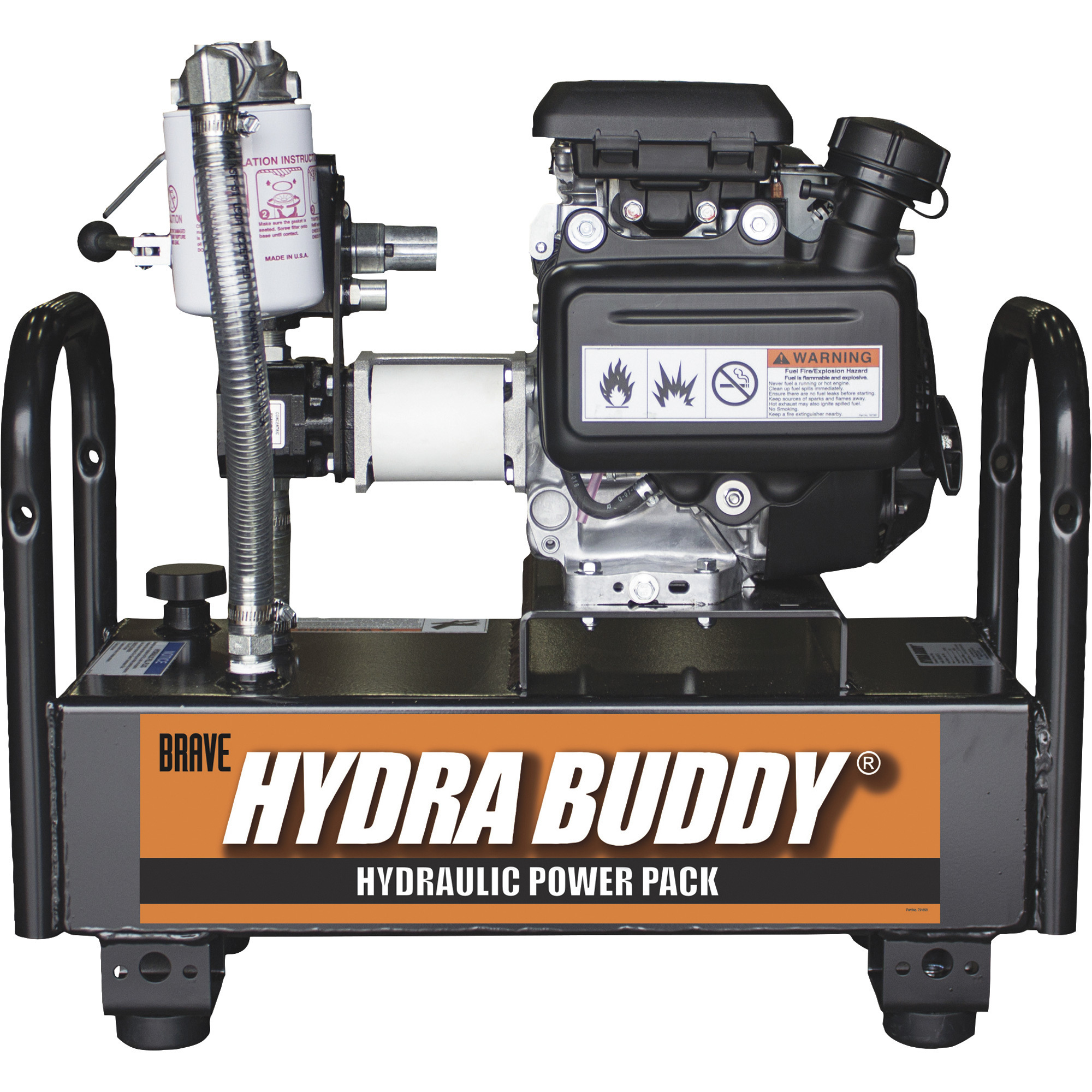

The Brave® Portable Hydraulic Power Pack with Honda GC160 Engine is an efficient, portable hydraulic power source that can be coupled to conveyors, augers, lifts, hydraulic motors and a variety of other attachments and implements to save tractor time and reduce fuel costs.

What's Included

    (1) Hydraulic power pack

Downloads

Product Manual

Features + Benefits

  • Quiet, dependable Honda GC160 engine
  • 3,600 max. RPM
  • Low oil shutdown
  • 5.6 gallon capacity
  • Flow rate is 7 GPM @ 900 PSI
  • One-way detent hydraulic valve enables constant power delivery
  • Spring return allows for temporary reverse
  • Haldex single-stage pump delivers constant flow and pressure without spikes
  • Magnetic drain plug helps to reduce metal filings and debris in the hydraulic system
  • Hydraulic fluid dipstick for easy level checks
  • 25 Micron return line filter protects the hydraulic system
  • 1/2in. stainless steel inlet and outlet ports for quick disconnect
  • Optional Hydra Buddy 10in. wheel kit (Item# 54630, sold separately) is available to add easy maneuverability

Key Specs

AttributeSpecification

item#

53449

Brand

Brave

Manufacturer's Warranty

2 year limited warranty

Ship Weight

133.0 LB

Max. Flow Rate

7 GPM

Max. PSI

900

Max. RPM

3,600
AttributeSpecification

Power Source

Gas

Port Inlet Size

1/2 in

Port Outlet Size

1/2 in

Thread Type

Other

Reservoir Capacity

5.6 Gal

Horsepower

4.6

Action

Double Acting

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What’s the length/width of the unit

    1 answer

    1. The dimensions are 19'' long, 28'' wide, and 24'' high.

      Helpful?

  2. Is unit suitable for splitting fire wod?

    1 answer

    1. The power pack is not recommended for a log splitter application. The pump is low volume which will cause lower speeds and less splitting force.

      Helpful?

  3. Is this machine an electric start

    1 answer

    1. This does not have electric start. It will be a recoil (pull) start machine.

      Helpful?

  4. How long will this unit run on a tank of gas?

    1 answer

    1. The consumption will vary depending on the demand put onto the engine. Honda suggests that the fuel consumption on a GC160 Honda engine would be expected to be 1.5 Liters per hour at 3600 rpm.

      Helpful?
