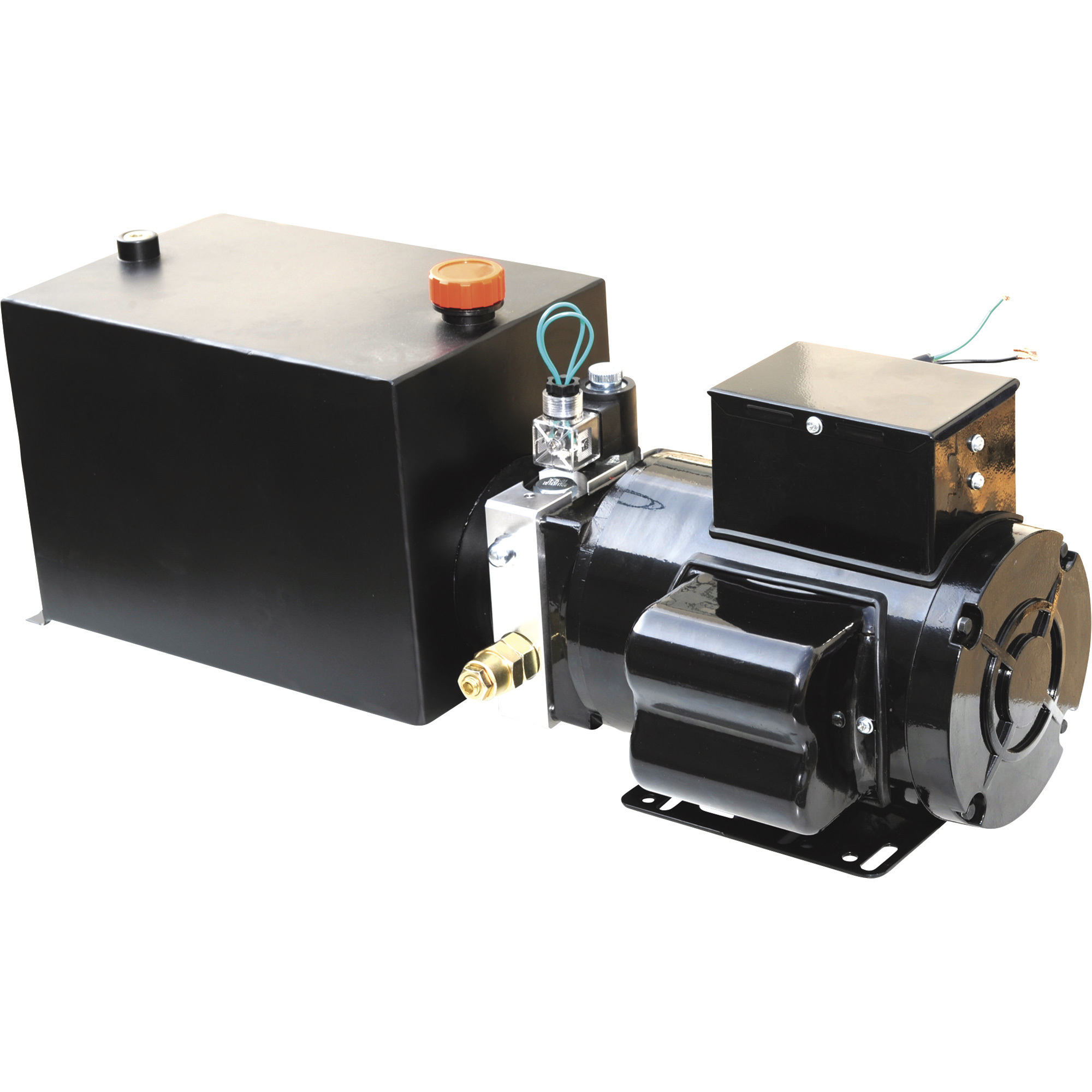

NorTrac AC Power Unit with Electric Motor, 208/230V, 3.2-Gal. Reservoir Tank, Model# YBZ5-F3.2E21H2/AKCBT1

Item# 53466
NorTrac AC Power Unit with Electric Motor, 208/230V, 3.2-Gal. Reservoir Tank, Model# YBZ5-F3.2E21H2/AKCBT1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac AC Power Unit with Electric Motor, 208/230V, 3.2-Gal. Reservoir Tank, Model# YBZ5-F3.2E21H2/AKCBT1

Click or Tap image to Zoom

$579.99

  • Shipping:

    Free shipping (lower 48 states)

  • Store Pickup:

    Not available - online only
  • Solenoid valve can be swapped out for a return port plug assembly to add versatility
  • Pressure and return port add auxiliary hydraulic power for all industrial applications
  • Integrated valving for self-contained assembly in lifting applications, or for multi-purpose industrial applications with external control valve
  • 3.2-gallon rectangular steel reservoir
  • High-efficiency gear pump delivers a high flow rate of up to 1.5 GPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorTrac® AC Power Unit features a heavy-duty electric motor for long life. The 208/230V pressure-balanced, high-efficiency gear pump is high speed with a high flow rate and has a 3.2-gal. reservoir tank that comes ready for lift-hold-lower functions, or can be used for pressure and return-only ports by removing the solenoid valve and installing a return port plug assembly. This standard power unit is ideal for use with lift tables, scissor lifts, aerial work platforms, and other industrial and logistic applications.

What's Included

    (1) AC power unit (1) Return port plug adapter

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Solenoid valve can be swapped out for a return port plug assembly to add versatility
  • Pressure and return port add auxiliary hydraulic power for all industrial applications
  • Integrated valving for self-contained assembly in lifting applications, or for multi-purpose industrial applications with external control valve
  • 3.2-gallon rectangular steel reservoir
  • High-efficiency gear pump delivers a high flow rate of up to 1.5 GPM
  • 3 HP, single phase motor with 1.6cc displacement

Key Specs

AttributeSpecification

item#

53466

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

56.2 LB

Max. Flow Rate

1.5 GPM

Max. PSI

2,900
AttributeSpecification

Max. RPM

3,450

Port Outlet Size

9/16 in

Reservoir Capacity

3.2 Gal

Volts

230

Horsepower

3

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Is this a continuous use pump?

    1 answer

    1. This power unit is rated for S3 duty cycle which can only work intermittently, 1 minute on and 9 minutes off.

      Helpful?

  2. Trying to replace an existing unit. How do you wire this to an existing up/down hand held switch on a dock? (Solenoid open & motor on with up-Solenoid only on/open for down=single action???)

    1 answer

    1. Installation of this power unit should be handled by a licensed installer.

      Helpful?

  3. How do you wire/ plumb this pump for a power up and power down application

    1 answer

    1. This AC power unit is for use with single acting applications, (power up, gravity down). It cannot be wired for double-acting applications (power up, power down).

      Helpful?

  4. What is the current draw of this unit?

    1 answer

    1. The motor would have a current draw of 13 amps.

      Helpful?

  5. Is this power up & down? or in & out etc? or do you have to run external valving? Thanks!

    1 answer

    1. This power unit will provide power up and power down function.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
