NorthStar Skid Sprayer, 100-Gallon Capacity, 160cc Honda GX160 Engine

Item# 268177
"NorthStar Skid Sprayer, 100-Gallon Capacity, 160cc Honda GX160 Engine"
Top SellerOn Sale
NorthStar Skid Sprayer, 100-Gallon Capacity, 160cc Honda GX160 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Skid Sprayer, 100-Gallon Capacity, 160cc Honda GX160 Engine

Click or Tap image to Zoom

$2399.99
Reg $2499.99Save $100.00

Order today to get this price.

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • 100-Gallon Tank Capacity: Provides extended spraying time with fewer refills for large-property, agricultural and commercial applications
  • Honda GX160 5.5 HP Engine: Commercial-grade gas engine delivers dependable power and reliable field performance for demanding spraying applications
  • Comet MC25 Diaphragm Pump: Heavy-duty diaphragm pump delivers up to 5 GPM and 350 PSI for high-pressure spraying performance
  • Engine-Driven Pump System: Gas-powered operation eliminates dependence on vehicle electrical systems for high-output spraying capability
  • 150ft. High-Pressure Spray Hose: Includes 3/8in. 350 PSI hose for extended spraying reach around fields, fence lines, trees and large properties

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Skid Sprayer, 100-Gallon Capacity, 160cc Honda GX160 Engine
  • SmartStraps Commercial-Grade RatchetX J-Hook Tie-Down, 14ft. x 1 1/2in., 2 Pack, 5,000-Lb. Breaking Strength, Model# 159
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT3
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
Price for all four:

$2475.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar Skid Sprayer is designed for demanding agricultural, pest control and property maintenance spraying applications. Featuring a 100-gallon polyethylene tank, Honda GX160 5.5 HP engine and Comet MC25 diaphragm pump, this skid-mounted sprayer delivers up to 5 GPM and 350 PSI for reliable high-pressure spraying performance. The engine-driven pump system provides independent operation without relying on vehicle electrical systems, while the built-in venturi agitation system helps maintain consistent chemical mixing during application. Designed for mounting in trucks, trailers and utility vehicles, this sprayer includes a 150ft. high-pressure hose, heavy-duty hose reel, adjustable pressure regulator with gauge, spray gun with 8in. lance extension and both fan and straight stream nozzles for versatile spraying performance across large commercial and agricultural properties.

What's Included

    (1) Skid sprayer

Downloads

Product Manual
Play Item Video

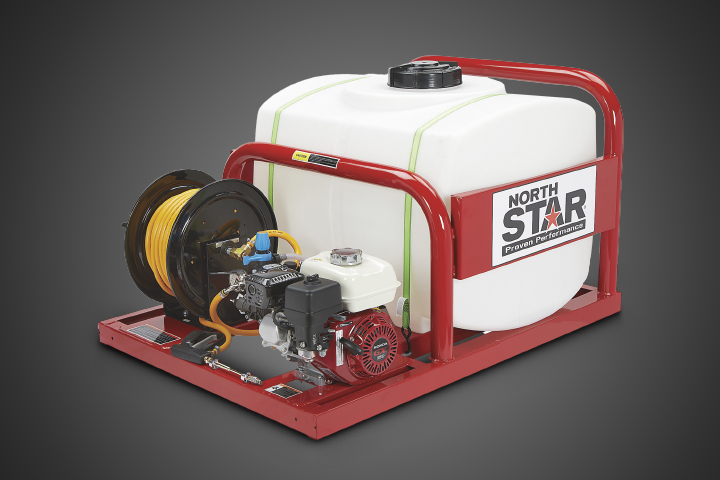

UNMATCHED TANK INTEGRITY

The tank’s SPECIAL POLYMER CONSTRUCTION resists chemicals, prevents bulging, sagging and is UV-stabilized to combat sun damage, maintaining its integrity and appearance

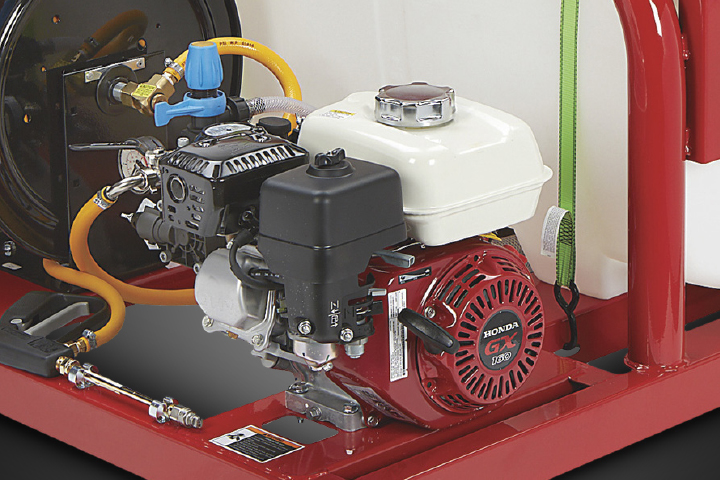

POWERFUL PRECISION

Engineered for precision, this PCO SPRAYER’S HONDA ENGINE and direct drive pump enable high-volume chemical delivery, making pest control more effective and less time-consuming

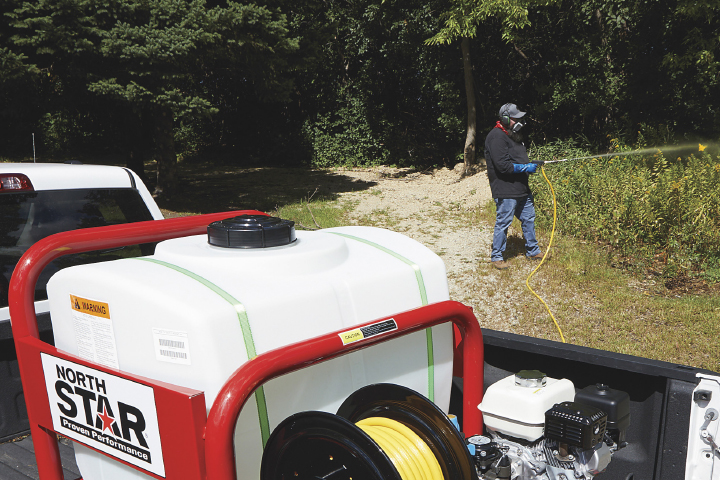

REACH AND VERSATILITY

Achieve unparalleled reach with a 150 FOOT HOSE, making it easy to deliver chemicals to the most challenging locations. Its versatility is further enhanced with a DELUXE SPRAY GUN for diverse application needs

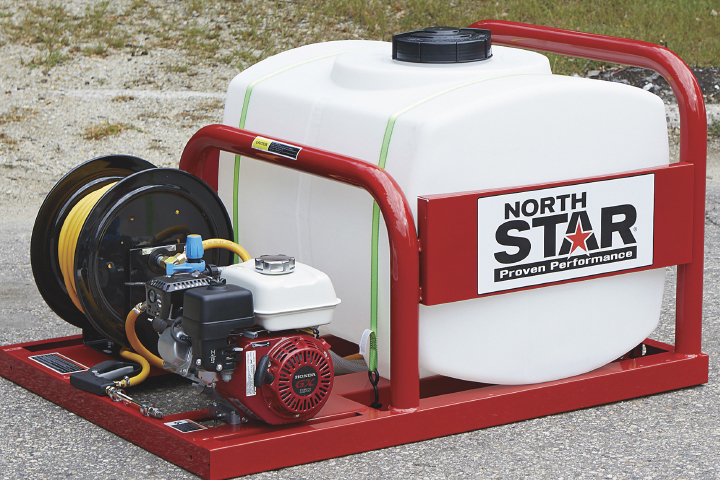

STURDY CONSTRUCTION

Built on a RUGGED STEEL FRAME, this sprayer is designed to last, providing a reliable tool for your pest control arsenal

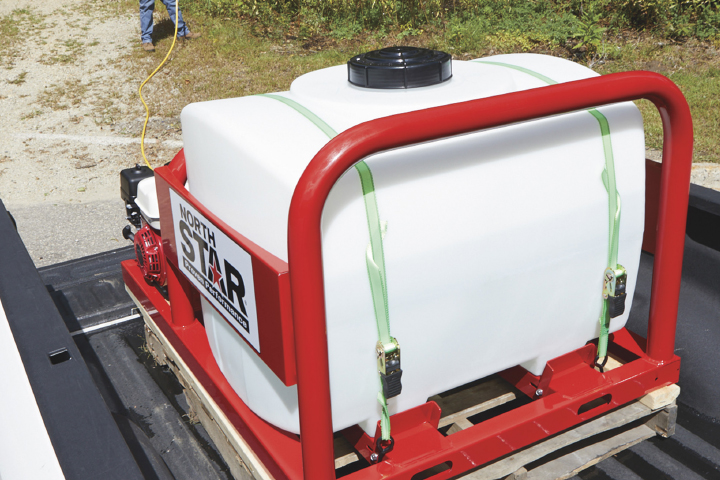

CHEMICAL COMPATIBILITY

Designed to HANDLE A WIDE RANGE OF CHEMICALS, from herbicides and fertilizers to fungicides, ensuring a comprehensive solution to pest control without the risk of corrosion

Features + Benefits

  • 100-Gallon Tank Capacity: Provides extended spraying time with fewer refills for large-property, agricultural and commercial applications
  • Honda GX160 5.5 HP Engine: Commercial-grade gas engine delivers dependable power and reliable field performance for demanding spraying applications
  • Comet MC25 Diaphragm Pump: Heavy-duty diaphragm pump delivers up to 5 GPM and 350 PSI for high-pressure spraying performance
  • Engine-Driven Pump System: Gas-powered operation eliminates dependence on vehicle electrical systems for high-output spraying capability
  • 150ft. High-Pressure Spray Hose: Includes 3/8in. 350 PSI hose for extended spraying reach around fields, fence lines, trees and large properties
  • Heavy-Duty Hose Reel: Integrated hose reel stores up to 250ft. of 3/8in. hose for organized hose management and easier deployment
  • Adjustable Pressure Regulator with Gauge: Allows operators to adjust and monitor spray pressure up to 350 PSI for more precise application control
  • Built-In Venturi Agitation System: Tank agitator uses venturi action to help maintain consistent chemical mixing during spraying applications
  • Tunable Agitation Performance: Includes interchangeable agitator tips that allow operators to balance agitation strength and spray pressure based on application requirements
  • Fan and Straight Stream Spray Nozzles Included: Includes fan nozzle for broad coverage and straight stream nozzle for targeted spot spraying applications
  • 8in. Lance Extension: Spray gun can be operated with or without the included 8in. lance extension for greater application flexibility
  • Vented Fill Cap: Vented tank cap allows airflow into the tank during spraying while helping prevent chemical escape
  • Integrated Suction Strainer and Drain System: Suction strainer helps prevent debris from entering the pump and also serves as the tank drain for easier maintenance and cleanup
  • Ball Valve Isolation System: Integrated suction line ball valve allows strainer service and maintenance without draining the tank
  • Chemical-Resistant Construction: Features polyethylene, polypropylene, nylon, PVC, stainless steel, brass, aluminum, Desmopan and Teflon components for durability with compatible agricultural chemicals
  • Heavy-Duty Steel Skid Frame: Durable steel skid frame supports transport and mounting in trucks, trailers and utility vehicles for commercial spraying applications

Key Specs

AttributeSpecification

item#

268177

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

283.0 LB

Tank Size

100 Gal

Flow

5 GPM

Pressure

350 PSI

Spray Height

30 ft
AttributeSpecification

Spray Pattern

Straight and Fan

Spray Gun Type

Deluxe Trigger

Tow Behind Cart Included

No

Pump Type

Diaphragm

Engine Type

Honda GX OHV

Hose Length

1,800 in

Product Weight

lb

Dimensions L x W x H (in.)

54.0 x 40.0 x 34.0 in

Reviews

Questions & Answers

32 Reviews This action will navigate to reviews.

Questions

1–10 of 58 Questions
Sort by:

  1. Will this slide into the bed of a standard pick-up truck bed?

    1. Yes, the design works great

      Helpful?

    2. The NorthStar Pest Control Skid Sprayer measures 54 inches long by 40 inches wide, and will fit into many truck beds. Measure your truck to make sure the unit will fit.

      Helpful?

  2. How far will this unit spray horizontally

    1 answer

    1. The horizontal spray distance is not published due to the many factors that can affect it, but this sprayer has a maximum spray height of 30 feet.

      Helpful?

  3. How much does it weigh empty

    1 answer

    1. The dry weight is 245 lbs.

      Helpful?

  4. Does the sprayer set up recirculate and spray back into tank for mix circulation.

    1 answer

    1. This sprayer has a recirculating feature where you can stop and open a ball valve to assist in mixing the chemicals.

      Helpful?

  5. Is there a option to put or use a spray boom with this skid sprayer. Also will this fit in a UTV?

    1 answer

    1. Currently, there is no boom kit for this skid sprayer. The skid measures 54" long by 40" wide so it is too large to fit a standard UTV bed.

      Helpful?

  6. does it clean tile on roofs houses

    1 answer

    1. This may work for the application depending on the chemicals being used. This skid sprayer is not recommended for use with any bleach or chlorine.

      Helpful?

  7. Does this tank have baffles to keep water from shifting the weight?

    1 answer

    1. The tank of this sprayer does not include any baffles.

      Helpful?

  8. I need a replacement pump for this unit

    1 answer

    1. The replacement part number for the pump will be 779122. Parts are no longer available through Northern Tool. To order, please contact our sister company Jacks Small Engines at the link provided. https://jackssmallengines.com/

      Helpful?

  9. What kind of oil goes in the gear box on the spray rig? North Star with Honda GX160 motor. Thanks

    1 answer

    1. The gear box does not have a separate oil reservoir. Use 30 wt. non-detergent oil in the pump. The Honda engine uses 10W-30 oil.

      Helpful?

  10. i need a nozzle for the unit

    1 answer

    1. The fan nozzle is part #779210. The straight stream nozzle is part #779211. These and other parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.
