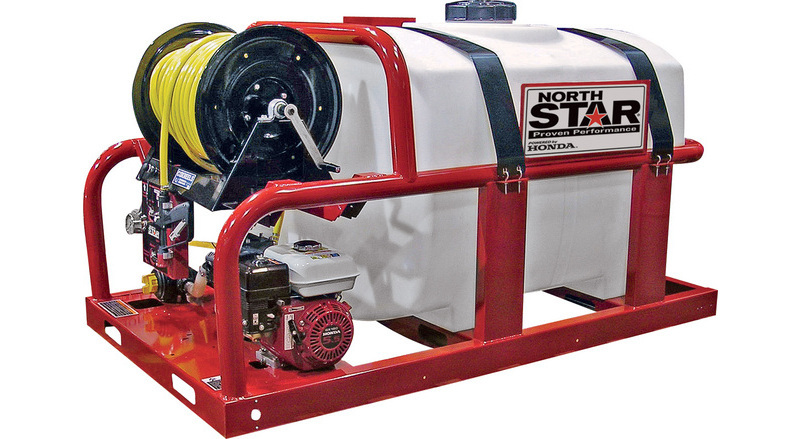

NorthStar Skid Sprayer, 200-Gallon Capacity, 160cc Honda GX160 Engine

Item# 268170
Top Seller
NorthStar Skid Sprayer, 200-Gallon Capacity, 160cc Honda GX160 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Skid Sprayer, 200-Gallon Capacity, 160cc Honda GX160 Engine

Click or Tap image to Zoom

$4499.99

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 200-Gallon Tank Capacity: Provides extended spraying time with fewer refills for large agricultural, commercial and property maintenance applications
  • Honda GX160 5.5 HP Engine: Commercial-grade Honda engine delivers reliable power for demanding spraying operations
  • Comet APS41 Diaphragm Pump: Heavy-duty diaphragm pump delivers up to 11 GPM and 580 PSI for high-output spraying performance
  • High-Output Performance: Delivers up to 11 GPM flow and 580 PSI maximum pressure for efficient chemical application across large areas
  • Electric Rewind Hose Reel: Powered hose reel with pushbutton rewind allows fast hose retrieval and reduced operator effort

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Skid Sprayer, 200-Gallon Capacity, 160cc Honda GX160 Engine
  • West Chester Protective Gear Men's PVC Coated Work Gloves, Black, Large, Model# 12000-L
  • 3M Paint and Pesticide Respirator - N95, NIOSH Approved, Model# 65021HA1A
Price for all three:

$4549.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar Skid Sprayer is designed for demanding agricultural, commercial and property maintenance applications. Equipped with a 200-gallon polyethylene tank, Honda GX160 5.5 HP engine and Comet APS41 diaphragm pump, this skid-mounted sprayer delivers up to 11 GPM and 580 PSI for high-output spraying performance. The integrated venturi agitation system helps maintain consistent chemical mixtures, while the Comet APS41 regulator and 600 PSI pressure gauge provide precise pressure control. A heavy-duty electric rewind hose reel, 300ft. spray hose and spray gun provide exceptional reach for large properties, orchards, fence lines and agricultural spraying applications.

What's Included

    (1) NorthStar Skid Sprayer

Downloads

Product Manual
Play Item Video

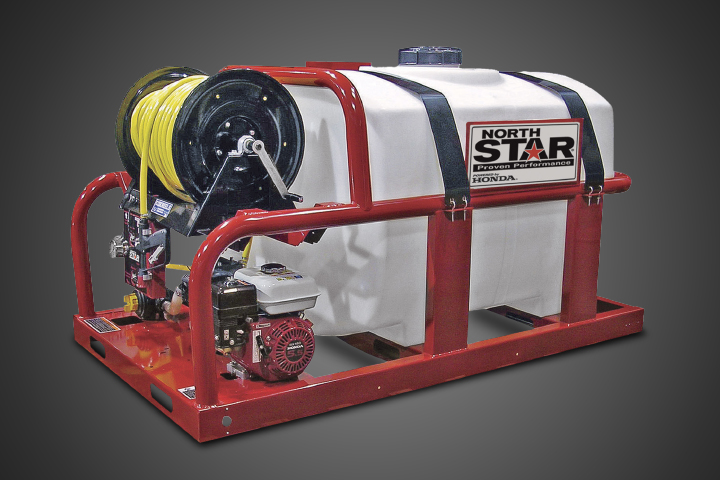

DURABILITY MEETS CAPACITY

The robust 200 GALLON TANK is built to resist chemicals and UV damage, ensuring your sprayer remains reliable season after season

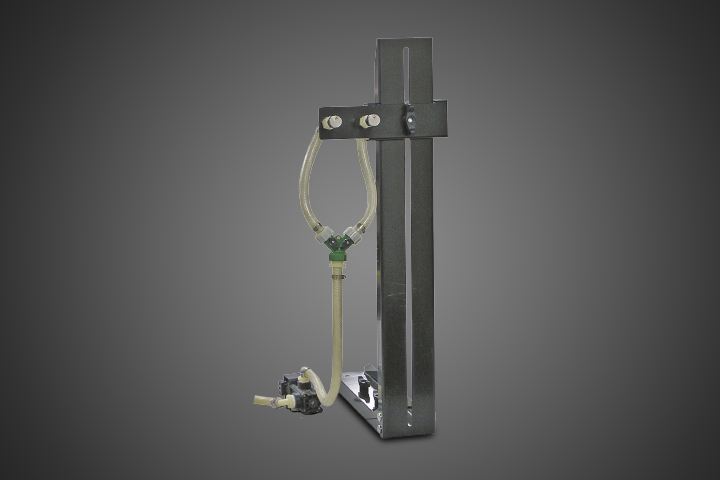

CUSTOMIZABLE FOR EVERY NEED

Adapt the SKID SPRAYER FOR AN APPLICATION with OPTIONAL KITS, making it a versatile tool for not just spraying, but broadcasting and towing as well

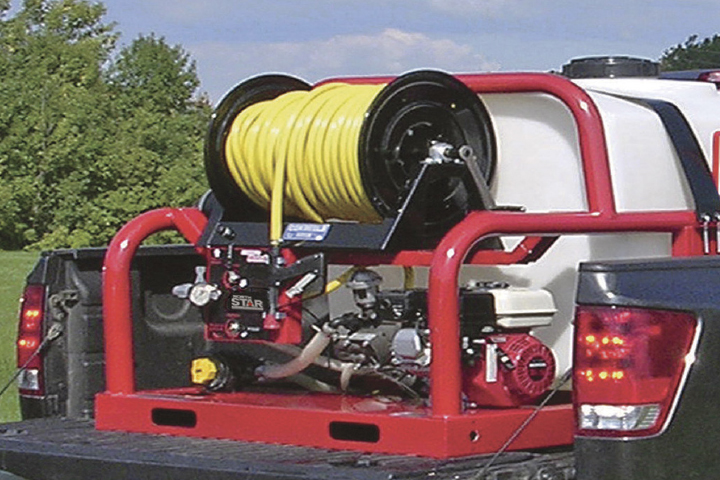

EXTENDED REACH

With a 300 FOOT HOSE, this sprayer ensures you can cover expansive areas effortlessly, perfect for large estates and agricultural fields

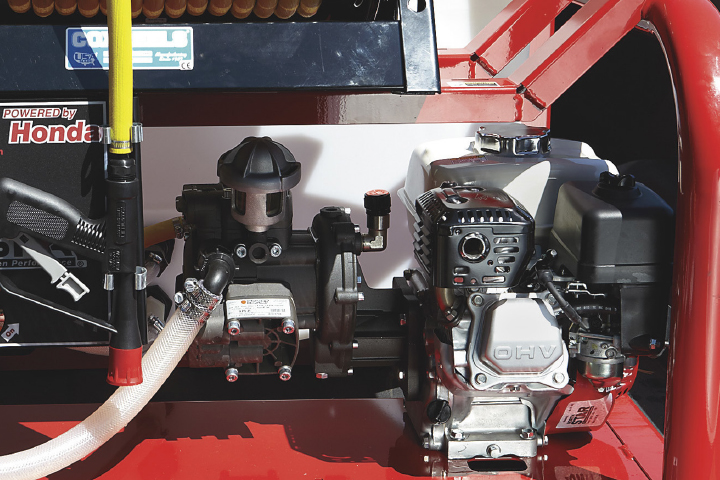

UNYIELDING PERFORMANCE

Tackle the largest of spraying jobs with this skid sprayer, driven by a POWERFUL HONDA ENGINE and Comet pump for performance that lasts through years of heavy-duty use

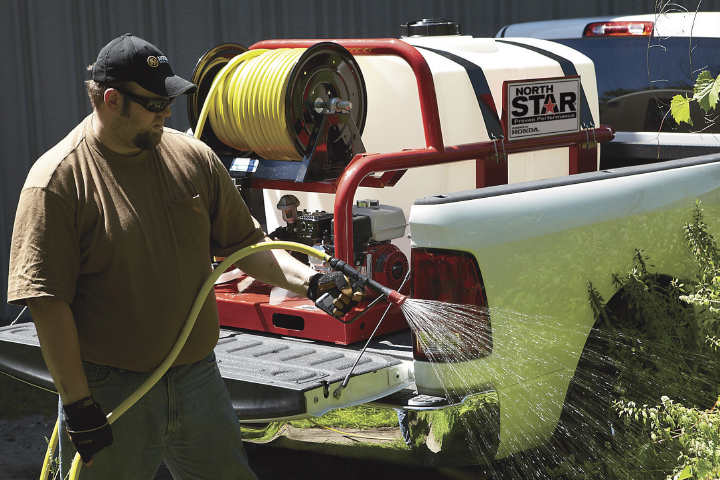

CONVENIENCE AT YOUR FINGERTIPS

Featuring an ELECTRIC-REWIND HOSE REEL and easy-slide design for pickup trucks, this sprayer combines performance with ease of use

Features + Benefits

  • 200-Gallon Tank Capacity: Provides extended spraying time with fewer refills for large agricultural, commercial and property maintenance applications
  • Honda GX160 5.5 HP Engine: Commercial-grade Honda engine delivers reliable power for demanding spraying operations
  • Comet APS41 Diaphragm Pump: Heavy-duty diaphragm pump delivers up to 11 GPM and 580 PSI for high-output spraying performance
  • High-Output Performance: Delivers up to 11 GPM flow and 580 PSI maximum pressure for efficient chemical application across large areas
  • Electric Rewind Hose Reel: Powered hose reel with pushbutton rewind allows fast hose retrieval and reduced operator effort
  • 300ft. Spray Hose: Includes 300ft. of 1/2in. hose rated to 600 PSI for exceptional spraying reach across large properties and agricultural applications
  • Comet APS41 Regulator: Allows precise pressure adjustment while maintaining consistent spraying performance
  • 600 PSI Pressure Gauge: Enables operators to monitor system pressure for accurate application control
  • Venturi Agitation System: Continuously recirculates solution to help keep chemicals thoroughly mixed during spraying operations
  • 4 Interchangeable Agitator Tips: Includes 1/8in., 5/32in., 3/16in. and 1/4in. agitator nozzles that allow operators to balance agitation performance and spray pressure
  • Adjustable Agitation Output: Venturi agitator can generate up to 19.5 GPM outlet flow for enhanced chemical mixing performance
  • Spray Gun Included: Provides targeted application for spot spraying, trees, fence lines and other precision spraying tasks
  • Trigger Lock Spray Gun: Locking trigger helps reduce hand fatigue during extended spraying sessions
  • Heavy-Duty Steel Skid Frame: Welded skid frame provides durability and stability for truck, trailer and utility vehicle mounting applications
  • Clear-Bowl Suction Strainer: Helps prevent debris from entering the pump while allowing quick inspection and maintenance
  • Ball Valve Strainer Isolation: Allows strainer servicing and cleaning without draining the tank contents
  • Vented Fill Cap: Allows air into the tank during operation while helping prevent chemical escape
  • Optional Broadcast Kit Compatible: Supports optional broadcast kit (Item #268171) for faster coverage of large ground areas
  • Included Accessories and Components: Includes electric rewind hose reel, 300ft. spray hose, spray gun, four agitator tips, pressure regulator, pressure gauge and heavy-duty skid frame

Key Specs

AttributeSpecification

item#

268170

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

550.0 LB

Tank Size

200 Gal

Flow

11 GPM

Pressure

580 PSI

Spray Pattern

Shower
AttributeSpecification

Spray Gun Type

Lawn

Tow Behind Cart Included

No

Pump Type

Comet APS41 Diaphragm

Engine Type

Honda GX OHV

Hose Length

3,600 in

Product Weight

lb

Dimensions L x W x H (in.)

75.0 x 43.0 x 42.0 in

Reviews

Questions & Answers

48 Reviews This action will navigate to reviews.

Questions

1–10 of 62 Questions
Sort by:

  1. Can the spray nozzle be changed for 360 deg, fan, shower, etc

    Would the use of a different nozzle restrict flow and decrease the GPM to less than 11? If pressure is reduced on pump control, with standard nozzle attached will this reduce GPM?

    1. Everything is variable since you can adjust engine rpm and line pressure. 30-40 psi and the engine at maybe 1/4 throttle gets about 2-2.2 gpm out of the included gun. I added a quick coupler to the hose so that I can quickly interchange Guns depending on what I'm doing and the gun will definitely affect the flow.

      Helpful?

    2. The nozzle can be changed to a garden nozzle with multiple spray patterns. Different spray patterns will reduce the GPM. The different settings will also reduce the GPM.

      Helpful?

  2. Can this sprayer be used for hydro seeding? If so can it agitate at the same time it sprays?

    1. I personally would not attempt hydroseeding. This unit is in no way built for that task. Plus even if it worked it would take you 3-4 days to do an acre. A tow behind seeder will push about 50-70 gpm and is designed to pump solids.

      Helpful?

    2. This sprayer is designed for spaying liquid chemicals. It cannot be used for hydro seeding.

      Helpful?

  3. Does the hose have "quick disconnect" couplers?

    1. No, it has a barbed fitting on the gun. But adding a quick coupler would be very easy to do.

      Helpful?

    2. This Northstar sprayer does not feature quick disconnect couplers. We do offer quick couplers compatible with this sprayer, see below for item details.

      Helpful?

  4. We are looking for a sprayer for a farm application to kill an infestation of scotch thistles. Can I use 2, 4-D herbicides in this sprayer? Also what is thw weight of a fully loaded sprayer. My truck is a 1/2 ton.

    1. Yes you can use 2-4-D in this sprayer. The sprayer weighs 550 ponds empty, and almost 2200 pounds when it is full.

      Helpful?

    2. Generally, as long as the chemicals are not corrosive, petroleum based, or viscous they should be fine. If you would need more specific chemical compatibility you would need to contact the manufacturer direct. The weight with fluids and accessories would be 2100 pounds.

      Helpful?

  5. this skid sprayer shows a manual rewind reel but the manual shows an electric, battery operated rewind wheel-what kind of reel does this come with?

    1. It is electric, but you can wind it up manually. It comes with a handle to wind it and a wiring diagram to hook it up to a battery.

      Helpful?

    2. The NorthStar Skid Sprayer comes with an electric, battery operated rewind reel.

      Helpful?

  6. how much does this unit weigh?

    1 answer

    1. The dry weight of this sprayer is 485 lbs. When it is full of liquid, it weighs approximately 2,085 lbs.

      Helpful?

  7. Where is the serial number located

    1 answer

    1. The serial number sticker is located on the lower left hand side of the engine. It can be seen in the third photo on the web page.

      Helpful?

  8. We have the 200 gal spray unit. We are needing the valve control used to set the pressure. Where can we order one of those ?

    1 answer

    1. The regulator, part #779223, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  9. We have the 200 gallon sprayer and the pump has went bad where can we buy a new pump?

    1 answer

    1. The sprayer pump, part #779222, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  10. How long do the pallet forks need to be to lift / move this

    1 answer

    1. The forks would need to measure a minimum of 38-1/4"L to lift the skid sprayer. The sprayer can only be lifted from the heavy end.

      Helpful?
