Master Mfg, SKID SPRAYER SPACE SAVER 200G, Tank Size 200 Gal, Flow 10 GPM, Pressure 580 PSI, Model# PPV-T7-2SSM-MM

Item# 57115
9 of 13 reviewers received a sample product or took part in a promotion
Master Mfg, SKID SPRAYER SPACE SAVER 200G, Tank Size 200 Gal, Flow 10 GPM, Pressure 580 PSI, Model# PPV-T7-2SSM-MM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Master Mfg, SKID SPRAYER SPACE SAVER 200G, Tank Size 200 Gal, Flow 10 GPM, Pressure 580 PSI, Model# PPV-T7-2SSM-MM

Click or Tap image to Zoom

$5999.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

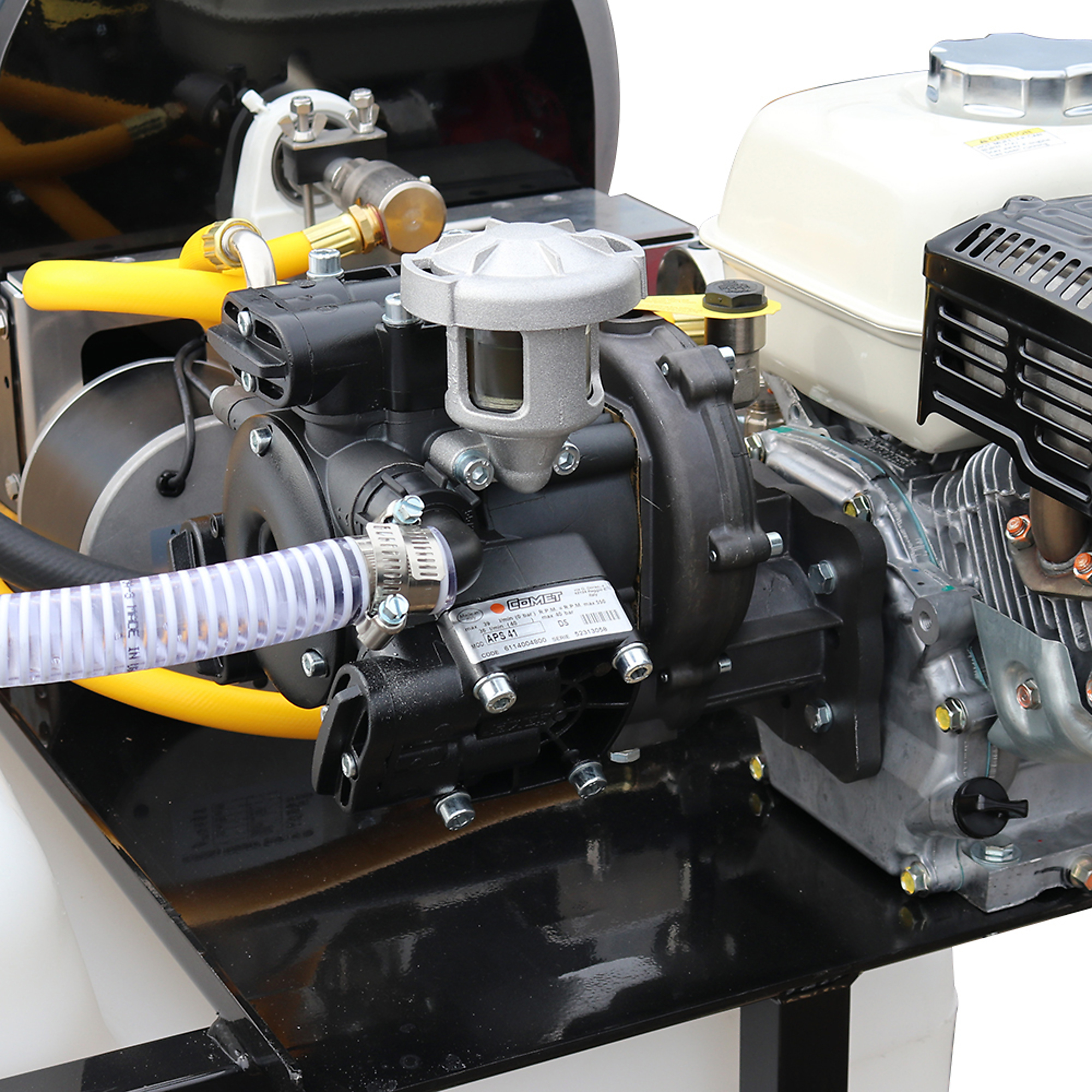

  • Heavy-duty Comet APS41 triple diaphragm pump with DURAphragm technology delivers up to 10 GPM at 580 psi
  • Powered by a dependable Honda® GX200 engine
  • Extra-large-capacity 200-gal. tank
  • Includes 300ft. of 1/2in., 600 psi hose
  • TeeJet lawn spray gun includes 3 interchangeable nozzles for versatility

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Space Saver Skid Sprayer by Master Manufacturing has an extra-large 200-gallon tank that delivers maximum performance. This commercial sprayer fits sideways into a standard short box or long box pickup truck bed for curbside application. Comes with premium components and a driver's-side fill well so it can be filled without climbing into the pickup bed. Features a heavy-duty Comet APS41 triple diaphragm pump with DURAphragm technology. Powered by a Honda® GX200 engine. The setup offers you the versatility of a diaphragm pump with the durability and power of a piston pump.

What's Included

    (1) Skid sprayer (1) 300ft. x 1/2in. dia. hose (1) TeeJet spray gun (3) Nozzles

Downloads

Product Manual

Features + Benefits

  • Heavy-duty Comet APS41 triple diaphragm pump with DURAphragm technology delivers up to 10 GPM at 580 psi
  • Powered by a dependable Honda® GX200 engine
  • Extra-large-capacity 200-gal. tank
  • Includes 300ft. of 1/2in., 600 psi hose
  • TeeJet lawn spray gun includes 3 interchangeable nozzles for versatility
  • Compact 62.5in.L x 52in.W x 41.25in.H overall size
  • Tough painted steel frame
  • 18" Hannay electric hose reel for effortless spraying
  • 316ss hose reel core features a lifetime warranty
  • Premium pressure regulator and liquid-filled gauge are forward-facing for easy access

Key Specs

AttributeSpecification

item#

57115

Brand

Master Mfg

Manufacturer's Warranty

1 year limited warranty

Ship Weight

465.0 LB

Tank Size

200 Gal

Flow

10 GPM

Pressure

580 PSI

Tank Material

Polyethylene

Spray Pattern

Shower
AttributeSpecification

Spray Gun Type

Lawn

Nozzles (qty.)

0

Tow Behind Cart Included

No

Pump Type

Comet APS41 Diaphragm

Engine Type

Honda GX200

Hose Length

3,600 in

Product Weight

lb

Dimensions L x W x H (in.)

62.5 x 52.0 x 41.25 in

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. What type of battery is required for the electric hose reel?

    1 answer

    1. The 18″ Hannay electric hose reel on the PPV-T7-2SSM-MM skid sprayer is powered by a 12-volt DC system and requires a dedicated deep-cycle battery.

      Helpful?

  2. What is the dimension of this tank?

    1 answer

    1. The approximate dimensions for the tank are 60 inches L x 38 inches W x 30 inches H.

      Helpful?

  3. Does this have a chemical nix?

    1 answer

    1. The sprayer does not have a chemical mix.

      Helpful?

  4. Does this machine hydro seed?

    1 answer

    1. It is not recommended to use the sprayer for hydro seeding. This will clog and damage the pump.

      Helpful?

  5. What are the dimensions for the base: width and depth.

    1 answer

    1. The base alone measures 47.5" long x 46.5" wide at the bottom.

      Helpful?

  6. Does this unit include the Honda motor?

    1 answer

    1. The skid sprayer would include a Honda GX200 engine.

      Helpful?

  7. If I wanted to slide it in the long way will the skid fit between the wheel wells???

    1 answer

    1. The overall width is 52", if you have this amount of space between your wheel wells this will fit.

      Helpful?

  8. Do you sell separate additional tanks for this unit?

    1 answer

    1. Separate additional tanks would not be available for this unit.

      Helpful?

  9. Could this unit(with deep root soil probe attached) do deep root fertilization for trees with a liquid fertilizer?

    1 answer

    1. The sprayer has not been tested for this application. The sprayer puts out 580 PSI, you can check the PSI requirement of the soil probe to see if it may work for you.

      Helpful?

  10. what size is the fill lid to the tank

    1 answer

    1. The fill lid diameter is 18".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
