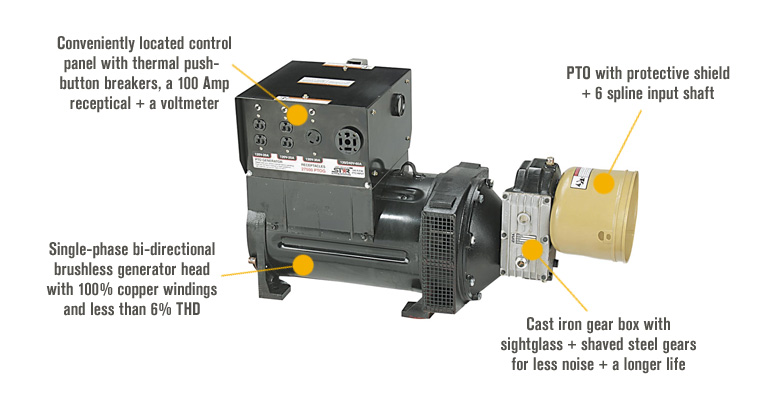

NorthStar PTO Generator, 27,500 Surge Watts, 24,000 Rated Watts, 48 HP Required

Item# 165937
"NorthStar PTO Generator, 27,500 Surge Watts, 24,000 Rated Watts, 48 HP Required"
Top Seller
NorthStar PTO Generator, 27,500 Surge Watts, 24,000 Rated Watts, 48 HP Required

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar PTO Generator, 27,500 Surge Watts, 24,000 Rated Watts, 48 HP Required

Click or Tap image to Zoom

$3699.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Industry standard 1 3/8 in., 6-spline input shaft, requires at least 48 PTO HP engine at 540 RPM
  • 100% copper windings, metal construction, 100 Amp thermal magnetic breaker and plastic shield
  • Outlets include welding receptacle and four 120V 20 Amp receptacles and voltmeter
  • Push button reset circuit breakers
  • Four 20 Amp 120V receptacles

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar PTO Generator, 27,500 Surge Watts, 24,000 Rated Watts, 48 HP Required
  • Reliance Generator Power Cord, 30 Amps, 125/250 Volts, 40ft., Model# PC3040
  • 3M Reusable Corded Earplugs, NRR 25dB, Model# 90586-80000
Price for all three:

$3837.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

NorthStar® Single-Phase Engine generates 200 Amps @ 120V and 100 Amps @ 240V simultaneously.

What's Included

    (1) Generator

Downloads

Product Manual

Features + Benefits

  • Industry standard 1 3/8 in., 6-spline input shaft, requires at least 48 PTO HP engine at 540 RPM
  • 100% copper windings, metal construction, 100 Amp thermal magnetic breaker and plastic shield
  • Outlets include welding receptacle and four 120V 20 Amp receptacles and voltmeter
  • Push button reset circuit breakers
  • Four 20 Amp 120V receptacles
  • One 30 Amp 120V receptacle
  • One 50 Amp 120/240V straight blade receptacle (plug sold seperately)
  • For use with PTO driveline (not included)

Key Specs

AttributeSpecification

item#

165937

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

351.0 LB

Required Horsepower

48

Surge Watts

27,500 W

Rated Watts

24,000 W
AttributeSpecification

Receptacles (qty.)

7

Shaft Diameter

1-3/8 in

Continuous Run Time

Yes

PTO Input Speed

540 rpm

Product Weight

lb

Dimensions L x W x H (in.)

39.0 x 24.0 x 26.0 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–10 of 25 Questions
Sort by:

  1. Is this weatherproof?

    Do you need to have a cover on this while set up to the tractor running your home, or is it alright to for it to be in the elements while using? It would, of course, be properly stored in the dry while not in use.......

    1. Choose a location where the generator will not be exposed to rain, snow or direct sunlight. You may operate the generator under an outdoor, canopy-like structure of heat-resistant material that is open on all sides. Make sure that all parts of canopy are at least 7’ from generator and at an adequate safe clearance from hot tractor exhaust. Allow for adequate clearance above generator so that heat from generator does not build up.

      Helpful?

    2. Cover it from the rain and snow while in use, but allow sufficient air circulation.

      Helpful?

    3. I built a large cover to place over my PTO generator with room for air to move, but only cover the generator when the weather may change while it is hooked up. It is best to leave it uncovered for air circulation, but if covered, just make certain there is vents installed for air circulation to keep it cool when under power. a box open on one end for the PTO and a vent on the other end is sufficient but the box should at least have a 3" air space on the sides and top for air circulation to keep the windings from getting too hot under load.

      Helpful?

  2. will this generator work with a higher rpm pto? if not, do you sell one that will operate at higher rpms?

    1. Definitely not at your tractor's rated PTO speed! If your tractor is 100 HP or more, you could run it with the 1,000 RPM PTO and the engine speed reduced to just over half the rated PTO speed. Be sure your high-speed PTO of your tractor can handle enough torque to produce 48 horsepower at 540 RPM required for the NorthStar unit. About your only other option would be using the NorthStar 10,000 watt generator head driven by a toothed belt pulley system to increase your PTO speed of 1,000 RPM to 3,600 RPM, but the high-HP belt, pulleys, frame and bearings will be expensive, not to mention the fabrication labor.

      Helpful?

    2. This NorthStar PTO Generator has a required PTO RPM of 540 and will not operate at a higher RPM.

      Helpful?

  3. Do you sell the PTO shaft for this generator?

    1 answer

    1. This generator uses a 1-3/8", 6-spline input shaft. Please refer to item 31925 for a compatible PTO shaft.

      Helpful?

  4. What is the duty cycle rating? And how long can it be ran? As in a back generator for my house?

    1 answer

    1. This generator is rated for continuous use. The only limitation is the need to stop and refuel the tractor it is connected to.

      Helpful?

  5. I have an older model generator like this 27,500 generator. I was recently using it to run a 220 welder when I believe from the smell it slipped a cluch. My question is does it have clutches and can they be replced?

    1 answer

    1. This generator is equipped with a gearbox, but there is no clutch.

      Helpful?

  6. What type of plug goes into the big outlet?

    1 answer

    1. The large straight blade receptacle on the front is a NEMA 14-60R, which requires a 14-60P plug.

      The plug needed for the 100 amp receptacle is part #PD37552. This part is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  7. does it come with the trailer?

    1 answer

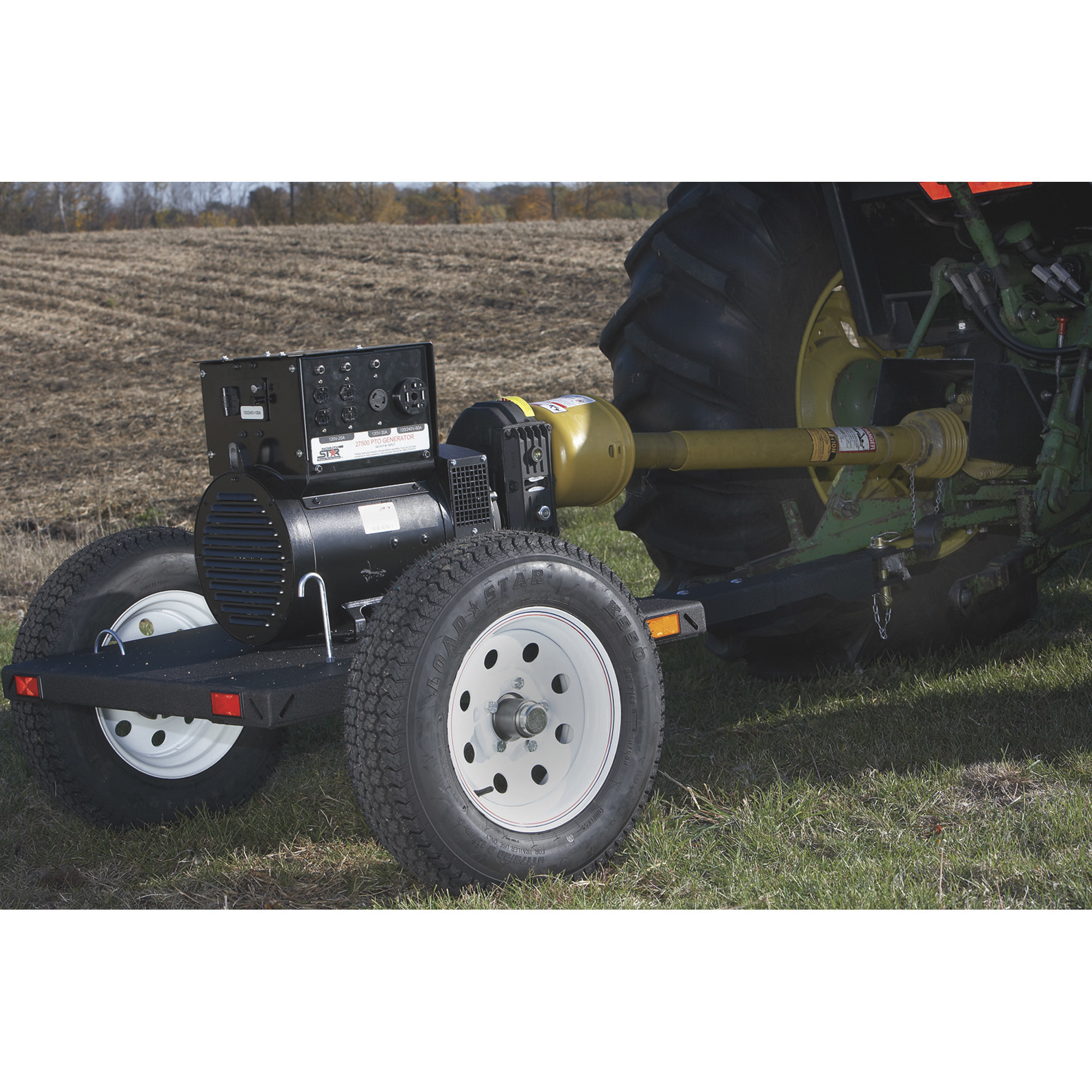

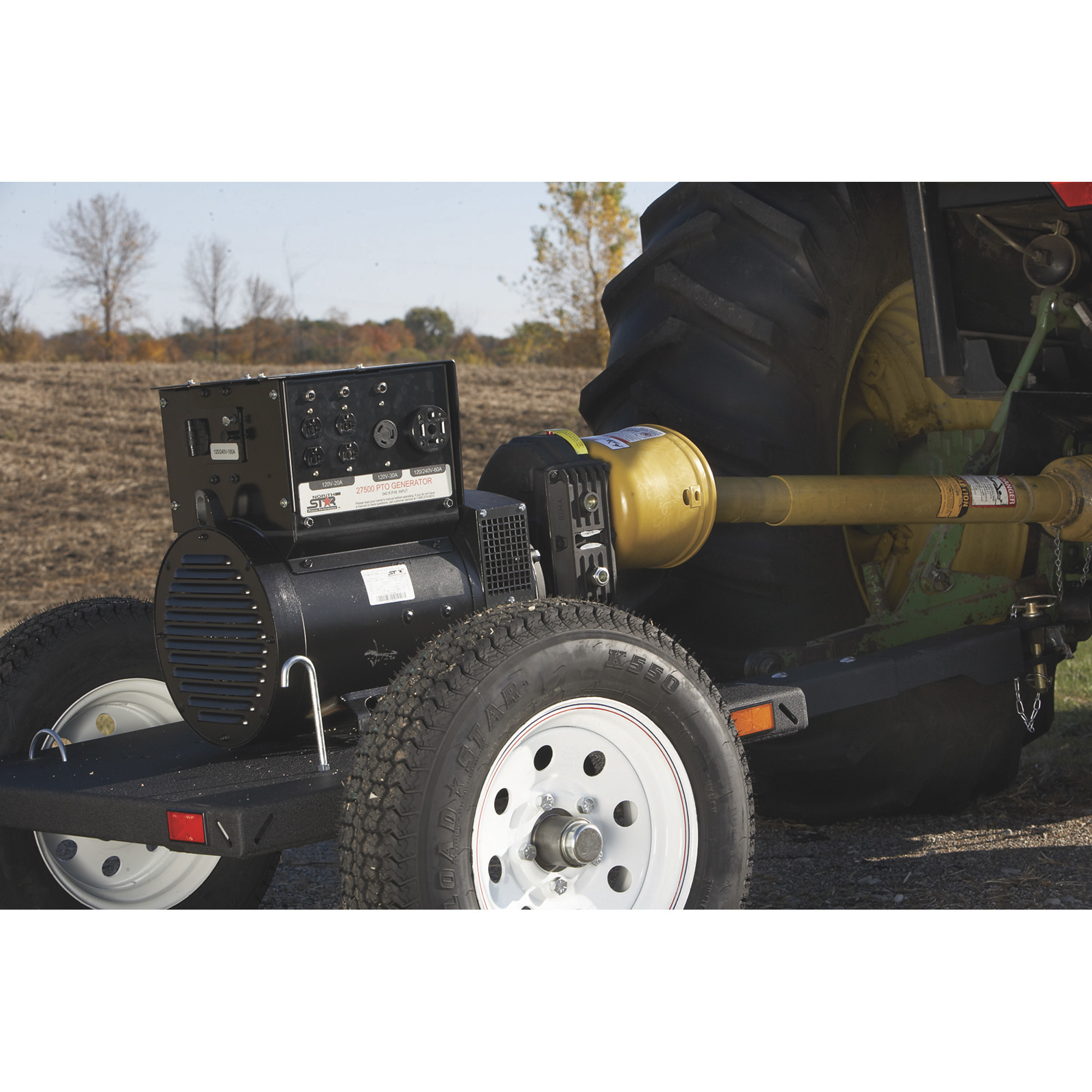

    1. This generator does not include the trailer. This unit should be mounted to a reinforced concrete slab or a PTO trailer supplied by the user.

      Helpful?

  8. does this come with the pto shaft

    1 answer

    1. This generator does not include the PTO drive line. This PTO generator has an industry standard 1-3/8", 6-spline input shaft.

      Helpful?

  9. Currently have a 30 horse tractor would like to buy a generator rated for 40 horse. Would my tractor run this unit as it is now I plan to get a 40 horse later on my question is would this produce power to the 30 horse rating?

    1 answer

    1. This generator is recommended for use with 48 HP at the PTO. Using a 30 HP tractor would allow around 18,000 watts without exceeding the HP rating of your tractor. To utilize the full 24,000 watts a minimum of 40 HP would be required.

      Helpful?

  10. What gear case oil does it use and how much? Item number 165937.

    1 answer

    1. This PTO generator uses SAE 90 weight gear lube and has a capacity of 1.11 Quarts.

      Helpful?
