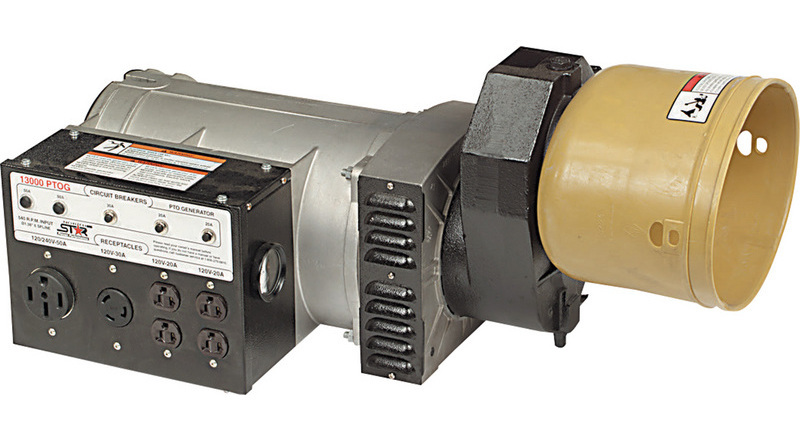

NorthStar PTO Generator, 13,000 Surge Watts, 12,000 Rated Watts, 24 HP Required

Item# 165929
"NorthStar PTO Generator, 13,000 Surge Watts, 12,000 Rated Watts, 24 HP Required"
Top Seller
NorthStar PTO Generator, 13,000 Surge Watts, 12,000 Rated Watts, 24 HP Required

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar PTO Generator, 13,000 Surge Watts, 12,000 Rated Watts, 24 HP Required

Click or Tap image to Zoom

$1849.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

  • Industry standard 1-3/8in., 6-spline input shaft geared for 540 RPM
  • 100% copper windings, metal construction, 100 Amp thermal magnetic breaker and plastic shield provide high performance, durability, long life and safe operation
  • Outlets include welding receptacle and (4) 120V, 20 Amp receptacles and voltmeter
  • Pushbutton reset circuit breakers
  • (4) 20 Amp, 120V receptacles

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar PTO Generator, 13,000 Surge Watts, 12,000 Rated Watts, 24 HP Required
  • Reliance Generator Power Cord, 30 Amps, 125/250 Volts, 40ft., Model# PC3040
  • Reliance Generator Power Cord, 50 Amp, 10ft., Model# PC5010-14
  • 3M Reusable Corded Earplugs, NRR 25dB, Model# 90586-80000
Price for all four:

$2237.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

NorthStar Single-Phase PTO Generator cranks out 100 Amps @ 120V, 50 Amps @ 240V. Requires 24 PTO HP or more for rated output: 13,000 surge Watts and 12,000 continuous Watts.

What's Included

    (1) Generator

Downloads

Product Manual
Play Item Video

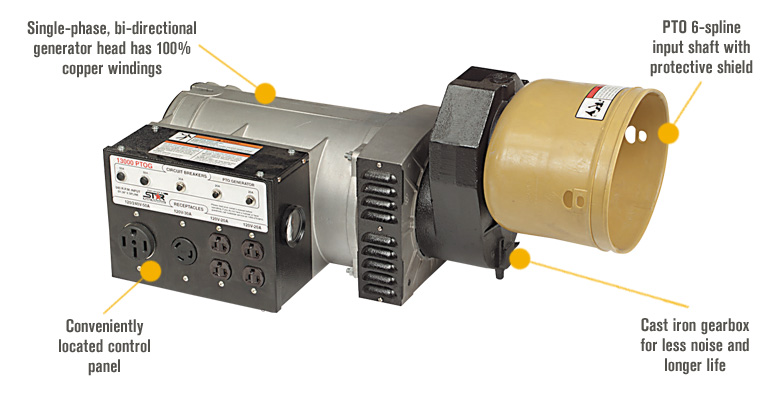

Features + Benefits

  • Industry standard 1-3/8in., 6-spline input shaft geared for 540 RPM
  • 100% copper windings, metal construction, 100 Amp thermal magnetic breaker and plastic shield provide high performance, durability, long life and safe operation
  • Outlets include welding receptacle and (4) 120V, 20 Amp receptacles and voltmeter
  • Pushbutton reset circuit breakers
  • (4) 20 Amp, 120V receptacles
  • (1) 30 Amp, 120V receptacle
  • (1) 50 Amp, 240V receptacle
  • Use with PTO driveline (not included)

Key Specs

AttributeSpecification

item#

165929

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

125.0 LB

Required Horsepower

24

Surge Watts

13,000 W

Rated Watts

12,000 W

Receptacles (qty.)

6
AttributeSpecification

Shaft Diameter

1-3/8 in

Continuous Run Time

Yes

PTO Input Speed

540 rpm

Thermal Overload Protection

No

Brushless

No

Product Weight

174.0000 lb

Dimensions L x W x H (in.)

35.5 x 22.0 x 17.0 in

Reviews

Questions & Answers

51 Reviews This action will navigate to reviews.

Questions

1–10 of 36 Questions
Sort by:

  1. NorthStar PTO Generator - 13,000 Surge Watts, 12,000 Rated Watts,

    would a 56hp tractor be overkill for this Generator?

    1. This PTO generator can run off a 56 HP tractor as long as the PTO is running at 540 RPM.

      Helpful?

    2. mine is 34hp runs easily. Probably waste of fuel with bigger tractor but if it's what you've got. Wont have any issues with running this generator.

      Helpful?

  2. what is the maximum rpm this generator can be run

    1. A maximum RPM is not listed because the generator needs to run at the 540 RPM pto speed/3600 RPM rotor speed to produce the 120V/60 Hz cycle output. Anything out of this range will put the Hz and volts out of the standard range.

      Helpful?

    2. it should be kept close to 540 PTO RPM or there will be non standard voltage and frequency output.

      Helpful?

  3. At what engine rpm will the generator produce its maximum power

    I have a a 30hp kubota tractor that has a minimum 540rpm pto, but I want to know at what rpm I will have to run the motor to get the 13,000 watts?

    1. The maximum power output of 13,000 surge watts and 12,000 rated watts can be achieved as long as it is connected to a tractor rated for a minimum of 24 HP and is equipped with a PTO running at 540 RPM. The RPM of tractors varies, please check with the manufacturer to verify what RPM of the tractor will produce 24 HP.

      Helpful?

    2. I think it depends on your tractor. I have John Deere 55 HP tractor, and run in midranged gear at about 2200 rpms to keep it in the green. The indicator on the unit will tell you if you are there.

      Helpful?

  4. where can i get a oil seal for gear box. I am leaking oil at the seal.

    1 answer

    1. We no longer offer the M5 spline shaft oil seal (BP31758) or the M5 taper shaft oil seal (BP31767) as parts.

      Helpful?

  5. how do you put the back bolt in.the directions tell you how the front bolts go in ,but nothing about the back bolt.

    1 answer

    1. In order to access the two mounting holes, you will need to remove the louvered fan vent panels on both sides.

      Helpful?

  6. What size capacitors are required to get 240VAC when run slower for 50hz output?

    1 answer

    1. This generator is designed to operate at a frequency of 59.0 - 63.0 Hertz (Hz). We do not recommend modifying this generator in any way.

      Helpful?

  7. Trying to figure out I it has a 50 amp 220v receptacle. It looks like it does just not the lock in type but hoping someone can verify. Also looks like I need a stand and probably a dedicated drive shaft. Anything else I may need to be up and running?

    1 answer

    1. This PTO generator is equipped with a 50 Amp (A) Straight blade (NEMA 14-50R) receptacle. It is designed to mount to a reinforced concrete slab or PTO trailer. A PTO shaft with a 1-3/8" diameter and 6-spline input shaft like item 31919, item 31921 or item 31925 is required. If the generator is to be connected to a building to provide back up power, a transfer switch, installed by a licensed electrician is also required.

      Helpful?

  8. Does this generator require 24 engine HP or 24 pto hp?

    1 answer

    1. This generator requires 24 HP at the PTO.

      Helpful?

  9. What's the oil capacity of the gearbox?

    1 answer

    1. The oil capacity of the gearbox is 0.86 quarts.

      Helpful?

  10. does this generator come with a 3 point hitch mount

    1 answer

    1. This NorthStar PTO generator does not include a 3-point hitch mount. We do not currently offer a 3-point hitch mount for it. This generator can be mounted on a small utility trailer, concrete slab or other structure.

      Helpful?
