For this engine the horsepower is rated at 24.8 @ 2300 rpm. The torque rating is approximately 67 ft-lb.

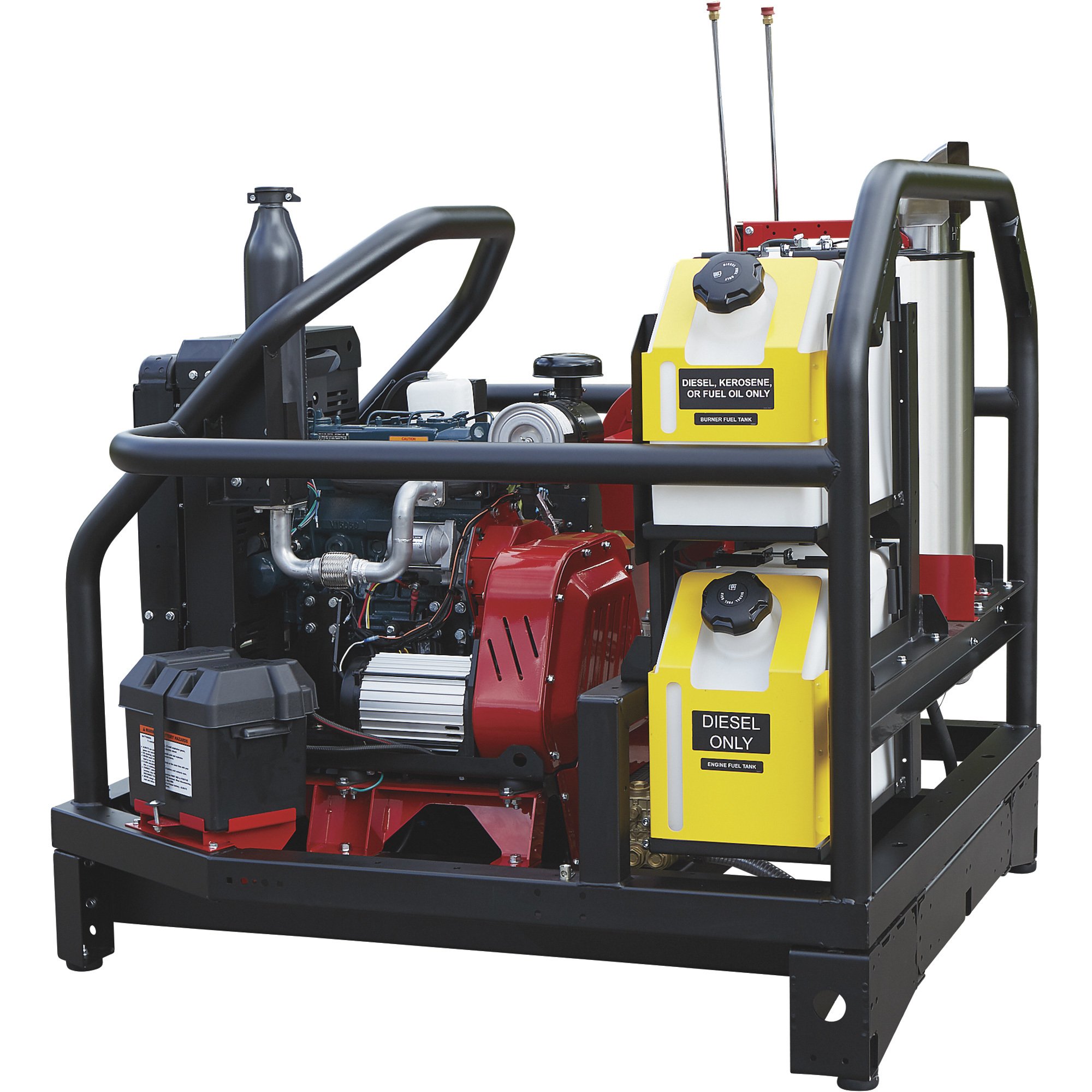

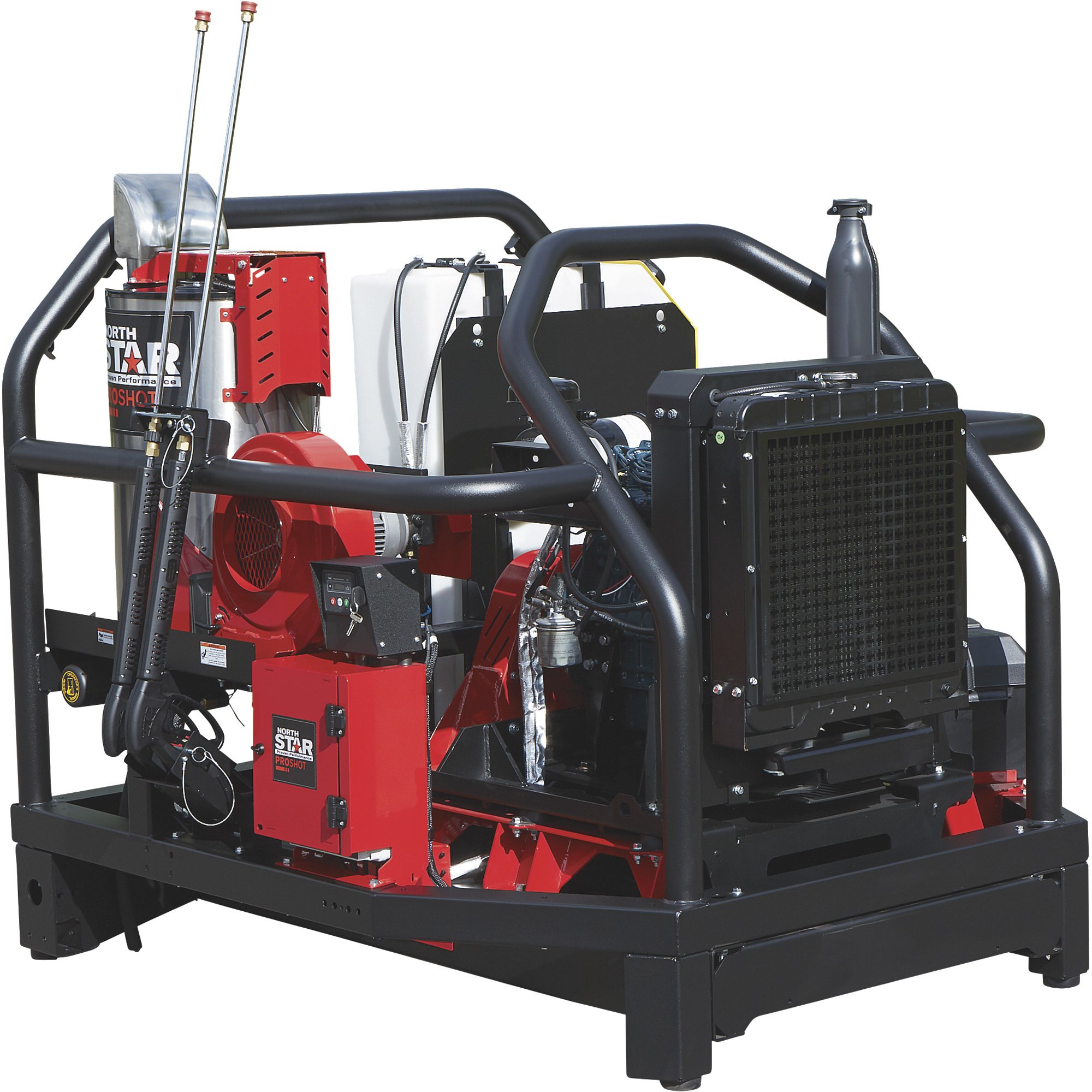

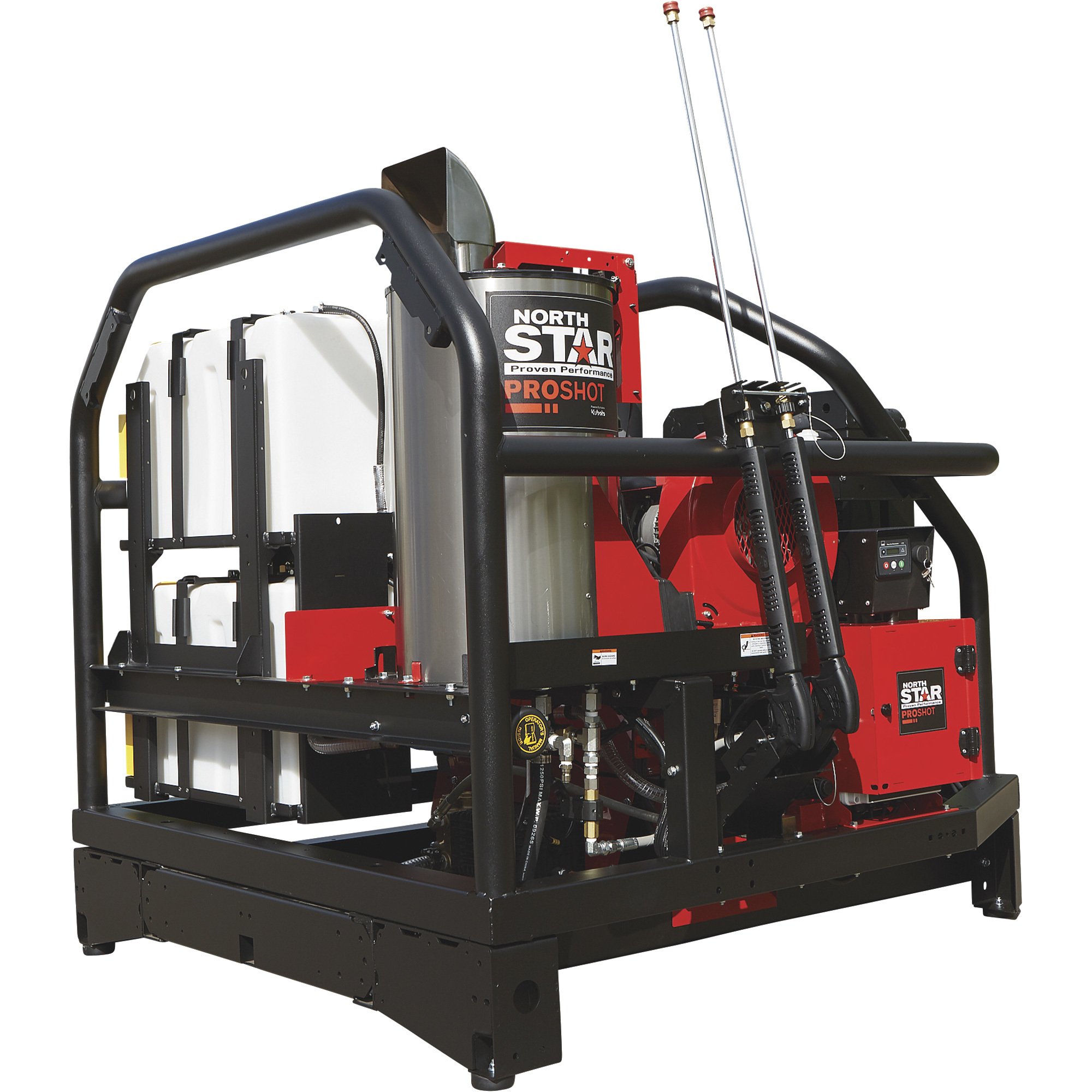

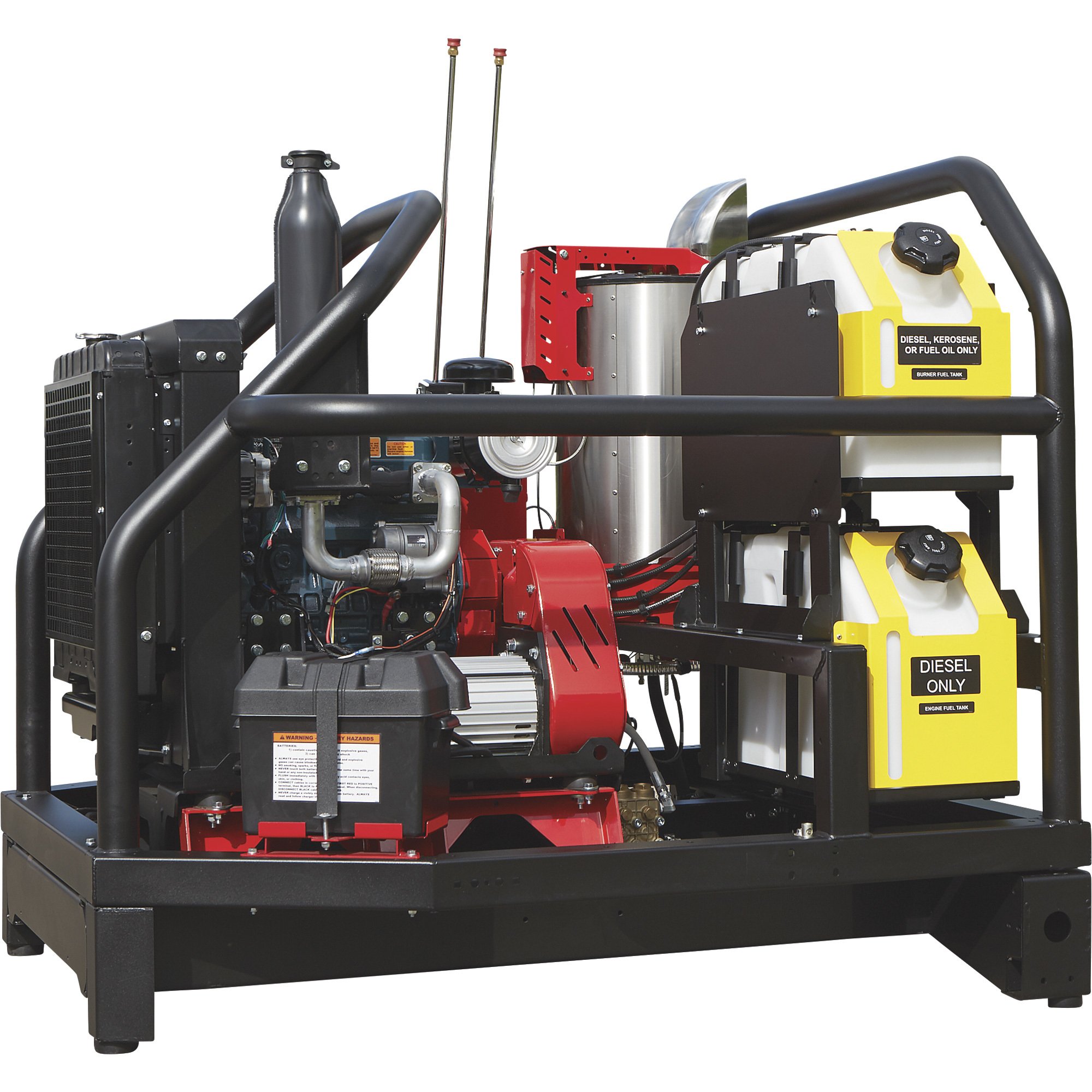

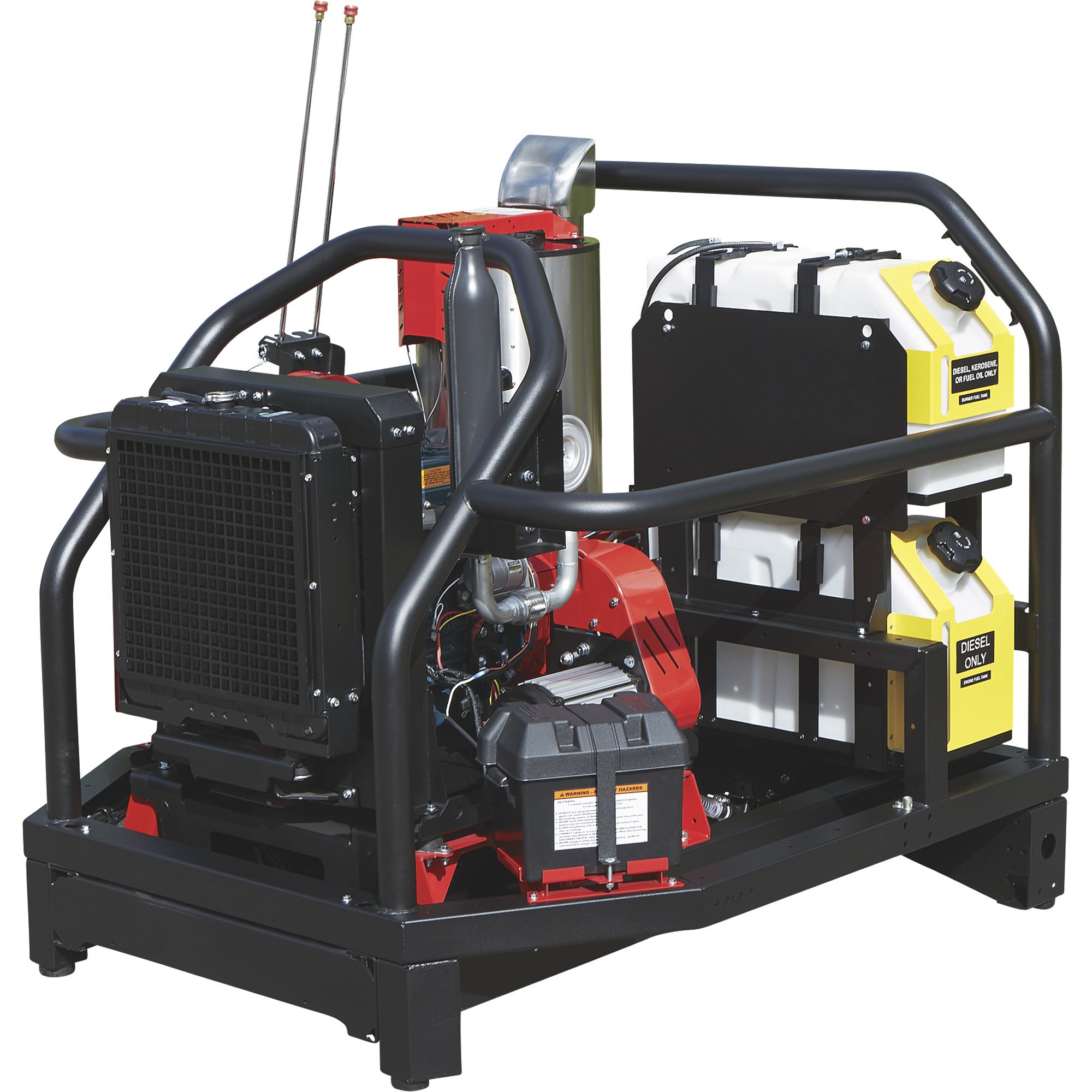

NorthStar ProShot Hot Water Commercial Pressure Washer Skid — 3000 PSI, 8.0 GPM, 2 Spray Guns/Lances, Diesel Kubota Engine
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 8 GPM capacity allows you to use both of the included spray guns at the same time at 4 GPM while maintaining a 150°F temperature rise
- Electric start Kubota diesel with low oil shutdown
- General Pump heavy-duty triplex pump
- Five cleaning modes from cold water to 250°F wet steam handle any job
- Onboard 2000 Watt generator with 100% copper-wound head and automatic voltage regulation
Prop 65 Warning: See Details
See full description
NorthStar hot water pressure washers are engineered to effectively sanitize surfaces, help to significantly reduce the prevalence of germs without disinfectant and maximize the effectiveness of disinfectant by providing the ultimate surface preparation.
What's Included
- (1) Hot water pressure washer skid
- (2) Non-fatigue spray guns with lances
- (2) 50ft. x 3/8in. high-pressure hoses with quick-connect ends
- (18) Quick-connect nozzles
- (1) 12V DC AGM 75Ah battery
Downloads
Features + Benefits

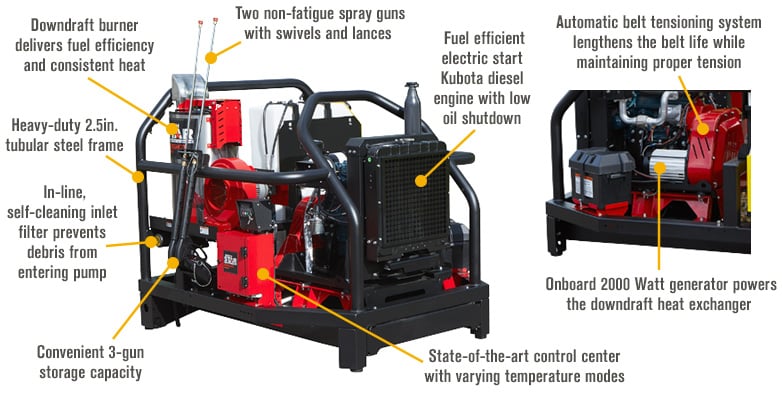

- 8 GPM capacity allows you to use both of the included spray guns at the same time at 4 GPM while maintaining a 150°F temperature rise
- Electric start Kubota diesel with low oil shutdown
- General Pump heavy-duty triplex pump
- Five cleaning modes from cold water to 250°F wet steam handle any job
- Onboard 2000 Watt generator with 100% copper-wound head and automatic voltage regulation
- Dynamic belt tensioning system extends belt life and maintains the proper tension
- Self-cleaning inlet filter prevents debris from entering the pump
- Heavy-duty 2.5in. tubular steel frame
- Includes two non-fatigue spray guns with lances and two 50ft. x 3/8in. high-pressure hoses with quick-connect ends
- 18 quick-connect nozzles — one set of #9.0 nozzles (0°, 15°, 25°, 40° and chemical), two sets of #4.5 nozzles (0°, 15°, 25°, 40° and chemical), plus two #3.0 and one #7.0 steam nozzles
- Capacity to store 3 spray gun/lance combos
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Gas-Hot Water Pressure Washers
See All NorthStar Gas-Hot Water Pressure Washers
Currently Viewing This Product
Shipping: Sold Out
- $5999.99
Specifications
Specifications
NorthStar ProShot Hot Water Commercial Pressure Washer Skid — 3000 PSI, 8.0 GPM, 2 Spray Guns/Lances, Diesel Kubota Engine
NorthStar Hot Water Pressure Washer Skid with Wet Steam, 3000 PSI, 4 GPM, Honda Engine, 100-Gal. Water Tank
NorthStar Gas Hot Water Commercial Pressure Washer Skid, 4,000 PSI, 4.0 GPM, Honda Engine
NorthStar Hot Water Pressure Washer with Wet Steam, 3.5 GPM, 3500 PSI Honda Engine
Pressure
Same
3,000 PSI
3,000 PSI
4,000 PSI
3,500 PSI
Flow
Same
8 GPM
4 GPM
4 GPM
3.5 GPM
Engine Model
Same
V1505
GX390
GX630 V-twin
GX390
Engine Displacement
Same
1,498 cc
389 cc
630 cc
389 cc
Fuel Type
Same
Diesel
Gasoline
Gasoline
Gasoline
Pump
Same
General Pump Triplex
CAT 66dx
CAT 66dx
CAT 66dx
Drive Style
Same
Belt
Direct
Direct
Direct
Adjustable Pressure
Same
Yes
Yes
Yes
Yes
Engine Oil Included
Same
Yes
No
No
No
Engine Oil Type
Same
SAE 10W-30
SAE 30 Motor Oil
SAE 30 Motor Oil
SAE 30
Fuel Capacity
Same
16 Gal
1.61 Gal
4 Gal
8 Gal
Max. Inlet Water Temp
Same
165 °F
140 °F
140 °F
140 °F
Max. Outlet Water Temp
Same
250 °F
250 °F
210 °F
250 °F
Chemical Injector
Same
Yes
Yes
Yes
Yes
Hose Length
Same
50 ft
50 ft
50 ft
50 ft
Coupler Size
Same
3/8 in
3/8 in
3/8 in
3/8 in
Quick Connect Nozzle
Same
Yes
Yes
Yes
Yes
Pump Oil Included
Same
Yes
Yes
Yes
Yes
Pump Oil Type
Same
SAE 30W nondetergent
SAE 30 Nondetergent
SAE 30 Nondetergent
SAE 30 Nondetergent
Low Oil Shutdown
Same
Yes
Yes
Yes
Yes
Thermal Protector
Same
No
Yes
Yes
Yes
Product Weight
Same
1,320 lb
610.0000 lb
500.0000 lb
656.0000 lb
Dimensions L x W x H (in.)
Same
48 x 60 x 56
47.5 x 61.5 x 47.875 in
47.0 x 37.5 x 42.0 in
55.5 x 41.5 x 48.3125 in
Engine Brand
Same
-
Honda
-
Honda
Number of Tips Included
Same
-
4
-
5
Gross Torque
Same
-
18.5 ft-lbs.
29.2 ft-lbs.
19.5 ft-lbs.
Start Type
Same
-
Recoil
-
Electric and Recoil
Orifice Size
Same
-
4.5
4
4
Nozzle Type
Same
-
15° Wet Steam, 15°, 25°, 40°, and Chemical
0°, 15°, 25°, 40° and Soap
15° Wet Steam, 15°, 25°, 40°, and Chemical
