NorthStar Hot Water Pressure Washer Skid with Wet Steam, 3000 PSI, 4 GPM, Honda Engine, 100-Gal. Water Tank

Item# 157116
"NorthStar Hot Water Pressure Washer Skid with Wet Steam, 3000 PSI, 4 GPM, Honda Engine, 100-Gal. Water Tank"
NorthStar Hot Water Pressure Washer Skid with Wet Steam, 3000 PSI, 4 GPM, Honda Engine, 100-Gal. Water Tank

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Hot Water Pressure Washer Skid with Wet Steam, 3000 PSI, 4 GPM, Honda Engine, 100-Gal. Water Tank

Click or Tap image to Zoom

$5299.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 250°F wet steam mode optimizes performance with combination of high heat, high impact and high flow rate
  • Industry-leading 150° temperature rise for more effective hot water pressure washing and degreasing
  • Innovative digital thermostat provides far superior temperature regulation compared to other brands — a stable 15°–18°F range delivers consistently hot water without significant temperature swings
  • Downdraft burner with seamless coil provides consistent heat and up to 35% increased fuel efficiency
  • Adjustable digital thermostat provides extremely accurate temperature regulation

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Hot Water Pressure Washer Skid with Wet Steam, 3000 PSI, 4 GPM, Honda Engine, 100-Gal. Water Tank
  • NorthStar Hot Water Nonmarking Pressure Washer Hose, 6000 PSI, 50ft. x 3/8in.
  • NorthStar Rotating Pressure Washer Turbo Nozzle, 4.0 Orifice, 3000-5100 PSI, Model# NYR51K40BP
  • Valley Industries Quick-Connect Pressure Gauge, 5,000 PSI, 3/8in.
Price for all four:

$5677.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar Hot Water Pressure Washer Skid with Wet Steam is loaded with cutting-edge technologies, putting it in a league of its own. With a 250°F wet steam mode, industry-leading 150° temperature rise and a fuel-efficient downdraft burner, it delivers an unbeatable combination of high heat, high impact and high flow rate — melt through and wash away the toughest grease and grime. The innovative digital thermostat provides far superior temperature regulation compared to other brands — a stable 15°–18°F range delivers consistently hot water without significant temperature swings. This heavy-duty unit boasts a Honda GX390 engine and a CAT direct drive pump for quiet, reliable performance. Full-featured 100-gal. water tank lets you tackle jobs even when you are miles from the next water source. Plus, it features auto shutoff to prevent overflowing while filling and includes a low-water shutdown switch to protect the pump from damage if it runs dry.

What's Included

    (1) Hot water pressure washer with wet steam (5) Nozzles (1) High-pressure hose (1) Spray gun (1) Lance

Downloads

Product Manual

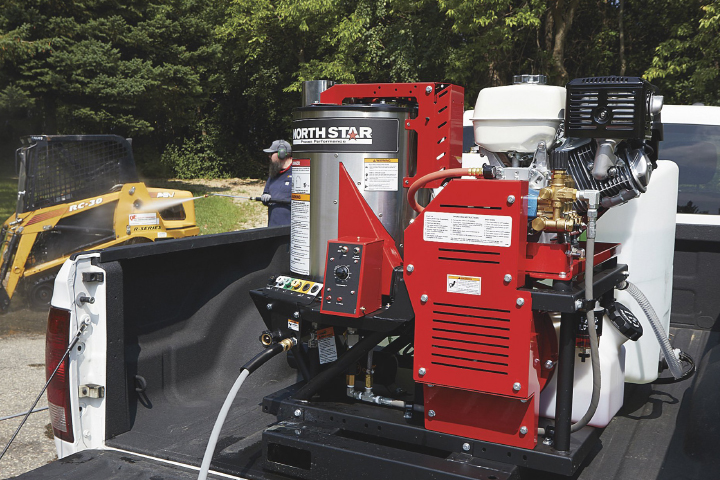

READY FOR REMOTE JOBS

A full-featured 100-GAL. WATER TANK ensures you can tackle even the most remote jobs without needing immediate access to a water source, complemented by smart safety features

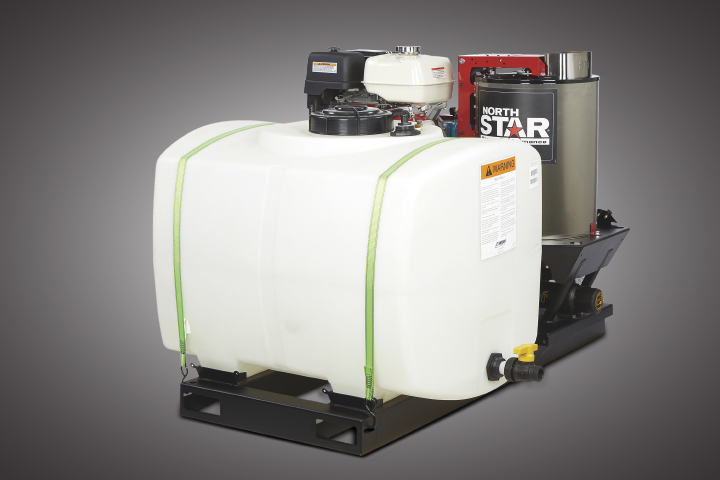

ECONOMIC AND EFFICIENT

Enjoy superior fuel economy with a downdraft burner system that not only saves on costs but also maximizes HEATING EFFICIENCY FOR QUICKER, MORE EFFECTIVE CLEANING


UNMATCHED CLEANING POWER

Leverage 250°F WET STEAM alongside an industry-leading 150° TEMPERATURE RISE, ensuring high-impact cleaning that easily dissolves the toughest substances

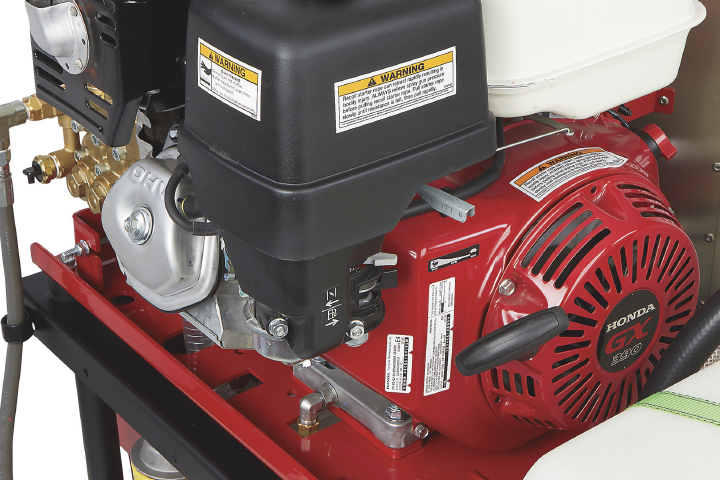

RELIABLE AND QUIET OPERATION

THE HONDA GX390 ENGINE, coupled with a CAT DIRECT DRIVE PUMP, delivers quiet, reliable performance, making demanding tasks more manageable

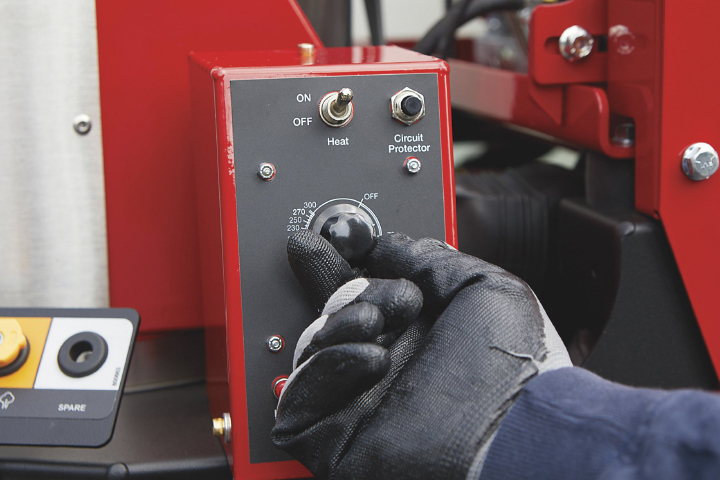

PRECISE TEMPERATURE REGULATION

Benefit from an innovative DIGITAL THERMOSTAT offering unmatched TEMPERATURE STABILITY, for consistent, effective cleaning without temperature fluctuations

Features + Benefits

  • 250°F wet steam mode optimizes performance with combination of high heat, high impact and high flow rate
  • Industry-leading 150° temperature rise for more effective hot water pressure washing and degreasing
  • Innovative digital thermostat provides far superior temperature regulation compared to other brands — a stable 15°–18°F range delivers consistently hot water without significant temperature swings
  • Downdraft burner with seamless coil provides consistent heat and up to 35% increased fuel efficiency
  • Adjustable digital thermostat provides extremely accurate temperature regulation
  • AFI (Air/Fuel/Ignition) delivery system eliminates need for 12 Volt battery
  • 100-gal. water tank with auto shutoff prevents overflowing while filling
  • Downstream chemical injector protects pump seals
  • Extensive vibration isolation means the unit will run smoother, quieter
  • Heavy-duty Grade 50 steel skid frame for rugged durability
  • Mounts in truck, trailer or utility wagon
  • Includes 3/8in. x 50ft. high-pressure hose, rear entry spray gun and 18.5in. lance and 5 nozzles (15° wet steam, 15°, 25°, 40 and detergent)
  • 2-year limited warranty on frame; 3-year limited warranty on Honda engine; 5-year limited warranty on pump; 5-year limited warranty on heat exchanger

Key Specs

AttributeSpecification

item#

157116

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

620.0 LB

Pressure

3,000 PSI

Flow

4 GPM

Engine Brand

Honda

Engine Model

GX390

Engine Displacement

389 cc

Fuel Type

Gasoline

Pump

CAT 66dx

Drive Style

Direct

Number of Tips Included

4

Adjustable Pressure

Yes

Gross Torque

18.5 ft-lbs.

Start Type

Recoil

Engine Oil Included

No
AttributeSpecification

Engine Oil Type

SAE 30 Motor Oil

Fuel Capacity

1.61 Gal

Max. Inlet Water Temp

140 °F

Max. Outlet Water Temp

250 °F

Orifice Size

4.5

Chemical Injector

Yes

Hose Length

50 ft

Coupler Size

3/8 in

Nozzle Type

15° Wet Steam, 15°, 25°, 40°, and Chemical

Quick Connect Nozzle

Yes

Pump Oil Included

Yes

Pump Oil Type

SAE 30 Nondetergent

Low Oil Shutdown

Yes

Thermal Protector

Yes

Product Weight

610.0000 lb

Dimensions L x W x H (in.)

47.5 x 61.5 x 47.875 in

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 24 Questions
Sort by:

  1. How much water is needed in the 100gal tank to provide sufficient water pressure to the pump, can it be ran off just the tank?

    1. I built a support which lifts the tank outlet closer to the inlet height of the pump inlet. It raises the tank about 18 inches and appears to solve the problem. The pump isn't designed to provide suction for the inlet, however if all the air is removed from the line it will work fine without cavitating. Another solution is to provide an in-line pump to pressurize the inlet side. Not so easily to match the needed flow rate and needs a source of power. Hence the support!

      Helpful?

    2. This pressure washer skid can operate off the tank only. It would need a minimum of 25 gallons to operate without losing pressure.

      Helpful?

  2. Can this be mounted on a trailer?

    1 answer

    1. This pressure washer skid can be mounted on an open trailer. It should not be mounted in an enclosed trailer.

      Helpful?

  3. what fuel is the heater? and how is it started if it doesn't have a battery?

    1 answer

    1. The burner can use diesel, kerosene, or fuel oil. The machine is equipped with a recoil (pull-start) starter.

      Helpful?

  4. What size of the fork holes? depth, width and height. please

    1 answer

    1. The fork pockets measure 5" wide x 2" high and extend the length of the skid. They are 12.85" apart.

      Helpful?

  5. Good morning, checking to see if this comes with an electric start and or can you add that to it?

    1 answer

    1. The engine of this pressure washer has a recoil (pull) start only. An electric starter kit is not available and modifications to this unit would void the warranty.

      Helpful?

  6. Do you make a cover for this unit ?

    1 answer

    1. A cover is not available for this pressure washer.

      Helpful?

  7. Can u add a soft wash system to it

    1 answer

    1. This pressure washer system is not designed to work with a soft wash system. Bleach would damage the pump of this pressure washer.

      Helpful?

  8. Hi what it's Demetion? And weight?

    1 answer

    1. The overall dimensions of this pressure washer are 47.5" long x 61.5" wide x 47.87" high. The dry weight is 610 lbs.

      Helpful?

  9. Does the burner need to be plugged in or does it run of battery

    1 answer

    1. The pressure washer will have a continuous igniter that is stator driven and will continually ignite as the engine is running.

      Helpful?

  10. Does this come with wand and hose

    1 answer

    1. This pressure washer skid includes five nozzles, a high pressure hose, a spray gun and a lance.

      Helpful?
