NorthStar Gas Hot Water Commercial Pressure Washer Skid, 4,000 PSI, 4.0 GPM, Honda Engine

Item# 157594
NorthStar Gas Hot Water Commercial Pressure Washer Skid, 4,000 PSI, 4.0 GPM, Honda Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Gas Hot Water Commercial Pressure Washer Skid, 4,000 PSI, 4.0 GPM, Honda Engine

Click or Tap image to Zoom

$5799.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Horizontal shaft engines last five times as long as vertical shaft engines
  • 1/2in. Schedule 80 heating coil with stainless steel wrap
  • Uses 1/2in. Schedule 80 extra-heavy pipe
  • Forged brass manifold gives improved strength over cheaper aluminum
  • Easy Start stops pressure build-up during start-up

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Gas Hot Water Commercial Pressure Washer Skid, 4,000 PSI, 4.0 GPM, Honda Engine
  • Cat Pumps Pressure Washer Pump Oil, 21 Oz.
  • NorthStar Pressure Washer Pump Freeze Guard, 12 Oz.
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
Price for all four:

$5836.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

NorthStar Gas-Powered Hot Water Pressure Washer Skid is essential when electricity is not convenient or available, and high-power hot or cold water cleaning is needed. Long-life Honda GX630 V-twin horizontal-shaft engine powers the premium CAT direct drive pump with brass manifold and ceramic plungers to deliver hot water at 4000 PSI for effective cleaning. Fully encased coil assembly in custom-molded ceramic fiber refractory combustion chamber with low-thermal conductivity and resistance to thermal shock. Parker Hannifin Racor fuel filter and water separator prevents burner ignition problems. Rear hose-entry spray gun with split lance keeps the hose out of the way for easy handling. Diagnostic indicator lights signal operation of key components.

What's Included

    (1) Hot water pressure washer (1) Quick connect industrial rear entry gun (1) 48in. lance with nozzle quick connector (1) 50ft. gray non-marking quick connect hose (1) 0° nozzle (1) 15° nozzle (1) 25° nozzle (1) 40° nozzle (1) Downstream chemical injector

Downloads

Product Manual

BUILT TO LAST

Constructed with a HEAVY-DUTY HEATING COIL wrapped in stainless steel and a forged brass manifold, this pressure washer is designed for durability and long-term use

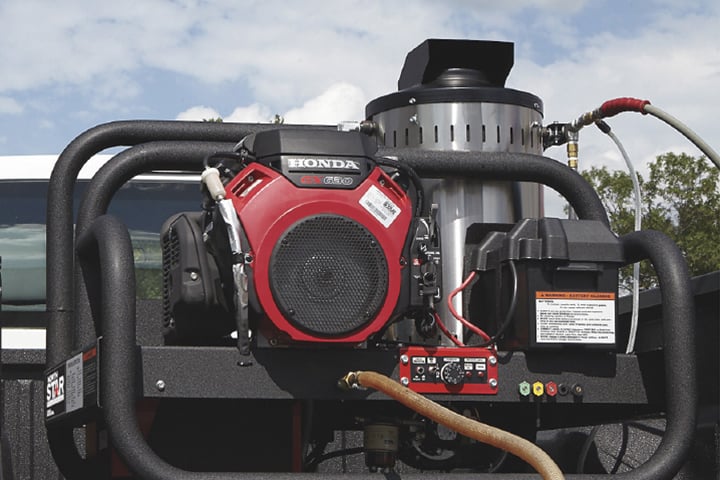

EXCEPTIONAL CLEANING POWER

Harness the robust 18 HP HONDA GX630 ENGINE and CAT direct drive pump combo, delivering 4,000 PSI of hot water to tackle the toughest cleaning jobs efficiently

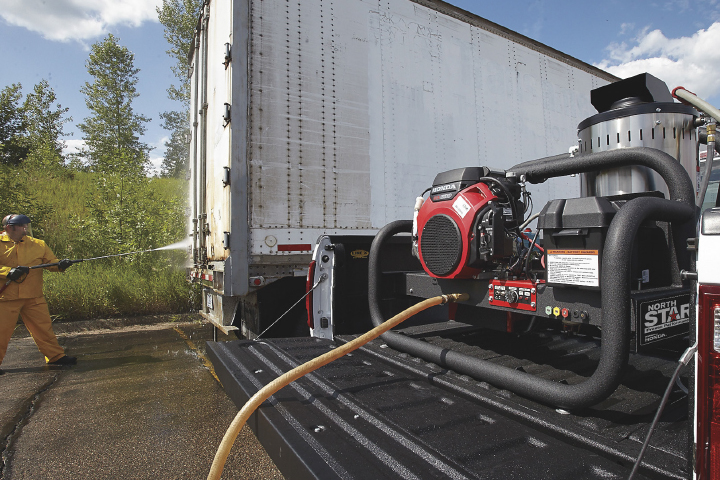

ADVANCED HEATING TECHNOLOGY

Its custom-molded ceramic fiber refractory combustion chamber maximizes HEAT RETENTION and efficiency, enabling CONSISTENT HIGH-TEMPERATURE water output

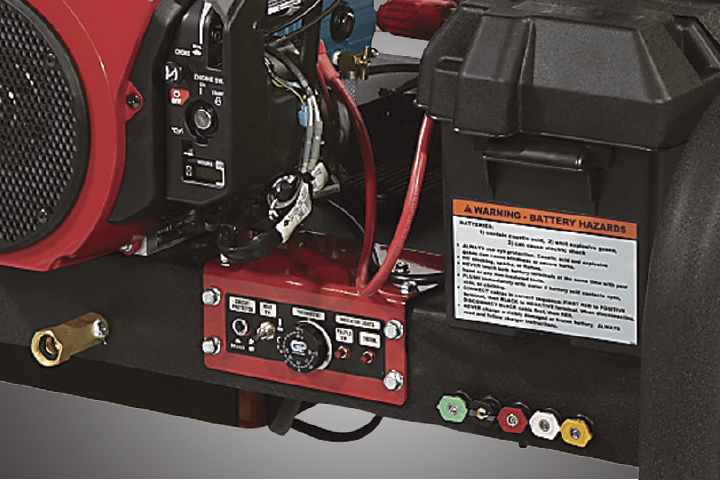

CONVENIENCE AND CONTROL

Features such as an ADJUSTABLE PRESSURE CONTROL, easy-start function, and a rear hose-entry spray gun make operation seamless, enhancing the user experience

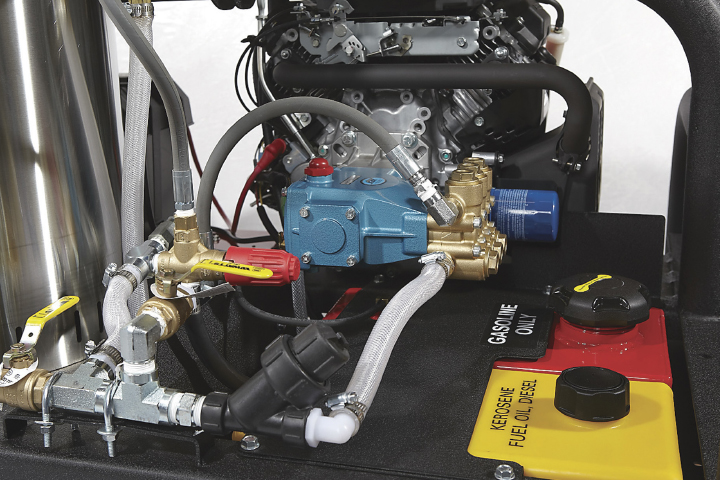

RELIABLE OPERATION

Equipped with a PARKER HANNIFIN RACOR FUEL FILTER and water separator, this machine ensures smooth operation by eliminating common burner ignition issues

Features + Benefits

  • Horizontal shaft engines last five times as long as vertical shaft engines
  • 1/2in. Schedule 80 heating coil with stainless steel wrap
  • Uses 1/2in. Schedule 80 extra-heavy pipe
  • Forged brass manifold gives improved strength over cheaper aluminum
  • Easy Start stops pressure build-up during start-up
  • Adjustable pressure for job versatility
  • Sight glass lets you quickly check pump oil
  • Control center with adjustable water temperature, diagnostic lights, hot or cold mode
  • Extras: safety relief, cast iron cylinder sleeve
  • Battery required (not included)

Key Specs

AttributeSpecification

item#

157594

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

550.0 LB

Pressure

4,000 PSI

Flow

4 GPM

Engine Model

GX630 V-twin

Engine Displacement

630 cc

Fuel Type

Gasoline

Pump

CAT 66dx

Drive Style

Direct

Adjustable Pressure

Yes

Gross Torque

29.2 ft-lbs.

Engine Oil Included

No

Engine Oil Type

SAE 30 Motor Oil
AttributeSpecification

Fuel Capacity

4 Gal

Max. Inlet Water Temp

140 °F

Max. Outlet Water Temp

210 °F

Orifice Size

4

Chemical Injector

Yes

Hose Length

50 ft

Coupler Size

3/8 in

Nozzle Type

0°, 15°, 25°, 40° and Soap

Quick Connect Nozzle

Yes

Pump Oil Included

Yes

Pump Oil Type

SAE 30 Nondetergent

Low Oil Shutdown

Yes

Thermal Protector

Yes

Product Weight

500.0000 lb

Dimensions L x W x H (in.)

47.0 x 37.5 x 42.0 in

Reviews

Questions & Answers

32 Reviews This action will navigate to reviews.

Questions

1–10 of 33 Questions
Sort by:

  1. Does this pressure washer skid, needs a separate water pump by conecting it to a water tank?

    1. It may not need a separate pump to run properly. The NorthStar Pressure Washer requires a constant 5 GPM minimum coming into the pump. If your tank can gravity feed 5 GPM or more, you don't need a pump. It you are less than 5 GPM you would need to use a pump.

      Helpful?

    2. It does not. Please refer to page 5 in the manual online that explains how to hook it to a water tank.

      Helpful?

    3. If you have at least 3/4 inch supply line you'll be ok.
      I feed my water into my tank, so the machine never starves for water.

      Helpful?

  2. Does this have a lift point on it where something like a hoist can be used to lift into a pickup bed?

    1. Yes it has a center lifting point I used a truss lifter for a skid steer to load in my enclosed trailer

      Helpful?

    2. This pressure washer has a lifting eye that can be used with a hoist to elevate or lower the pressure washer.

      Helpful?

  3. Is the low pressure chemical injection downstream from the pump?

    1. The pressure washer does include a downstream low pressure chemical injector.

      Helpful?

    2. Just bought the machine, and yes it is downstream from the pump and heater. This machine is a beast!!!!

      Helpful?

  4. how do i order a new coil assembly for this pessure washer ? m157594AN.3

    1 answer

    1. The coil assembly, part #790017, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  5. what are the shipping dimensions and weight of the pressure washer?

    1 answer

    1. The shipping dimensions of this pressure washer are 48" long x 42" wide x 42" high. The shipping weight is 550 lbs.

      Helpful?

  6. Will this run a 20 inch surface cleaner

    1 answer

    1. This pressure washer is capable of working with a 20" surface cleaner; however, different surface cleaners do have different minimum and maximum PSI and GPM requirements, so it is best to check the specifications of the surface cleaner to determine if this machine will work.

      Helpful?

  7. Where is the fuel shut off located on the unit

    1 answer

    1. This pressure washer is equipped with a fuel pump, so it does not require a shut off valve.

      Helpful?

  8. What size is the in line fuel filter

    1 answer

    1. The fuel filter has a 1/4" FNPT inlet and outlet port.

      Helpful?

  9. Does this Unit charge the battery on its own or do I need to hook it up to the Aux on the trailer?

    1 answer

    1. The engine on this unit has a high amp charging system to keep the battery charged and run the 12V burner.

      Helpful?

  10. Could someone give me a ballpark figure on fuel run times on this? Washer and burner, please. TYIA

    1 answer

    1. The burner and the engine have a consumption rate of 2 gallons per hour. The tanks are 4 gallons, so it would run for approximately 2 continuous hours.

      Helpful?
