NorthStar High-Pressure Pump, 3in. Ports, 10,550 GPH, 116 PSI, NorthStar e300 OHV Engine

Item# 1064713
Top Seller
NorthStar High-Pressure Pump, 3in. Ports, 10,550 GPH, 116 PSI, NorthStar e300 OHV Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar High-Pressure Pump, 3in. Ports, 10,550 GPH, 116 PSI, NorthStar e300 OHV Engine

Click or Tap image to Zoom

$999.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA

  • NorthStar e300 OHV fuel injection engine starts consistently and uses less fuel use than carbureted engines
  • Engine provides up to 2 hours of run time
  • Designed to push water to long distances or great heights
  • Multidirectional discharge port allows flexibility in routing hoses
  • High-performance silicon carbide seals outperform common aluminum oxide seals

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar High-Pressure Pump, 3in. Ports, 10,550 GPH, 116 PSI, NorthStar e300 OHV Engine
  • NorthStar Maintenance Kit for NorthStar 300CC Engine, 2 Qts. 10/30W Oil, 12-Oz. Fuel Additive, 1 Filter, 1 Spark Plug, Model# 805643
  • NorthStar 10W-30 4-Cycle Engine Oil, 1 Quart
  • GDI, METER, HOUR, GDI, ROUND W/RET., Model# N530-0200-8111
Price for all four:

$1112.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar High-Pressure Pump features a NorthStar e300 OHV Engine with fuel injection that uses less fuel and delivers more power than a carbureted engine. The NorthStar e300 OHV engine has been independent power train authority rated as equivalent to other leading commercial-grade engines after 1000 hours of rigorous testing. This high-pressure unit is ideal for sprinkler systems, remote area firefighting and washing down equipment. The multidirectional discharge port allows flexibility in routing hoses, and the efficient NorthStar® e300 OHV engine provides up to 2 hours of run time. The NorthStar uses high-performance silicon carbide mechanical seals that outperform common aluminum oxide seals. The durable fully welded 1 3/8in. steel roll cage frame is finished with Black powder-coat that holds up to jobsite abuse.

What's Included

    (1) High-pressure water pump

Downloads

Product Manual
Play Item Video

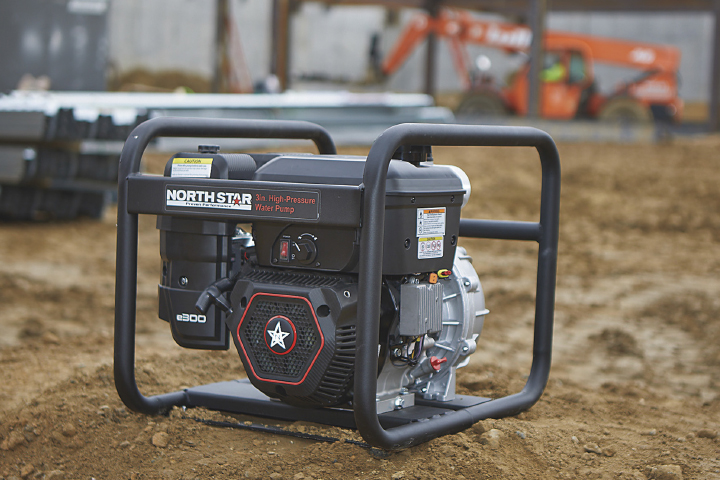

DEPENDABLE AND DURABLE

Designed for HEAVY-DUTY APPLICATIONS, this pump features mechanical seals and a cast iron construction that are engineered to last, especially suitable for handling clean water under high-pressure conditions

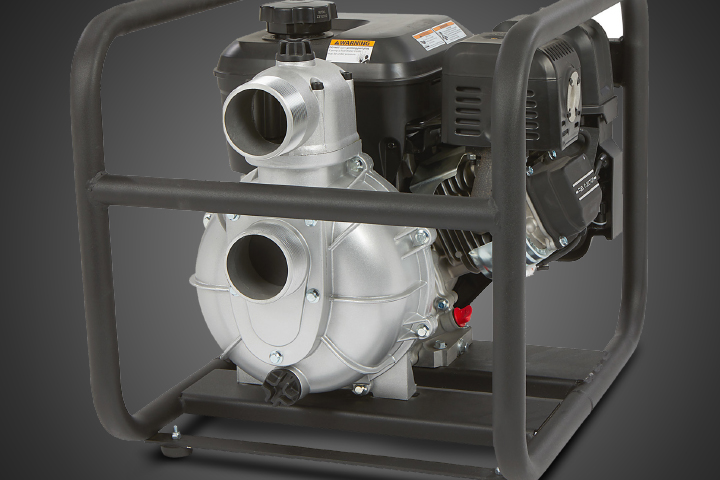

ENHANCED USABILITY

The MULTI-DIRECTIONAL DISCHARGE PORT and standard NPT threads allow for flexible installation options, while the check valve ensures the pump remains primed between uses, reducing startup issues

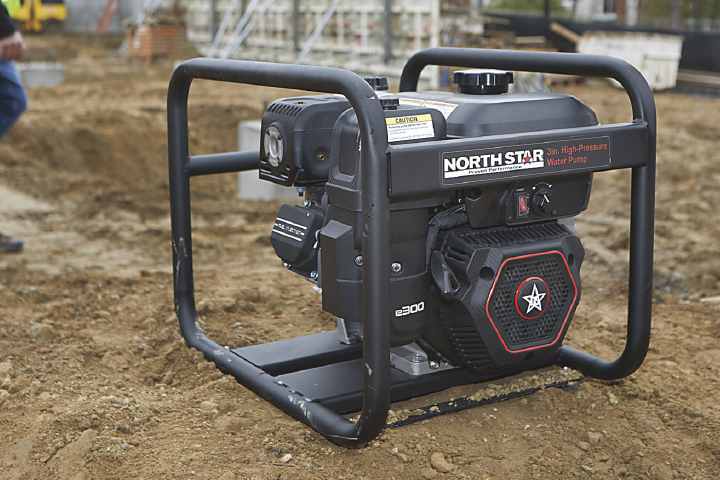

OPERATIONAL VERSATILITY

Whether it’s for agricultural irrigation, emergency firefighting or industrial cleaning, the pump’s design ensures it can handle DEMANDING TASKS WITH EASE

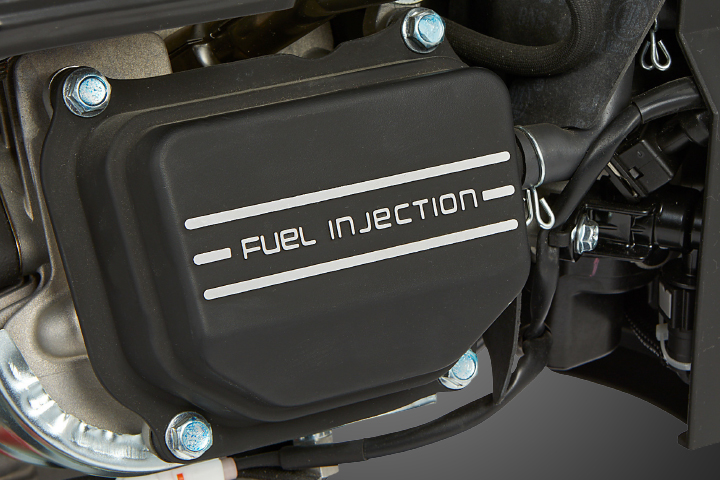

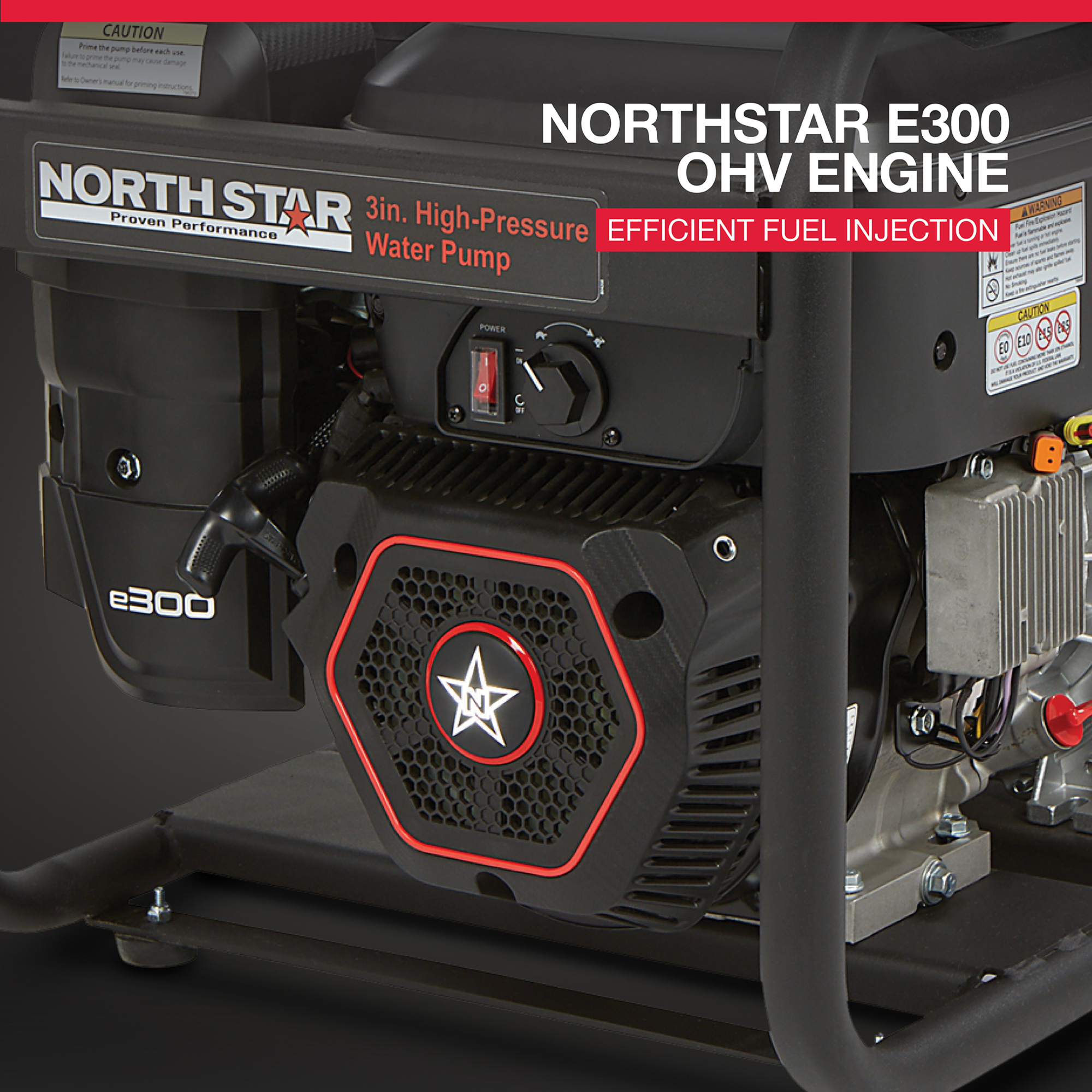

ENGINE EFFICIENCY AND POWER

The NorthStar e300 engine, with its FUEL INJECTION TECHNOLOGY, starts consistently and runs more efficiently, providing significant power output with reduced fuel usage

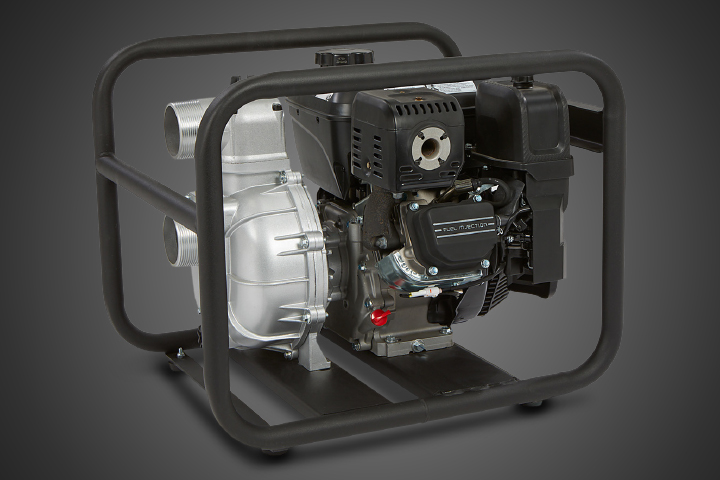

RUGGED FRAME PROTECTION

The STEEL ROLL CAGE not only PROTECTS THE ENGINE and PUMP components from physical impacts but also adds a level of security and longevity to the overall unit

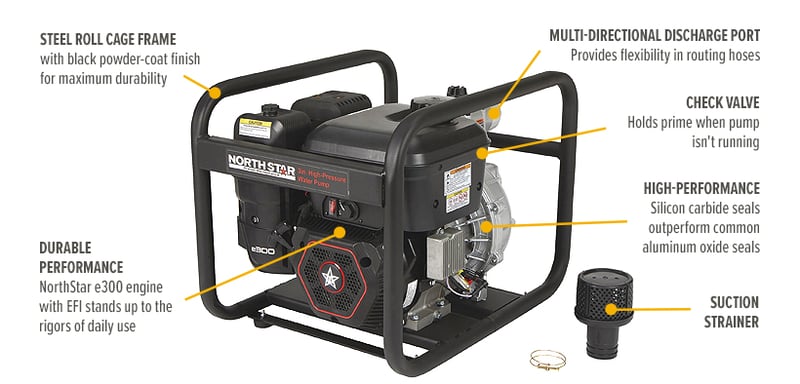

Features + Benefits

  • NorthStar e300 OHV fuel injection engine starts consistently and uses less fuel use than carbureted engines
  • Engine provides up to 2 hours of run time
  • Designed to push water to long distances or great heights
  • Multidirectional discharge port allows flexibility in routing hoses
  • High-performance silicon carbide seals outperform common aluminum oxide seals

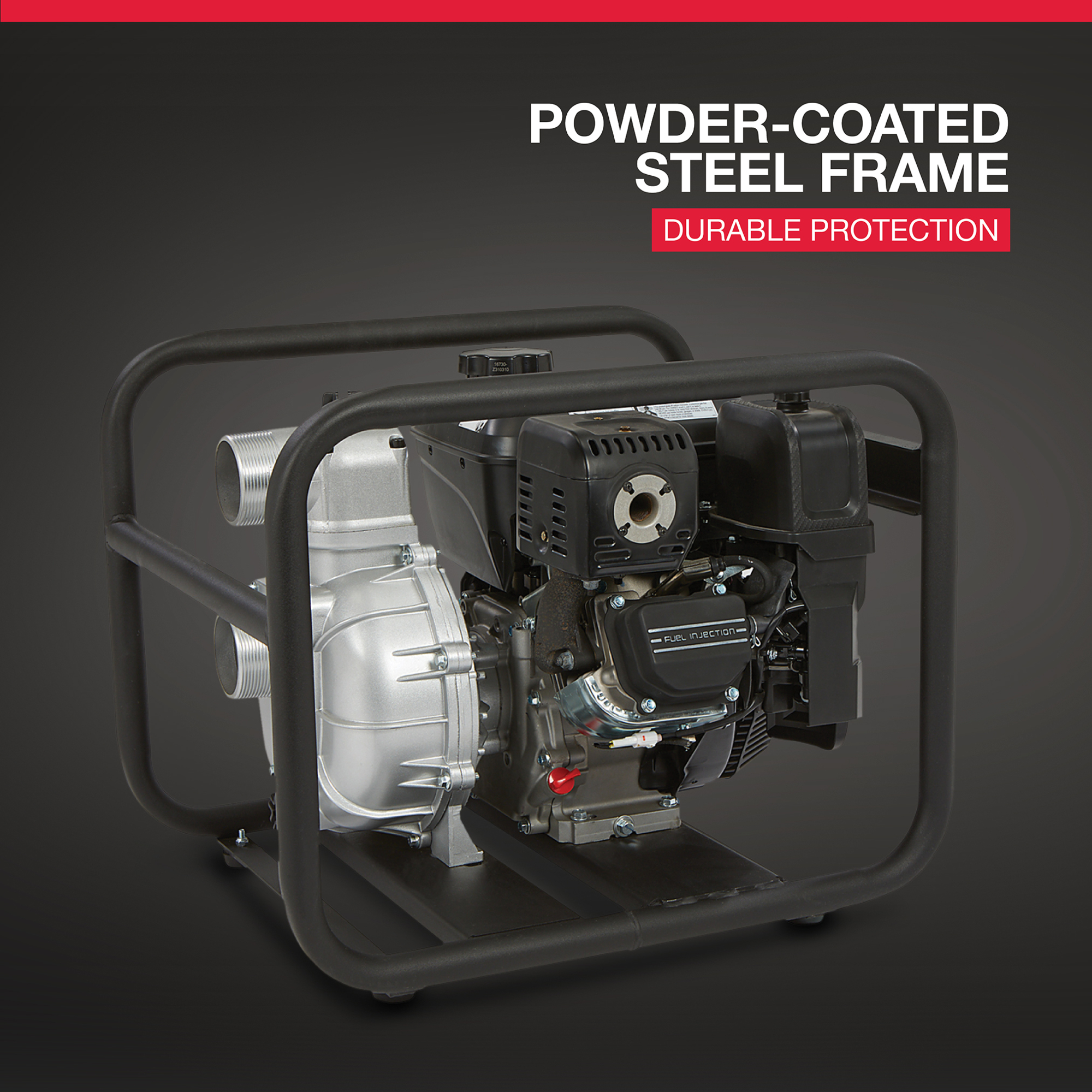

  • Durable fully welded 1 3/8in. steel roll cage frame with Black powder-coat finish
  • All sheet metal parts are cut using a state-of-the-art CO2 laser
  • Standard NPT threads for attachment flexibility
  • Check valve holds a prime while pump is not running

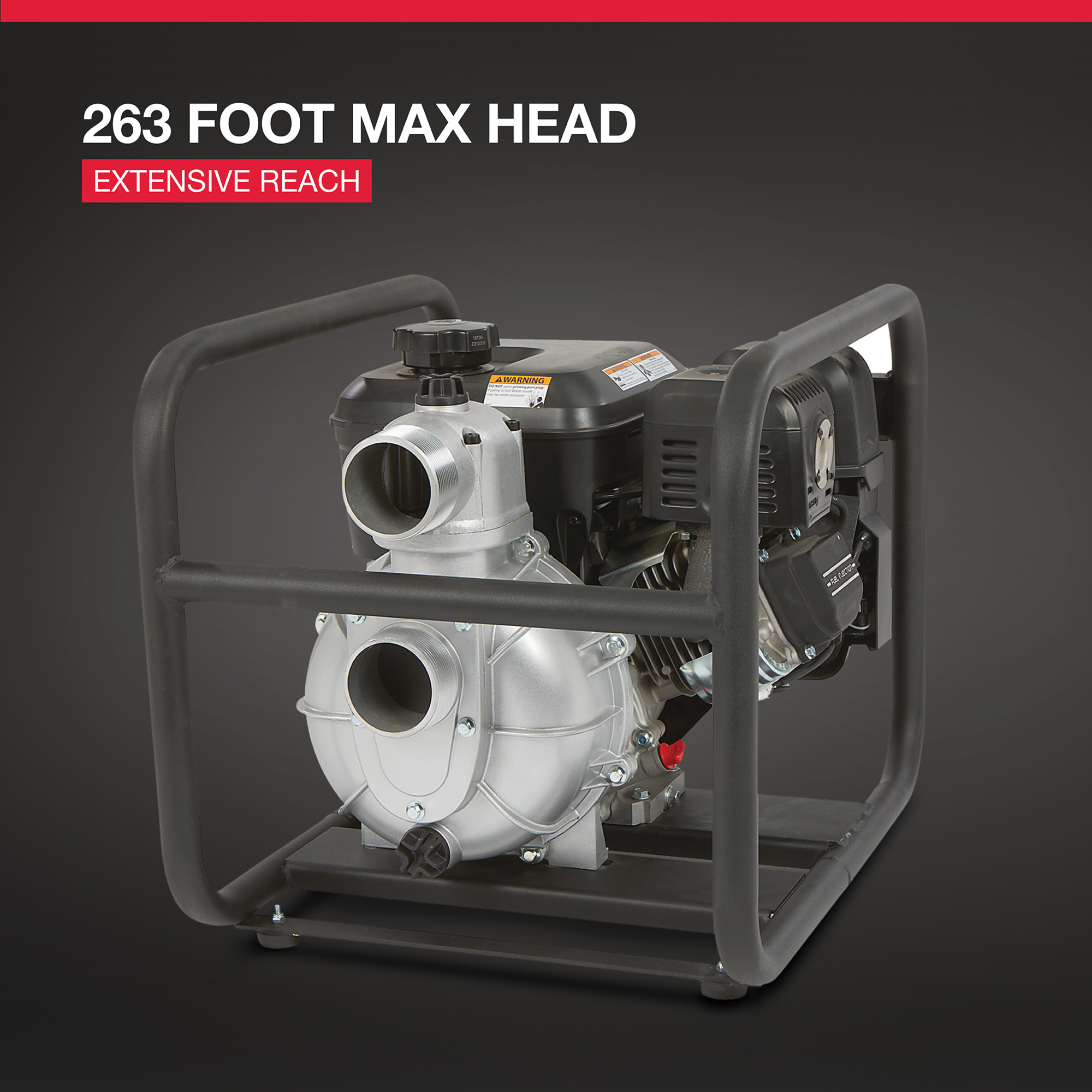

  • Clean water only; 263ft. max. head; 26ft. max. suction lift

Key Specs

AttributeSpecification

item#

1064713

Brand

NorthStar

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

80.0 LB

Max. Flow

10,550 GPM

Engine Displacement

301 cc

Engine Brand

Northstar

Port Size

3 in
AttributeSpecification

Max. PSI

116 PSI

Fuel Tank Capacity

1.87 Gal

Vertical Lift

26 ft

Housing Material

Steel

Engine Model

E300 OHV

Product Weight

80.0000 lb

Dimensions L x W x H (in.)

25.0 x 18.0 x 20.75 in

Reviews

Questions & Answers

34 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. How long do the 9v batteries last while pumping?

    1 answer

    1. The 9V batteries should last more than one year. Note that the batteries are only required for the initial startup, as they assist with priming the fuel system when it is dry. Once the system is primed, the engine will start without the batteries. If the engine sits unused for an extended period, the fuel system may need to be primed again, which could require multiple pulls of the starter rope or replacing the batteries if they are depleted.

      Helpful?

  2. How to add a remote fuel tank to the pump

    1 answer

    1. It is not recommended to add a fuel extender to this pump.

      Helpful?

  3. How in the world do you drain the fuel tank? There are no instructions in the manual. The only fuel line I can find runs to the air intake assembly and disconnecting that didn’t do anything.

    1 answer

    1. To drain the fuel tank, we recommend a siphon or a liquid evacuation pump that is rated for gasoline. Items 89085 and 6850858 are a couple of options we offer.

      Helpful?

  4. What is the gas cap thread size?

    1 answer

    1. The thread size is not provided as it is not standard. The fuel cap kit, part #805456, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  5. At what pressure is the 10,550 rated? and what is the flow rate at max pressure? Is there a performance curve available?

    1 answer

    1. A peak flow rate of 10,550 GPH is achieved at the maximum operating pressure of 116 PSI. Currently, no performance curve has been published.

      Helpful?

  6. It says multidirectional discharge port, does that mean you can rotate the discharge 90 degrees in either direction?

    1 answer

    1. The discharge port rotates 90° left or right. Cam-style quick couplers may require an extension to clear the frame.

      Helpful?

  7. Can you provide the thread type for inlet and outlet

    1 answer

    1. This pump has 3in. NPT suction and discharge ports.

      Helpful?

  8. this has a 3" discharge but most firehoses are 2.5" or smaller. Can I use a step down from the discharge into a 2.5" firehose? will that increase the distance that I can run hose? The input side would remain the 3" on a short hose pulling from a pool

    1 answer

    1. Reducing the outlet size is not recommended as it could cause pressure to build up inside the pump and damage it over time. Item 5819568 is a compatible 3" discharge hose for this pump.

      Helpful?

  9. Can you reduce this pump down to a 2” intake a 2” exit or will this damage the pump

    1 answer

    1. It is not recommended to reduce the discharge on the pump. This will increase the pressure and cause damage to the pump. Modifications to the pump will void the manufacturer's warranty.

      Helpful?

  10. What is the total head lift? And how much pressure out put?

    1 answer

    1. This pump has a maximum suction lift of 26 feet with a total head of 263 feet. The maximum output pressure is 116 PSI.

      Helpful?
