NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volt DC

Item# 99907
"NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volts"
On Sale
NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volt DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volt DC

Click or Tap image to Zoom

$479.99
Reg $499.99Save $20.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • High-Flow Boomless Broadcast and Spot Spraying Capability: Supports wide-area boomless spraying and targeted spot treatment for lawns, fields, fence lines and acreage applications
  • 26-Gallon Tank Capacity: Provides extended spray time with fewer refills for larger outdoor spraying tasks
  • 5.5 GPM, 60 PSI, 12V Diaphragm Pump: Delivers high-flow spraying performance for increased application speed and wider coverage capability
  • Demand-Style Pump Operation: Pump automatically cycles on and off as needed to maintain spraying pressure and reduce unnecessary pump operation
  • 320in. Broadcast Spray Width: Provides ultra-wide boomless coverage with 24in. overlap for more consistent chemical application

See full description

Complete Your Solution

  • NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volt DC
  • Valley Industries Flash Turbo Spray Gun - 5 to 15 GPM, 100 to 250 PSI, Model# SG-2200
  • 3M Paint and Pesticide Respirator - N95, NIOSH Approved, Model# 65021HA1A
Price for all three:

$584.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer is designed for high-capacity chemical application across lawns, fields and large outdoor properties. Featuring both boomless broadcast and spot spraying capability, this sprayer delivers ultra-wide coverage while allowing precise treatment of targeted areas. The 26-gallon tank reduces refill frequency, while the 5.5 GPM, 60 PSI, 12V NSQ Series diaphragm pump with DXS-3 Viton valves and Santoprene diaphragm provides high-flow spraying performance for faster application and increased coverage efficiency. A 320in. spray width, adjustable pressure regulator with integrated gauge and built-in agitation system help support consistent application results. Designed for ATV mounting, this sprayer also includes a 25ft. gun hose, adjustable spray gun nozzle, remote switch operation and integrated hose storage for added convenience and versatility in the field.

What's Included

    (1) NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer

Downloads

Product Manual
Play Item Video

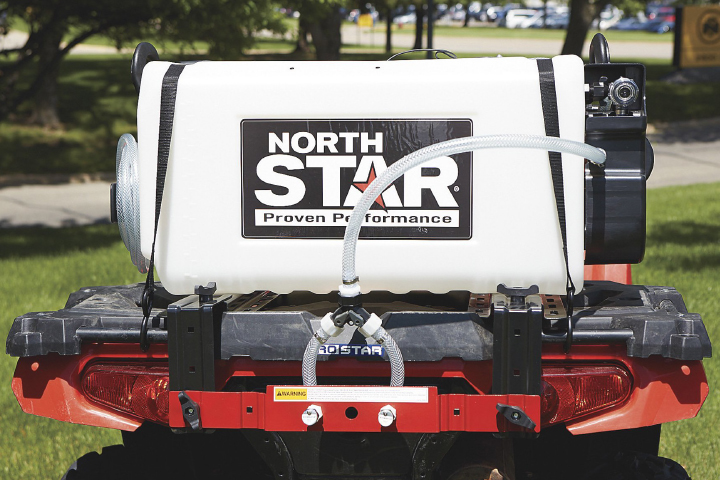

EFFICIENT COVERAGE

Designed to maximize your SPRAYING EFFICIENCY, REDUCING REFILL TIMES with its large capacity and broad spray reach

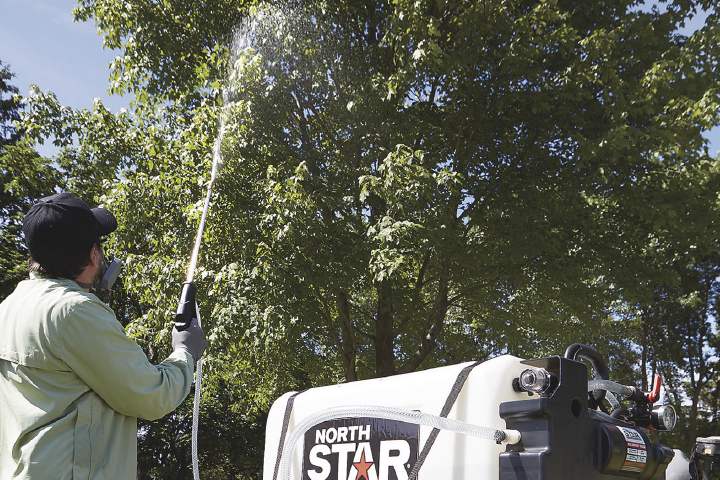

PRECISION AND VERSATILITY

Easily switch between broadcast and SPOT SPRAYING MODES to suit various application needs, from field treatments to TARGETED WEED CONTROL

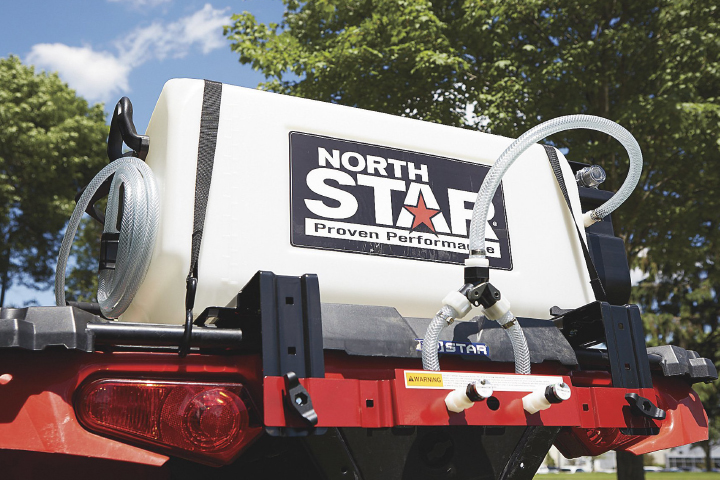

RELIABLE OPERATION

Built with high-quality, CHEMICAL-RESISTANT MATERIALS for LONG-LASTING PERFORMANCE and MINIMAL MAINTENANCE REQUIREMENTS

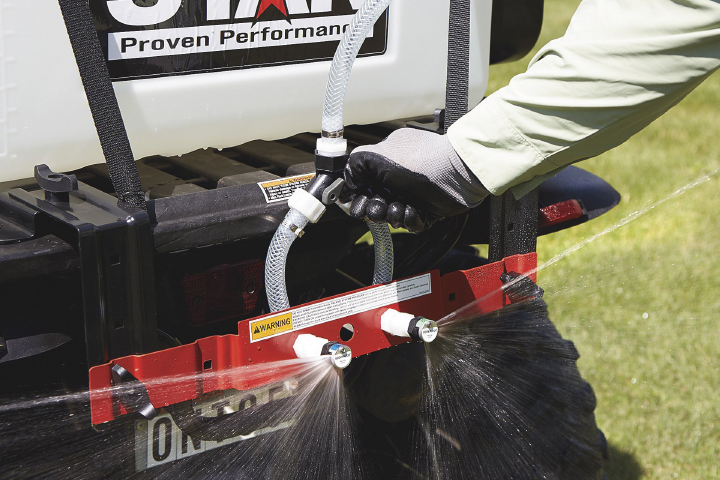

USER-FRIENDLY FEATURES

Includes a clear, REINFORCED HOSE for easy monitoring, a convenient IN-LINE SWITCH for quick operation and a large tank lid for HASSLE-FREE FILLING

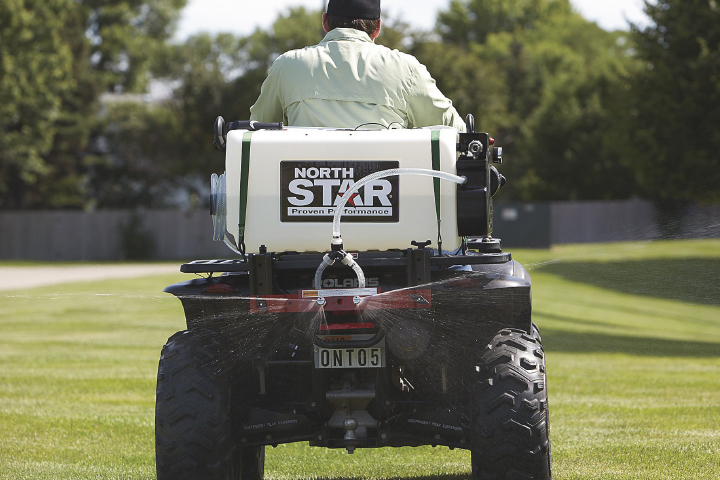

SAFE AND SECURE APPLICATION

Compatible with ROUNDUP® and other agricultural herbicides, featuring a BOTTOM-MOUNT DRAIN for easy cleaning and a pump that automatically shuts off at MAXIMUM PRESSURE for ENHANCED DURABILITY

Features + Benefits

  • High-Flow Boomless Broadcast and Spot Spraying Capability: Supports wide-area boomless spraying and targeted spot treatment for lawns, fields, fence lines and acreage applications
  • 26-Gallon Tank Capacity: Provides extended spray time with fewer refills for larger outdoor spraying tasks

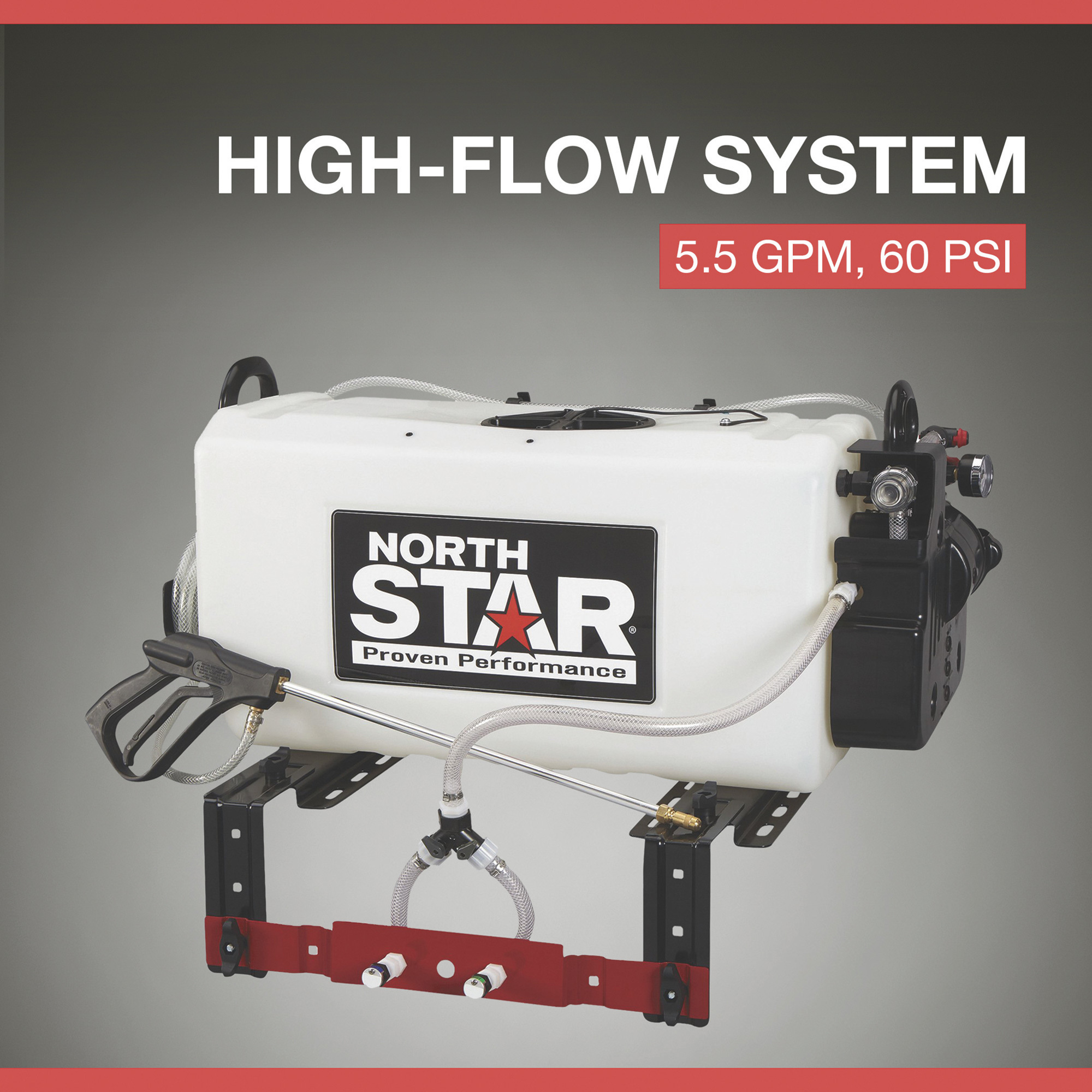

  • 5.5 GPM, 60 PSI, 12V Diaphragm Pump: Delivers high-flow spraying performance for increased application speed and wider coverage capability
  • Demand-Style Pump Operation: Pump automatically cycles on and off as needed to maintain spraying pressure and reduce unnecessary pump operation
  • 320in. Broadcast Spray Width: Provides ultra-wide boomless coverage with 24in. overlap for more consistent chemical application
  • Independent Left and Right Broadcast Nozzle Control: Separate broadcast nozzle valves allow operators to spray from the left side, right side or both sides for greater application flexibility

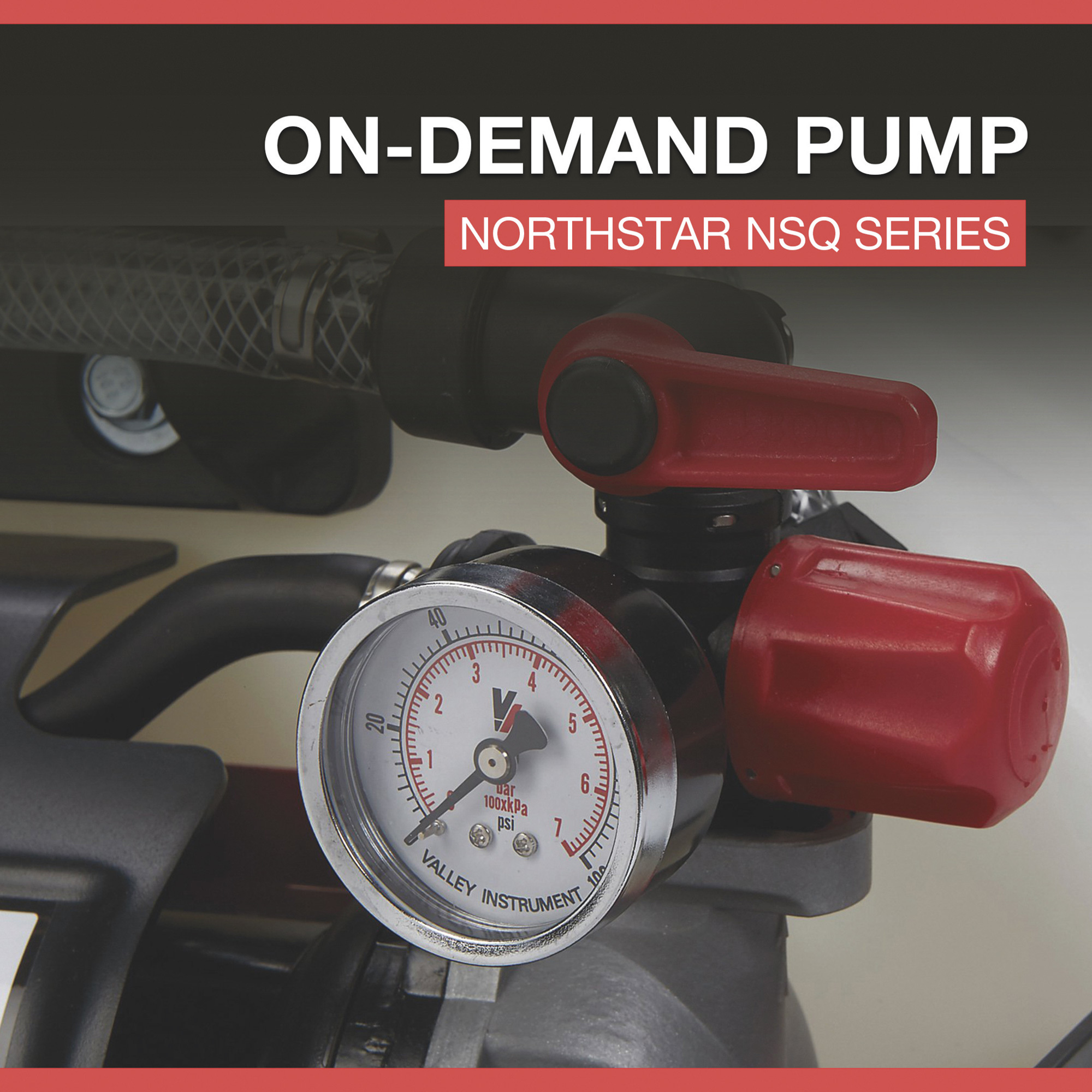

  • Pressure Regulator with Integrated 0–100 PSI Gauge: Allows operators to adjust and monitor spraying pressure for more accurate application control
  • Built-In Agitation System: Helps maintain consistent chemical mixing for flowable, wettable powder and emulsified pesticides
  • Broadcast and Spot Spraying Simultaneously: Allows operators to use both the broadcast nozzle and spot spray gun at the same time for increased application flexibility
  • Adjustable Spray Gun Nozzle: Twist nozzle adjusts from straight stream to hollow cone spray pattern for targeted application control
  • 15ft. Gun Hose: Provides extended reach for spot spraying around trees, fence lines and hard-to-reach treatment areas
  • Remote Switch with Wire Harness: Allows convenient pump control directly from the ATV seat during operation
  • Integrated Fill Marks and Vented Fill Cap: Molded tank markings help simplify chemical mixing while the vented cap maintains proper airflow during operation
  • Integrated Hose Wrap and Gun Clips: Built-in storage helps keep spray hose and spray gun organized during transport and storage
  • Clear-Bowl Suction Strainer: Helps prevent debris from entering the pump system for more reliable operation and easier maintenance
  • ATV Mount Design: Mounts securely to ATVs for efficient mobility across fields, trails and uneven terrain

Key Specs

AttributeSpecification

item#

99907

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

42.8 LB

Tank Size

26 Gal

Flow

5.5 GPM

Pressure

60 PSI

Boomless

Yes

Spray Height

22 ft
AttributeSpecification

Broadcast Width

40 ft

Spray Pattern

Cone, Stream

Spray Gun Type

Deluxe

Tow Behind Cart Included

No

Pump Type

Northstar Quick-connect

Hose Length

180 in

Product Weight

lb

Dimensions L x W x H (in.)

35.5 x 18.0 x 15.0 in

Reviews

Questions & Answers

106 Reviews This action will navigate to reviews.

Questions

1–10 of 32 Questions
Sort by:

  1. Is pump rated for surfactant?

    1. Yes

      Helpful?

    2. The sprayer is able to be used with surfactant.

      Helpful?

  2. Spray Time Question

    Is the rate of spray adjustable via the pressure control? How long will the 26 gallon tank last? I'm concerned that with a 5.5 GPM pump and a 26 gal tank that it would only last 5 minutes. What am I missing?
    Thanks for your help.

    1. The rate of spray IS adjustable via the pressure control knob on the 5.5gpm units. Boom spray calibration tables are included in the owners manual as a guideline, but you should always calibrate your own sprayer system. You are correct that a 26 gallon tank would last about 5 minutes. Keep in mind that at 8.3lbs/gal, 26 gallons of water weighs 216 lbs and the sprayer is 47lbs, so an ATV will be heavily loaded with a full tank and rider. If you need higher capacity, try a towed sprayer, or skid-mounted system in a truck bed.

      Helpful?

    2. This sprayer has a regulator, the regulator can control the pressure in the system. If the pressure in the system is reduced, the flow of chemical from the pump is bypassed back to the tank. If the pressure in the system is increased, more flow if forced out the nozzles.
      Yes, the spray rate can be adjusted with the regulator. If there is no restriction in the system (i.e. no spray gun or boom nozzles) the pump would pump 5.5 GPM and empty the tank in under 5 minutes. Also, with the regulator, the bypass fluid helps to keep chemical in the tank moving and flowing which aids mixing in the tank.

      Helpful?

  3. can this sprayer handle wettable powders like kaolin clay?

    1 answer

    1. This sprayer is compatible with wettable powders. The pressure regulator recirculates fluid back into the tank. Adjust the knob as needed to keep chemicals thoroughly mixed.

      Helpful?

  4. Can I order just this pump?  My tank is fine but my pump cracked.

    1 answer

    1. The replacement pump for this sprayer is item 2685562.

      Helpful?

  5. I would like to use this on my side by side. If I put this in the bed of the side by side will the brackets extend over the tailgate to prevent breaking the supports on the gate of my side by side.

    1 answer

    1. The tank mount brackets are 18-11/16" long front to back. It is best to measure the depth of the UTV bed and tailgate to determine if the brackets are long enough to extend beyond the tailgate.

      Helpful?

  6. I need a part for my sprayer. I need the plug housing on the sprayer that the battery wire plugs into

    1 answer

    1. The panel mount wire harness is part number 798618. We no longer sell parts through Northern Tool. To order, please contact our sister company Jacks Small Engine at the link provided. https://jackssmallengines.com/

      Helpful?

  7. Is the broadcast spray adjustable? If only want to do trails and want it 8 feet wide instead of 40 feet is that possible?

    1 answer

    1. The broadcast nozzles can be adjusted so that it only sprays from the right or left. The nozzles can also be mounted 24" - 48" above the ground. It will not spray as wide at the lower level; however, the spray width cannot be adjusted to 8' wide specifically.

      Helpful?

  8. How long of a hose can you use with this pump? The included hose is too short for my needs.

    1 answer

    1. You would be able to double the length of the 15ft hose that is included with the sprayer without loosing any pressure. Anything above that your pressure will start to drop. Please view item # 5000978 for additional hose. That is 3/8 inch x 25 ft clear vinyl tubing.

      Helpful?

  9. Would you need an additional battery in place of the regular atv battery to operate this sprayer?

    1 answer

    1. This sprayer is designed to be connected to the battery of the ATV it is mounted on. An additional battery is not required.

      Helpful?

  10. Where can I buy replacement the left and right boomless nozzles for this rig?

    1 answer

    1. The right boom nozzle, part number 777459 and the left boom nozzle, part number 777460, are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.
