Chapin EZ Mount ATV Spot Sprayer, 25-Gallon Capacity, 1 GPM, 12 Volts, Model# 97400E

Item# 108482
"Chapin EZ Mount ATV Spot Sprayer — 25-Gallon Capacity, 1 GPM, 12 Volts, Model# 97400E"
Chapin EZ Mount ATV Spot Sprayer, 25-Gallon Capacity, 1 GPM, 12 Volts, Model# 97400E

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chapin EZ Mount ATV Spot Sprayer, 25-Gallon Capacity, 1 GPM, 12 Volts, Model# 97400E

Click or Tap image to Zoom

$229.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

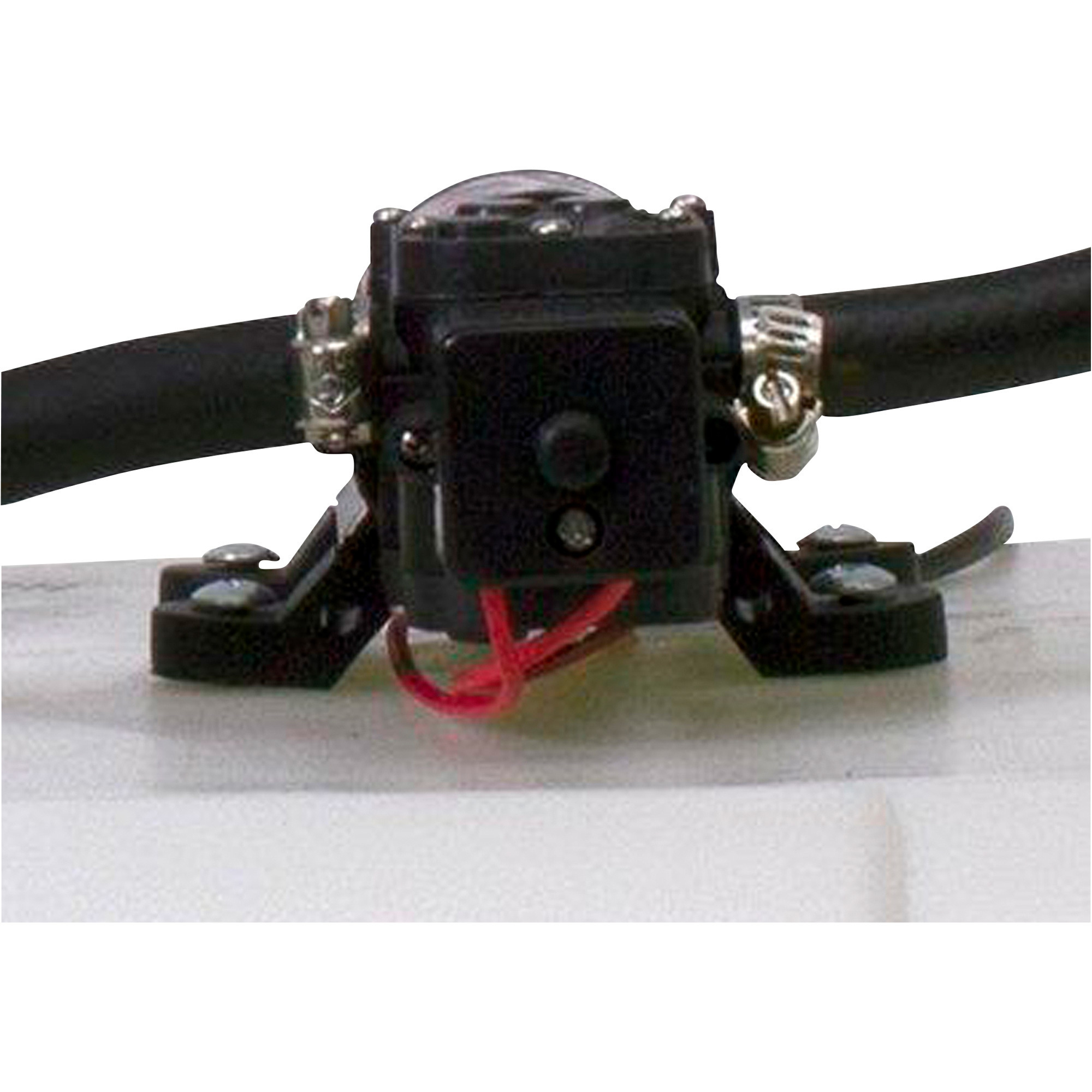

  • High-performance 12V, 1.0 GPM diaphragm pump with quick-connect alligator clips
  • Generates 40 PSI max. to deliver a 35ft. spray height; 25ft. spray distance
  • 25-gallon heavy-duty tank made of translucent material for easy level checks and a drain plug for easy cleaning

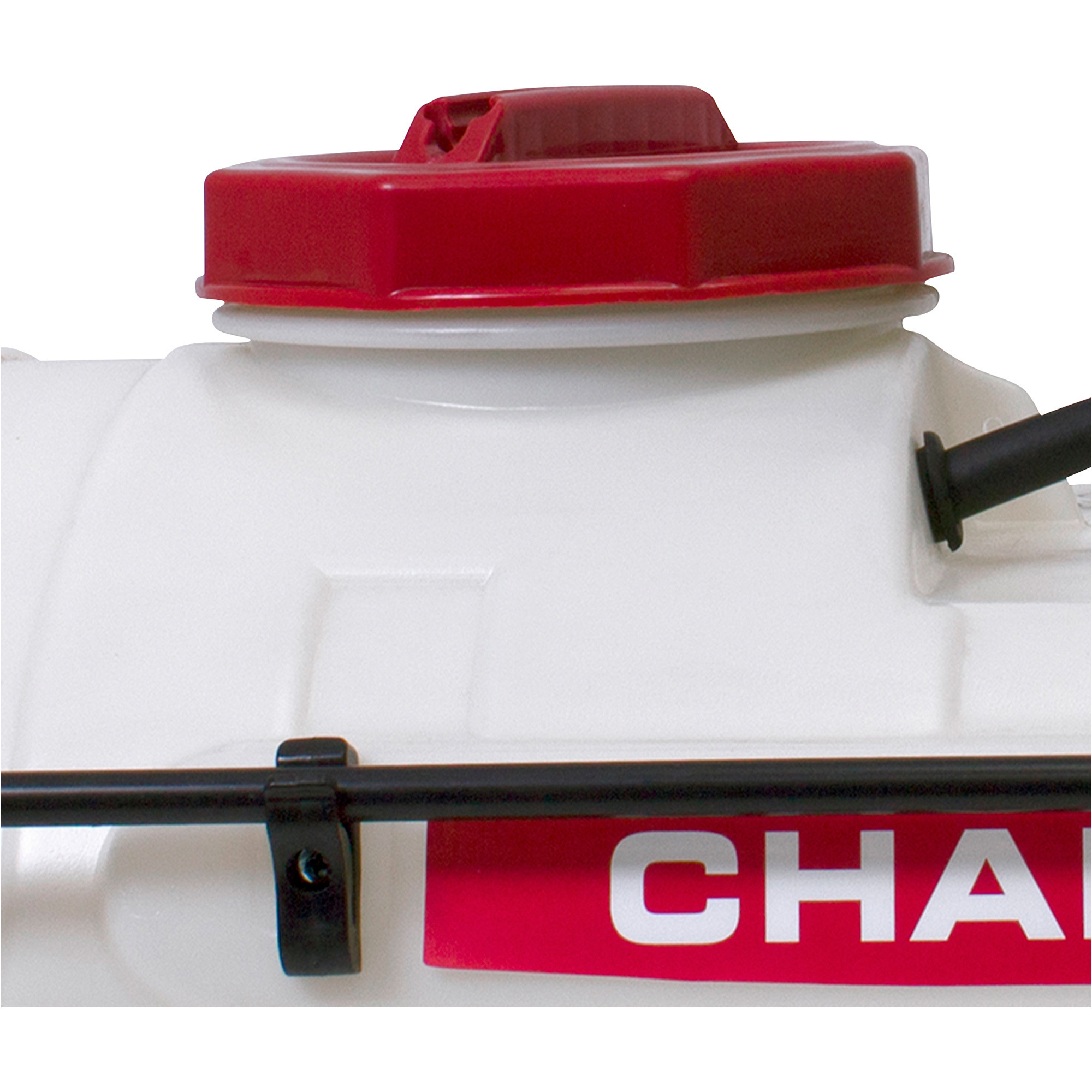

  • Large 5in. diameter tank lid for easy filling and mixing

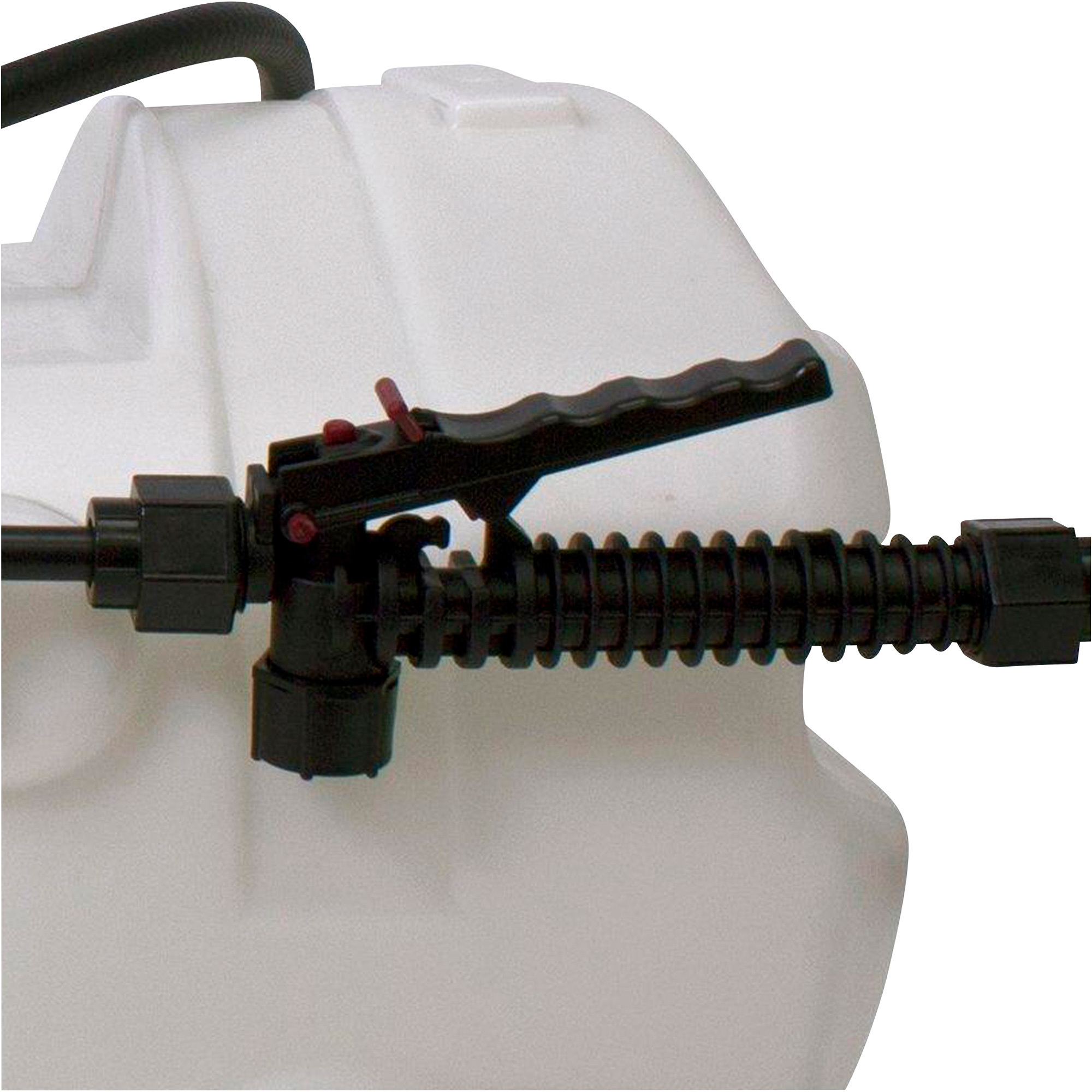

  • Includes 18in. spray wand with adjustable poly nozzle, shutoff with lock-on/off feature and 15ft. reinforced hose

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Chapin EZ Mount ATV Spot Sprayer is configured to easily mount on a standard ATV, UTV or lawn tractor and is compatible with common fertilizers, weed killers and pesticides. The sprayer has a 25-gallon heavy-duty, translucent, chemical-resistant tank with a 5in. wide tank opening for easy filling and mixing. A 1.0 GPM pump with quick connect alligator clips produces 40 PSI max., delivering a 35ft. max vertical spray and a 25ft. max horizontal spray. Features a triple filtration system that extends the life of the sprayer.

What's Included

    (1) Spot sprayer

Downloads

Product Manual
Play Item Video

Features + Benefits

  • High-performance 12V, 1.0 GPM diaphragm pump with quick-connect alligator clips
  • Generates 40 PSI max. to deliver a 35ft. spray height; 25ft. spray distance
  • 25-gallon heavy-duty tank made of translucent material for easy level checks and a drain plug for easy cleaning
  • Large 5in. diameter tank lid for easy filling and mixing
  • Includes 18in. spray wand with adjustable poly nozzle, shutoff with lock-on/off feature and 15ft. reinforced hose
  • Has a manifold with pressure gauge for fast pressure checks
  • Compatible with common fertilizers, weed killers and pesticides

Key Specs

AttributeSpecification

item#

108482

Brand

Chapin

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23.4 LB

Tank Size

25 Gal

Flow

1 GPM

Pressure

40 PSI

Spray Height

35 ft

Broadcast Width

25 ft

Tank Material

Poly
AttributeSpecification

Spray Pattern

Cone

Spray Gun Type

Wand

Nozzles (qty.)

1

Wand Length

18 in

Tow Behind Cart Included

No

Pump Type

Diaphragm

Hose Length

180 in

Product Weight

38.2000 lb

Dimensions L x W x H (in.)

29.75 x 18.6 x 18.4 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Can hose be splice into existing hose to make it longer?

    1 answer

    1. Another hose could not be spliced into the existing hose to make it longer.

      Helpful?

  2. Can you add an boom to this unit?  If so which one?

    1 answer

    1. A boom arm may not be added to this sprayer, please view item 99906 for a similar model with a boom.

      Helpful?
