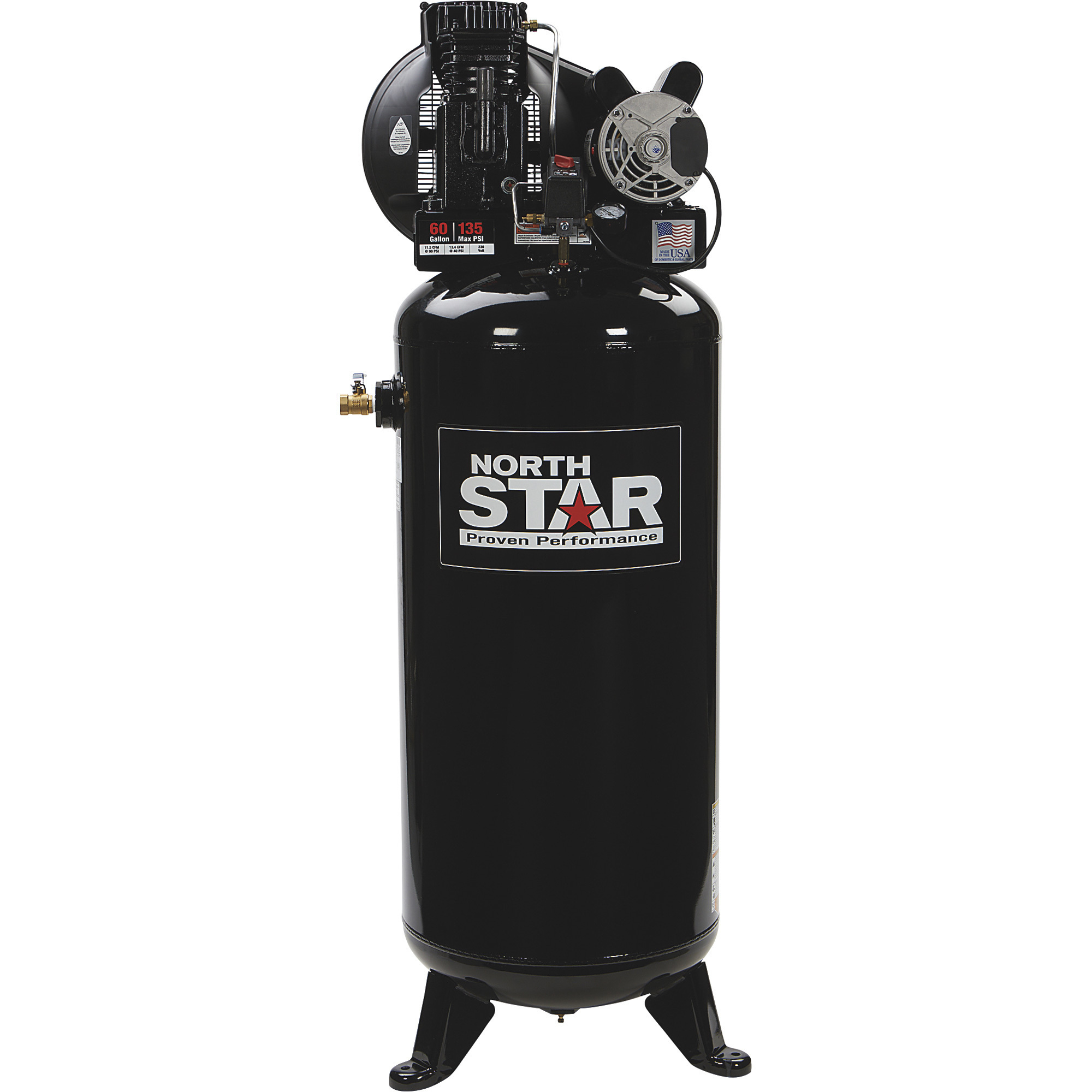

NorthStar Electric Air Compressor, 3.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank

Item# 75711
NorthStar Electric Air Compressor, 3.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Electric Air Compressor, 3.7 HP, 230 Volt, 1 Phase, 60-Gallon Vertical Tank

Click or Tap image to Zoom

  • Durable cast iron oil-lubricated pump has 1-piece cast iron crankcase and full cast iron cylinder body
  • Durable Swedish stainless steel reed valves deliver long service life
  • 2-cylinder design for low heat transfer between cylinders
  • Heavy-duty 230V induction motor runs at 3,450 RPM for maximum performance and efficiency
  • 60-gallon ASME-certified vertical tank provides more air for longer run times on air tools such as ratchets, impact wrenches, spray guns, hammers and more

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar 3.7 HP, 60-Gallon Electric Air Compressor is built with a heavy-duty 230V induction motor for maximum performance and efficiency. 1-piece cast iron oil-lubricated pump with durable Swedish stainless steel reed valves delivers long service life. Its 2-cylinder design offers low heat transfer between cylinders. Large 60-gallon ASME air tank provides more air for longer run times on air tools. This compressor is made for mechanical shops, livestock operations and service truck applications, with heavy-duty components built to last under the most demanding conditions. This air compressor must be plugged into an outlet by itself; additional items sharing the outlet will impact the performance of this device.

What's Included

    (1) Electric air compressor with 60-gallon vertical tank

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Durable cast iron oil-lubricated pump has 1-piece cast iron crankcase and full cast iron cylinder body
  • Durable Swedish stainless steel reed valves deliver long service life
  • 2-cylinder design for low heat transfer between cylinders
  • Heavy-duty 230V induction motor runs at 3,450 RPM for maximum performance and efficiency
  • 60-gallon ASME-certified vertical tank provides more air for longer run times on air tools such as ratchets, impact wrenches, spray guns, hammers and more
  • Pump runs at 920 RPM
  • Oil sight gauge for easy visual oil checks
  • 12in. cast iron balanced flywheel
  • Aluminum head and valve plate
  • Automotive style ball bearings
  • 135 max. PSI air pressure for optimum tool performance
  • Large 3/4in. air outlet port
  • Equipped with pressure gauge and on/off switch
  • Shipped with synthetic oil for top performance and long life
  • Air compressor must be plugged into an outlet by itself; additional items sharing the outlet will impact the performance of this device

Key Specs

AttributeSpecification

item#

75711

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

216.0 LB

Air Tank Size

60 Gal

Volts

230

CFM at 90 PSI

11.5

Motor Phase

1

Stage

1

Horsepower

3.7 HP

Max. PSI

135

Air Outlets (qty.)

1

Amps

15

Duty Cycle

75 %
AttributeSpecification

Motor RPM

3,450

Working Pressure

135 PSI

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

13.4

Noise Level

80 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Other

Tank Fill Time

6.3 min

Drain Type

Ball Valve

Product Weight

247.0000 lb

Dimensions L x W x H (in.)

31.0 x 27.0 x 70.0 in

Reviews

Questions & Answers

149 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. What kind of warranty does this unit have?

    1. This compressor has a 4-year consumer/2-year commercial limited warranty. Complete details of this warranty begin on page 34 of the product manual, which can be found on the product web page.

      Helpful?

    2. 4 Yr Consumer/2 Yr Commercial

      Helpful?

  2. Where is this made

    Does northern have parts for this compressor?

    1. This NorthStar air compressor is made in the USA. Part numbers are listed in the product manual, located on the product web page, on pages 29 - 33. These parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability. Add the letters MAT before the part numbers when searching on their site.

      Helpful?

    2. Made in usa

      Helpful?

  3. Can compressor be wired to 208 volt power?

    1 answer

    1. The air compressor can be wired for 230 volt only.

      Helpful?

  4. What’s the noise decimals for this unit

    1 answer

    1. This NorthStar air compressor has a decibel rating of 80 dB.

      Helpful?

  5. What sizes of air hoses are required for this machine? Thank you.

    1 answer

    1. The hose will need to have a 3/4" NPT connection. Please view item 406731 for a compatible hose.

      Helpful?

  6. Is this unit powder coated?

    1 answer

    1. The air compressor would be powder coated.

      Helpful?

  7. What size circuit breaker is required?

    1 answer

    1. A 30 Amp circuit breaker is required.

      Helpful?

  8. How is pump life measured? it measured when the pump is actually putting air into the tank or when you are actually using the compressor? 1500 hour pump life doesn’t seem like a lot.

    1 answer

    1. Run time is anytime the pump is running, both when in use and when filling the tank.

      Helpful?

  9. Is the pump life really 1,500 hrs or is this a typo?

    1 answer

    1. The pump life is rated at 1,500 hours with a 75% duty cycle.

      Helpful?

  10. Is this 2 stage? Description says 2 cylinders but picture only shows 1.

    1 answer

    1. This is a single stage, 2-cylinder air compressor.

      Helpful?
