NorthStar e420 EFI Horizontal OHV Engine with Electric Start, 420cc, 1in. x 3.48in. Shaft

Item# 114656
NorthStar e420 EFI Horizontal OHV Engine with Electric Start
NorthStar e420 EFI Horizontal OHV Engine with Electric Start, 420cc, 1in. x 3.48in. Shaft

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar e420 EFI Horizontal OHV Engine with Electric Start, 420cc, 1in. x 3.48in. Shaft

Click or Tap image to Zoom

  • OHV overhead valve design
  • CDI ignition system with electric start and recoil backup
  • Bolt circle: 5in. and 6.5in.
  • Mounting base: 7.7in.L x 3.38in.W (approx.)
  • Cast-iron cylinder sleeve reduces bore wear to extend engine life and reduce emissions and oil consumption

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar e420 EFI Horizontal OHV Engine with Electric Start is designed for the most demanding commercial applications. The 1000-hour engine provides enough power to run a wide range of equipment, including log splitters and pressure washers. This engine is reliable, easy starting and meets EPA emission standard levels across 49 states. The NorthStar e420efi is a great replacement engine for: Honda: GX340, (389cc), GX390, (389cc), Briggs & Stratton: XR1650, (420cc), XR2100, (420cc), Kohler: CH440, (429cc), ECH440, (429cc), ECH440LE, (429cc), Powerhorse: 420cc Yamaha: MZ360, (357cc), MX360, (358cc), MX400, (402cc).
Replacement compatibility may vary based on engine shaft, mounting plate, dimensions, and other specifications. Always verify specifications prior to purchase. Please see product manual for additional information.

What's Included

    (1) e420 EFI Horizontal OHV Engine (1) Sparkplug wrench

Downloads

Product Manual
Play Item Video

Features + Benefits

  • OHV overhead valve design
  • CDI ignition system with electric start and recoil backup
  • Bolt circle: 5in. and 6.5in.
  • Mounting base: 7.7in.L x 3.38in.W (approx.)
  • Cast-iron cylinder sleeve reduces bore wear to extend engine life and reduce emissions and oil consumption
  • Easy-to-install model for small engine needs
  • EFI carburetor allows for fuel efficiency and easy starting in all weather conditions
  • Heavy-duty 6.2L metal fuel tank
  • LED illuminated push-button start
  • USDA forestry approved
  • Spark Arrestor
  • Forged-steel crankshaft for superior strength in high-torque PTO applications
  • Dual ball bearings reduce friction and wear, delivering smooth operation and longer life
  • Internal oil splash enhancement system delivers extra lubrication
  • Sound pressure balanced muffler
  • Black aluminum alloy cylinder head cover
  • All-metal camshaft
  • Upgraded deep-groove ball bearing
  • Low oil shutdown turns engine off if it runs low on oil, preventing serious damage or failure
  • Pleated paper air filter and foam pre-cleaner for superior protection from harmful debris

Key Specs

AttributeSpecification

item#

114656

Brand

NorthStar

Manufacturer's Warranty

5 year limited warranty

Ship Weight

94.4 LB

Engine Displacement

420 cc

Engine Type

OHV

Shaft Diameter

1 in

Shaft Diameter Metric

25.4 mm

Shaft Length

3.48 in

Shaft Length Metric

88.5 mm

Start Type

Electric and Recoil

Shaft Keyway

2 13/64 in

Net Torque

25 ft-lbs.

Crankshaft

SAE J609 EXT 4 Straight Keyed Shaft Dia.: 25.4mm (1 In.)

Cylinders (qty.)

1

Cylinder Bore

3.54in.

Net Power Output

9.8 HP

Compression Ratio

8.5:1

Fuel Tank

Yes

Fuel Tank Capacity

6.55 qt
AttributeSpecification

Oil Capacity

1.16 qt

Low Oil Shutdown

Yes

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Yes

Ignition System

CDI

Carburetor

EFI

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

3.54 in

Stroke

2.6 in

Air Cleaner Type

Foam + paper

Throttle Control

Adjustable

Charging System Amps

3

Muffler Included

Yes

Bolt Circle

5 and 6.5 in in

Mounting Base Length

7.7 in

Mounting Base Width

3.38 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. what is the RPM on this. i am replacing a Honda GX270 (270cc) engine which rotates at 3,600 RPM

    1. This engine will run at a maximum of 3600 RPM.

      Helpful?

    2. all standard ope engines have a max rpm of 3600 rpms.

      Helpful?

    3. 3600 rpm, when you can get it to run.

      Helpful?

  2. Engine Oil Capacity?

    1 answer

    1. This engine has a 1.16 quart oil capacity.

      Helpful?

  3. Would this run e10, e15, e30, e85 ethanol?

    1 answer

    1. This engine will not run E15, E30 or E85 ethanol. The fuel used should not contain more than 10% ethanol.

      Helpful?

  4. Could this work for a air compressor

    1 answer

    1. This engine can be used to power an air compressor. Its horsepower, torque, shaft configuration, and commercial-grade build quality suit the demands of both small portable and heavy-duty compressor pumps. Just be sure to set up the correct pulley ratio, confirm shaft and rotation compatibility, and utilize proper throttle/unloader control for safe operation.

      Helpful?

  5. Is this engine equipped with reverse

    1 answer

    1. This engine only rotates counter clockwise as seen from the PTO shaft.

      Helpful?

  6. How many amps does it charge at?

    1 answer

    1. The charging system is rated at 3 amps.

      Helpful?

  7. could this motor be installed to a go-cart with a wire throttle ?

    1 answer

    1. This engine does come with an option for a throttle cable.

      Helpful?

  8. Where can I buy parts for my e420 efi. Looking for a new throttle control with start stop button.

    1 answer

    1. For assistance with identifying part numbers, please contact our NorthStar Department by calling 1.800.270.0810.

      Parts for this engine will be available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  9. Does the stated specification width of 14.57in for the e420 include the length of the shaft sticking out, or is that additional?

    1 answer

    1. The overall dimensions including the shaft are 20.28" L x 14.57" W x 18.31" H.

      Helpful?

  10. is it possible to get remote stop start throttle controls for this engine ?

    1 answer

    1. At this time, we do not offer a remote stop/start throttle control for this engine.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Motor Oil + Transmission Fluids
NorthStar 10W-30 4-Cycle Engine Oil, 1 Quart
4.7 out of 5 stars. 3 reviews

NorthStar 10W-30 4-Cycle Engine Oil, 1 Quart

Item # 115086

$7.99
See All Hour Meters + Gauges

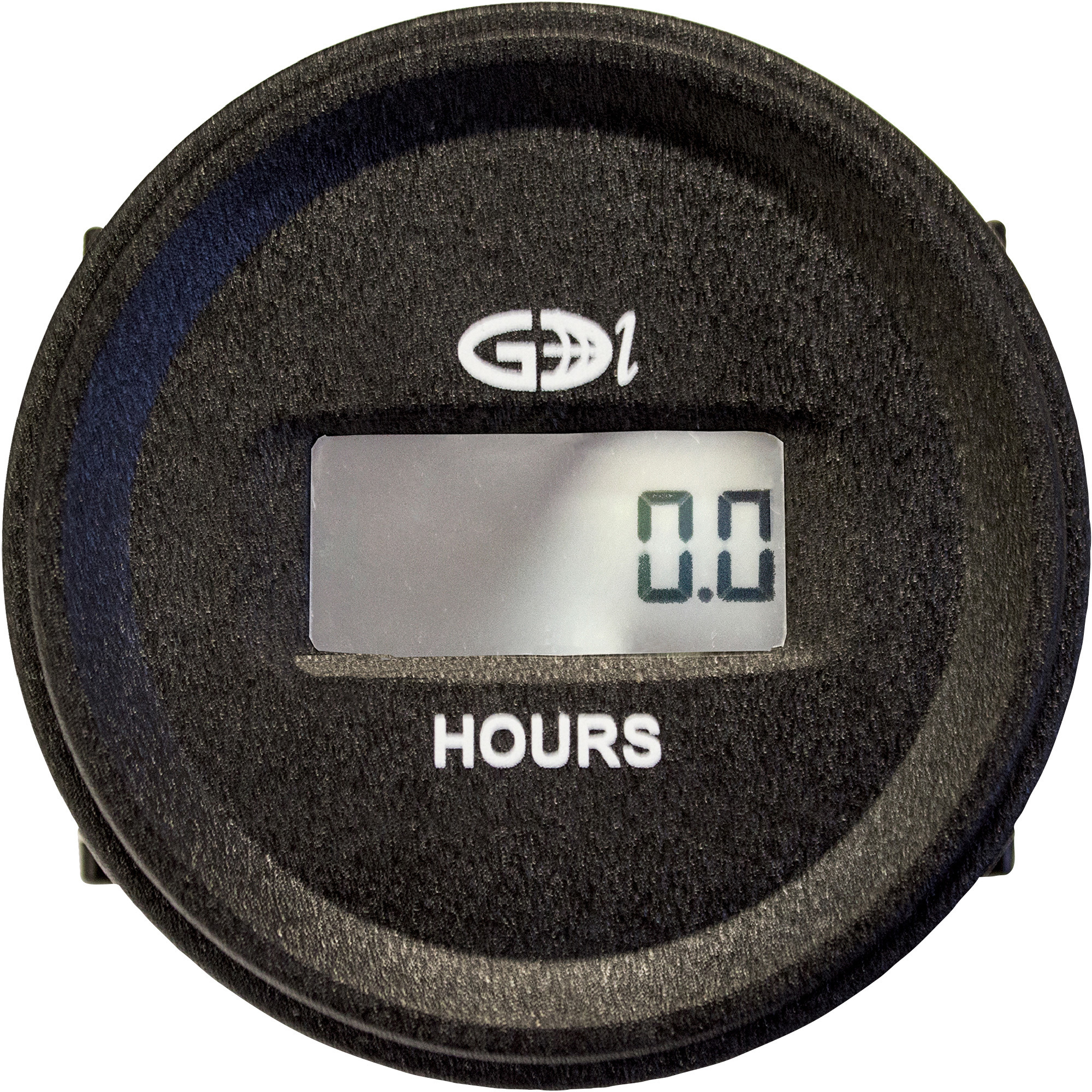

GDI, METER, HOUR, GDI, ROUND W/RET., Model# N530-0200-8111
