The engine would be rated at 5.5 horsepower (HP).

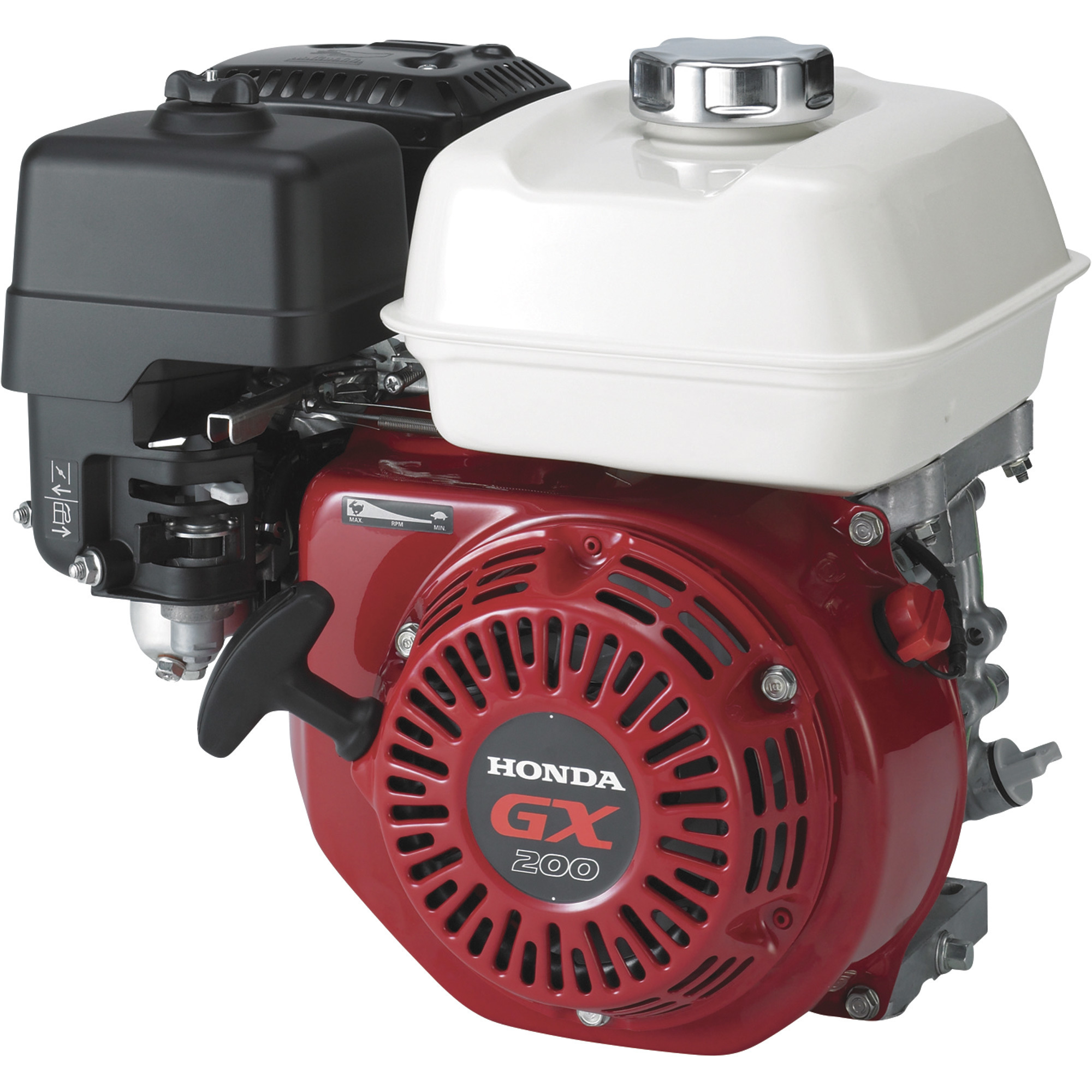

Honda Engines, HONDA GX200 OHV ENGINE 7AMP, Engine Displacement 196 cc, Engine Type GX Series OHV, Shaft Diameter 3/4 in, Model# GX200UT2XQG2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$699.99
- OHV design offers cooler, fuel-efficient operation
- Cast iron cylinder sleeve provides a longer service life
- Ball bearing supported crankshaft
- Dual stage air cleaner system
- Not for sale in CA
See full description
Price for all three:
$750.97
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, HONDA GX200 OHV ENGINE 7AMP, Engine Displacement 196 cc, Engine Type GX Series OHV, Shaft Diameter 3/4 in, Model# GX200UT2XQG2
Honda Engines, V-TWIN HORIZONTAL 688CC RQAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF
Honda Engines, V-TWIN HORIZONTAL 630CC RQAF1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF1
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Engine Displacement
Same
196 cc
688 cc
688 cc
688 cc
Engine Type
Same
GX Series OHV
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Shaft Diameter
Same
3/4 in
1 in
1 in
1 in
Shaft Length
Same
2.43 in
2.9 in
2.9 in
2.9 in
Start Type
Same
Recoil
Electric
Electric
Electric
Shaft Keyway
Same
0.18 in
0.25 in
0.25 in
0.25 in
Net Torque
Same
9.1 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Crankshaft
Same
Q-type
Q-type
Q-type
Q-type
PTO Height
Same
4.17 in
5.25 in
5.25 in
5.25 in
Cylinders (qty.)
Same
1
2
2
2
Cylinder Bore
Same
Cast Iron
Integrated
Integrated
Integrated
Net Power Output
Same
5.5 HP
20.8 HP
20.8 HP
20.8 HP
Compression Ratio
Same
8.5 : 1
9.3:1
9.3:1
9.3:1
Fuel Tank
Same
Yes
No
No
No
Fuel Tank Capacity
Same
3.3 qt
-
-
-
Oil Capacity
Same
0.63 qt
2 qt
2 qt
2 qt
Low Oil Shutdown
Same
Yes
-
-
-
Low Oil Alert
Same
Yes
Yes
No
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Mechanical
Mechanical
Mechanical
Ignition System
Same
Recoil Start 7 A Charge System
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Carburetor
Same
Float
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
Lubrication System
Same
Splash
Full Pressure
Full Pressure
Full Pressure
Bearing Type
Same
Ball
-
-
-
Auto Compression Release
Same
Yes
-
-
-
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.7 in
3.1 in
3.1 in
3.1 in
Stroke
Same
2.1 in
2.8 in
2.8 in
2.8 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Dual Element
Choke Control
Same
Manual
Remote
Manual
Remote
Throttle Control
Same
Remote
Remote
Manual
Remote
Charging System Amps
Same
7
20
17
3
Muffler Included
Same
Yes
No
No
No
